Toyota COROLLA 车内灯 — Figure 8121

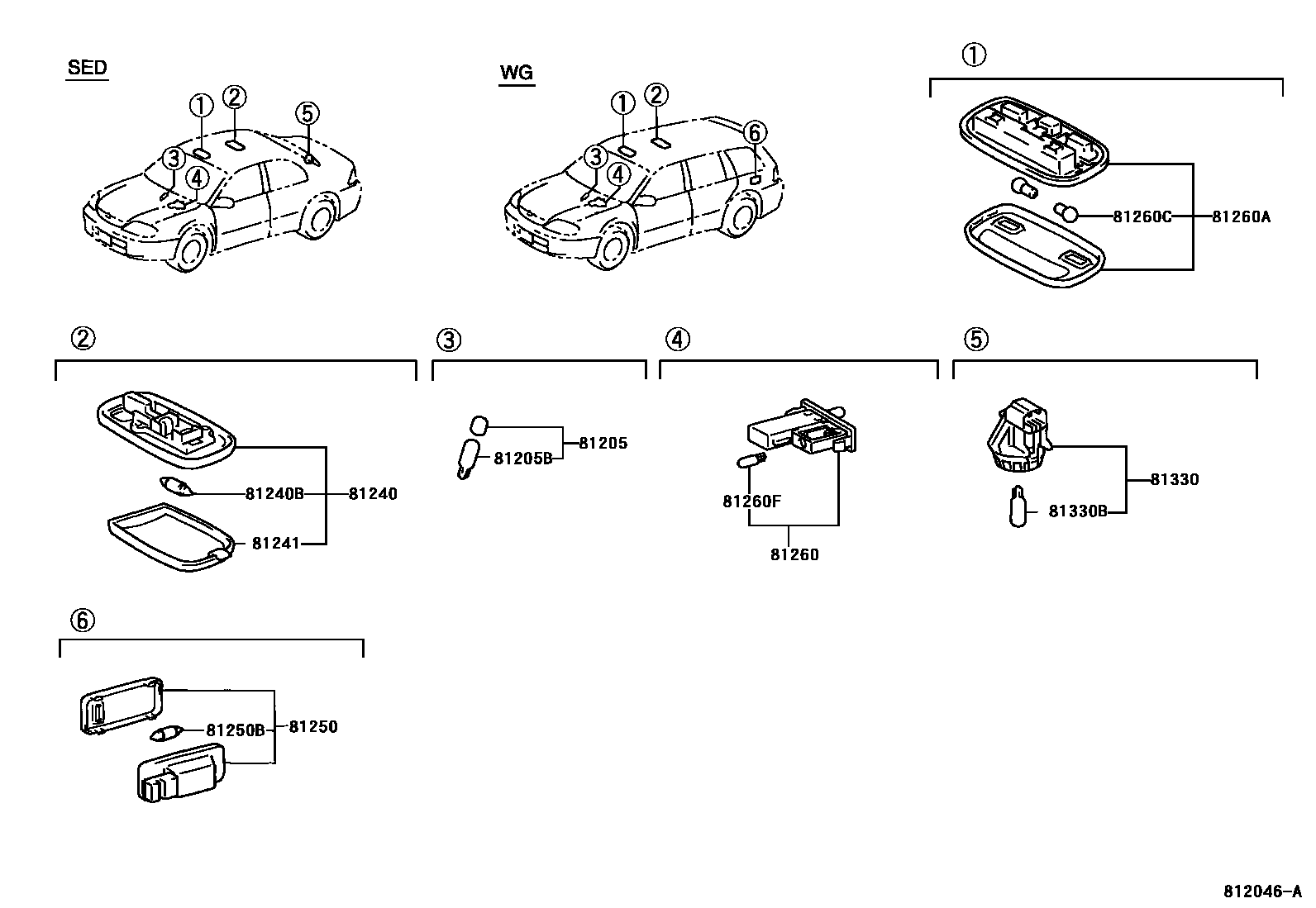

Toyota COROLLA EPC diagram 8121, 车内灯, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81205 | Ashtray light sub-assembly | 81205-12050 |
| 81205B | ashtray light bulb | 90981-11018 |
| 81240B | Interior light bulb No. 1 | 90981-14011 |
| 81241 | Interior light cover No. 1 | 81241-12070 |
| 81250 | No. 2 interior light assembly | 81250-16040 |
| 81250B | Interior light bulb No. 2 | 90981-11016 |
| 81260 | Glove box light assembly | 81260-13040 |
| 81260C | Light bulb (for reading lamp) | 90981-12005 |
| 81260F | Bulb (for glove box light) | 90981-11018 |
| 81330 | No. 1 trunk light assembly | 81330-02040 · 81330-02041 |
| 81330B | trunk light bulb | 90080-81113 · 90981-11020 |
