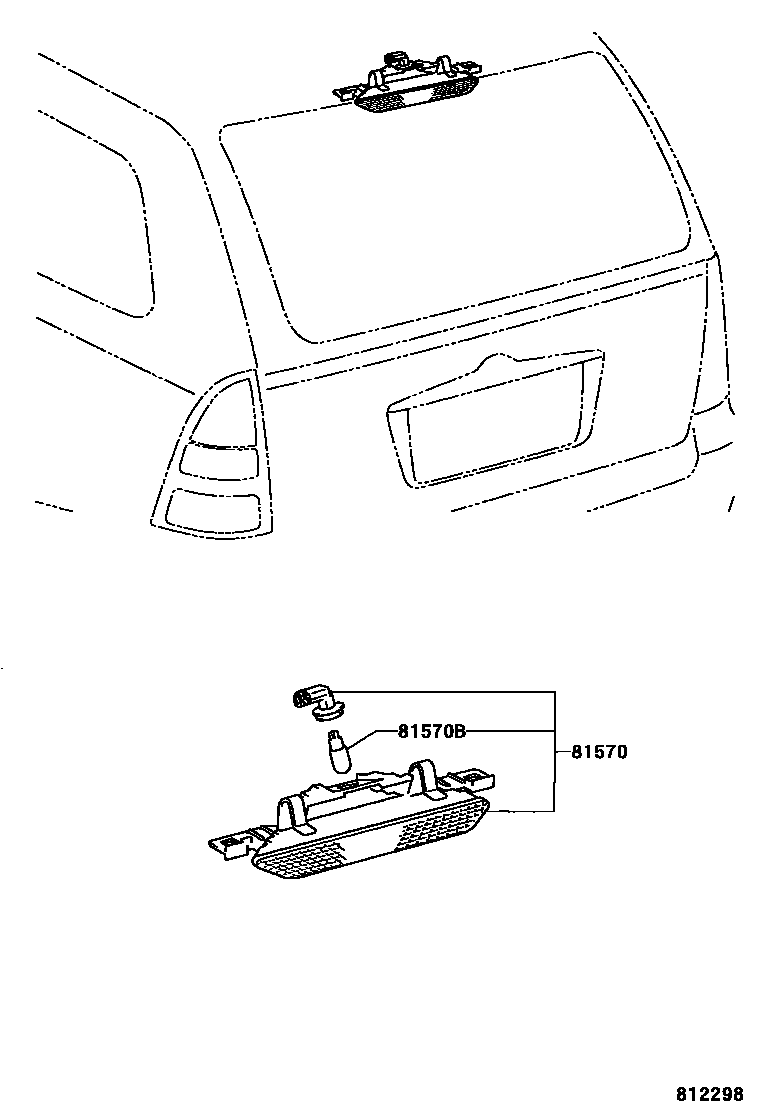

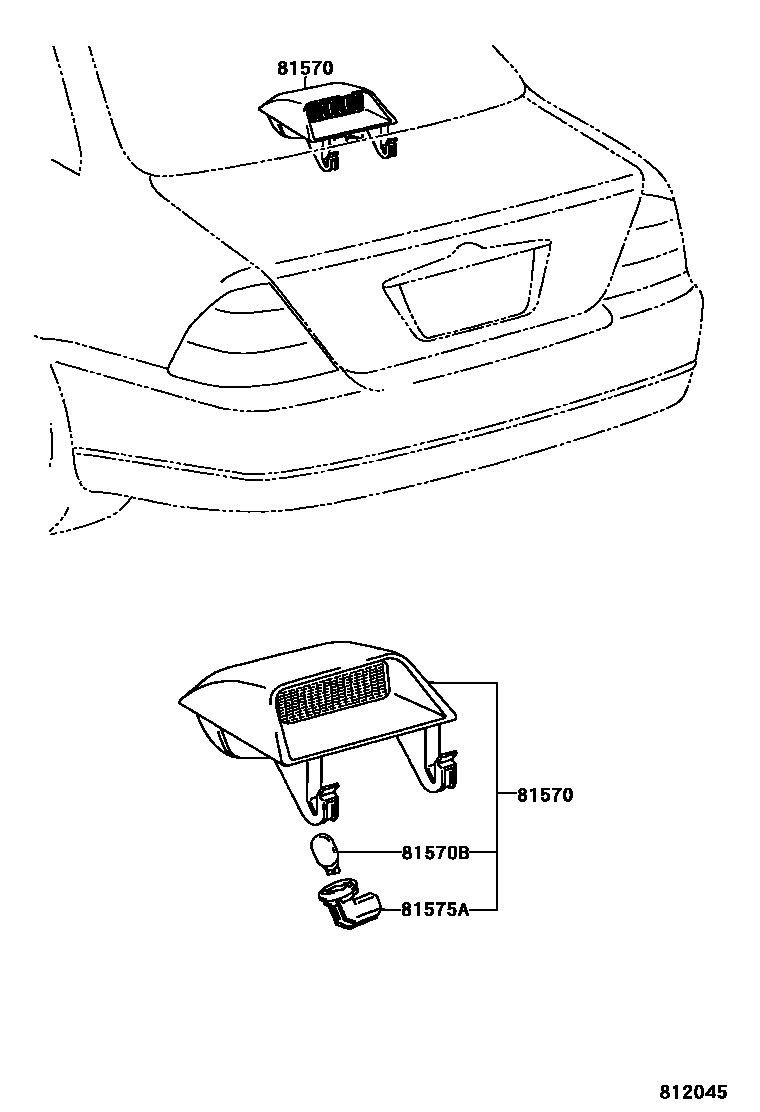

Toyota COROLLA 高位刹车灯 — Figure 8117
Toyota COROLLA EPC diagram 8117, 高位刹车灯, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81570 | Central brake light assembly | 81570-13160 |
| 81570B | Bulb (for center brake light) | 90080-81107 · 90981-11059 · 90981-WB009 |
| 81575A | Central brake light lamp holder | 90069-81022 · 90075-99005 |
