Toyota COROLLA 后牌照灯 — Figure 8113

Toyota COROLLA EPC diagram 8113, 后牌照灯, with 4 images and 4 PNC and OE references.

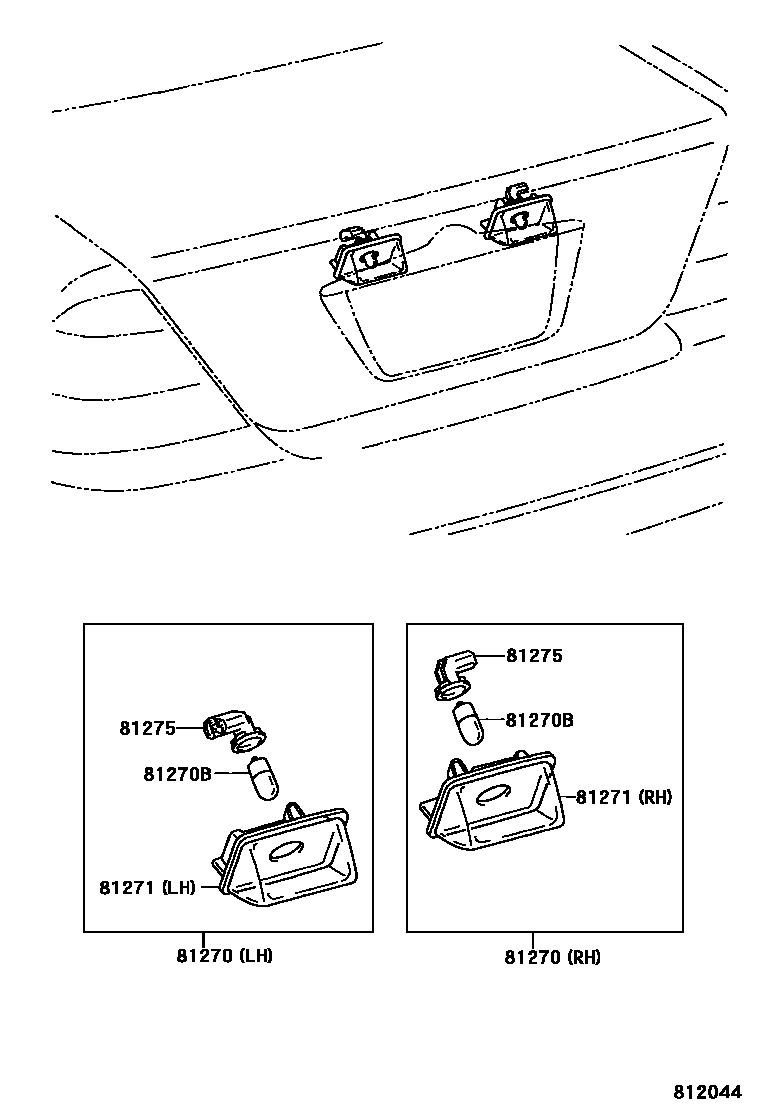

Toyota COROLLA 后牌照灯 EPC diagram — 812044
后牌照灯 — 812044 (200201 – 200406)

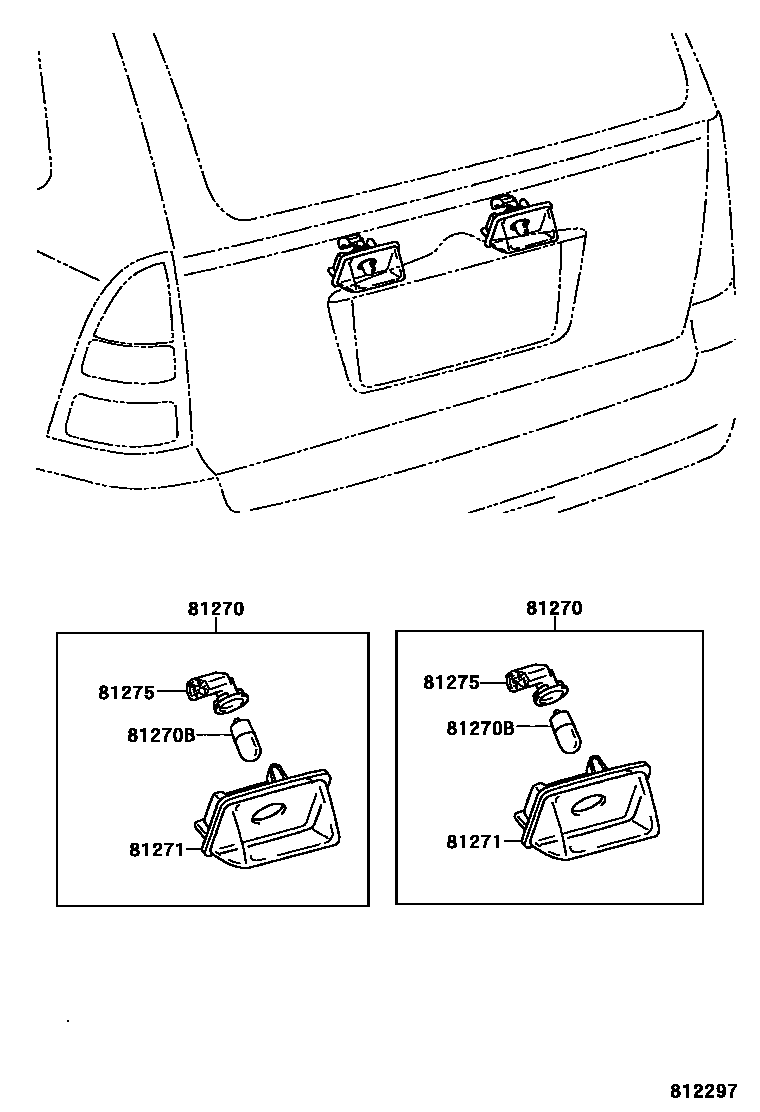

Toyota COROLLA 后牌照灯 EPC diagram — 812297
后牌照灯 — 812297 (200208 – 200406)

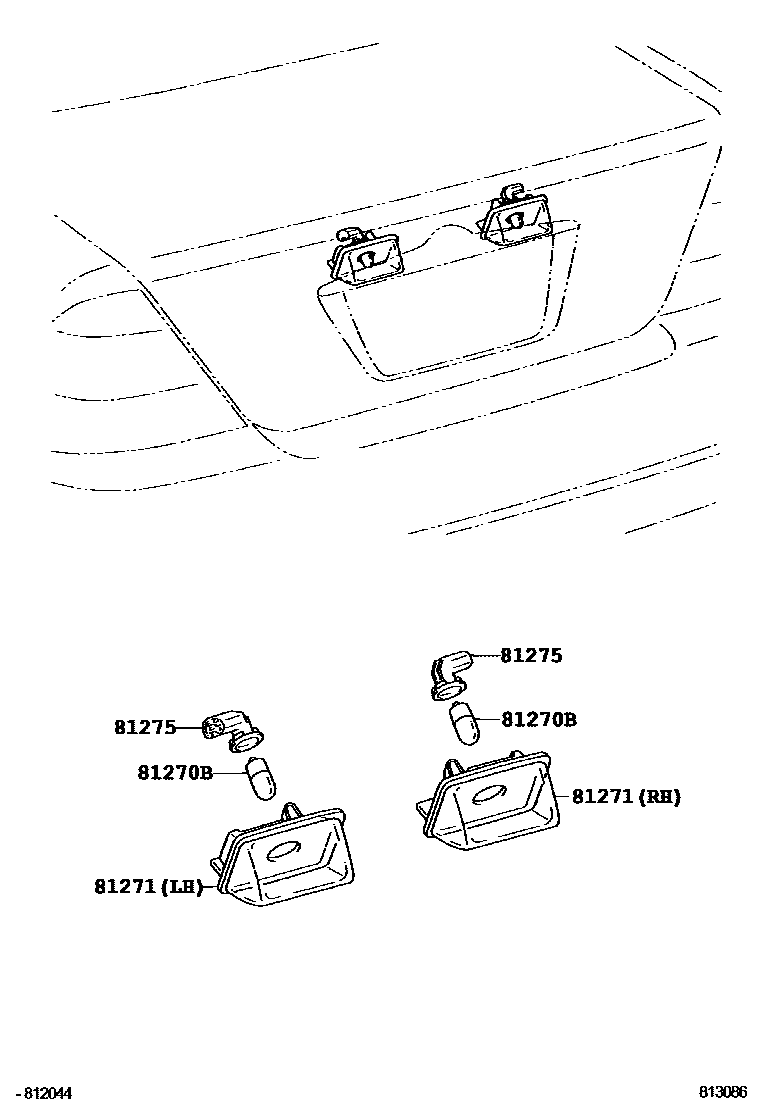

Toyota COROLLA 后牌照灯 EPC diagram — 813086
后牌照灯 — 813086 (200406 – 999999)

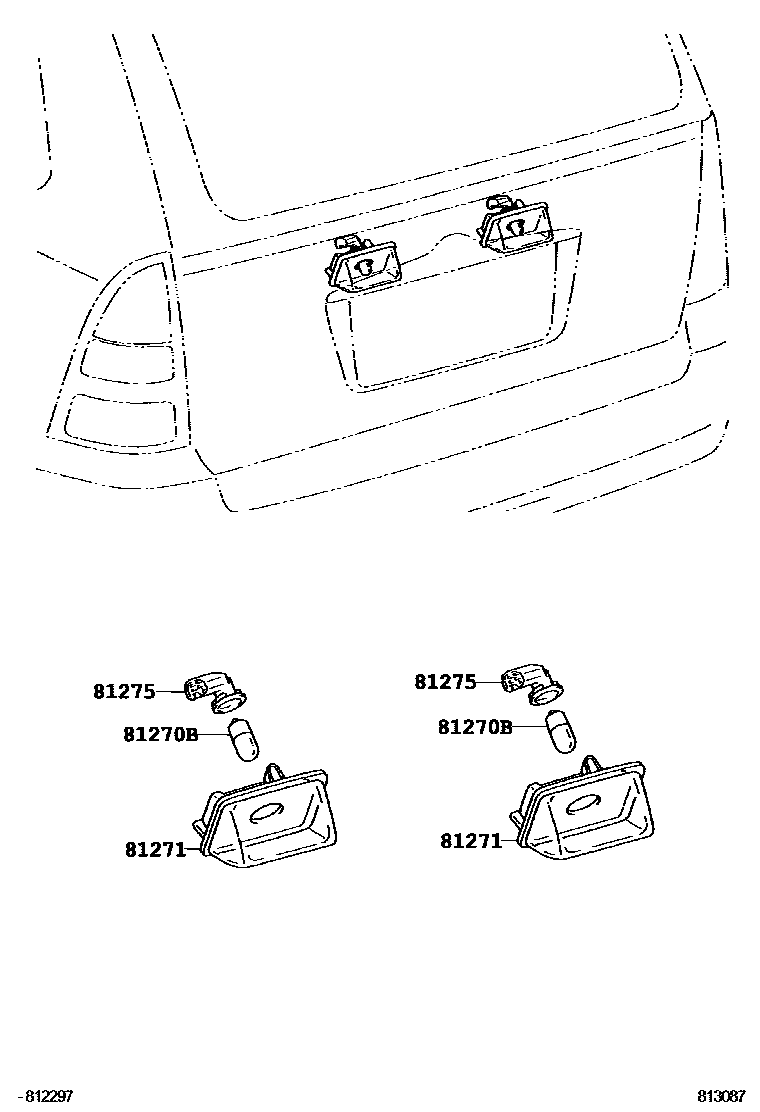

Toyota COROLLA 后牌照灯 EPC diagram — 813087
后牌照灯 — 813087 (200406 – 999999)

PNC and OE references

PNCPart nameOE numbers
81270License plate light assembly81270-02080 · 81690-02060
81270BBulb (for license plate light)90080-81110 · 90981-WB008
81271license plate lamp shade81271-02080 · 81271-0F010 · 81691-02060 · 81691-0F010
81275License plate lamp holder and wiring harness81275-02080
