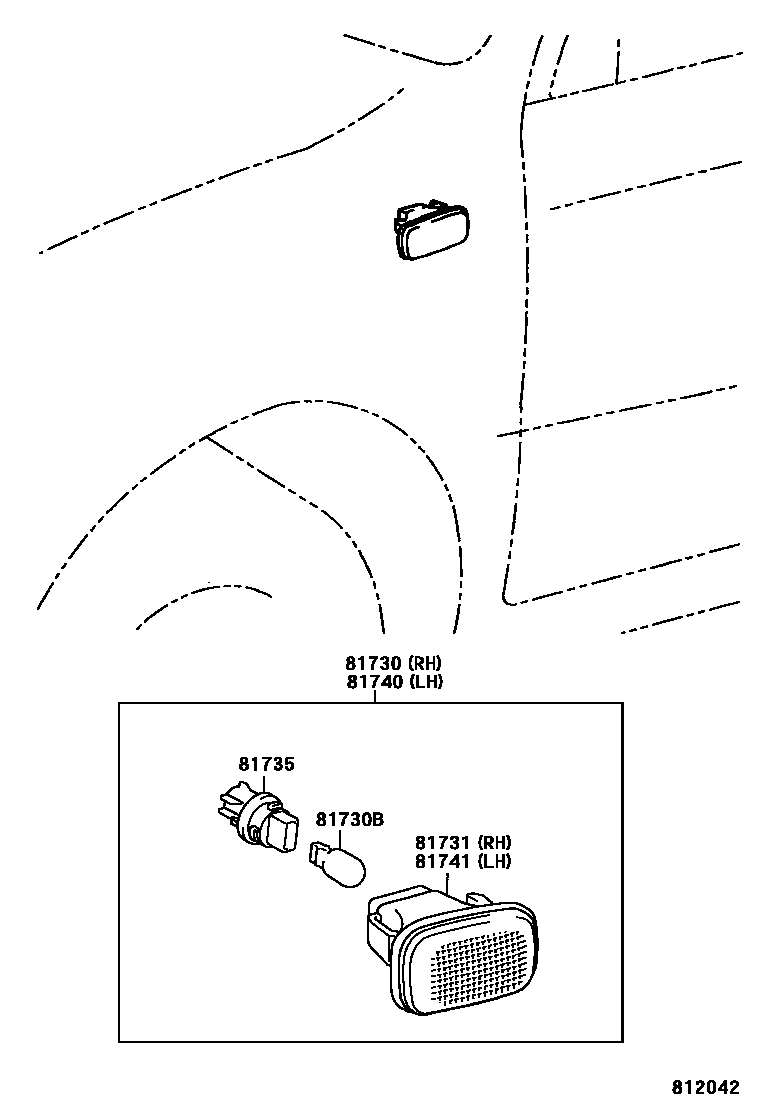

Toyota COROLLA Side Turn Signal & Outer Mirror Lamp — Figure 8106
Toyota COROLLA EPC diagram 8106, Side Turn Signal & Outer Mirror Lamp, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81730 | Right side turn signal light assembly | 81730-02020 · 81730-02022 · 81730-02023 |
| 81730B | Bulb (for side turn signal lights) | 90080-81083 · 90981-WF004 |
| 81731 | Right side turn signal lamp cover | 81731-02020 · 81731-02022 |
| 81735 | Side turn signal lamp holder and wiring harness | 90069-81005 |
| 81740 | Left side turn signal light assembly | 81730-02020 · 81730-02022 · 81730-02023 |
| 81741 | Left side turn signal lamp cover | 81731-02020 · 81731-02022 |
