Toyota COROLLA Fog Lamp — Figure 8102

Toyota COROLLA EPC diagram 8102, Fog Lamp, with 2 images and 7 PNC and OE references.

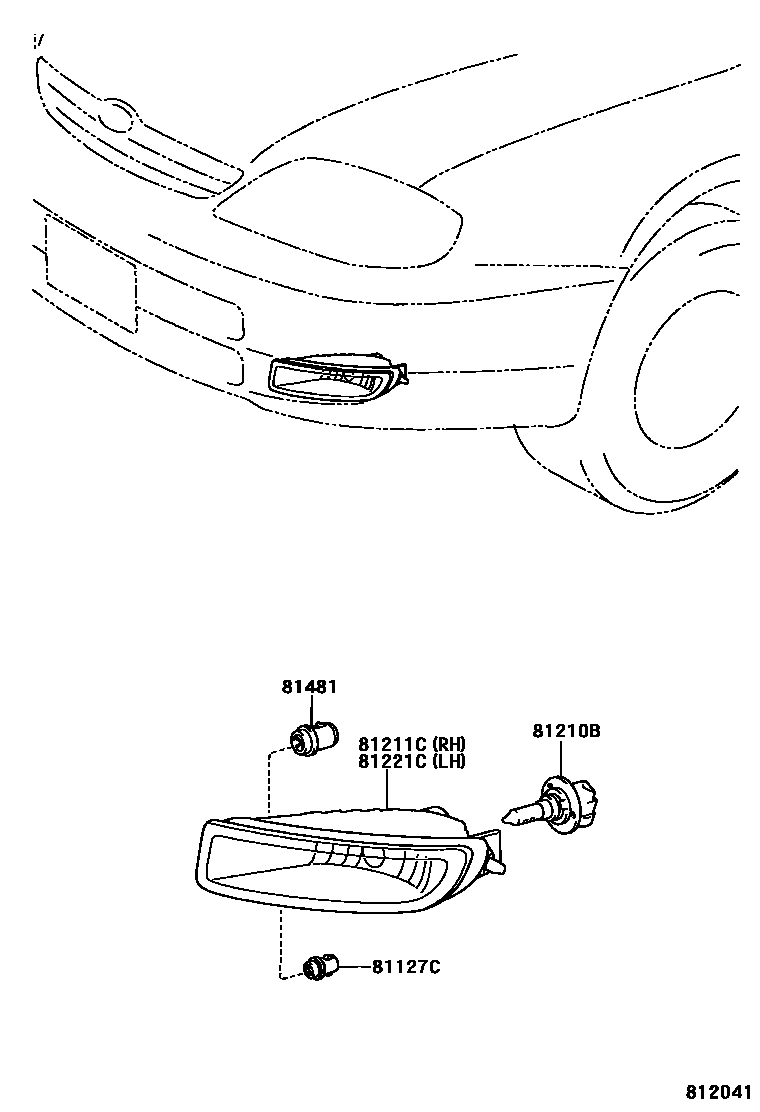

Toyota COROLLA Fog Lamp EPC diagram — 812041
Fog Lamp — 812041 (200201 – 200406)

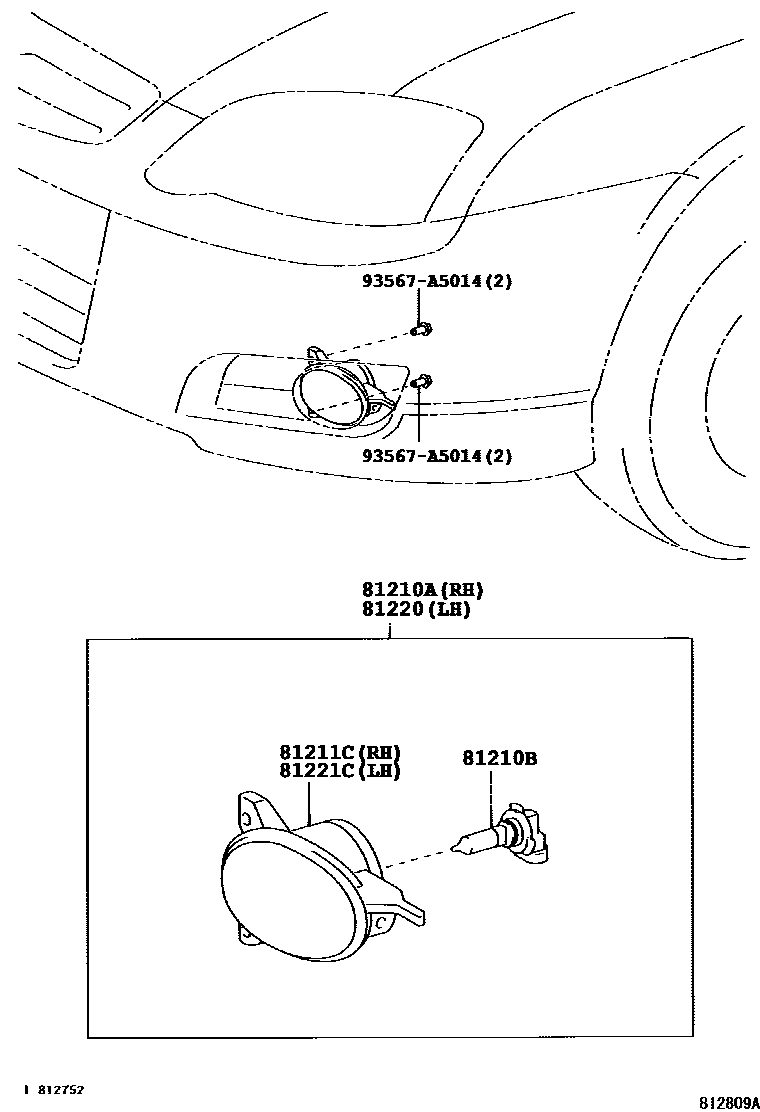

Toyota COROLLA Fog Lamp EPC diagram — 812809A
Fog Lamp — 812809A (200406 – 999999)

PNC and OE references

PNCPart nameOE numbers
81127CFog light support90075-10811
81210ARight fog light assembly81210-0F010
81210Bfog light bulb90981-13047 · 90981-WD009
81211CRight fog light assembly81211-0F010 · 81211-12150
81220Left fog light assembly81220-0F010
81221CLeft fog light assembly81221-0F010 · 81221-12160
81481Fog light bracket81481-10030
