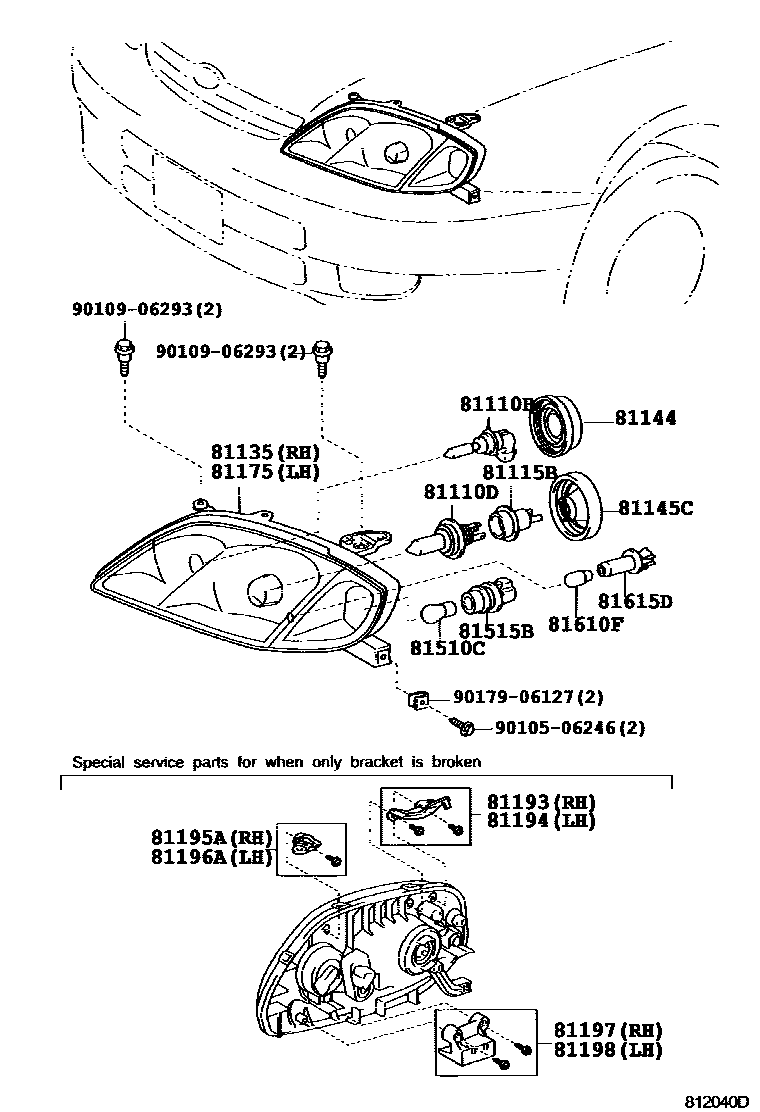

Toyota COROLLA Headlamp — Figure 8101
Toyota COROLLA EPC diagram 8101, Headlamp, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110B | Bulb (for headlight No. 1) | 90080-81106 · 90981-WD010 |
| 81110D | Bulb (for headlight No. 2) | 90080-81079 · 90981-13063 · 90981-WD002 · 90981-WD010 |
| 81115B | No. 1 headlight lamp holder | 90069-81019 |
| 81135 | Right headlight assembly | 81130-02170 · 81130-02180 |
| 81144 | No. 1 headlight cover | 90069-81023 |
| 81145C | No. 2 headlight lamp holder cover | 90069-81024 |
| 81175 | Left headlight assembly | 81170-02180 · 81170-02190 |
| 81193 | Right headlight upper protective ring | 81193-12010 |
| 81194 | Left headlight upper protective ring | 81194-12010 |
| 81195A | Right headlight lower protection ring | 81195-12010 |
| 81196A | Left headlight lower protection ring | 81196-12010 |
| 81197 | Right headlight lower bracket | 81197-12020 |
| 81198 | Left headlight lower bracket | 81198-12020 |
| 81510C | Bulb (for front turn signal lamp) | 90080-81104 · 90981-WF001 · 90981-WF006 |
| 81515B | Front turn signal lamp holder | 90069-81021 |
| 81610F | Light bulb (for width indicator light) | 90080-81105 · 90981-WB014 · 90981-WC001 |
| 81615D | Width light lamp holder | 90069-81020 |
