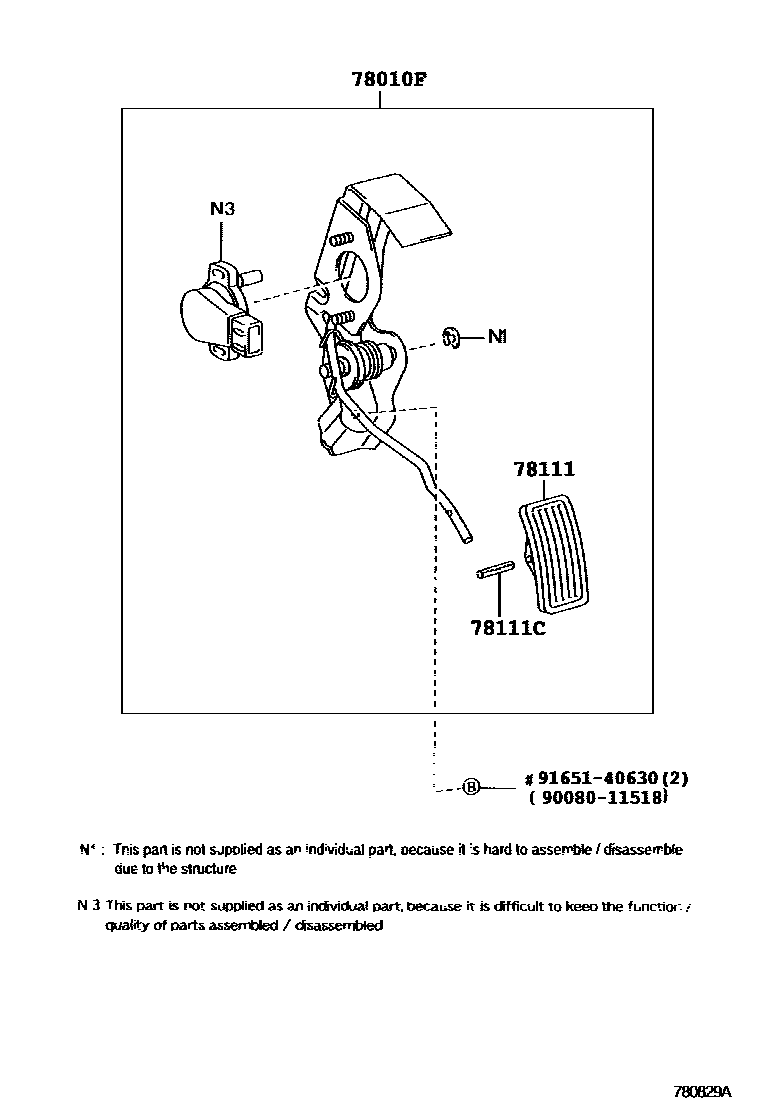

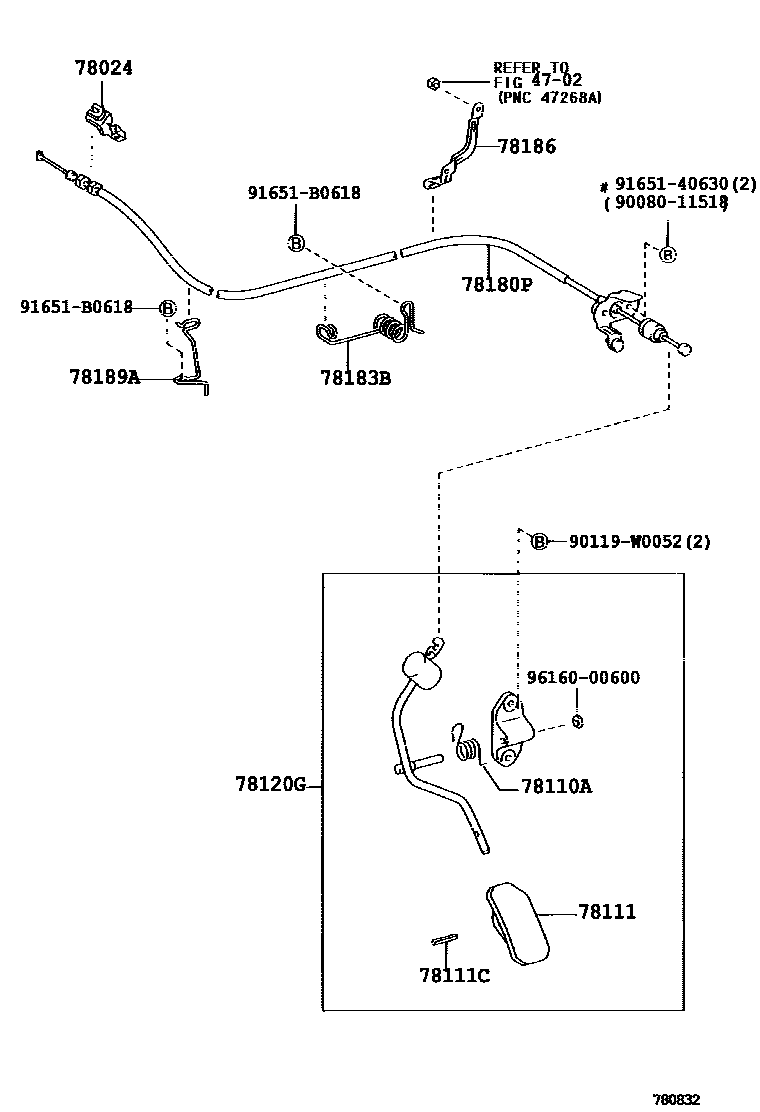

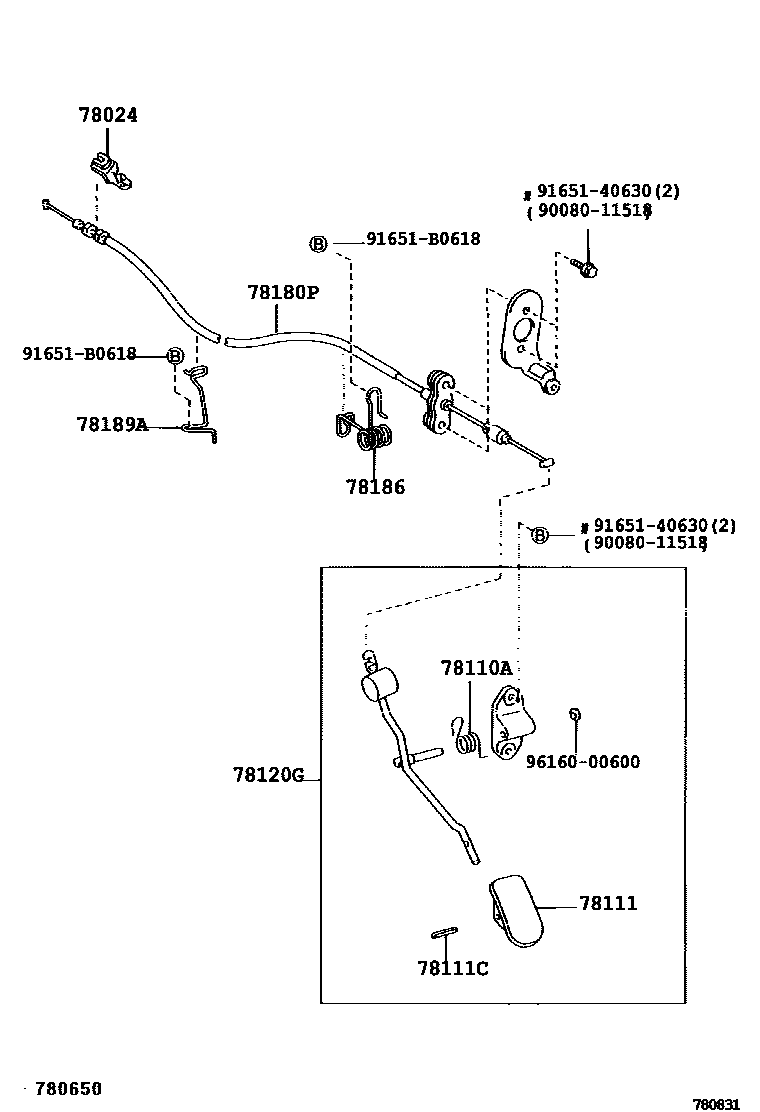

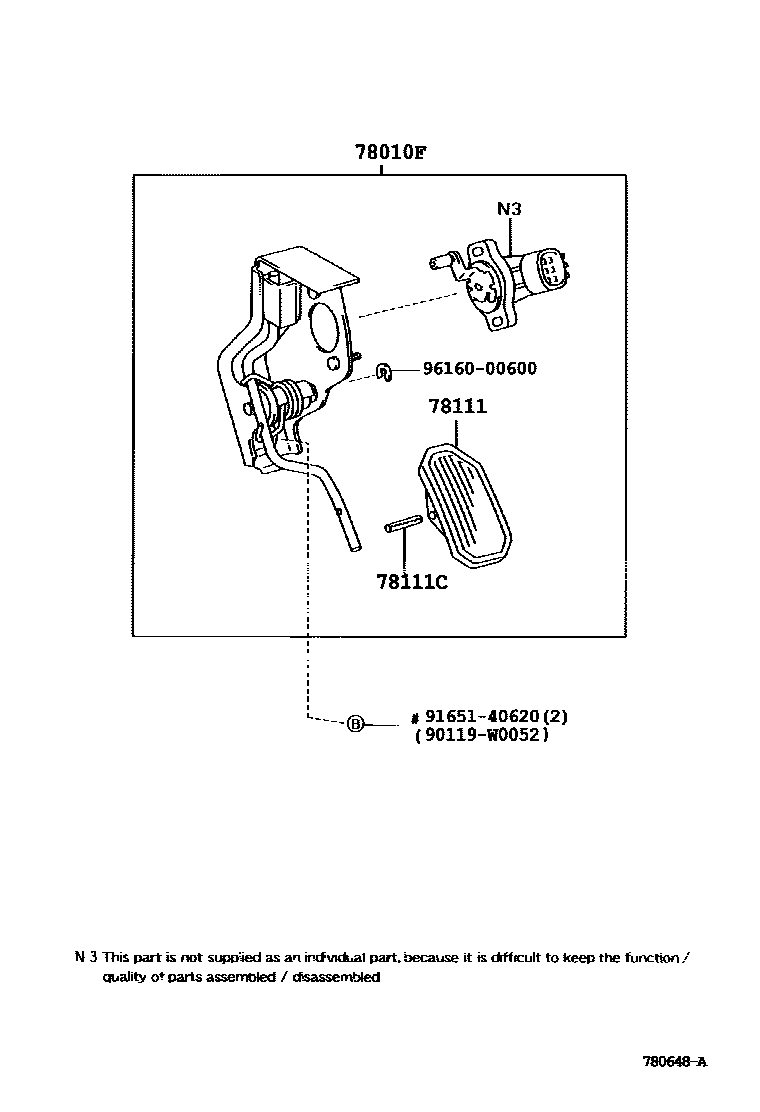

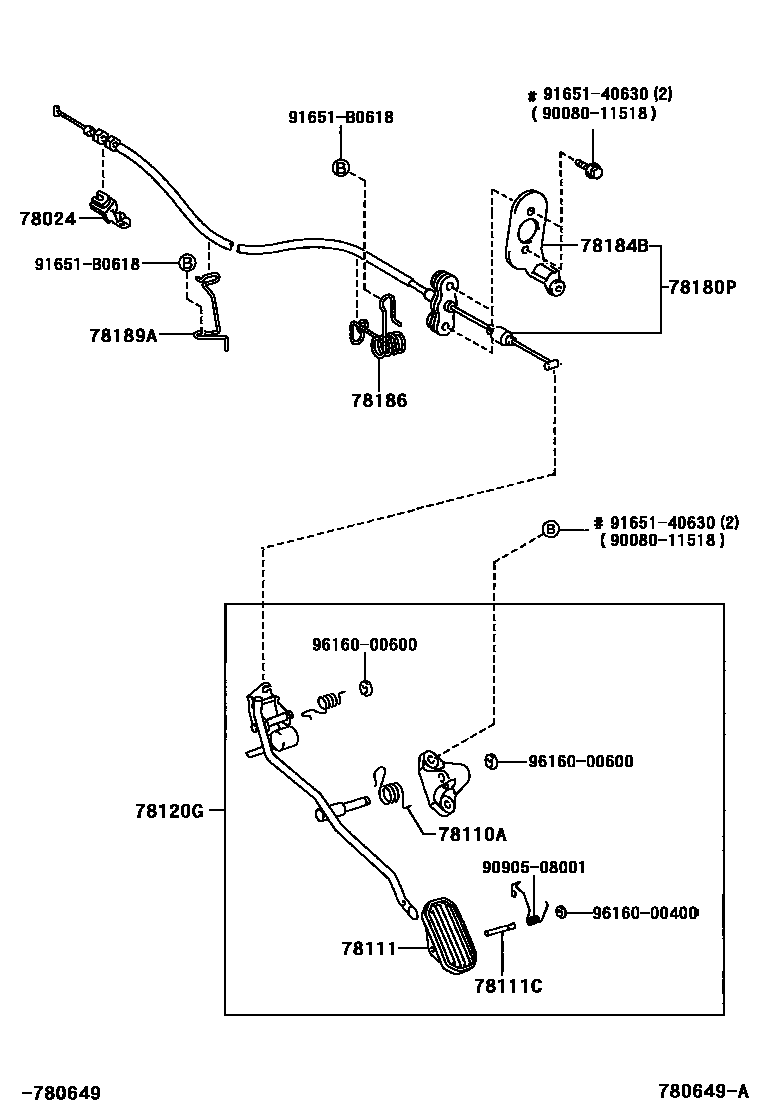

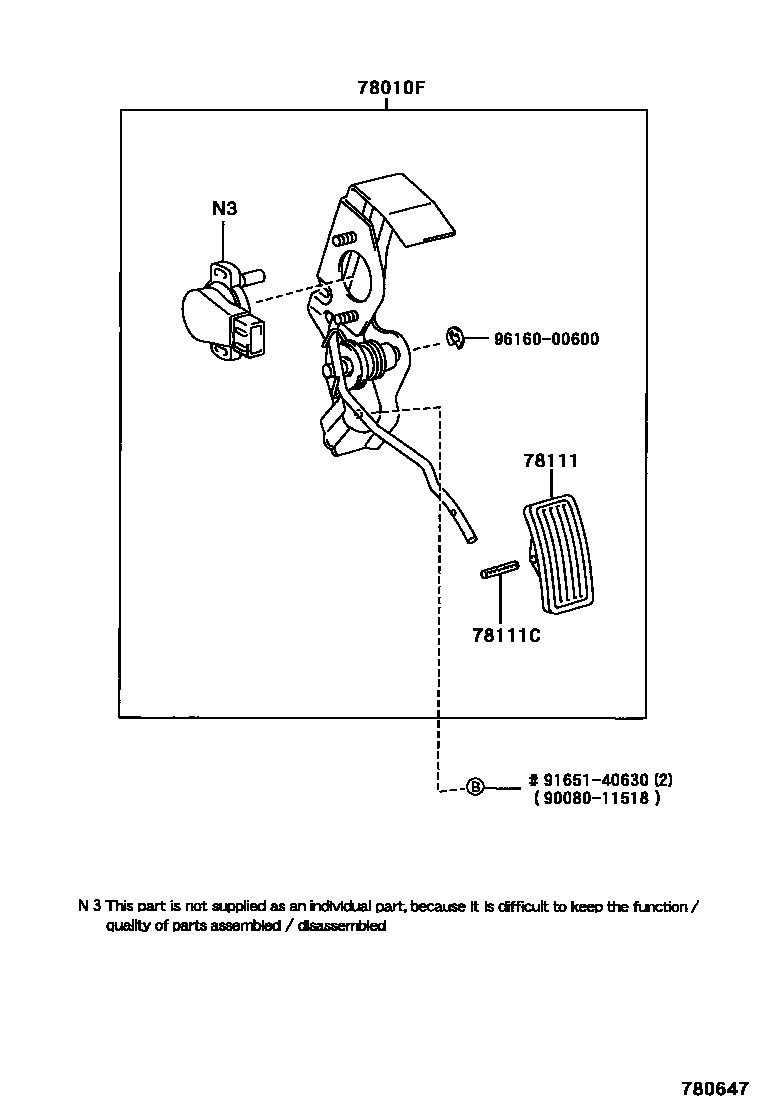

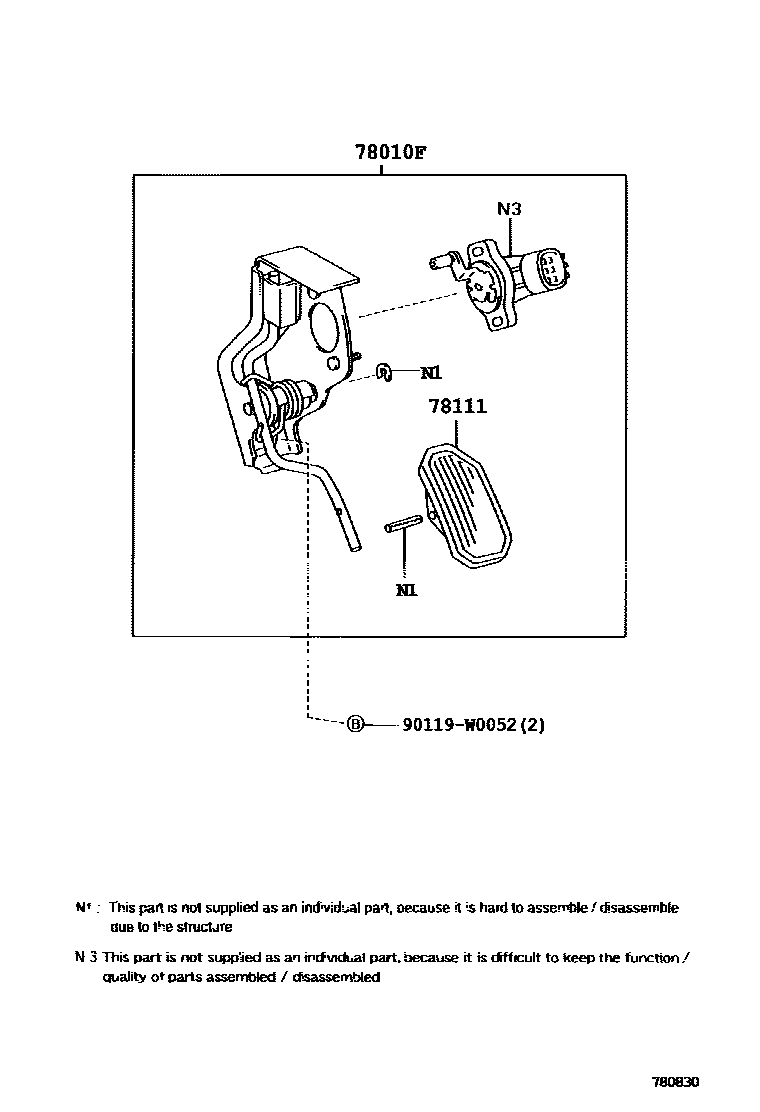

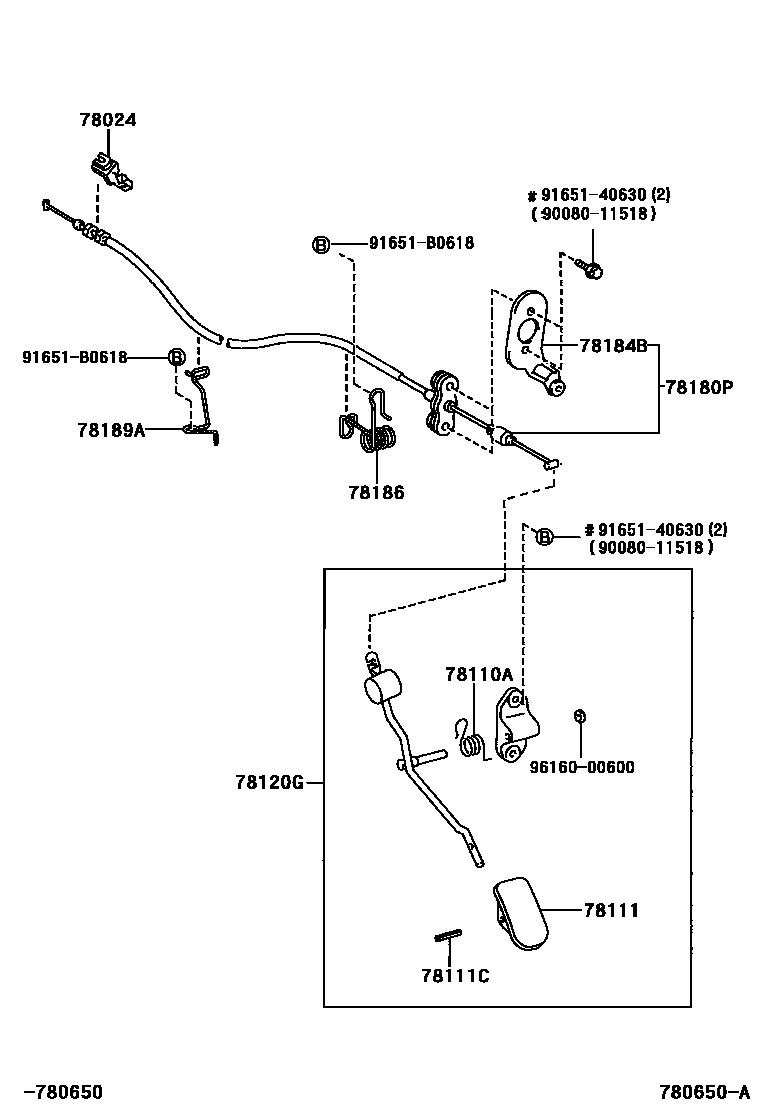

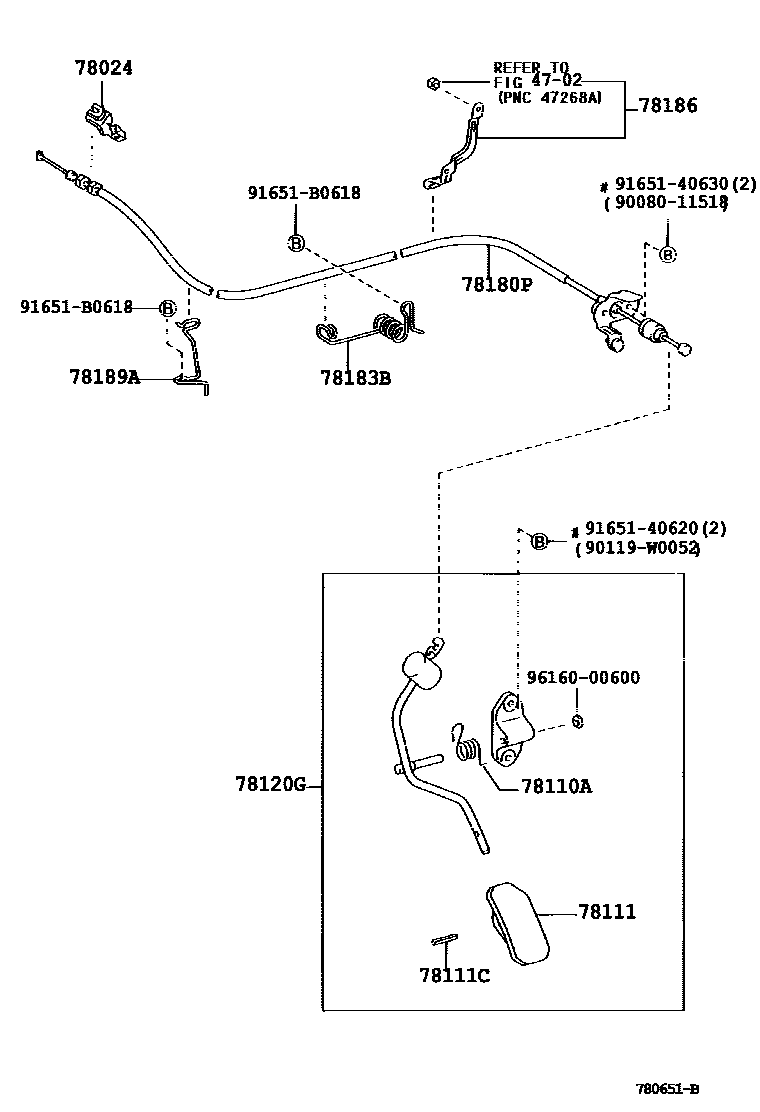

Toyota COROLLA accelerator pedal connecting rod — Figure 7801
Toyota COROLLA EPC diagram 7801, accelerator pedal connecting rod, with 9 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78010F | Accelerator pedal assembly | 78010-13010 · 78010-13011 · 78010-13021 · 78010-13022 · 78010-13023 · 78010-20122 |
| 78024 | Accelerator pedal control cable bracket sub-assembly | 78024-12090 |
| 78110A | Spring (for accelerator pedal lever) | 90508-26036 · 90959-03307 |
| 78111 | accelerator pedal | 78111-02030 · 78111-05040 · 78111-32010 · 78111-32020 · 78111-35030 |
| 78111C | pin (for gas pedal) | 90249-05001 · 90254-04019 |
| 78120G | Accelerator pedal lever assembly | 78120-02090 · 78120-05190 · 78120-12340 · 78120-13030 |
| 78180P | Accelerator pedal control cable assembly | 78180-02240 · 78180-02250 · 78180-02310 · 78180-02320 |
| 78183B | Accelerator pedal control cable clip | 78183-13010 |
| 78184B | Throttle pedal control cable bracket | 78184-02080 |
| 78186 | No. 1 accelerator pedal control cable bracket | 78186-09010 · 78186-13010 · 78186-13040 |
| 78189A | No. 2 accelerator pedal control cable bracket | 78189-12100 |
