Toyota COROLLA 燃油箱和燃油管 — Figure 7701

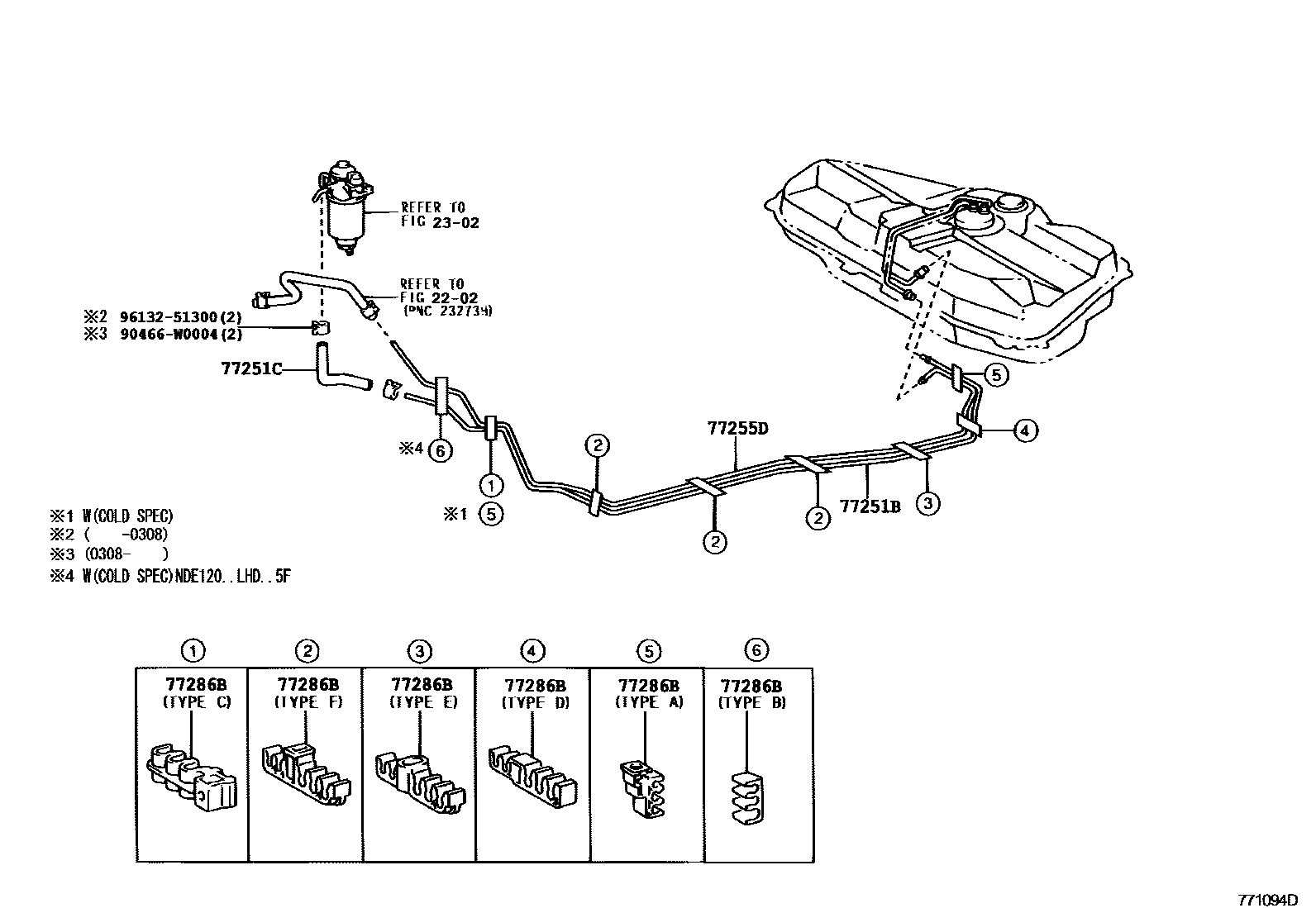

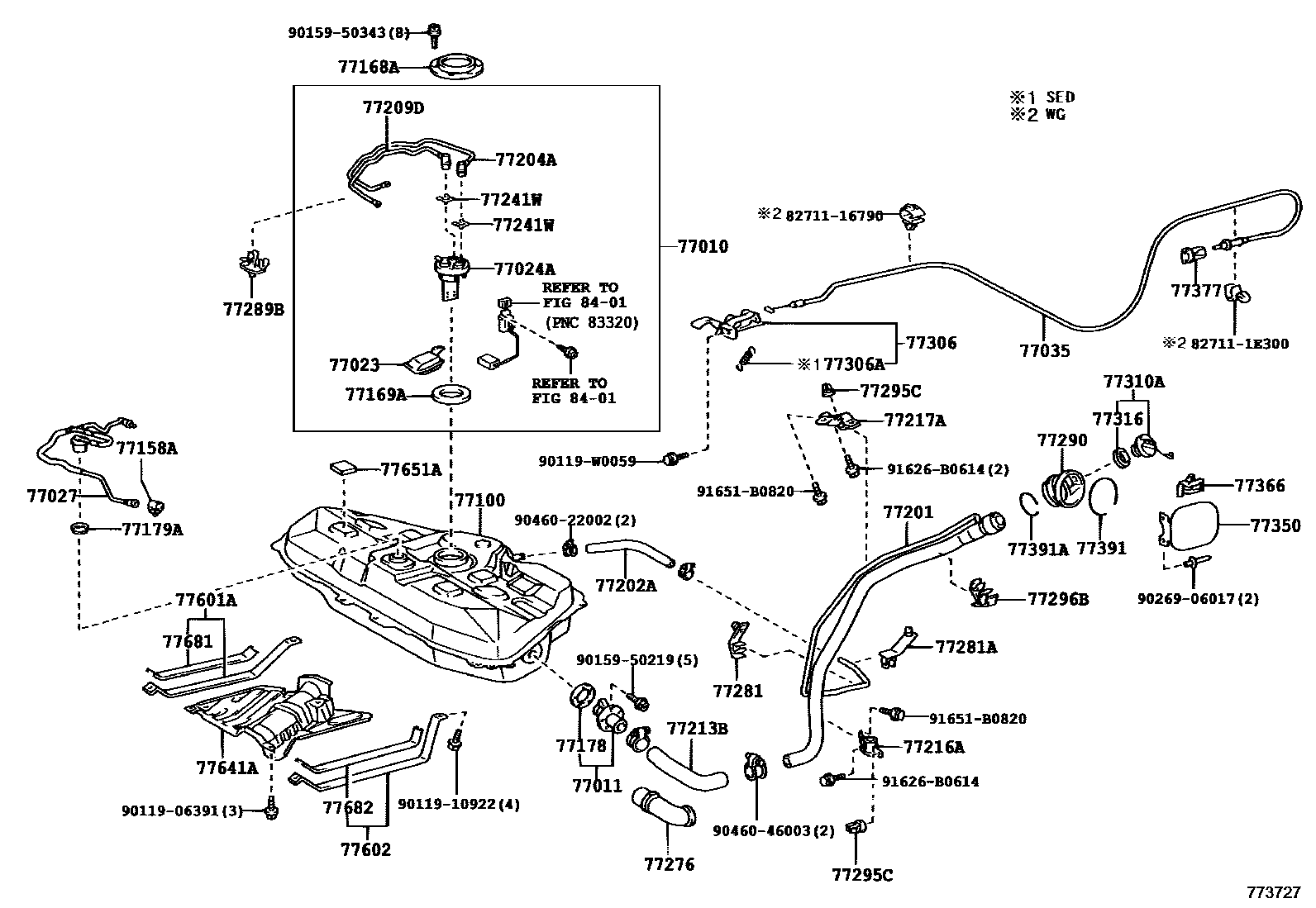

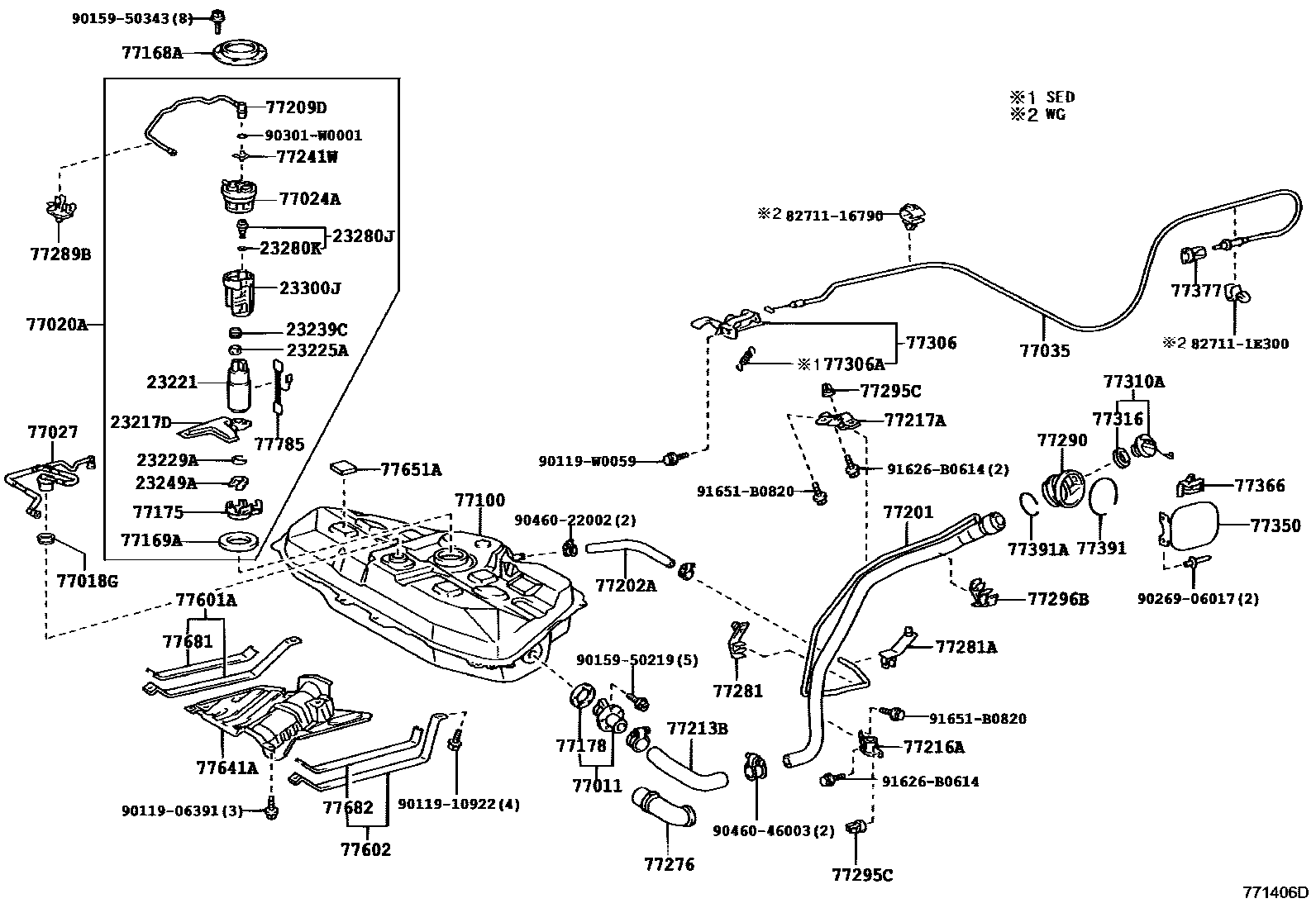

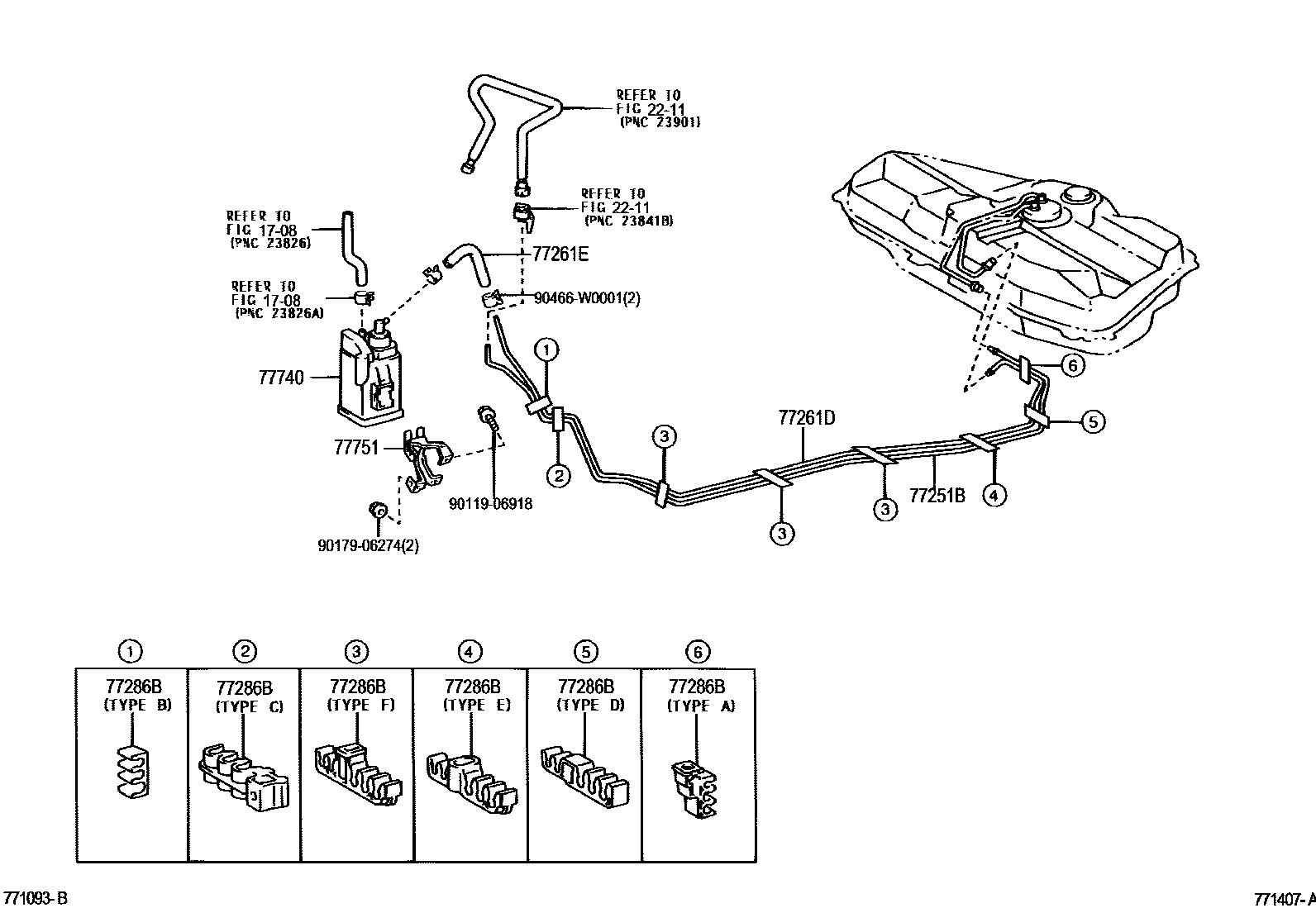

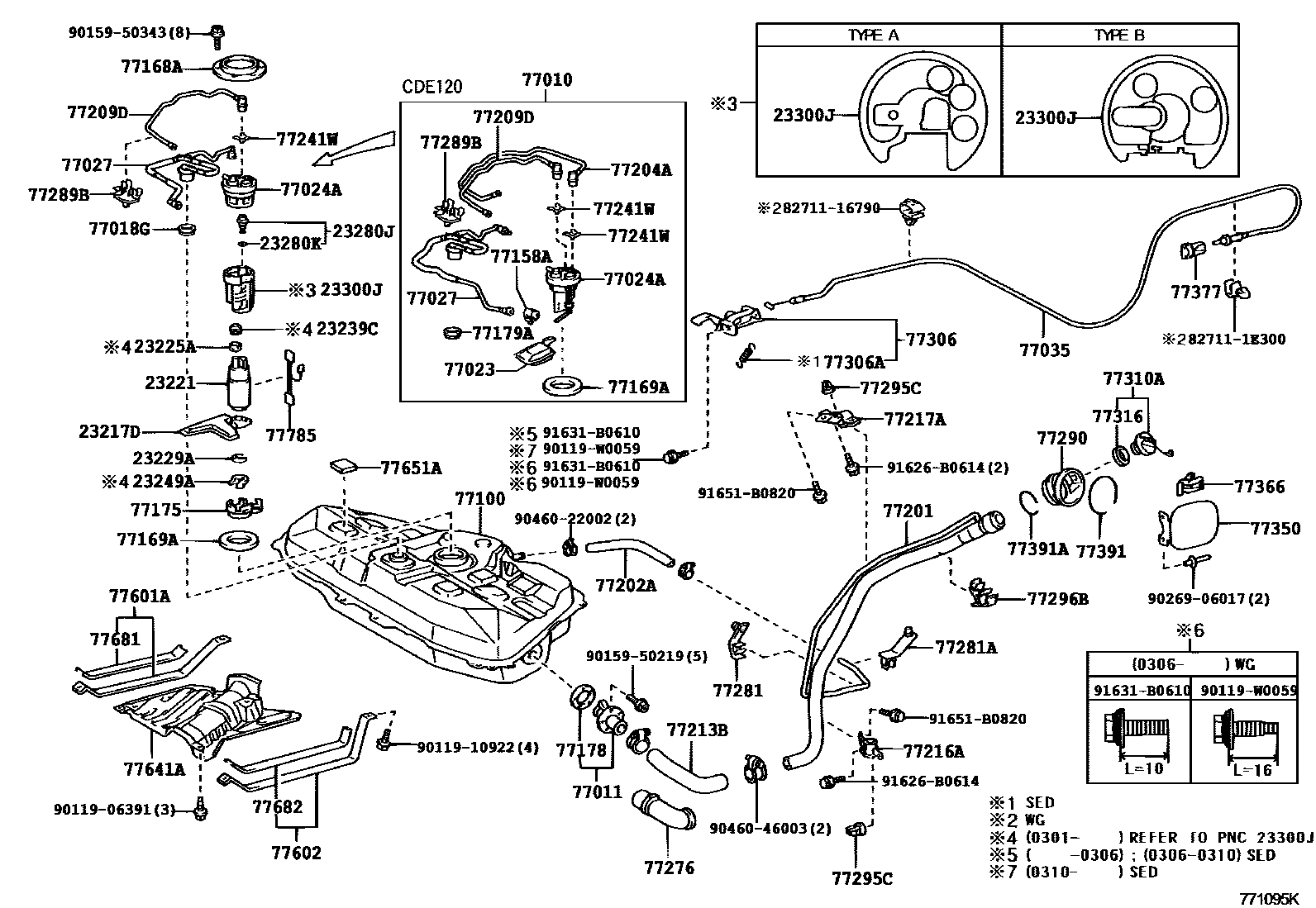

Toyota COROLLA EPC diagram 7701, 燃油箱和燃油管, with 6 images and 63 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23217D | fuel pump filter | 23217-0D090 · 23217-23010 |
| 23221 | fuel pump | 23221-0D080 · 23221-22030 |
| 23225A | fuel pump septum | 23225-0D020 · 23225-21010 |
| 23229A | Clip (for fuel pump filter) | 23229-0D070 · 23229-16010 |
| 23239C | fuel pump filter seal | 23239-0D020 · 23239-21010 |
| 23249A | Rubber gasket (for fuel pump) | 23249-46180 · 23249-74610 |
| 23280J | Fuel pressure regulator assembly | 23280-22010 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-07020 |
| 23300J | fuel filter assembly | 23300-21010 · 23300-23040 |
| 77010 | Fuel tank vent pipe assembly | 77010-12340 · 77010-12360 |
| 77011 | Filling pipe sub-assembly under fuel tank | 77011-20100 |
| 77018G | Fuel tank evaporation/vent pipe gasket | 77179-33010 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-02170 |
| 77023 | Fuel suction pipe filter sub-assembly | 77023-32040 |
| 77024A | Fuel absorber sub-assembly | 77024-02040 · 77024-12010 · 77024-12020 |
| 77027 | No. 2 fuel evaporation pipe sub-assembly | 77027-12040 · 77027-12050 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-02070 · 77035-02080 · 77035-02090 · 77035-02120 · 77035-02150 · 77035-02160 |
| 77100 | fuel tank assembly | 77001-02130 · 77001-02140 · 77001-02200 · 77001-02210 |
| 77158A | Fuel tank suction pipe bracket | 77158-12030 |
| 77168A | Fuel tank vent pipe fixing plate | 77168-02010 · 77168-52010 |
| 77169A | Fuel suction pipe fixed gasket | 77169-33020 |
| 77175 | No. 2 oil suction pipe bracket | 77175-0F010 · 77175-47010 |
| 77178 | Fuel tank filler pipe lower gasket | 77178-20030 |
| 77179A | fuel tank breather gasket | 77179-33010 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77201-12580 · 77201-12590 · 77201-12591 · 77201-12620 · 77201-12630 |
| 77202A | No. 1 fuel hose (for breather pipe) | 95313-13034 |
| 77204A | fuel tank return pipe | 77204-12100 · 77204-12120 |
| 77209D | Fuel tank main pipe sub-assembly | 77209-02070 · 77209-12160 |
| 77213B | Fuel tank to filler pipe hose | 77213-12250 · 77213-32090 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-32060 |
| 77217A | No. 2 fuel tank filler pipe bracket | 77217-32050 |
| 77241W | Pipe joint clip | 77241-0F010 · 77241-33011 · 77241-60320 |
| 77251B | main fuel pipe | 77251-02160 · 77251-02170 · 77251-02180 · 77251-02270 · 77251-02280 |
| 77251C | No. 1 fuel hose (for main fuel line) | 77259-12260 · 77259-12270 · 77259-12280 · 77259-12290 · 77259-20240 |
| 77255D | fuel return pipe | 77255-02150 · 77255-02160 · 77255-02210 · 77255-02221 · 77255-02230 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-02160 |
| 77261E | No. 1 fuel hose (for fuel tank to canister pipe) | 95337-06013 |
| 77276 | Fuel hose protector | 77276-12050 |
| 77281 | No. 1 main fuel pipe bracket | 77281-32040 |
| 77281A | Fuel filler pipe clamp | 77281-12070 |
| 77286B | No. 2 fuel pipe clamp with retaining ring | 77286-12060 · 77286-47020 · 77289-20060 · 77289-68020 · 77298-12060 · 77298-12100 · 77298-20080 · 77298-68010 · 77298-68020 · 77298-68030 |
| 77289B | No. 3 fuel pipe clamp | 77289-12030 |
| 77290 | Fuel tank filler pipe cover assembly | 77291-02030 |
| 77295C | Fuel pipe retaining ring | 77295-12070 |
| 77296B | No. 1 fuel line protector bracket | 77296-12030 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 64606-02050 · 64606-02060 · 64606-12050 · 64606-12060 · 77306-13020 · 77306-13030 |
| 77306A | Fuel filler cap opening lever spring | 90080-50400 · 90506-09034 |
| 77310A | Fuel tank cap assembly | 77300-28010 · 77300-60010 |
| 77316 | fuel tank cap gasket | 77316-16010 |
| 77350 | Fuel filler cap assembly | 77350-12440 · 77350-13070 |
| 77366 | Fuel filler cap hinge spring | 77360-02010 |
| 77377 | Fuel filler cap lock retainer | 77377-02020 |
| 77391 | fuel inlet ring | 77391-12040 |
| 77391A | fuel inlet ring | 77391-12020 |
| 77601A | No. 1 fuel tank strap sub-assembly | 77601-02040 |
| 77602 | Fuel tank upper shell sub-assembly | 77602-02040 |
| 77641A | No. 1 fuel tank protective shell | 77641-02020 |
| 77651A | No. 1 fuel tank liner | 77651-20090 |
| 77681 | Fuel tank right side strap seat | 77681-02030 |
| 77682 | Fuel tank left side strap seat | 77682-02020 |
| 77740 | Carbon canister assembly | 77740-02090 · 77740-02091 · 77740-05020 · 77740-05021 |
| 77751 | Carbon canister base bracket | 77705-02050 · 77705-12110 · 77750-02050 · 77750-12170 |
| 77785 | fuel pump wiring harness | 77785-0F010 · 77785-52020 |
