Toyota COROLLA 挡泥板和扰流板 — Figure 7601

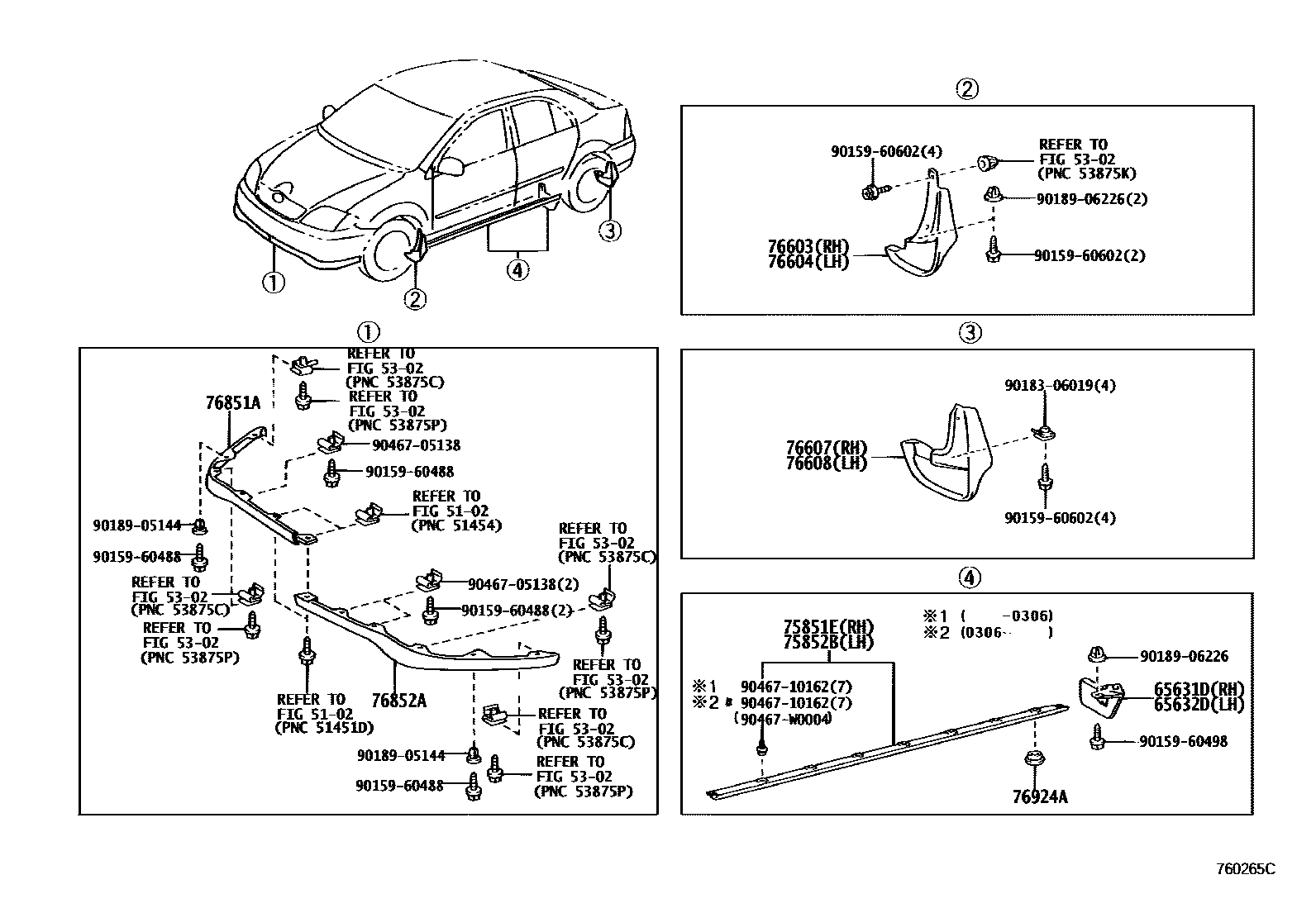

Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65631D | Right rear wheel house front panel | 65631-02010 |
| 65632D | Left rear wheel house front panel | 65632-02010 |
| 75851E | Right body door sill panel protection strip | 75851-02050 |
| 75852B | Left body door sill panel protection strip | 75852-02050 |
| 76603 | Right front fender fender sub-assembly | 76621-02110 |
| 76604 | Left front fender fender sub-assembly | 76622-02120 |
| 76607 | Right rear side fender sub-assembly | 76625-02120 |
| 76608 | Left rear side fender sub-assembly | 76626-02120 |
| 76851A | Right front spoiler cover | 76851-02030 · 76851-02080 |
| 76852A | Left front spoiler cover | 76852-02030 · 76852-02070 |
| 76924A | No. 2 side fender fixings | 76924-52021 |
