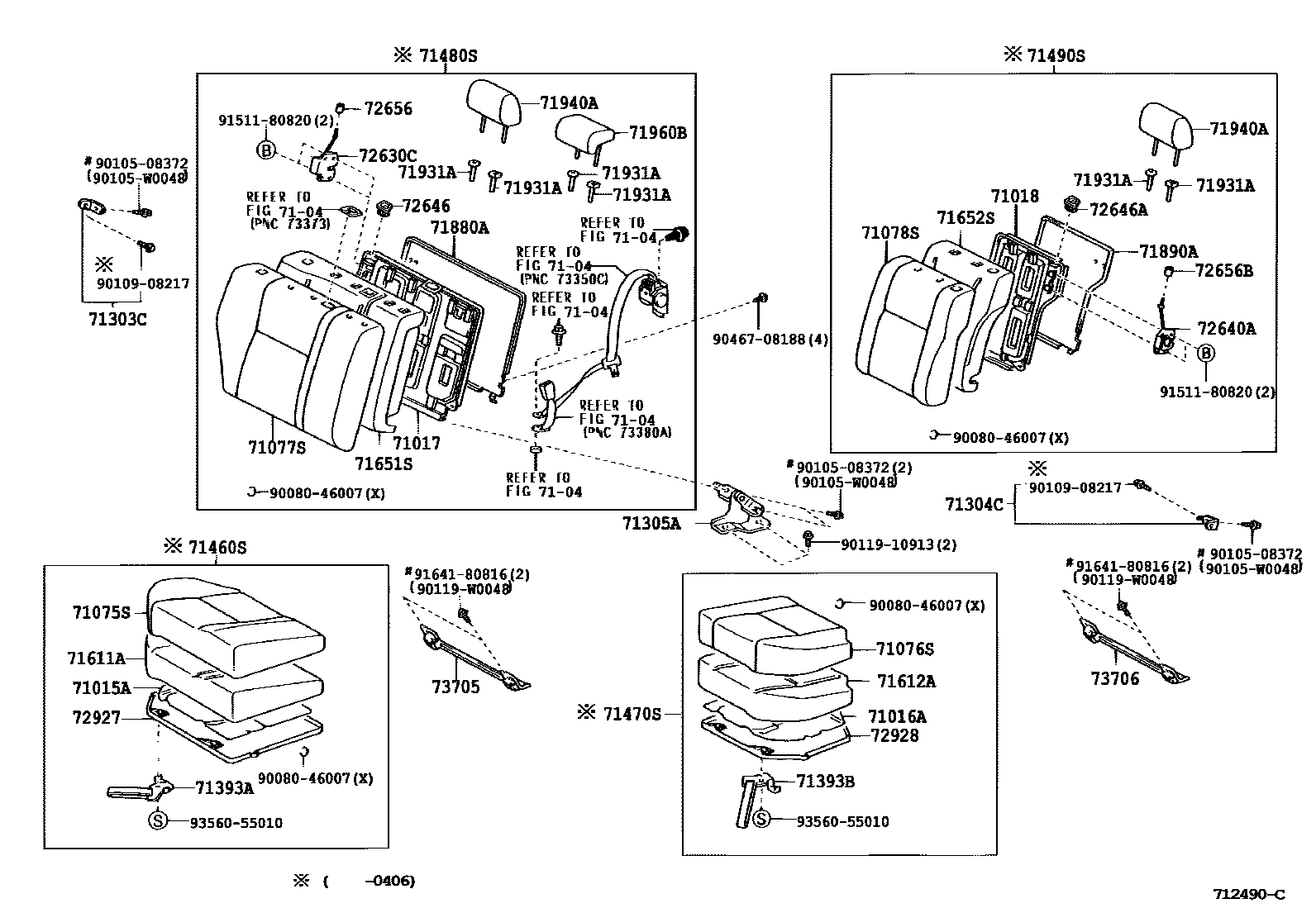

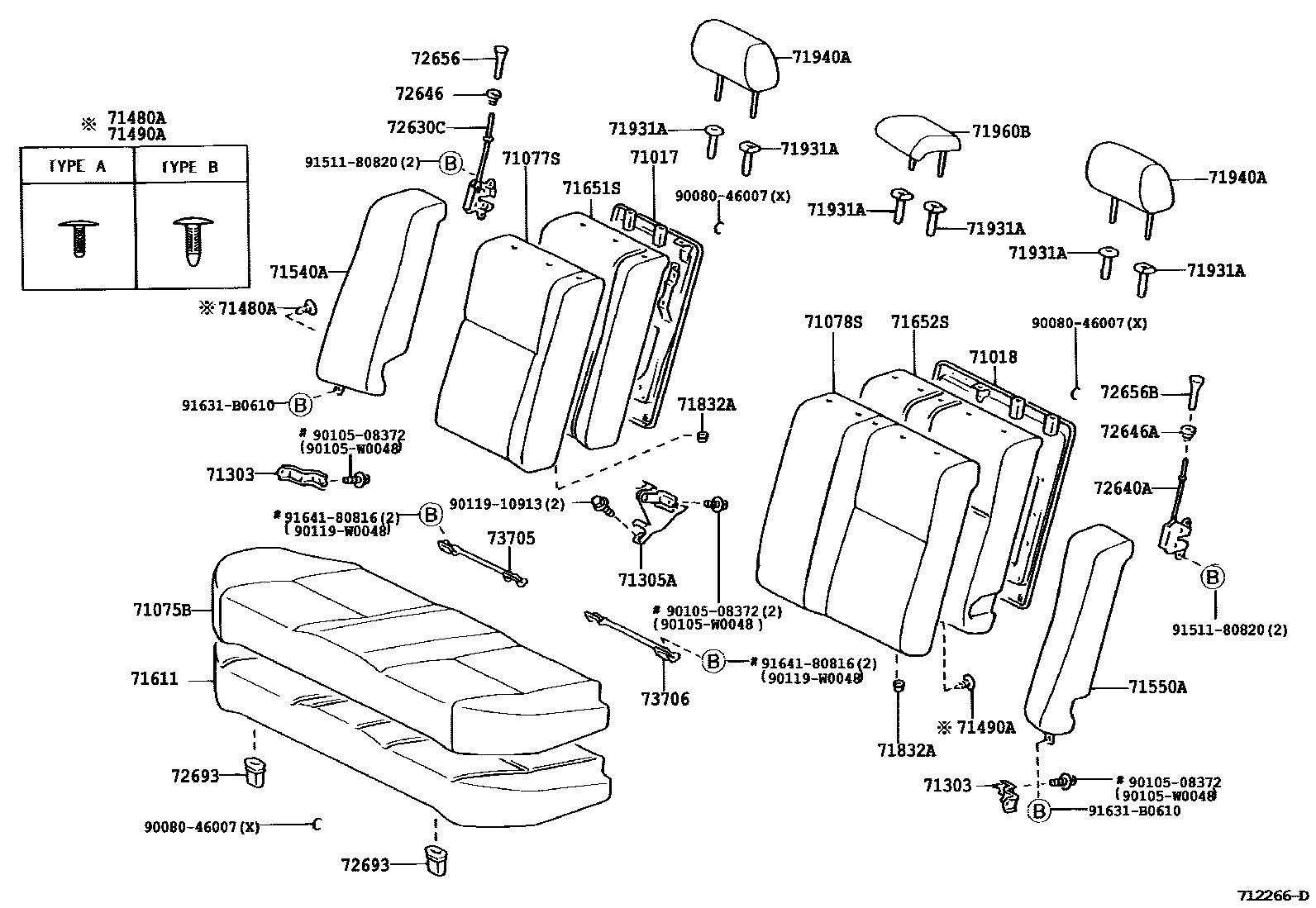

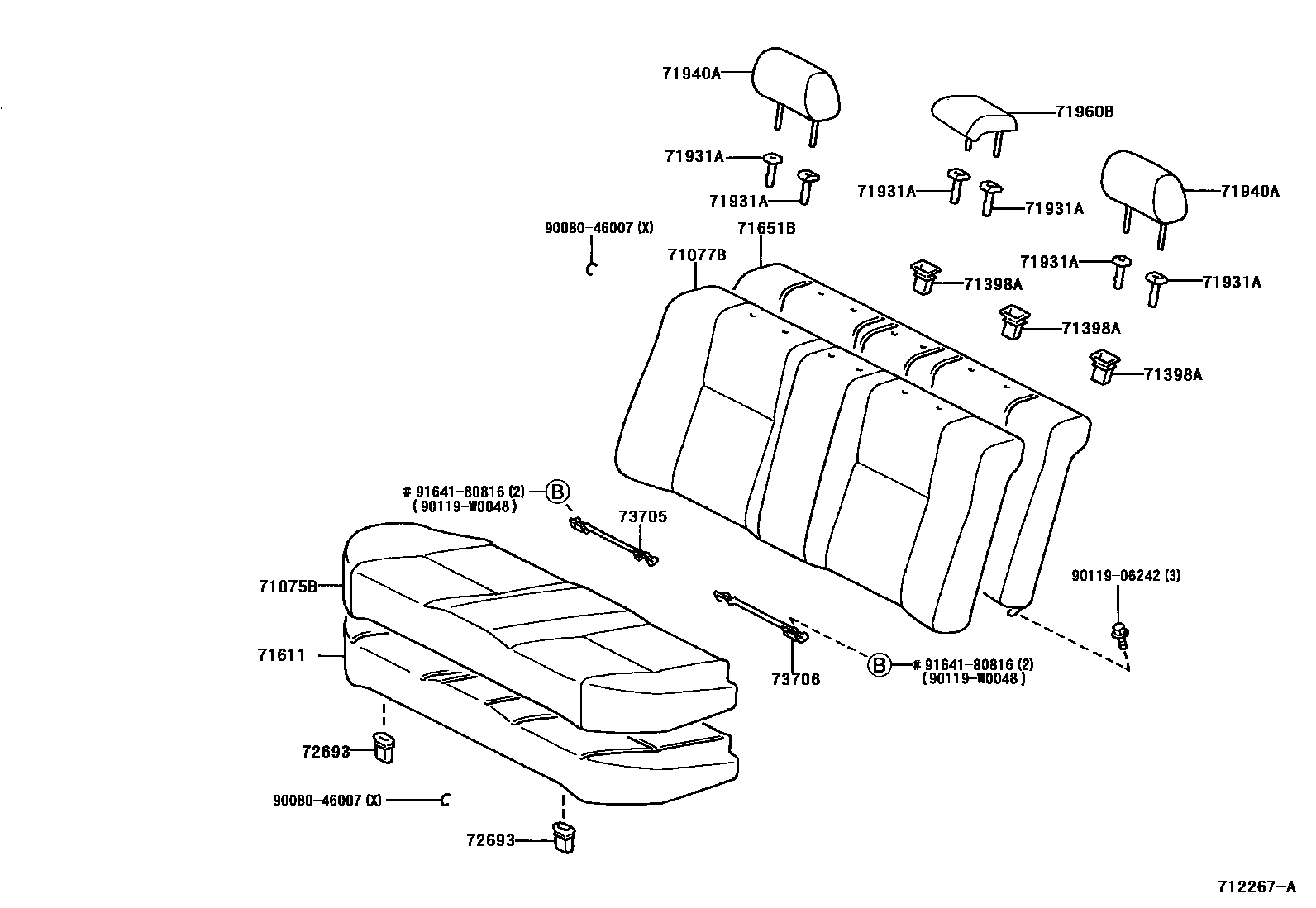

Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102
Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 3 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71015A | Rear right seat cushion frame sub-assembly | 71015-02030 |
| 71016A | Rear left seat cushion frame sub-assembly | 71016-02030 |
| 71017 | Right rear seat back frame sub-assembly | 71017-02100 · 71017-02110 |
| 71018 | Rear left seat back frame sub-assembly | 71018-02060 · 71018-02110 |
| 71303 | Rear seat back hinge sub-assembly | 71303-02040 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71303-02060 |
| 71304C | Rear left seat back hinge sub-assembly | 71303-02060 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-02040 · 71305-02060 |
| 71398A | Rear seat back retainer | 71398-02030 |
| 71611 | Rear seat cushion cushion | 71503-02070 |
| 71611A | Rear right seat cushion | 71611-02050 |
| 71612A | Rear left seat cushion | 71612-02030 |
| 71651B | Rear seat back cushions (for bench seats) | 71507-02070 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-02080 · 71651-02150 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-02080 · 71652-02150 |
| 72630C | Rear right seat back lock assembly | 72630-13140 · 72630-47010 |
| 72640A | Rear left seat back lock assembly | 72640-13130 · 72640-47010 |
| 72693 | Rear seat cushion hook | 72693-12080 |
| 72927 | Rear right seat cushion lower cover | 72927-02040 |
| 72928 | Rear left seat cushion lower cover | 72928-02040 |
| 73705 | Child restraint seat anchor right side bracket sub-assembly | 73705-02010 · 73705-02050 |
| 73706 | Child restraint seat anchor left bracket sub-assembly | 73706-02010 · 73706-02040 |
