Toyota COROLLA 后门车窗升降器和合页 — Figure 6707

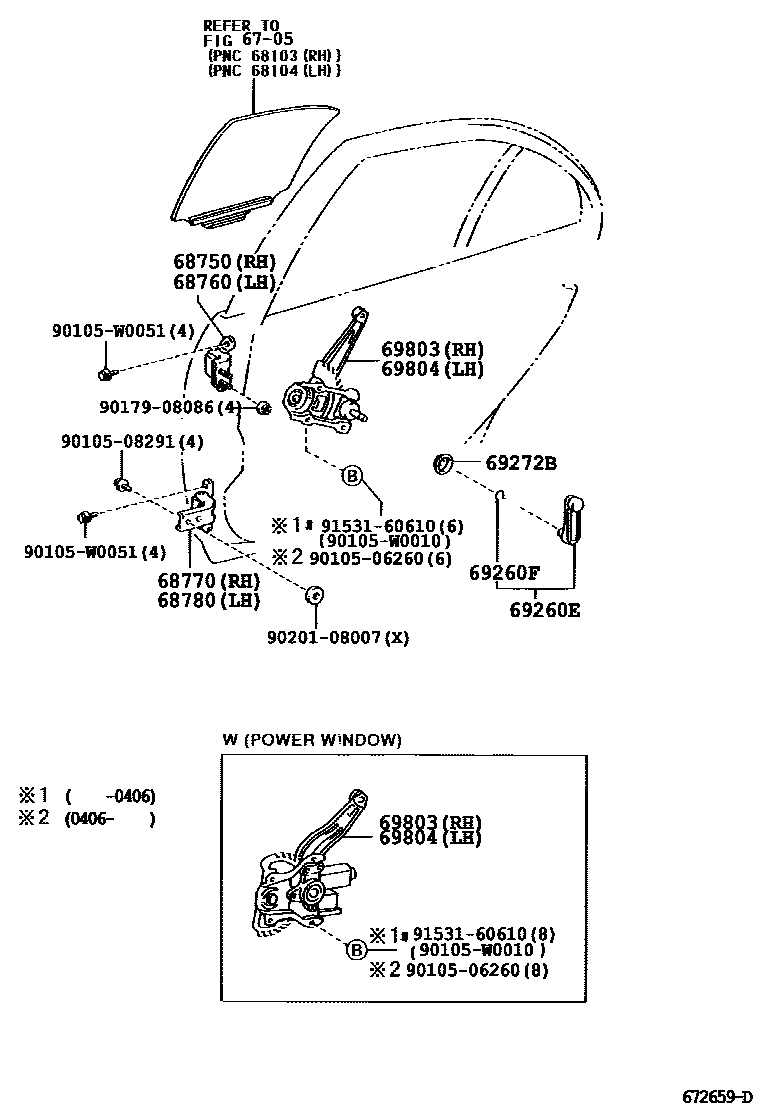

Toyota COROLLA EPC diagram 6707, 后门车窗升降器和合页, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68750 | Right rear door upper hinge assembly | 68750-02060 · 68750-0D010 |
| 68760 | Left rear door upper hinge assembly | 68760-02060 · 68760-0D010 |
| 68770 | Right rear door lower hinge assembly | 68770-02060 · 68770-05020 · 68770-52030 |
| 68780 | Left rear door lower hinge assembly | 68780-02060 · 68780-05020 · 68780-52030 |
| 69260F | Shaft snap ring (for rear door window regulator handle) | 90080-52100 |
| 69272B | Rear door window regulator inner handle plate | 69268-02021 · 69268-02022 |
| 69803 | Right rear door window lifter sub-assembly | 69830-02110 · 69830-02120 |
| 69804 | Left rear door window lifter sub-assembly | 69840-02110 · 69840-02120 |
