Toyota COROLLA 前门锁和车门把手 — Figure 6703

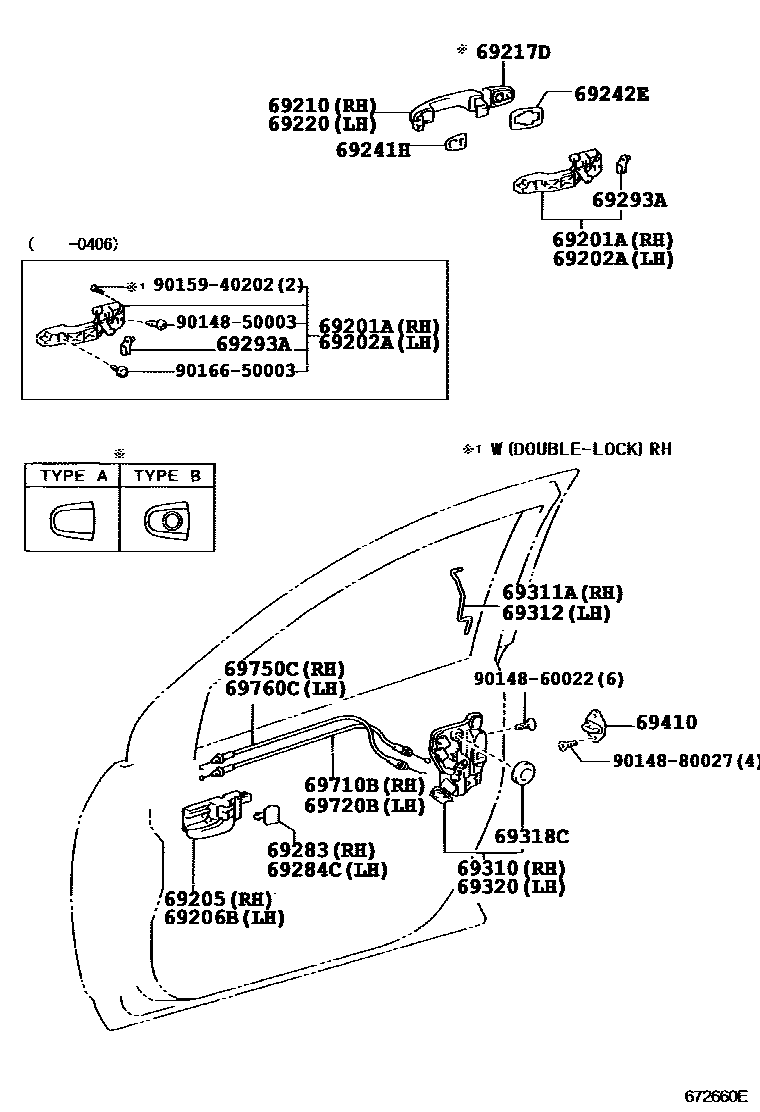

Toyota COROLLA EPC diagram 6703, 前门锁和车门把手, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69201A | Right front door outer handle frame sub-assembly | 69201-02060 · 69201-02070 · 69201-02090 · 69201-05060 |
| 69202A | Left front door outer handle frame sub-assembly | 69202-02040 · 69202-05020 |
| 69210 | Right front door outer handle assembly | 69211-02110 · 69211-05903 |
| 69217D | Front door outer handle cover | 69217-02902 · 69217-02903 |
| 69220 | Left front door outer handle assembly | 69211-02110 · 69211-05903 |
| 69241H | Front door exterior handle pad | 69241-02040 |
| 69242E | Front door rear outer handle pad | 69242-02040 |
| 69293A | Front door outer handle buckle | 69293-33010 · 69293-33020 |
| 69310 | Right front door lock assembly | 69030-02141 · 69030-02142 · 69030-02151 · 69030-02152 · 69030-02161 · 69030-02162 · 69030-02171 · 69030-13071 · 69030-13081 · 69030-33241 · 69030-33251 · 69310-02091 · 69310-13051 |
| 69311A | Right front door lock opening lever | 69311-02080 · 69311-13020 |
| 69312 | Left front door lock opening lever | 69312-02080 · 69312-13020 |
| 69318C | door lock harness seal | 69318-51010 |
| 69320 | Left front door lock assembly | 69040-02131 · 69040-02132 · 69040-02141 · 69040-02142 · 69040-02151 · 69040-02152 · 69040-02161 · 69040-13051 · 69040-13061 · 69040-13111 · 69040-33231 · 69320-02091 · 69320-13041 |
| 69410 | Front door lock plate assembly | 69410-33010 |
| 69710B | Right front door lock remote control cable assembly | 69710-02080 · 69710-13020 |
| 69720B | Left front door lock remote control cable assembly | 69710-02080 · 69710-13020 |
| 69750C | Right front door inner lock cable assembly | 69750-02080 · 69750-13030 |
| 69760C | Left front door inner lock cable assembly | 69760-02080 · 69760-13010 |
