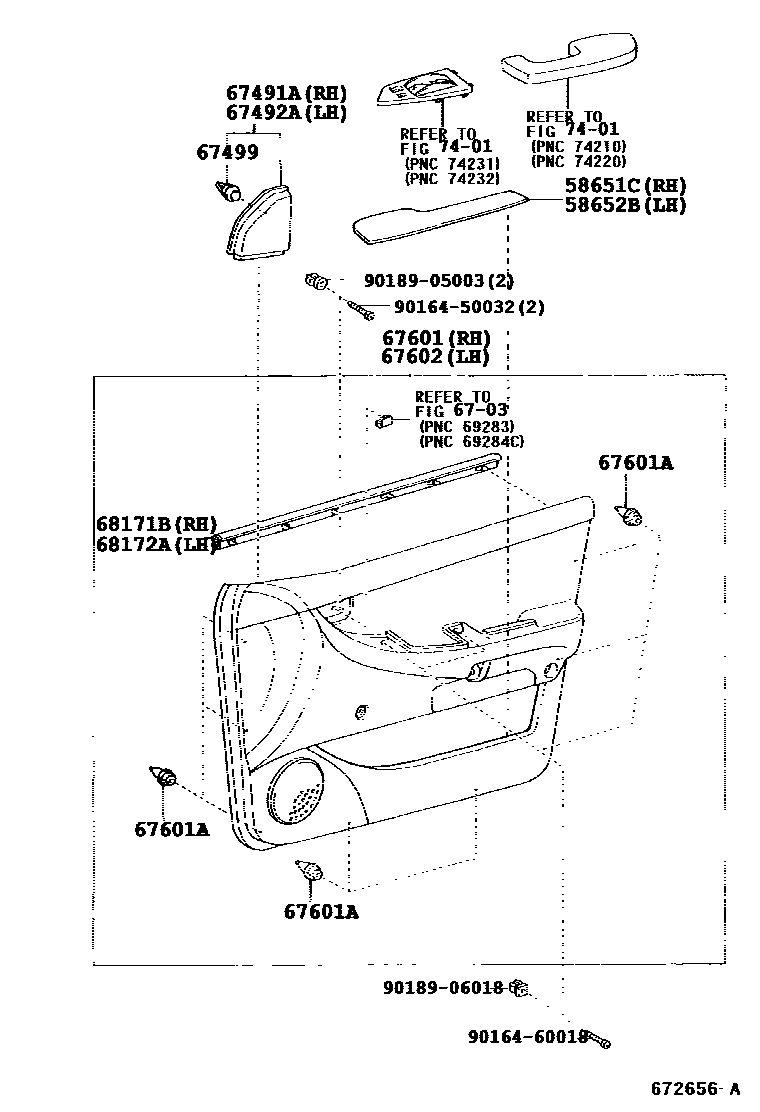

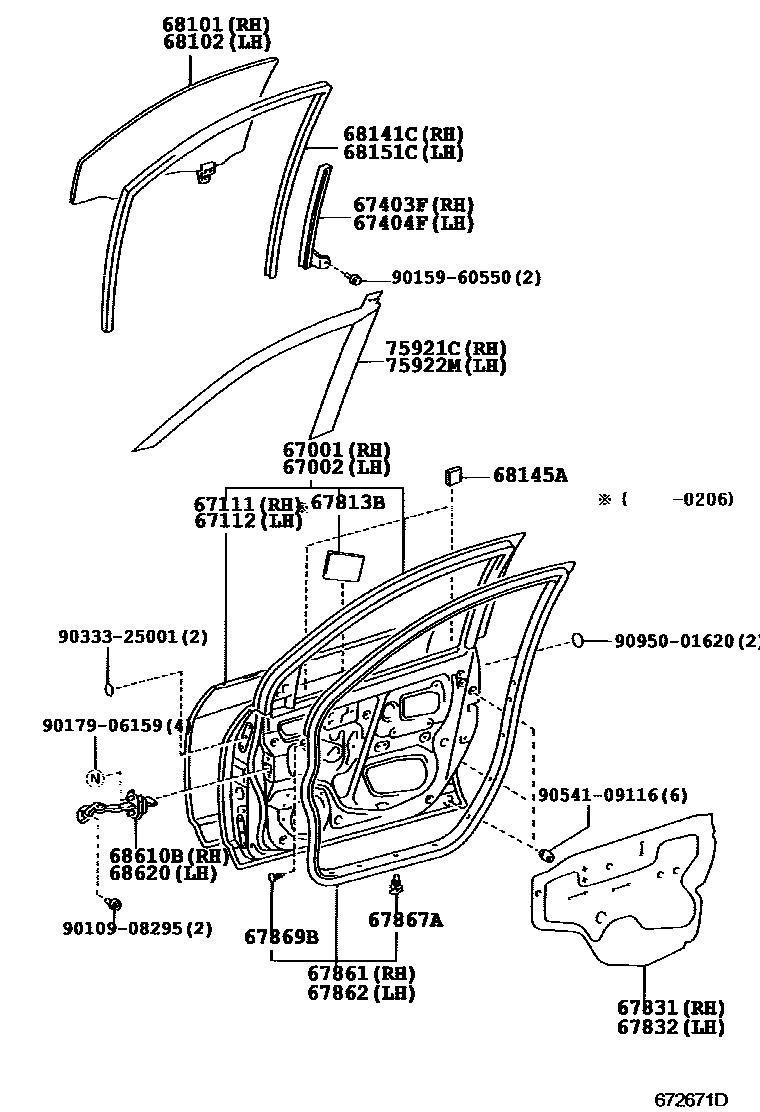

Toyota COROLLA 前门板和前门玻璃 — Figure 6701
Toyota COROLLA EPC diagram 6701, 前门板和前门玻璃, with 3 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-02130 · 67001-02131 |
| 67002 | Left front door panel sub-assembly | 67002-02130 · 67002-02131 |
| 67111 | Outer right front door panel | 67111-02070 |
| 67112 | Outer left front door panel | 67112-02070 |
| 67403F | Right front door rear lower door frame sub-assembly | 67403-12220 |
| 67404F | Left front door rear lower door frame sub-assembly | 67404-12200 |
| 67491A | Right front door lower door frame bracket decorative strip | 67491-12460 · 67491-12470 · 67491-12480 |
| 67492A | Left front door lower door frame bracket decorative strip | 67492-12460 · 67492-12470 · 67492-12480 |
| 67499 | Front door lower door frame bracket trim strip fixing | 67771-12060 |
| 67601A | Fixings (for front door trim) | 90467-10161 · 90467-W0005 |
| 67813B | door guard seals | 67817-47010 |
| 67831 | Right front door access hole cover | 67831-02100 |
| 67832 | Left front door access hole cover | 67832-02100 |
| 67861 | Right front door seal | 67861-02110 · 67861-02111 |
| 67862 | Left front door seal | 67862-02110 · 67862-02111 |
| 67867A | Door seal strip clip (for front door) | 67867-12150 |
| 67869B | Front door seal strip clip | 67869-20030 |
| 68101 | Right front door glass sub-assembly | 68101-02100 · 68101-1A510 |
| 68102 | Left front door glass sub-assembly | 68102-02100 · 68102-1A500 |
| 68141C | Right front door glass lift channel | 68141-02070 · 68141-02071 · 68141-02072 |
| 68145A | Front door window cushion | 69759-12110 |
| 68151C | Left front door glass lift channel | 68151-02060 · 68151-02061 · 68151-02062 |
| 68171B | Right front door glass inner sealing strip | 68171-12290 · 68171-12320 |
| 68172A | Left front door glass inner sealing strip | 68172-12210 · 68172-12240 |
| 68610B | Right front door opening limiter assembly | 68610-12170 |
| 68620 | Left front door opening limiter assembly | 68620-12100 |
| 75921C | No. 1 right side light-shielding film | 75921-02021 · 75921-12051 |
| 75922M | No. 1 left shading film | 75922-02021 · 75922-12051 |
