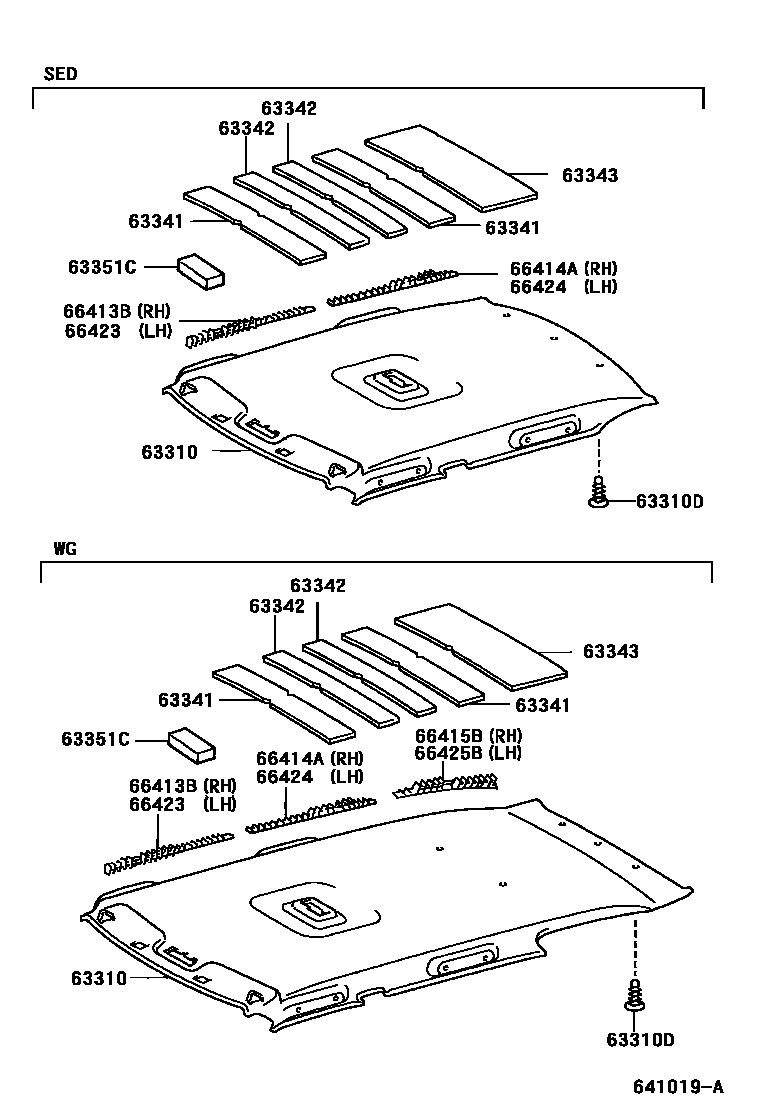

Toyota COROLLA 车顶内衬和消声垫 — Figure 6402
Toyota COROLLA EPC diagram 6402, 车顶内衬和消声垫, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63341 | No. 1 roof silencer mat | 63341-02040 |
| 63342 | No. 2 roof muffler pad | 63342-02070 |
| 63343 | No. 3 roof muffler pad | 63343-02030 |
| 63351C | roof lining pads | 63351-02090 |
| 66413B | Right front longitudinal member spacer | 66413-12010 |
| 66414A | Right rear longitudinal member spacer | 66414-12010 · 66414-12030 · 66414-13010 |
| 66415B | No. 2 right rear longitudinal beam spacer | 66415-13010 · 66415-13011 |
| 66423 | Left front longitudinal member spacer | 66423-12010 |
| 66424 | Left rear longitudinal member spacer | 66424-12010 · 66424-12030 · 66424-13010 |
| 66425B | No. 2 left rear longitudinal beam spacer | 66425-13010 · 66425-13011 |
