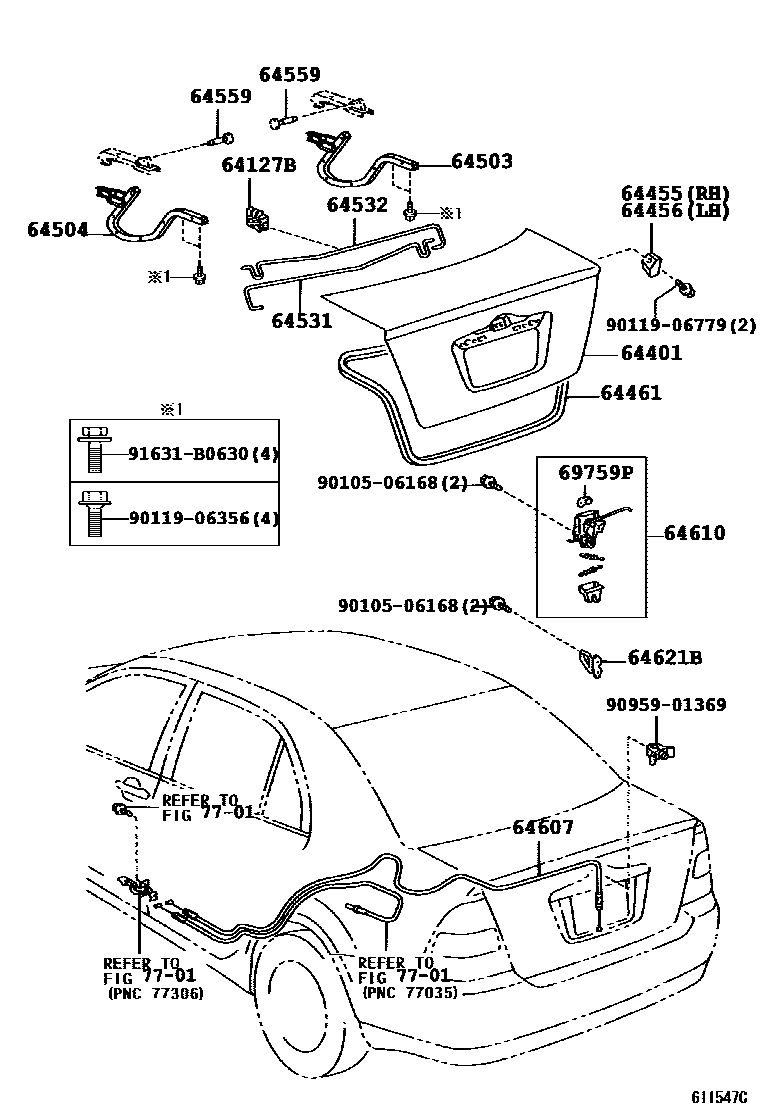

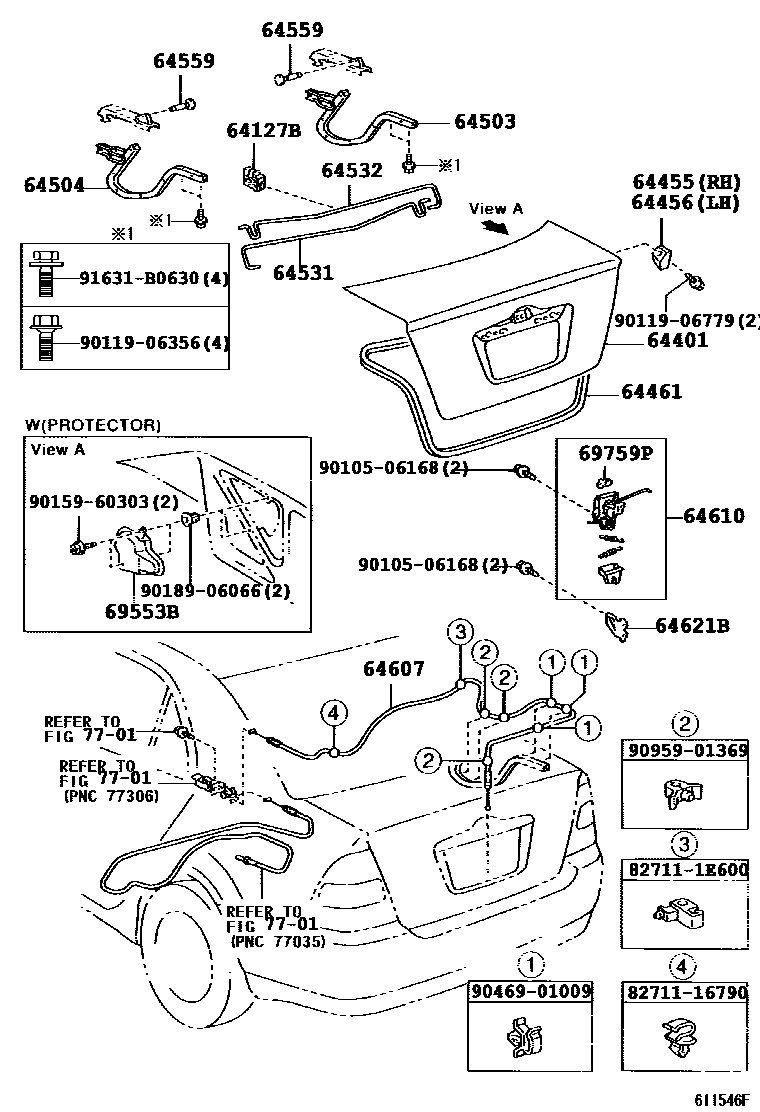

Toyota COROLLA 行李箱门和行李箱锁 — Figure 6105
Toyota COROLLA EPC diagram 6105, 行李箱门和行李箱锁, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64127B | Trunk door torsion bar bracket | 64127-33041 |
| 64401 | Trunk door panel sub-assembly | 64401-02070 · 64401-02071 · 64401-02120 · 64401-02121 |
| 64455 | Luggage door right cushion | 64455-12010 |
| 64456 | Luggage door left cushion | 64456-12010 |
| 64461 | Trunk door seal | 64461-02090 · 64461-02091 |
| 64503 | Trunk door right hinge arm sub-assembly | 64503-02040 |
| 64504 | Trunk door left hinge arm sub-assembly | 64503-02040 |
| 64531 | Trunk door right hinge torsion bar | 64531-02060 |
| 64532 | Trunk door left hinge torsion bar | 64532-02060 |
| 64559 | Trunk door hinge pin | 64559-12040 |
| 64607 | Trunk door lock control cable sub-assembly | 64607-02080 |
| 64610 | Trunk door lock assembly | 64610-02080 · 64610-12350 |
| 64621B | Trunk door latch | 64621-12070 |
| 69553B | Luggage lock core protection parts | 69553-12010 |
| 69759P | Door lock control link buckle | 69759-24050 |
