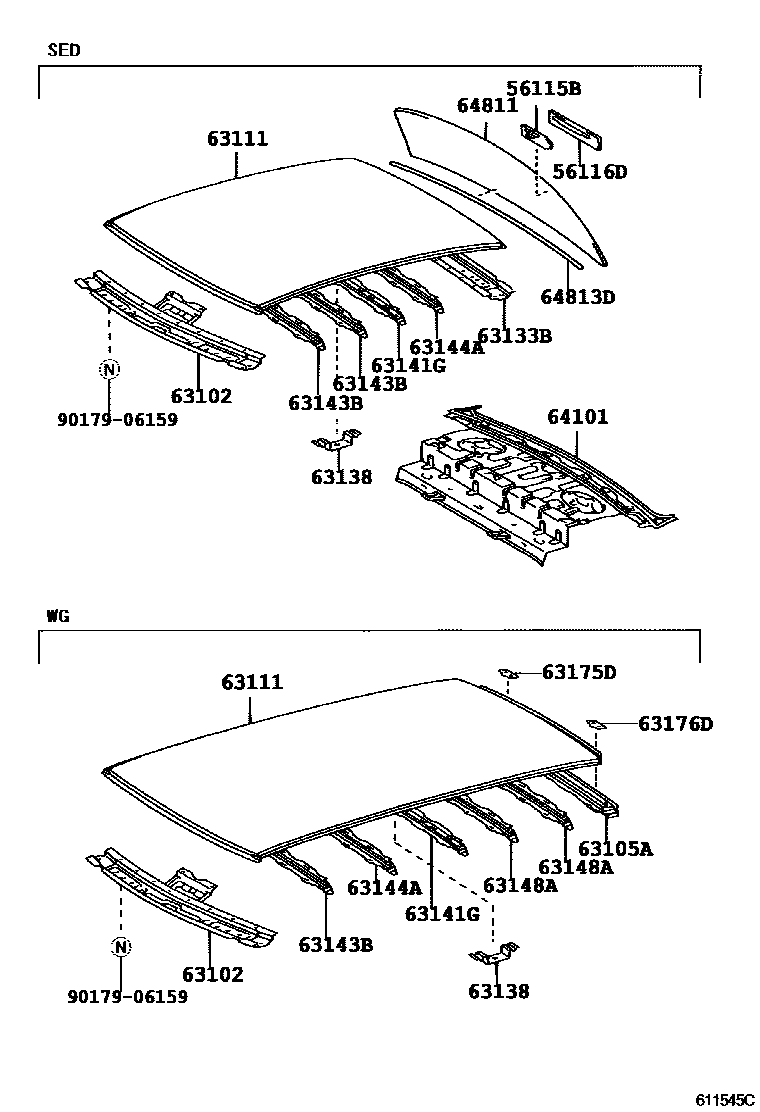

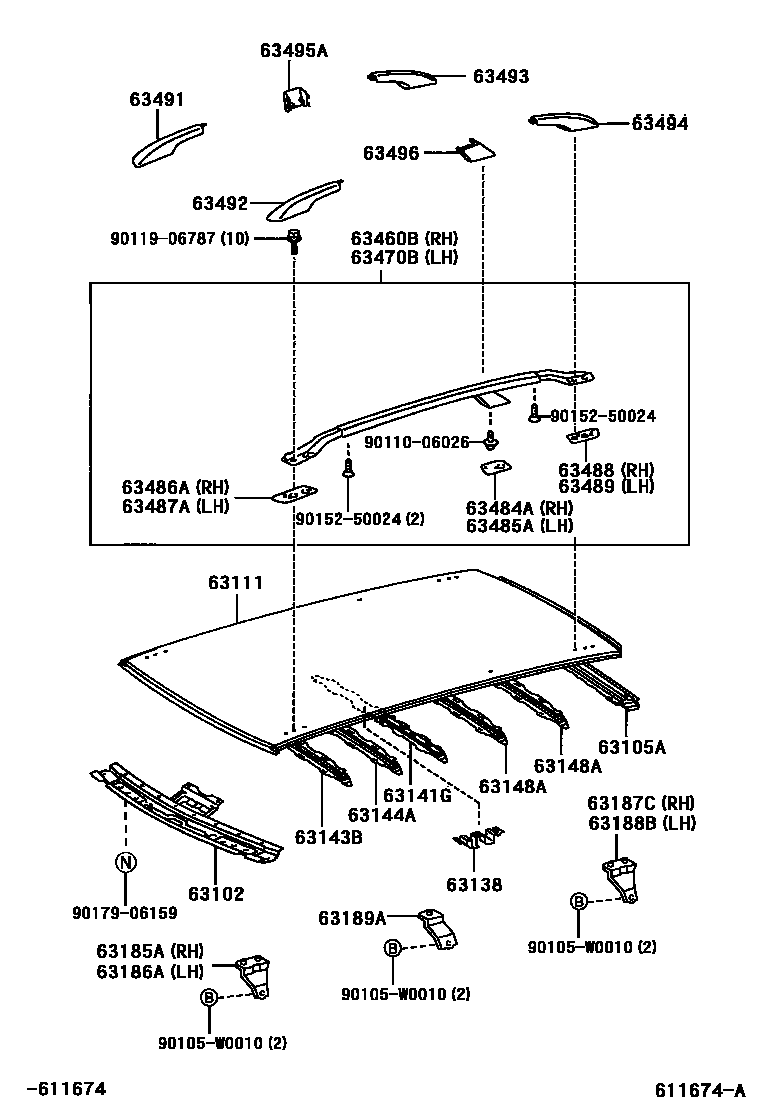

Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104
Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 2 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 56115B | Back window glass stop No. 1 | 56115-22010 |
| 56116D | No. 2 stopper for back window glass | 56116-22050 |
| 63102 | Roof panel plus front strong piece sub-assembly | 63102-02050 |
| 63105A | Back door opening frame sub-assembly | 63105-02040 |
| 63111 | roof panel | 63111-02110 · 63111-02180 · 63111-02190 |
| 63133B | back window frame | 63133-12280 |
| 63138 | No. 2 ceiling light bracket | 63138-12011 |
| 63141G | No. 1 roof panel reinforcement | 63141-02040 · 63141-12260 |
| 63143B | No. 3 roof panel reinforcement | 63143-12100 |
| 63144A | No. 4 roof panel reinforcement | 63144-02020 · 63144-12080 |
| 63148A | No. 7 roof panel reinforcement | 63148-02010 |
| 63175D | Back door right recessed hinge reinforcement | 63175-02030 |
| 63176D | Back door left recessed hinge reinforcement | 63176-02030 |
| 63185A | Right front roof rack bracket | 63185-02010 |
| 63186A | Left front roof rack bracket | 63186-02010 |
| 63187C | Right rear roof rack No. 1 bracket | 63187-02010 |
| 63188B | Left rear roof rack No. 1 bracket | 63188-02010 |
| 63189A | Center roof rack bracket | 63189-02010 |
| 63460B | Roof right luggage rack assembly | 63460-13110 |
| 63470B | Roof left luggage rack assembly | 63470-13110 |
| 63484A | Right center roof rack foot cushion | 63484-13050 |
| 63485A | Left center roof rack foot cushion | 63485-13050 |
| 63486A | Right front roof rack support foot cushion | 63486-13050 |
| 63487A | Left front roof rack support foot cushion | 63487-13050 |
| 63488 | Right rear roof rack foot cushion pad | 63488-13060 |
| 63489 | Left rear roof rack support foot cushion pad | 63489-13060 |
| 63491 | Right front roof rack leg cover | 63491-13090 |
| 63492 | Left front roof rack leg cover | 63492-13090 |
| 63493 | Right rear roof rack foot cover | 63493-13100 |
| 63494 | Left rear roof rack leg cover | 63494-13100 |
| 63495A | Center roof rack foot cover | 63495-13090 |
| 63496 | Left center roof rack foot cover | 63496-13090 |
| 64101 | Upper back panel sub-assembly | 64101-02080 · 64101-02090 |
| 64811 | back window glass | 64811-02180 · 64811-02190 · 64811-12A20 · 64811-1E380 |
| 64813D | Back window glass adhesive seal | 56117-12240 |
