Toyota COROLLA 侧梁 — Figure 6101

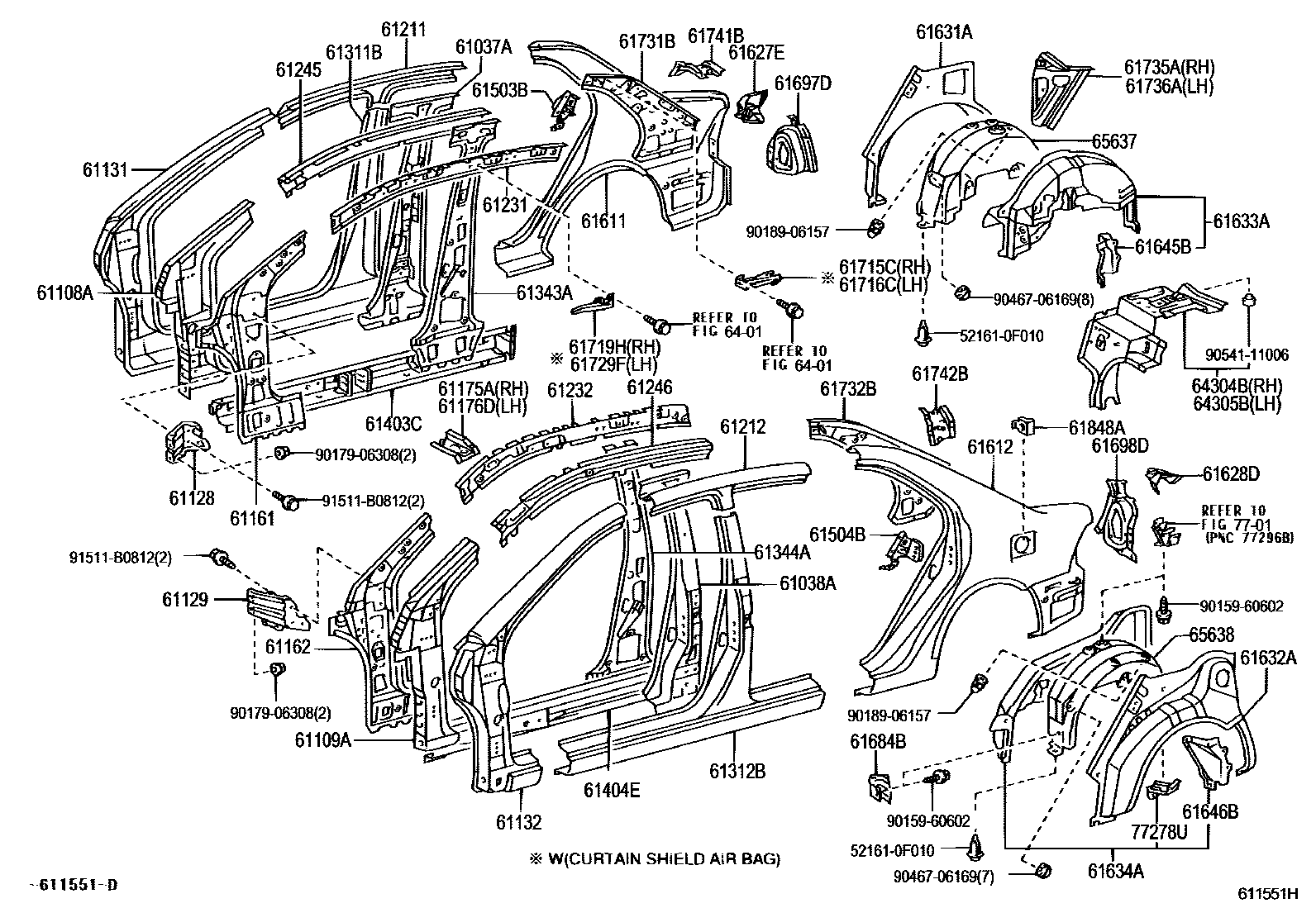

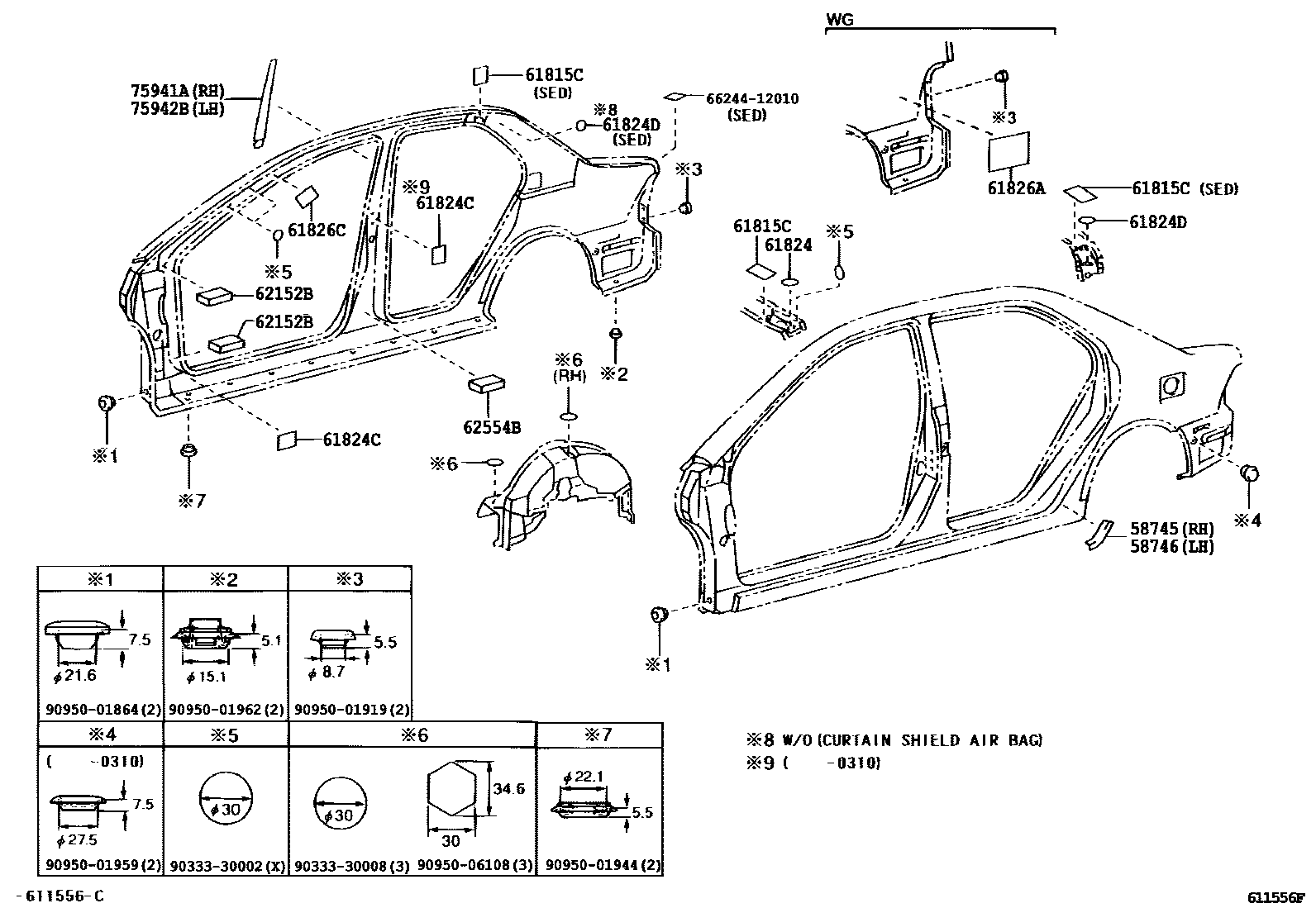

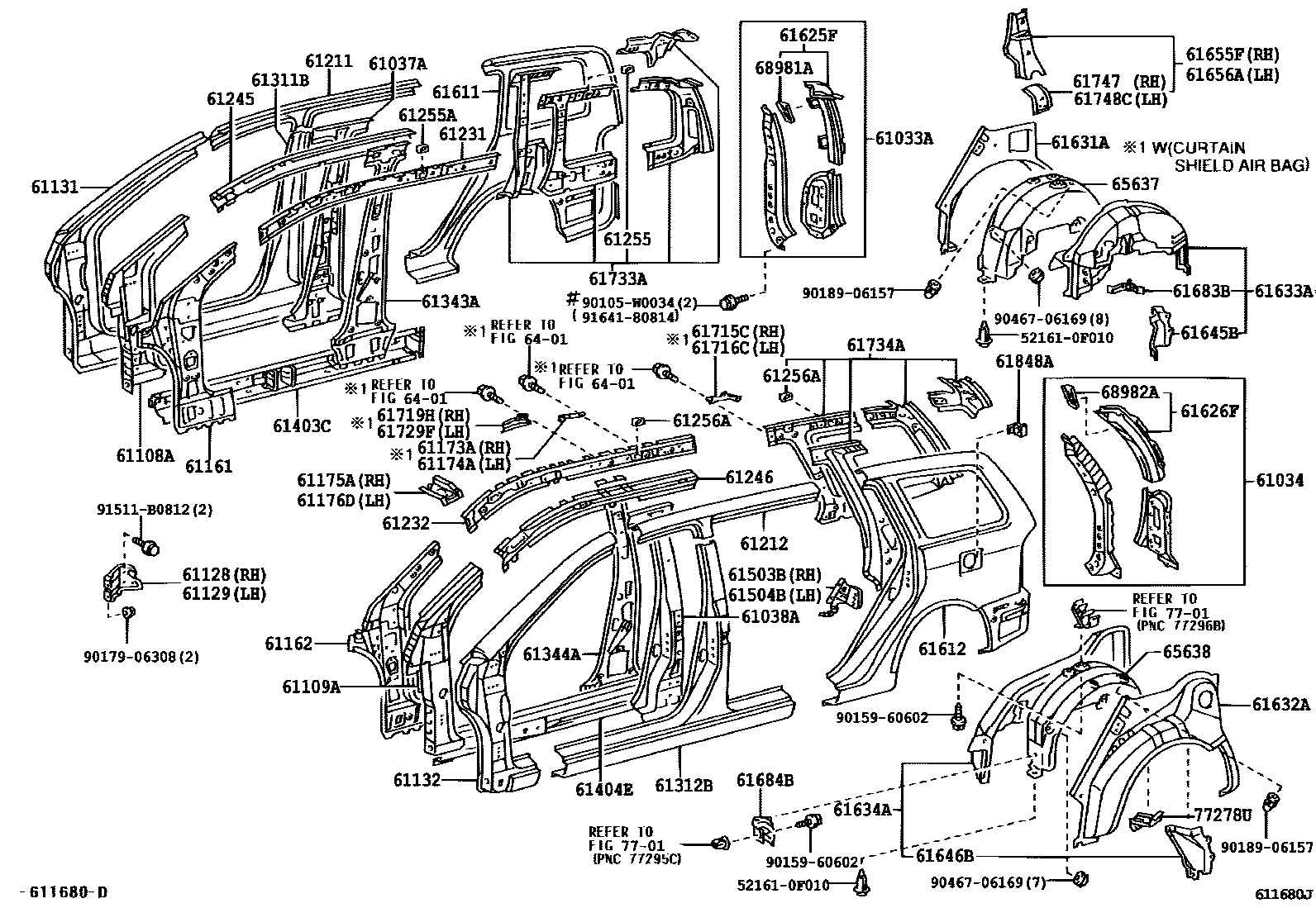

Toyota COROLLA EPC diagram 6101, 侧梁, with 3 images and 85 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58745 | Right front side panel protector | 58741-02030 |
| 58746 | Left front side panel protector | 58742-02030 |
| 61033A | Rear door opening side reinforcement sub-assembly | 61033-02020 |
| 61034 | Rear door opening left reinforcement sub-assembly | 61034-02020 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-02902 · 61037-02905 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-02902 · 61038-02905 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-02060 · 61108-02080 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-02060 · 61109-02080 |
| 61128 | Right front wall side panel reinforcement | 61103-02010 · 61103-02050 |
| 61129 | Left front wall side panel reinforcement | 61104-02010 · 61104-02050 |
| 61131 | Right body outer front upper pillar | 61131-02080 |
| 61132 | Left body outer front upper pillar | 61132-02110 |
| 61161 | Right upper body inner front pillar | 61023-02081 |
| 61162 | Left side inner front upper pillar | 61024-02081 |
| 61173A | Reinforcement member on the right inner front pillar of the body | 61173-02030 |
| 61174A | Reinforcement member on the left inner front pillar of the body | 61174-02030 |
| 61175A | No. 2 right outer front pillar upper reinforcement | 61175-02030 |
| 61176D | No. 2 left body exterior front pillar reinforcement | 61176-02030 |
| 61211 | Roof right outer longitudinal beam | 61211-02060 · 61211-02090 |
| 61212 | Roof left outer longitudinal beam | 61212-02060 · 61212-02090 |
| 61231 | Inner longitudinal beam on the right side of the roof | 61231-02070 · 61231-02071 · 61231-1A100 · 61231-1A140 |
| 61232 | Roof left inner longitudinal beam | 61232-02070 · 61232-02071 · 61232-12870 · 61232-1A020 |
| 61245 | Roof right outer longitudinal beam reinforcement | 61245-02080 · 61245-12040 · 61245-12060 |
| 61246 | Roof left outer longitudinal beam reinforcement | 61246-02060 · 61246-12040 · 61246-12060 |
| 61255 | Roof right outer longitudinal beam panel | 61255-13020 |
| 61255A | Roof right outer longitudinal beam panel | 61255-13020 |
| 61256A | Roof left outer longitudinal beam panel | 61255-13020 |
| 61311B | Right body outer center pillar | 61311-02050 |
| 61312B | Left body outer center pillar | 61312-02050 |
| 61343A | Right body inner center pillar | 61343-02030 · 61343-02031 |
| 61344A | Left body inner center pillar | 61344-02030 · 61344-02031 |
| 61403C | Right door outer sill reinforcement sub-assembly | 61403-02030 |
| 61404E | Left door outer sill reinforcement sub-assembly | 61404-02030 |
| 61503B | Right side locking column reinforcement sub-assembly | 61503-02020 · 61503-02040 |
| 61504B | Left side locking column reinforcement sub-assembly | 61504-02020 · 61504-02050 |
| 61611 | Right side hoarding | 61601-02130 · 61601-02180 |
| 61612 | left side panel | 61602-02150 · 61612-02100 |
| 61625F | Extension on right side panel | 61625-02900 |
| 61626F | Extension on left side panel | 61626-02900 |
| 61627E | Right rear side panel lower extension | 61627-12190 |
| 61628D | Left rear side panel lower extension | 61628-12200 |
| 61631A | Right wheel cover outer panel | 61631-02050 |
| 61632A | Left side wheel cover outer panel | 61632-02050 |
| 61633A | Right wheel housing lining panel | 61607-02912 · 61607-02913 · 61607-02921 · 61607-02922 · 61607-02923 · 61607-02924 |
| 61634A | Left side wheel housing lining panel | 61608-02910 · 61608-02911 · 61608-02919 · 61608-02920 · 61608-02921 · 61608-02922 |
| 61645B | Right rear side wheel housing corner panel | 61645-02030 |
| 61646B | Left rear side wheel housing corner panel | 61646-02030 |
| 61655F | Upper bracket of support rod on the right side of the back door | 61655-02900 |
| 61656A | Left side wheel housing inner corner panel | 61656-02900 |
| 61683B | No. 1 right rear fender external panel bracket | 61683-13010 |
| 61684B | No. 1 left rear fender external panel bracket | 61684-12040 |
| 61697D | Right side enclosure end cover | 61697-02900 |
| 61698D | Left side enclosure end cover | 61698-02900 |
| 61715C | Roof right bracket | 61715-02020 · 61715-02030 |
| 61716C | Roof left bracket | 61716-02020 · 61716-02030 |
| 61719H | Roof right side longitudinal beam bracket sub-assembly | 61707-02020 · 61707-12040 |
| 61729F | Roof left side longitudinal beam bracket sub-assembly | 61708-02020 · 61708-12030 |
| 61731B | Roof right inner panel | 61731-02050 · 61731-02100 |
| 61732B | Roof left inner panel | 61732-02050 · 61732-02100 |
| 61733A | Right front roof inner panel | 61733-02900 |
| 61734A | Left front roof inner panel | 61734-02900 |
| 61735A | Right rear roof inner panel | 61735-02030 |
| 61736A | Left rear roof inner panel | 61736-02030 |
| 61741B | Rear window opening right reinforcement | 61741-02030 · 61741-02031 |
| 61742B | Rear window opening left reinforcement | 61742-02030 · 61742-02031 |
| 61747 | Roof right inner panel to wheel housing bracket | 61747-13050 |
| 61748C | Roof left inner panel to wheel arch bracket | 61748-13080 |
| 61815C | Inner roof cover | 61815-28010 · 61815-32020 |
| 61824 | Noise Control Panel No. 1 | 61824-12040 · 61824-12060 |
| 61824C | No. 1 silencer panel gasket | 61824-50020 · 61824-52040 |
| 61824D | Noise Control Panel No. 1 | 61824-12040 · 61824-12060 |
| 61826A | Noise Control Panel No. 3 | 61824-02120 |
| 61826C | No. 3 silencer panel gasket | 61826-12020 · 61826-52020 |
| 61848A | Left side panel fixing | 61848-02020 · 61848-52010 |
| 62152B | No. 2 silencer pad on cowl side | 62152-12050 |
| 62554B | No. 4 column pad | 62554-12180 |
| 64304B | Glove box bracket right reinforcement sub-assembly | 64304-02010 · 64304-02030 |
| 64305B | Glove box bracket left reinforcement sub-assembly | 64305-02010 · 64305-02030 |
| 65637 | Right rear wheel house lining | 65637-02020 |
| 65638 | Left rear wheel house lining | 65638-02020 |
| 68981A | Back door right side support rod fixing | 68981-13030 |
| 68982A | Back door left support rod fixing | 68982-13030 |
| 75941A | Right center pillar trim | 75941-02010 · 75941-12020 |
| 75942B | Left center pillar trim | 75942-02010 · 75942-12020 |
| 77278U | Fuel tank filler pipe protection device bracket | 77278-32050 |
