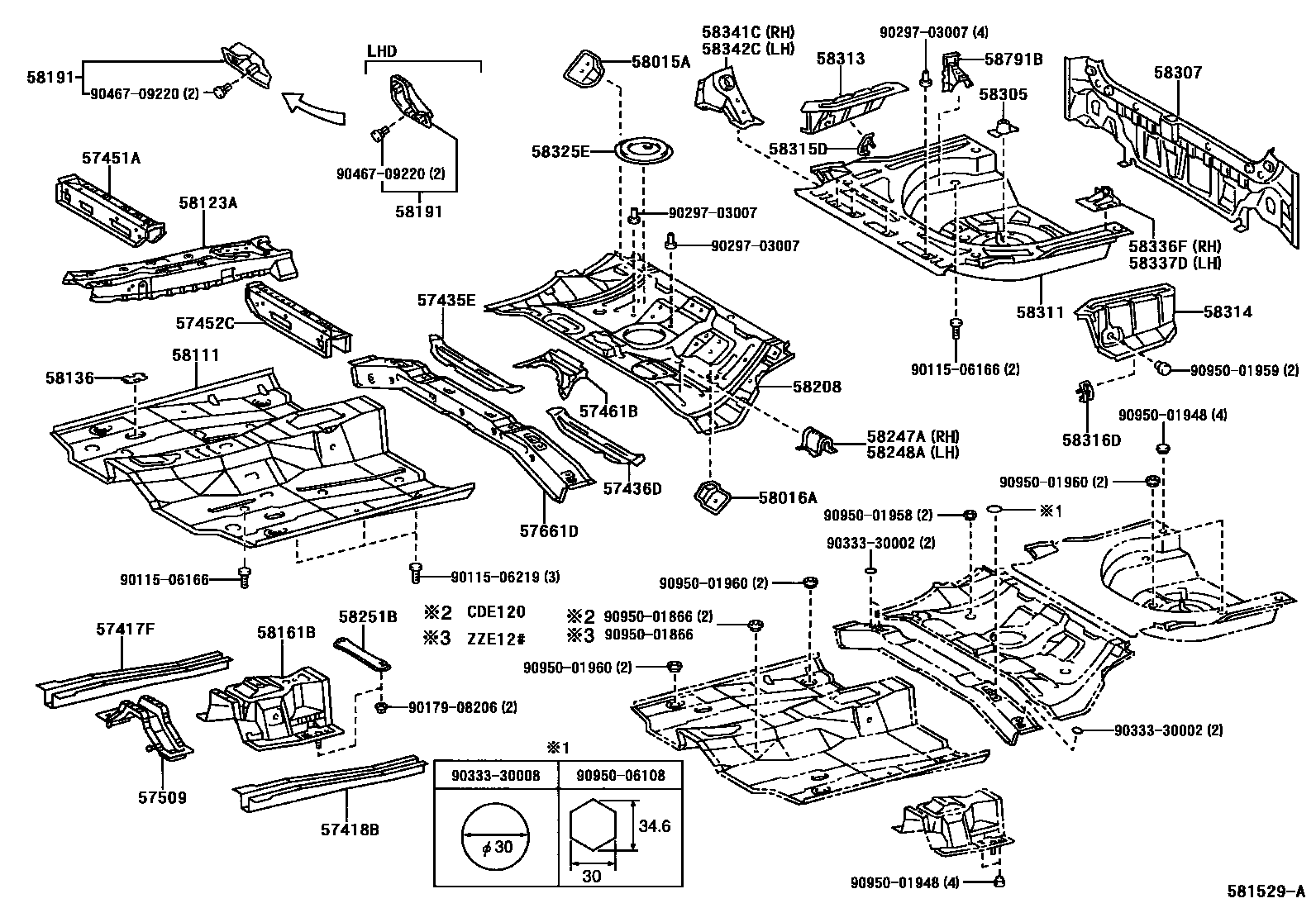

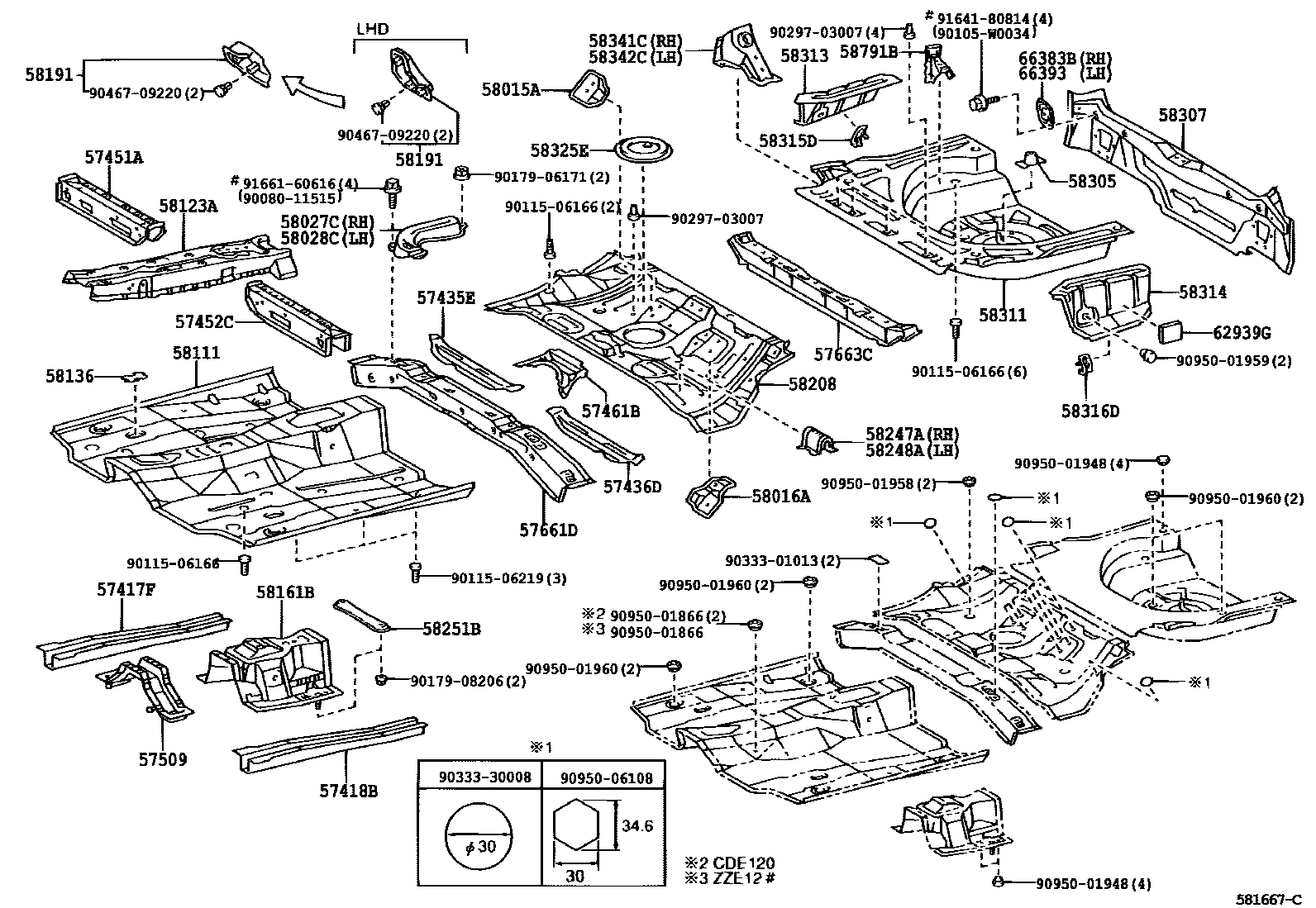

Toyota COROLLA 浅盘形地板和车身下背板 — Figure 5801
Toyota COROLLA EPC diagram 5801, 浅盘形地板和车身下背板, with 2 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57417F | Front floor lower right reinforcement | 57417-02050 |
| 57418B | Front floor lower left reinforcement | 57417-02050 |
| 57435E | Center floor right longitudinal beam | 57435-02020 · 57435-12010 |
| 57436D | Center floor left longitudinal beam | 57436-02020 · 57436-12010 |
| 57451A | Front floor right cross member | 57451-02060 |
| 57452C | Front floor left cross member | 57452-02030 · 57452-02031 |
| 57461B | Center floor No. 1 beam sub-assembly | 57461-02050 · 57461-12130 |
| 57509 | Front floor center reinforcement sub-assembly | 57509-02020 |
| 57661D | rear floor front cross member | 57407-02060 · 57661-02040 |
| 57663C | Rear floor center cross member | 57663-02020 |
| 58015A | Right No. 3 seat belt anchor reinforcement sub-assembly | 58015-02030 · 58015-02040 · 58015-12060 · 58015-12070 |
| 58016A | Left No. 3 seat belt anchor reinforcement sub-assembly | 58016-02050 · 58016-02060 · 58016-32050 |
| 58027C | Center floor right side panel sub-assembly | 58027-02030 |
| 58028C | Center floor left panel sub-assembly | 58028-02020 |
| 58111 | front floor pan | 58111-02900 |
| 58123A | shift lever bracket | 58013-02060 |
| 58136 | Front floor hole cover | 58136-02020 · 58136-33010 |
| 58161B | Seat belt anchor to floor pan reinforcement | 57805-02110 · 57805-02120 |
| 58191 | Front floor footrest | 58191-02040 · 58192-02040 |
| 58208 | central floor base | 58211-02110 · 58211-02120 · 58211-02150 |
| 58247A | Rear right seat cushion hinge reinforcement | 58247-12070 |
| 58248A | Rear left seat cushion hinge reinforcement | 58247-12070 |
| 58251B | front floor bracket | 58251-12030 |
| 58305 | Spare tire clamp bracket sub-assembly | 58351-33010 |
| 58307 | Body lower back panel sub-assembly | 58307-02080 · 58307-02130 |
| 58311 | rear floor pan | 58311-02080 |
| 58313 | Rear floor right panel | 58313-02030 |
| 58314 | rear floor left panel | 58314-02030 |
| 58315D | Rear floor pan right extension | 58315-12080 |
| 58316D | Rear floor pan left extension | 58316-12080 |
| 58325E | Rear floor access hole cover | 58325-02040 |
| 58336F | Rear floor bottom panel right reinforcement | 58336-12070 |
| 58337D | Rear floor bottom left reinforcement | 58337-12020 |
| 58341C | No. 1 right rear shock absorber mounting bracket | 58341-02040 · 58341-02050 · 58341-12020 |
| 58342C | No. 1 left rear shock absorber mounting bracket | 58342-02040 · 58342-02050 · 58342-12020 |
| 58791B | jack bracket | 58791-02020 |
| 62939G | Side ventilation silencers | 62939-02020 |
| 66383B | No. 1 right rope hook bracket | 66383-13010 |
| 66393 | No. 1 left rope hook bracket | 66393-13010 |
