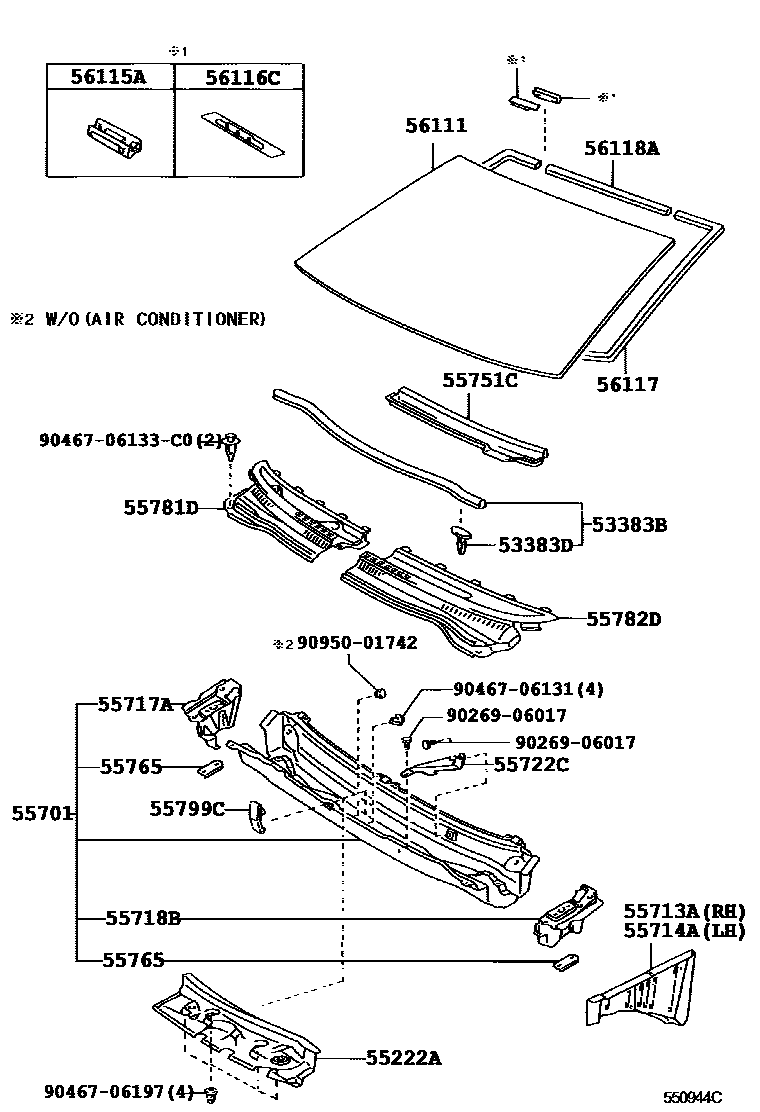

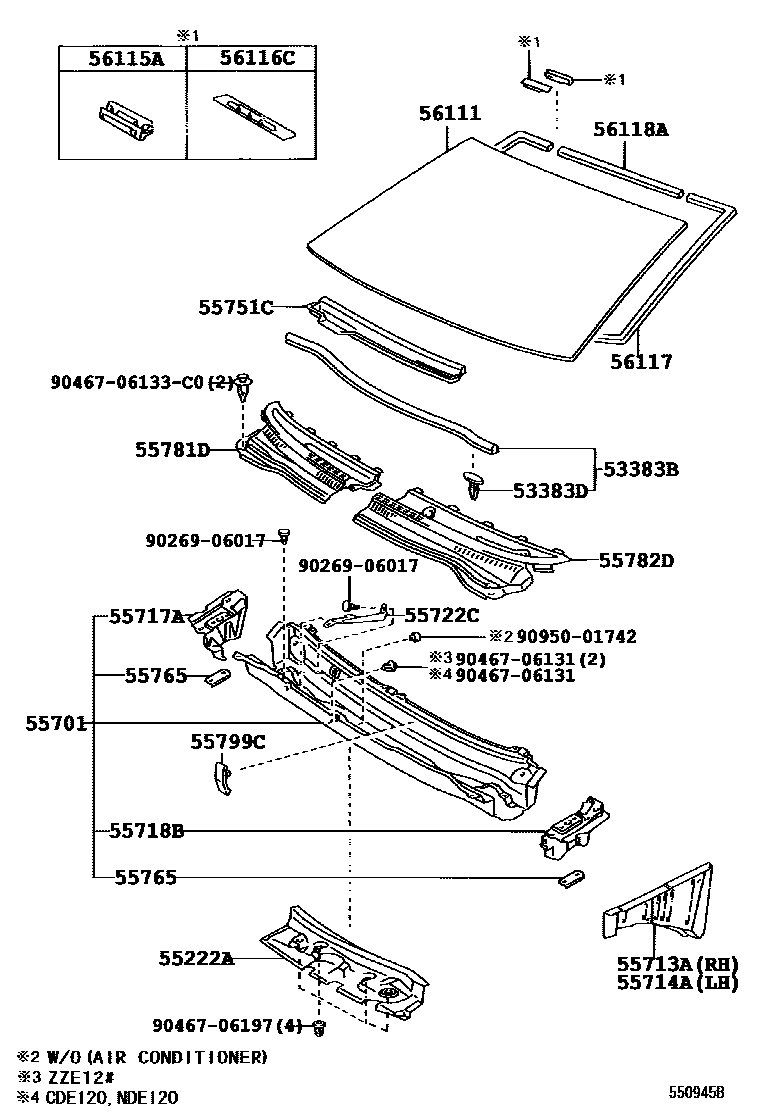

Toyota COROLLA 前围板和挡风玻璃 — Figure 5503
Toyota COROLLA EPC diagram 5503, 前围板和挡风玻璃, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-02060 |
| 53383D | Clamp (for engine cover to cowl upper cover seal) | 90467-08108 |
| 55222A | Center heat insulation pad on outer side of front cowl | 55224-02020 · 55224-02021 |
| 55701 | Front apron sub-assembly | 55700-02190 · 55700-02191 · 55700-02200 |
| 55713A | Right front wall upper side panel | 55713-12110 |
| 55714A | Left front wall upper side panel | 55714-12110 |
| 55717A | Upper right inner panel of cowl | 55717-02020 |
| 55718B | Upper left inner panel of front wall | 55718-02020 |
| 55722C | From the cowl upper cover to the cowl inner bracket | 55721-12100 · 55721-12110 |
| 55751C | Front ventilator splash guard | 55751-02050 · 55751-02060 |
| 55765 | Engine cover bumper mounting bracket | 55765-02020 |
| 55781D | Ventilation grille on right front apron | 55708-02110 · 55708-02120 · 55708-02130 · 55708-02270 · 55708-02280 |
| 55782D | Ventilation grille on left front apron | 55709-02030 · 55709-02040 · 55709-02050 · 55709-02180 |
| 55799C | Ventilation grille clips on front apron | 55799-13020 |
| 56111 | windshield | 56101-02030 · 56101-02210 · 56101-02220 · 56101-02230 |
| 56115A | Windshield block No. 1 | 56115-22010 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56117 | Front pillar outer sealing strip | 56117-47010 |
