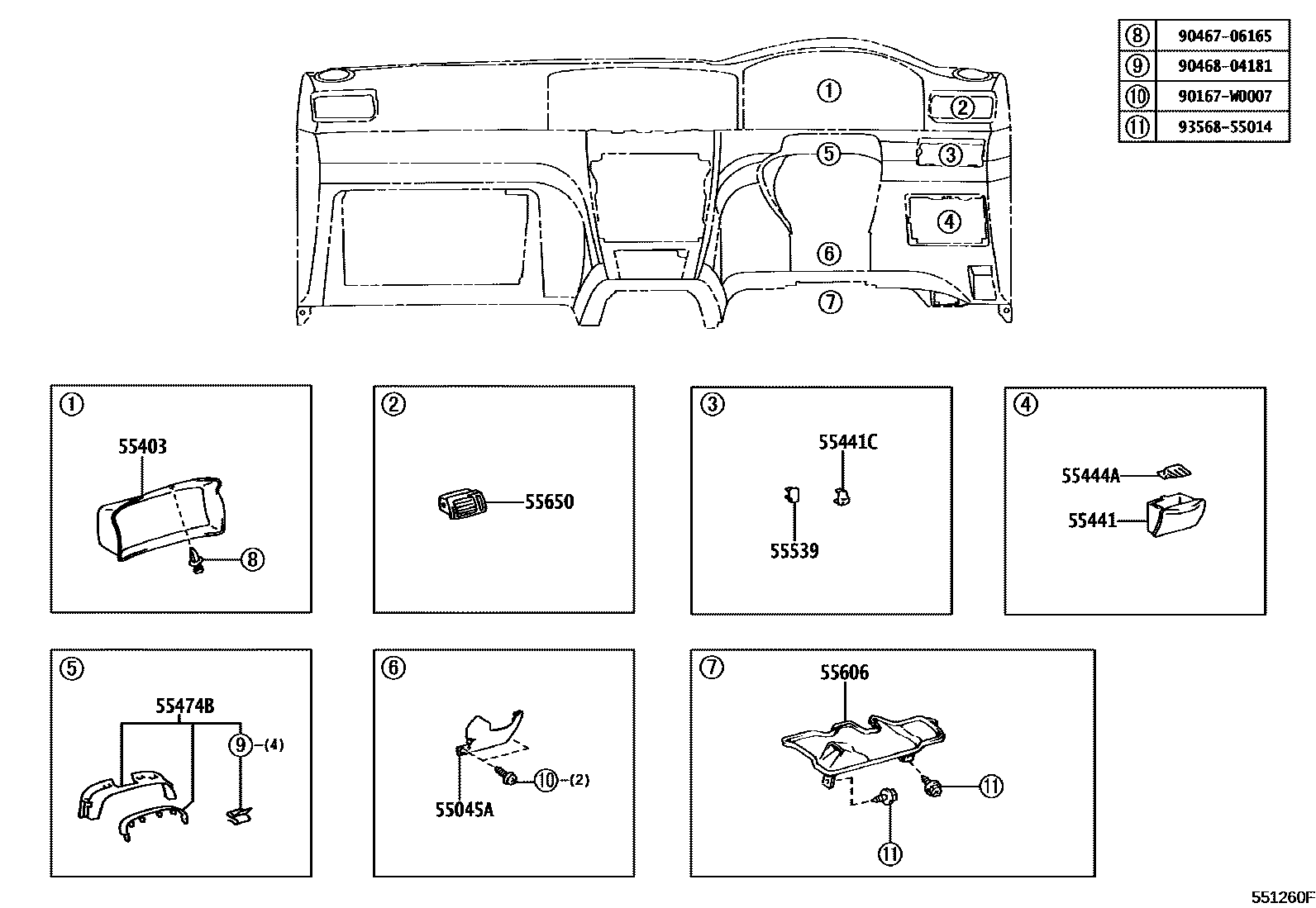

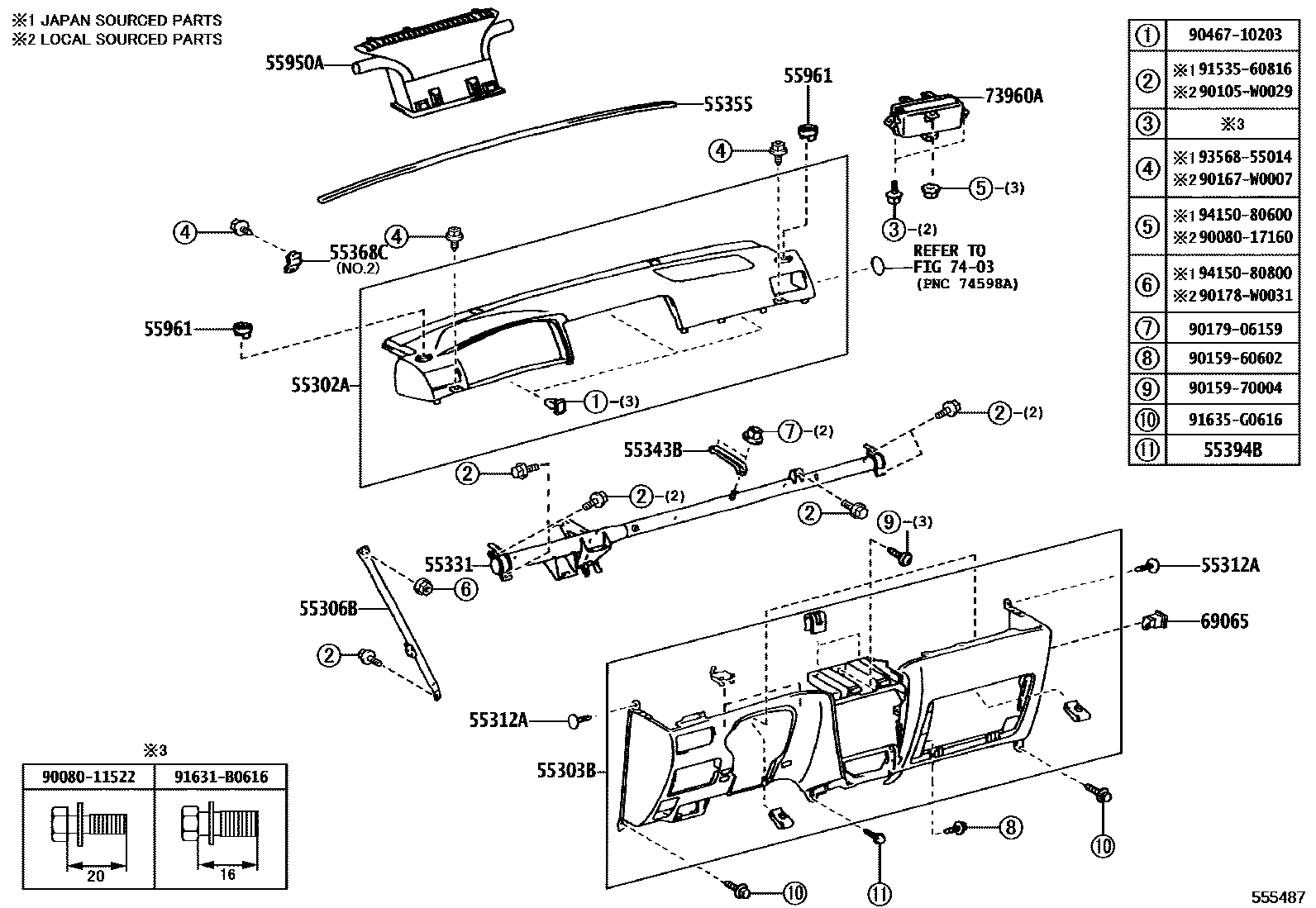

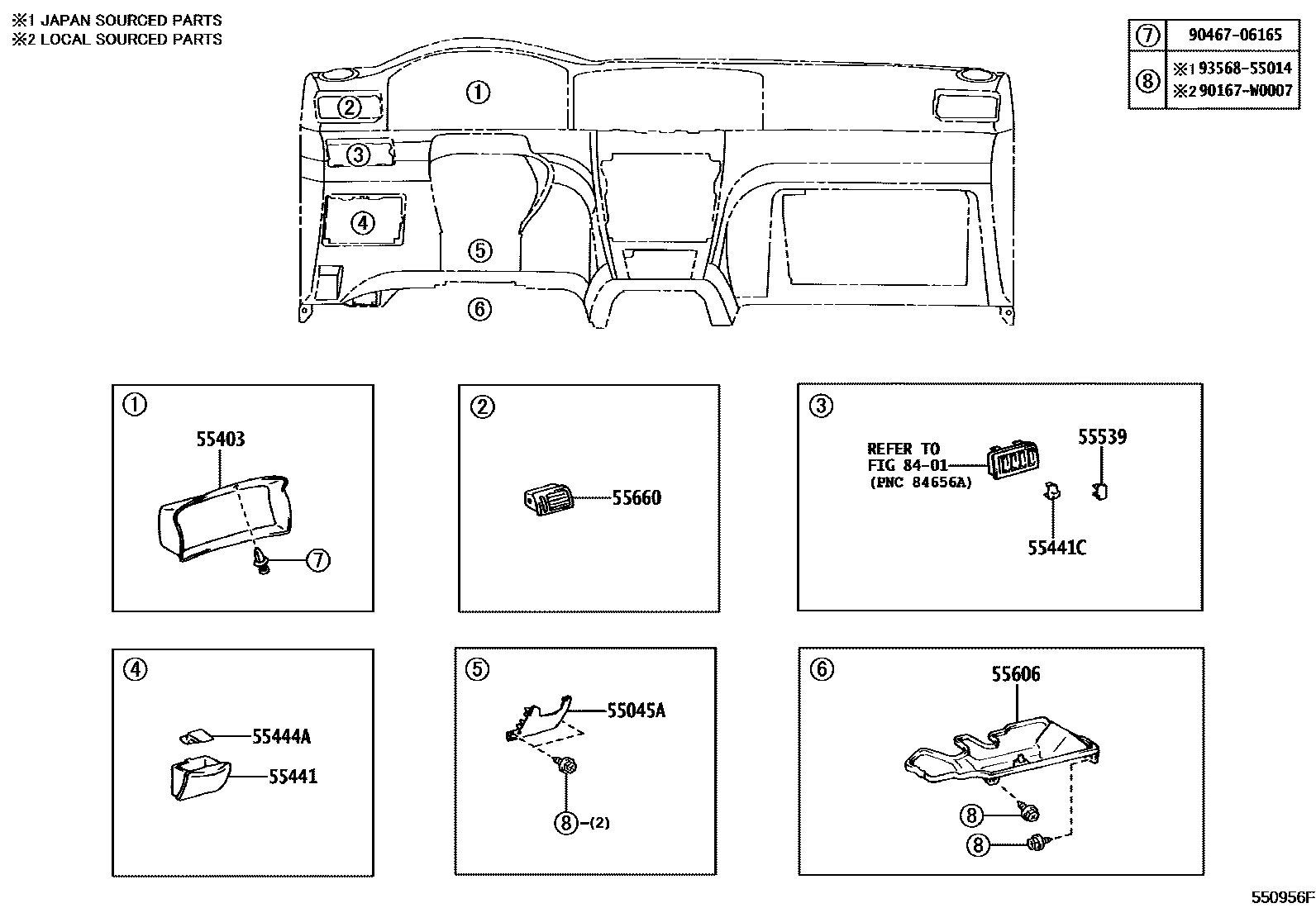

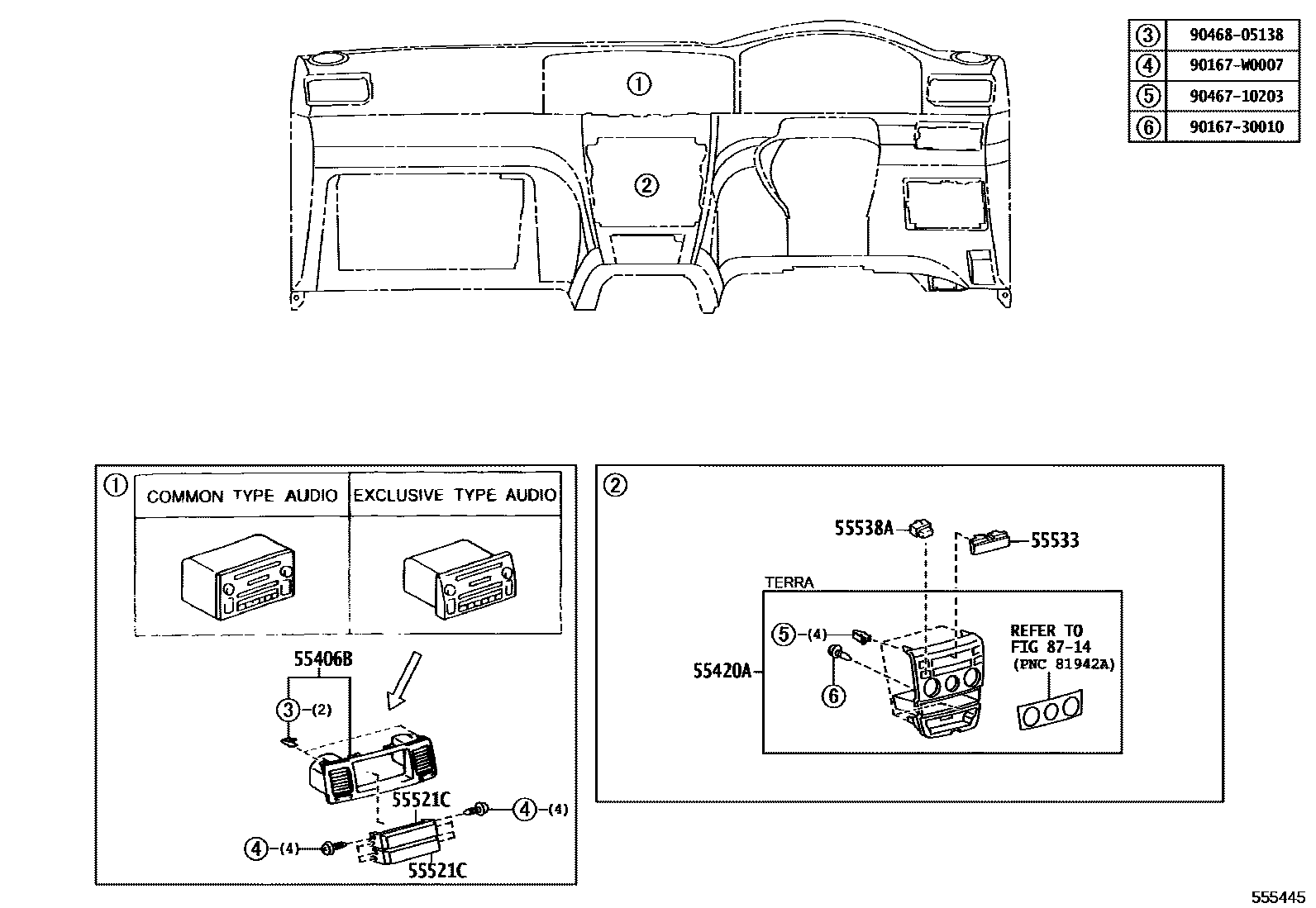

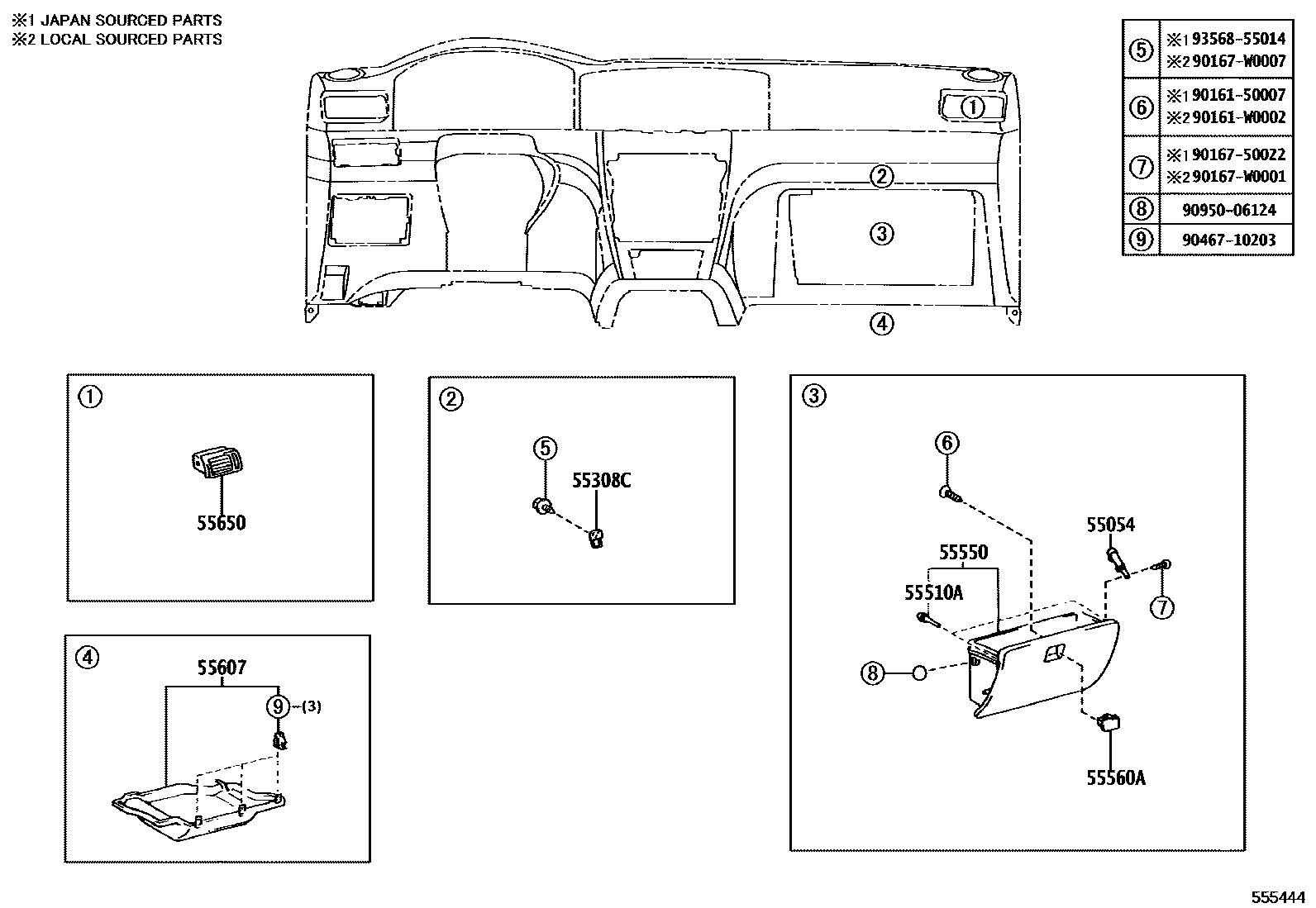

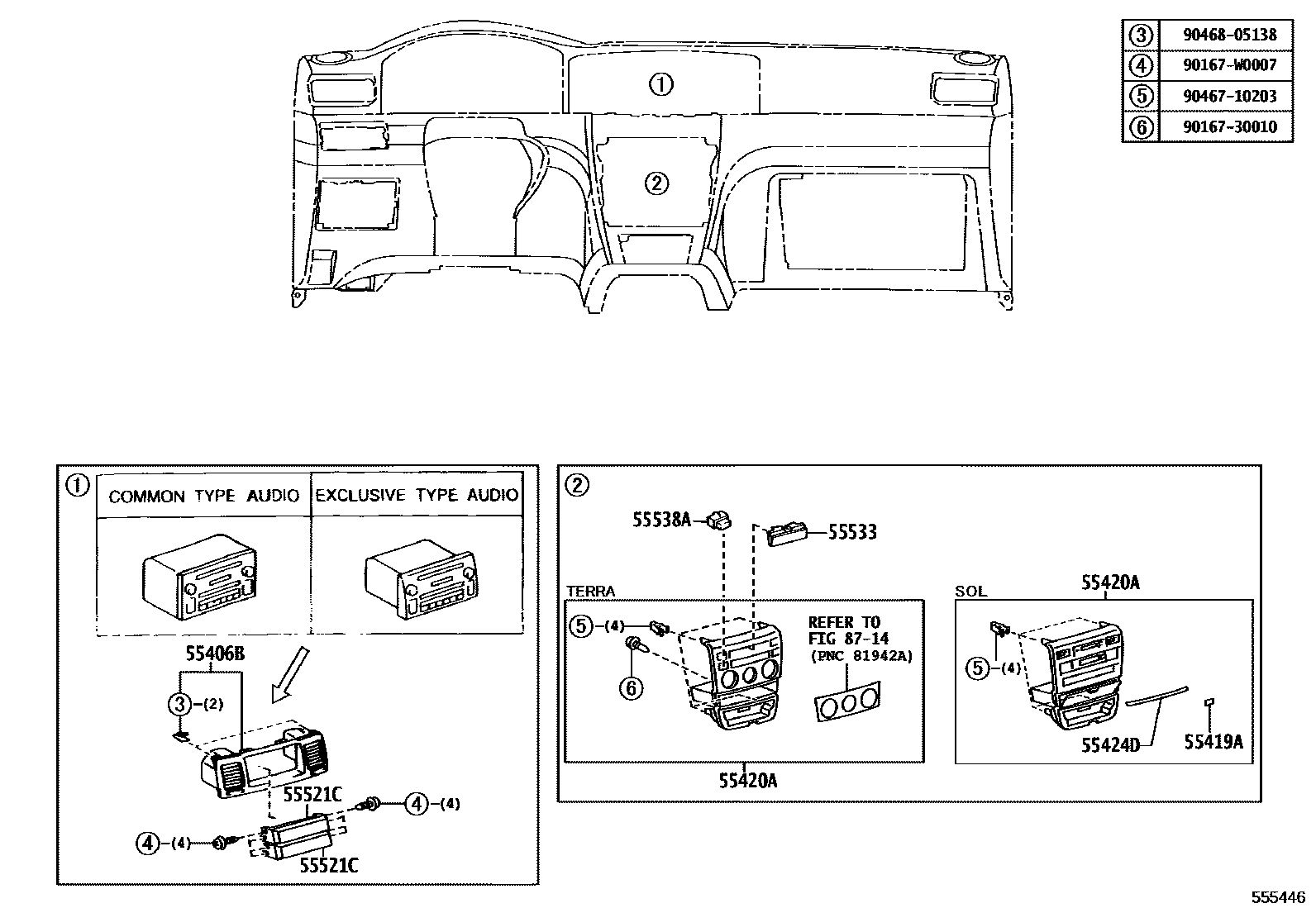

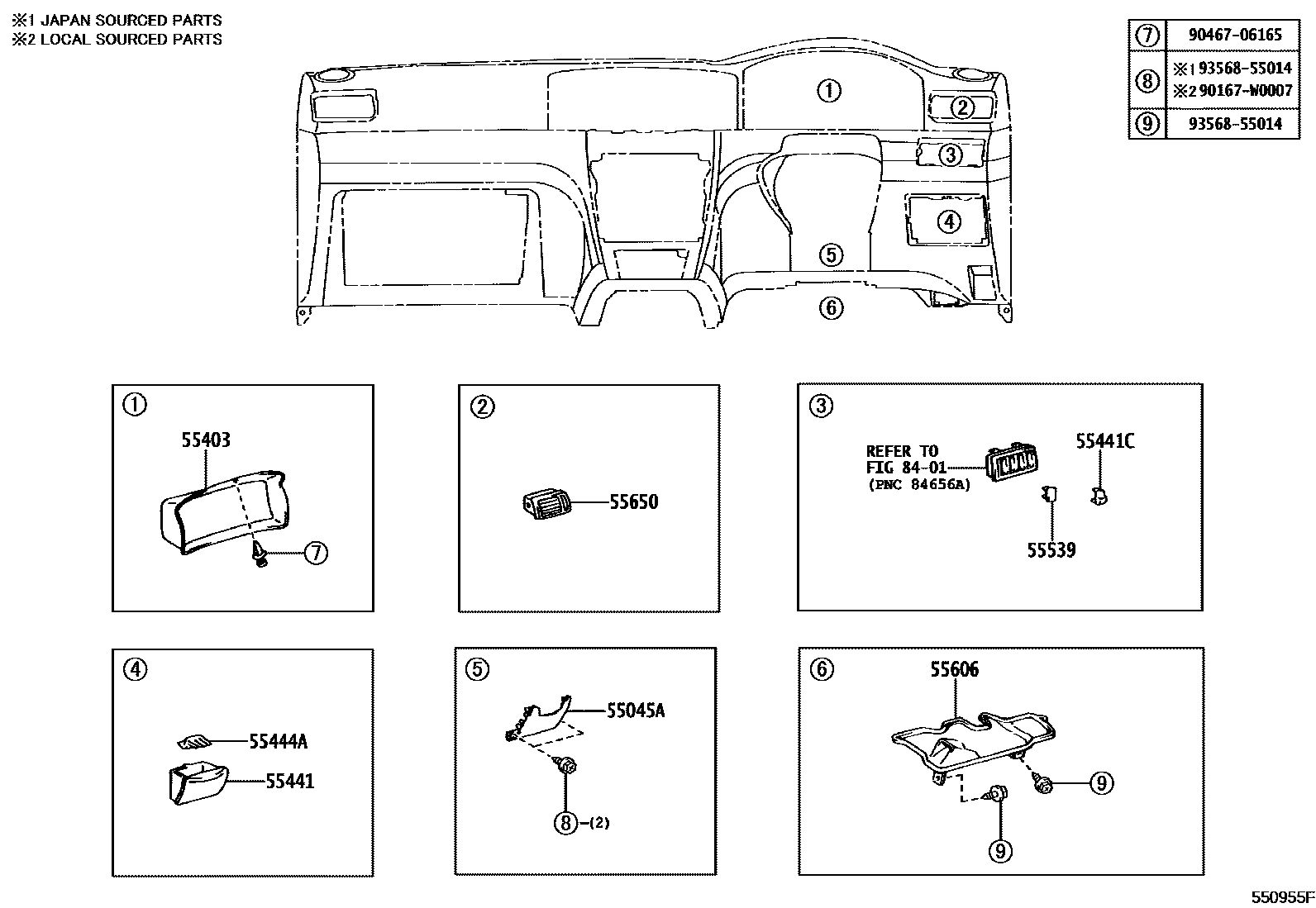

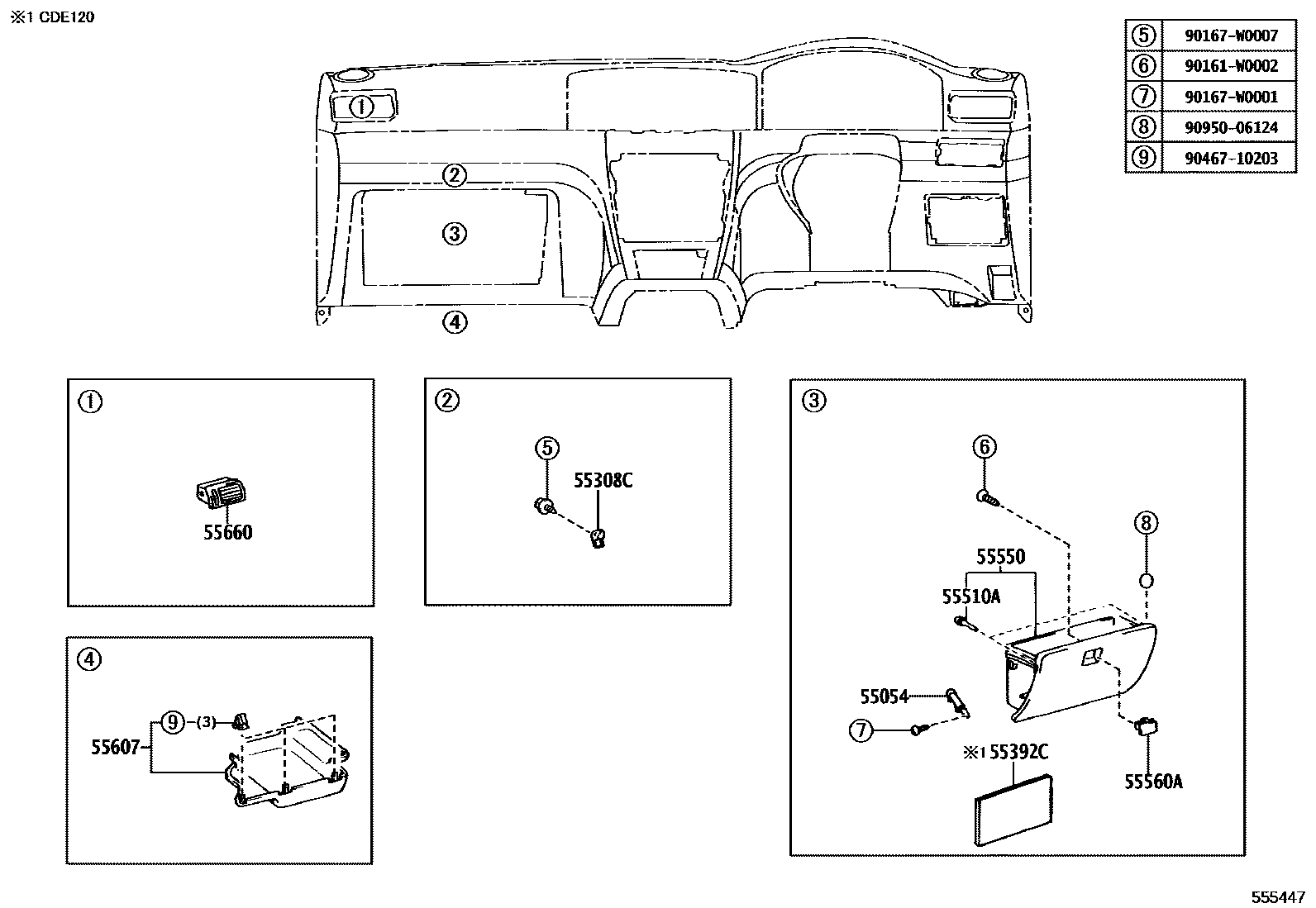

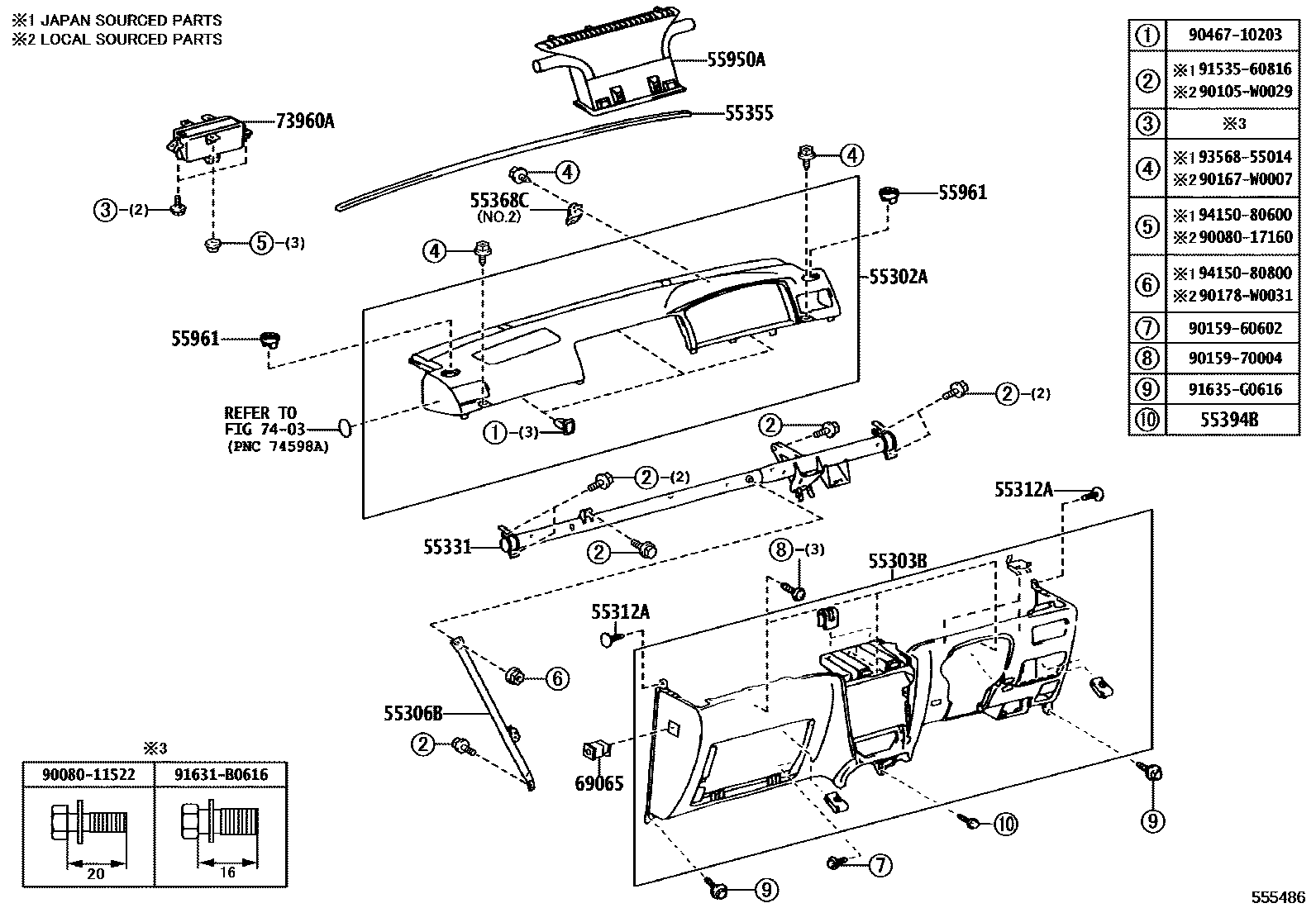

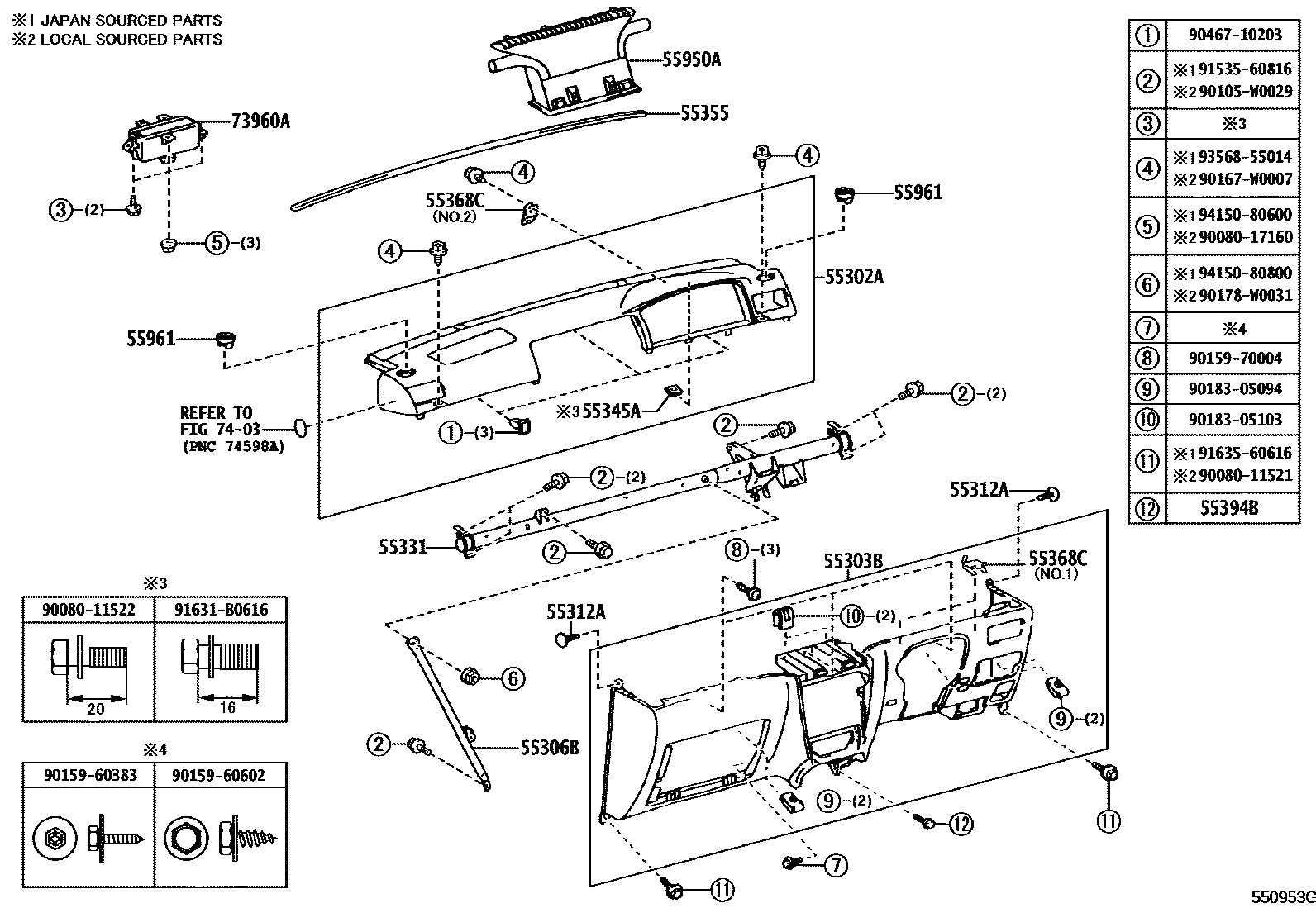

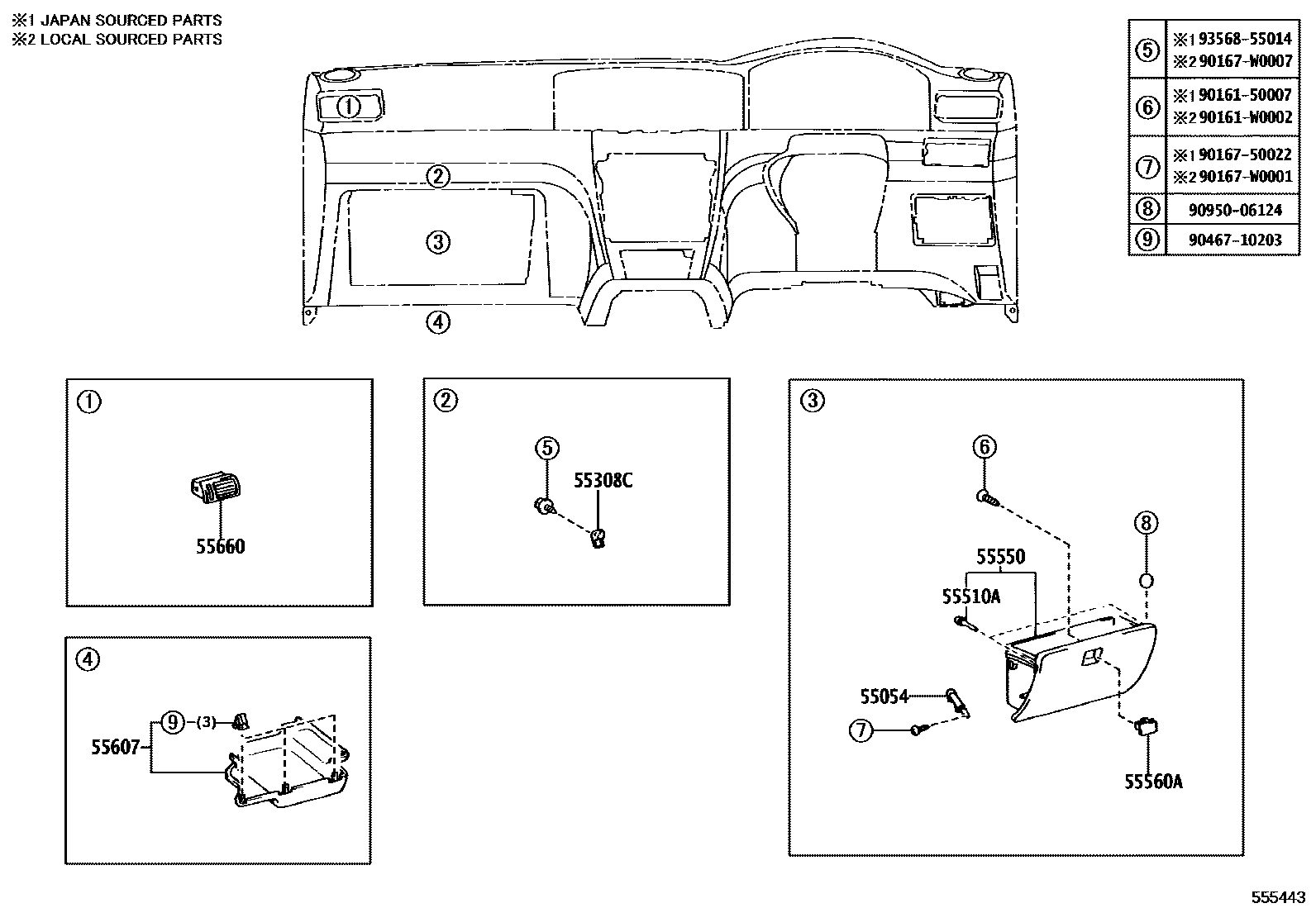

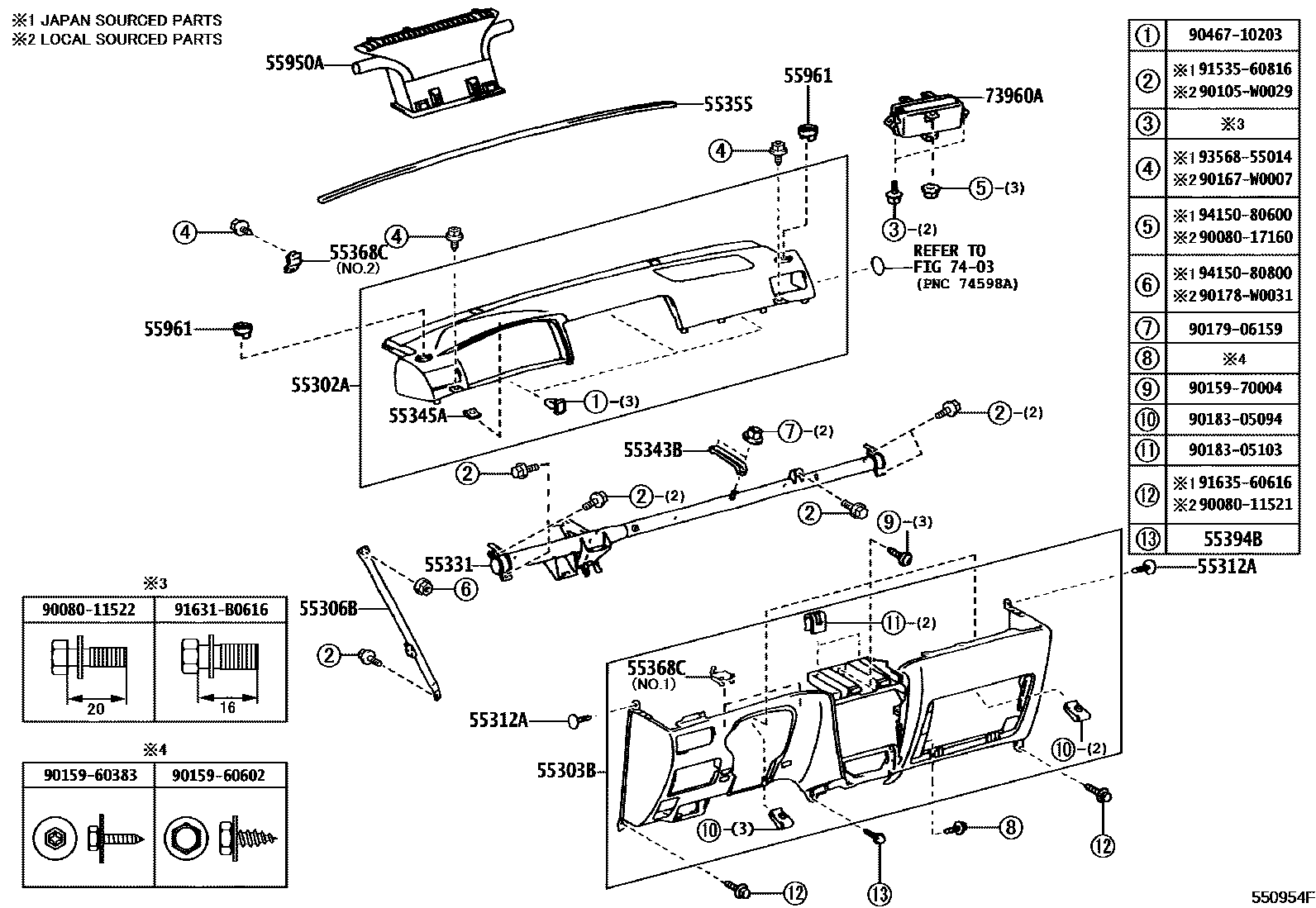

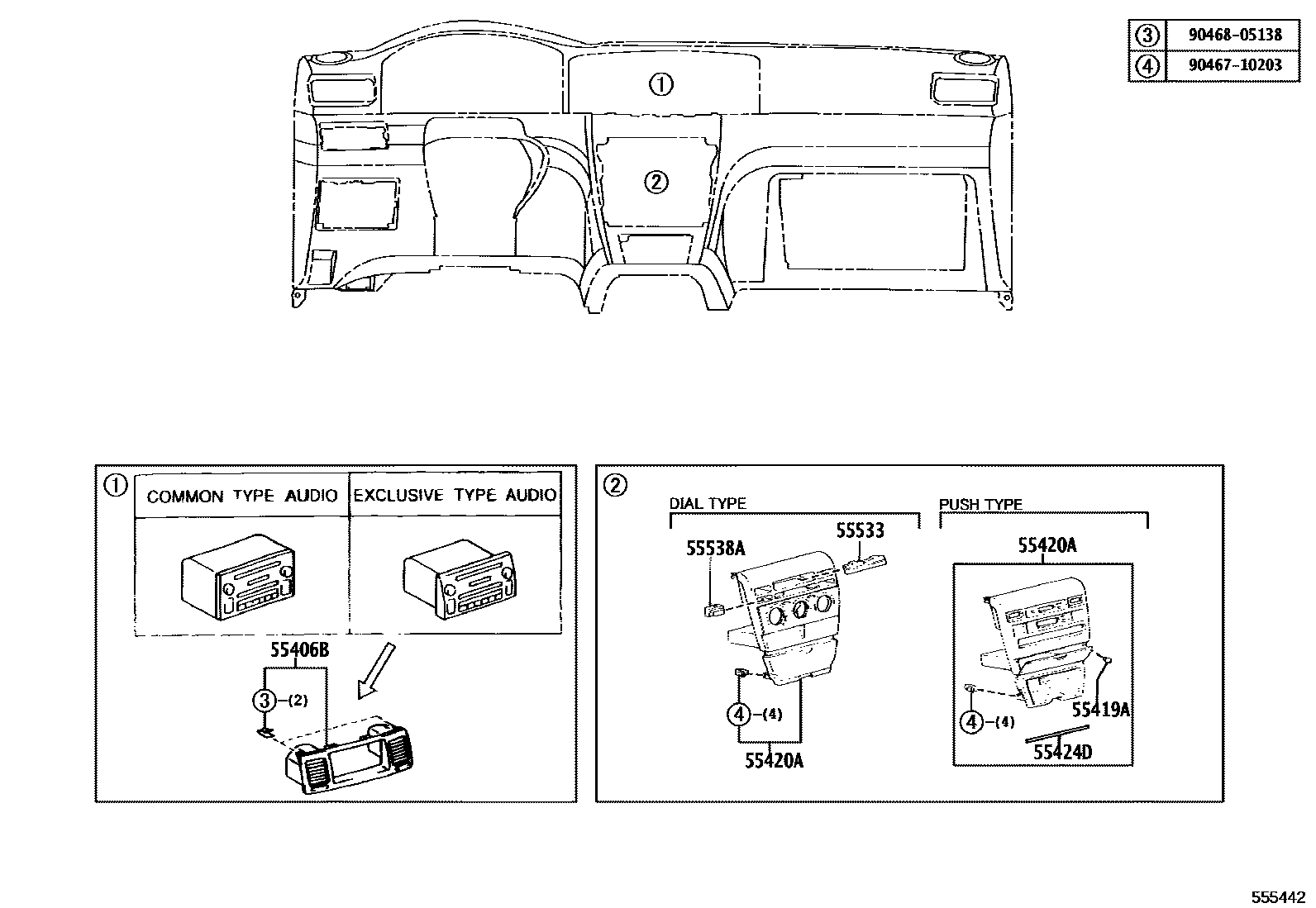

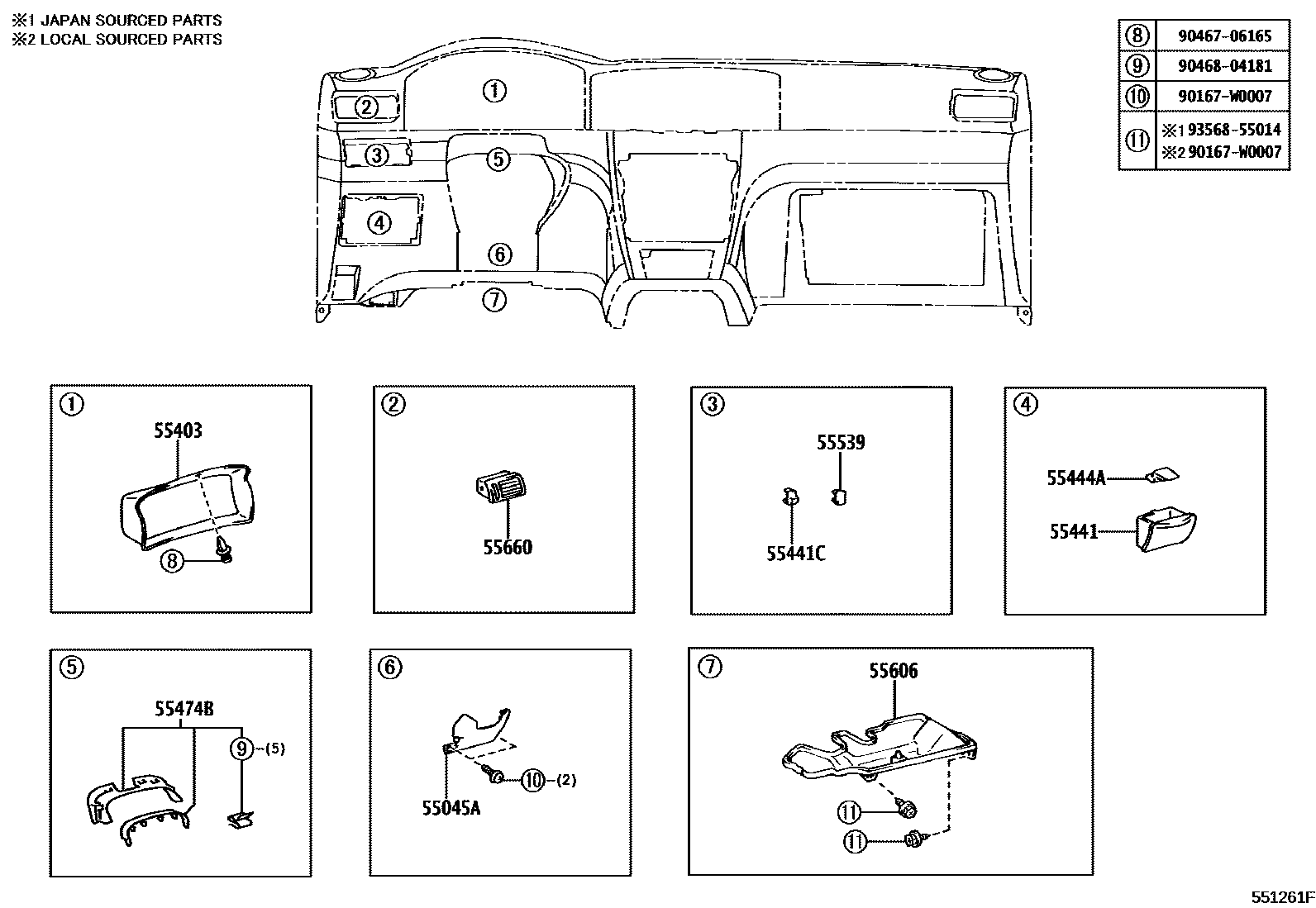

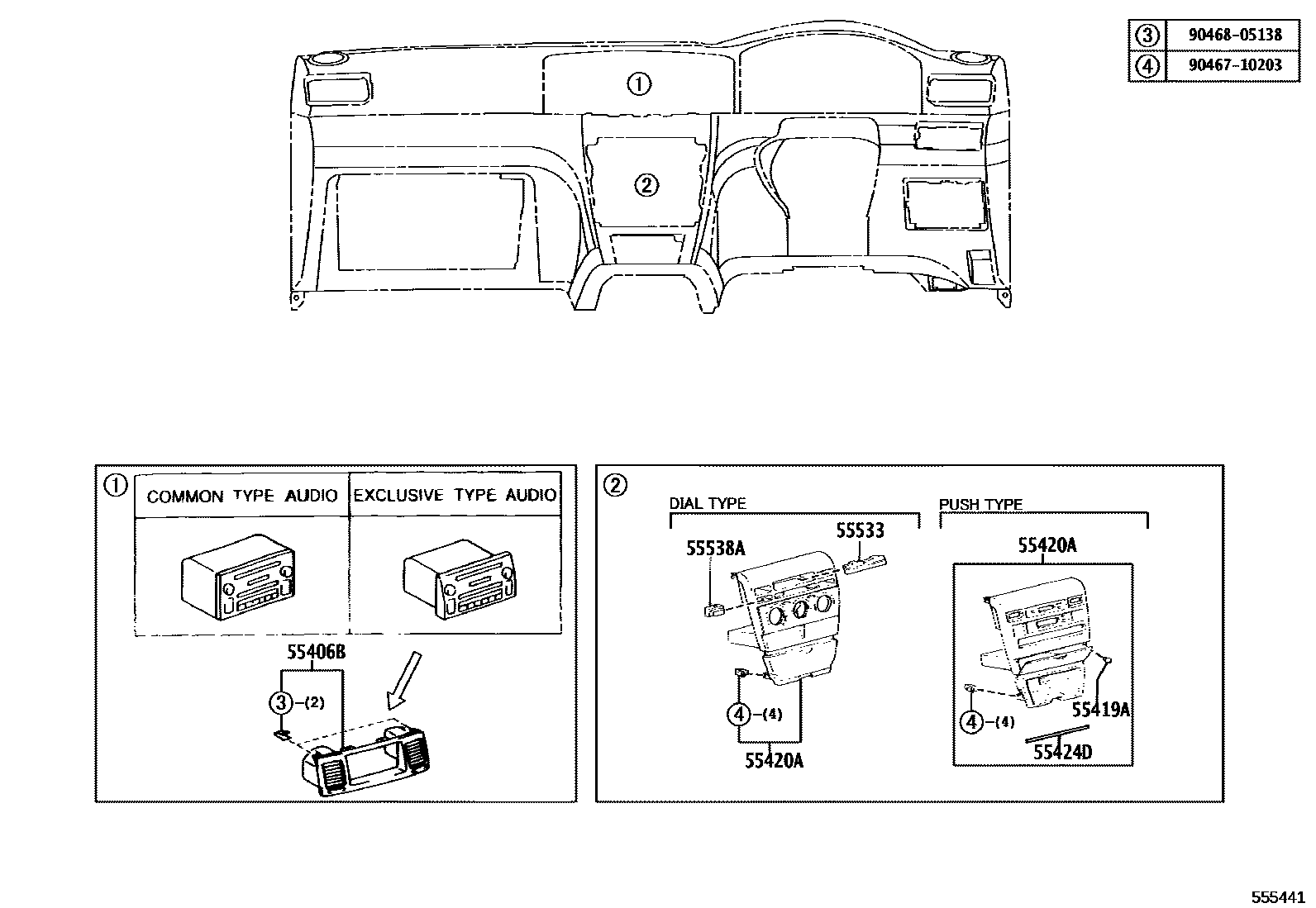

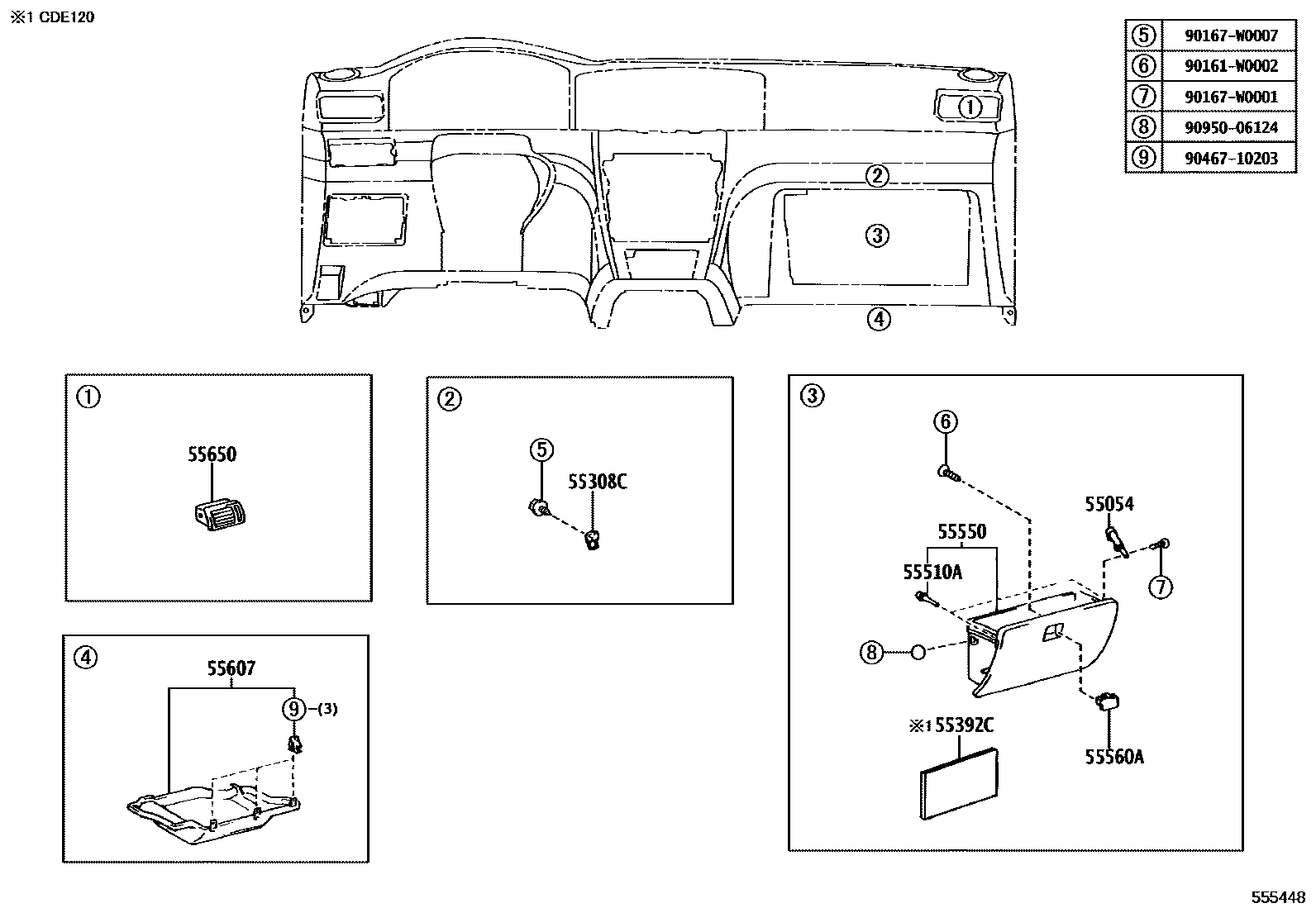

Toyota COROLLA 仪表板和手套箱 — Figure 5501
Toyota COROLLA EPC diagram 5501, 仪表板和手套箱, with 16 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-12010 |
| 55306B | Dashboard to cowl bracket sub-assembly | 55306-02100 · 55306-02110 · 55306-02120 · 55306-02130 |
| 55308C | Center instrument panel bracket sub-assembly | 55308-02050 |
| 55331 | Dashboard reinforcement | 55330-02110 · 55330-02120 · 55330-02240 · 55330-02241 · 55330-02250 · 55330-02251 |
| 55343B | Center bracket (dashboard to cowl) | 55343-02030 |
| 55345A | Dashboard Clip No. 1 | 55345-12060 |
| 55355 | Dashboard No. 1 Cushion Pad | 55355-02080 · 55355-52012 |
| 55368C | Instrument mounting bracket | 55362-12050 · 55368-02050 |
| 55392C | Dashboard No. 2 lower cushion | 55392-02050 |
| 55394B | Dashboard bolts | 55394-12020 |
| 55403 | Instrument cover sub-assembly | 55403-02050 · 55403-02070 |
| 55419A | Instrument cluster decorative panel cushion | 55419-32020 |
| 55424D | Center instrument cluster No. 2 cushion | 55424-12020 |
| 55444A | Dashboard storage box spring | 55444-13040 |
| 55474B | Instrument cluster decorative panel trim parts | 55470-02010 · 55470-02020 |
| 55510A | Cushion (for glovebox lid) | 90541-04002 |
| 55521C | stereo system hole cover | 55521-05030 |
| 55533 | automatic clock hole cover | 55533-02050 |
| 55538A | Cooler switch hole cover | 55538-02030 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-02010 · 55606-02040 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-02010 · 55607-02030 · 55607-02040 · 55607-02050 |
| 55950A | Defroster nozzle assembly | 55950-02070 · 55950-02080 |
| 69065 | Air bag cut-off switch lock cylinder sub-assembly | 69065-12370 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-02040 · 73960-02050 · 73960-02070 · 73960-02080 |
