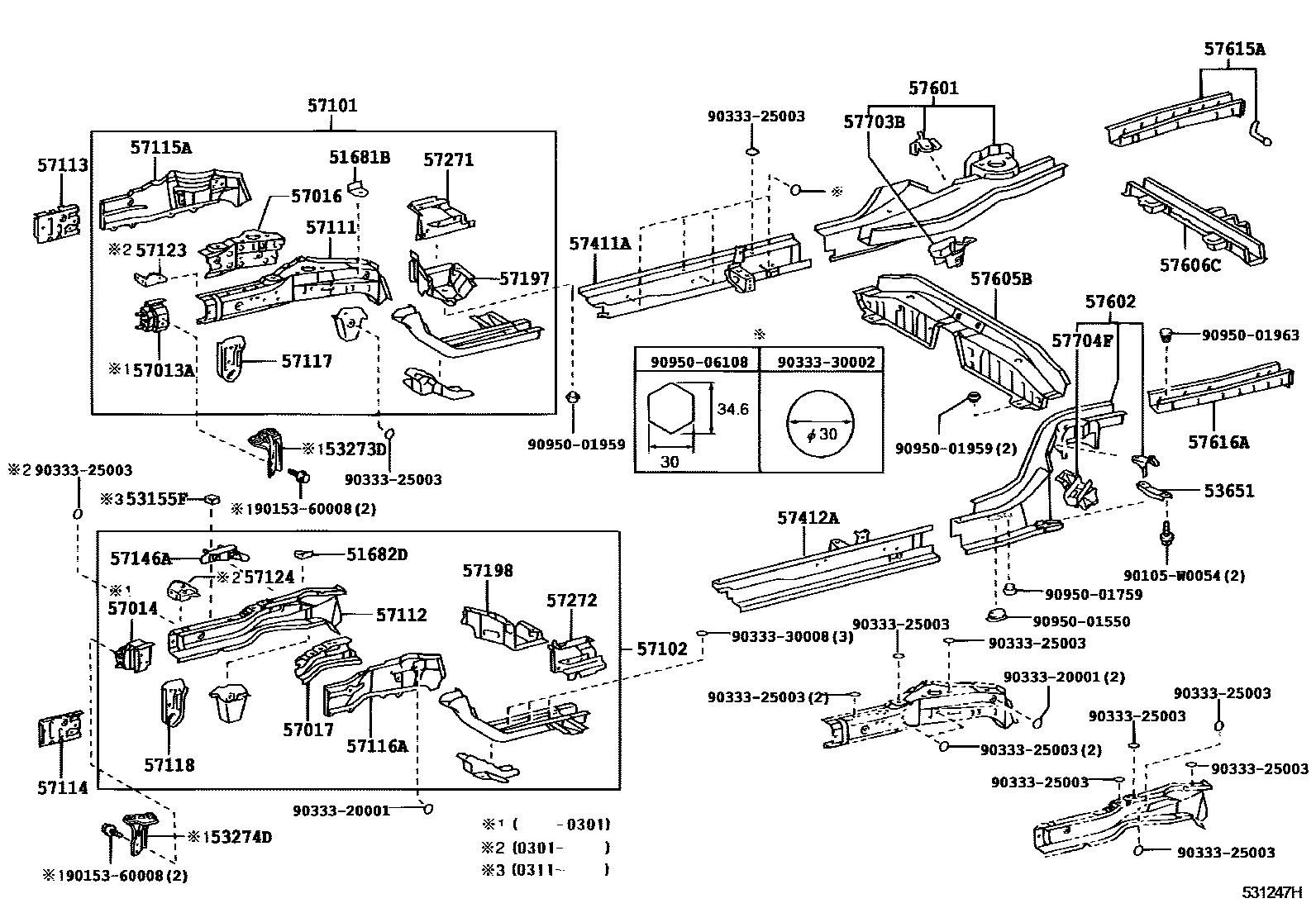

Toyota COROLLA Floor stringers — Figure 5305
Toyota COROLLA EPC diagram 5305, Floor stringers, with 1 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51681B | Right front wheel brake flexible hose support plate | 51681-32050 |
| 51682D | Left front wheel brake flexible hose support plate | 51682-32040 |
| 53155F | Front longitudinal beam seal | 53155-02020 |
| 53273D | Front bumper arm right mounting bracket | 53273-12080 |
| 53274D | Front bumper arm left mounting bracket | 53274-12080 |
| 53651 | Rear floor longitudinal beam bracket | 53651-32010 |
| 57013A | Right front floor cross member sub-assembly | 52011-13030 |
| 57014 | Left front floor longitudinal beam sub-assembly | 52012-13030 |
| 57016 | Right front longitudinal beam reinforcement sub-assembly | 57016-02030 · 57016-02040 · 57016-02080 · 57016-02090 · 57016-05010 |
| 57017 | Left front longitudinal beam reinforcement sub-assembly | 57017-02020 · 57017-02070 · 57017-02080 |
| 57101 | Right front longitudinal beam sub-assembly | 57101-02170 · 57101-02180 · 57101-02220 · 57101-02221 · 57101-02230 · 57101-02231 |
| 57102 | Left front longitudinal beam sub-assembly | 57102-02240 · 57102-02260 · 57102-02320 · 57102-02330 |
| 57111 | Right front longitudinal beam | 57111-02090 · 57111-02091 · 57111-02100 · 57111-02101 · 57111-13030 · 57111-13031 · 57111-13040 · 57111-13041 |
| 57112 | Left front longitudinal beam | 57112-02090 · 57112-13040 |
| 57113 | Right front longitudinal beam extension | 57113-02050 · 57113-02060 |
| 57114 | Left front longitudinal beam extension | 57114-02030 · 57114-02050 |
| 57115A | Right front longitudinal beam outer panel | 57115-02020 |
| 57116A | Left front longitudinal beam outer panel | 57116-02020 |
| 57117 | Right front longitudinal beam front plate sub-assembly | 57117-02020 · 57117-12130 |
| 57118 | Left front longitudinal beam front plate sub-assembly | 57118-02020 · 57118-12130 |
| 57123 | Right front longitudinal beam bracket | 57123-02010 |
| 57124 | Left front longitudinal beam bracket | 57124-02010 |
| 57146A | Left front longitudinal beam rear reinforcement | 57146-02010 |
| 57197 | Right front torsion box section piece | 57197-02020 |
| 57198 | Left front anti-torsion box section piece | 57198-02040 |
| 57271 | Steering housing support beam right extension | 57271-02060 · 57271-13020 |
| 57272 | Steering casing support beam left extension | 57272-02060 · 57272-13020 |
| 57411A | Floor right inner longitudinal beam | 57401-02090 |
| 57412A | Floor left inner longitudinal beam | 57402-02090 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-02906 · 57601-02907 · 57601-02912 · 57601-02916 · 57601-02917 · 57601-02925 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-02904 · 57602-02905 · 57602-02914 · 57602-02922 · 57612-02904 |
| 57605B | Rear floor No. 1 cross member sub-assembly | 57605-02050 · 57605-02100 |
| 57606C | Rear floor No. 2 cross member sub-assembly | 57606-02040 · 57606-02041 |
| 57615A | Rear floor right rear longitudinal member | 57615-02904 · 57615-02909 |
| 57616A | Rear floor left rear longitudinal member | 57616-02903 · 57616-02908 |
| 57703B | Rear suspension cross member right front bracket sub-assembly | 57703-02060 |
| 57704F | Rear suspension cross member left front bracket sub-assembly | 57704-02060 |
