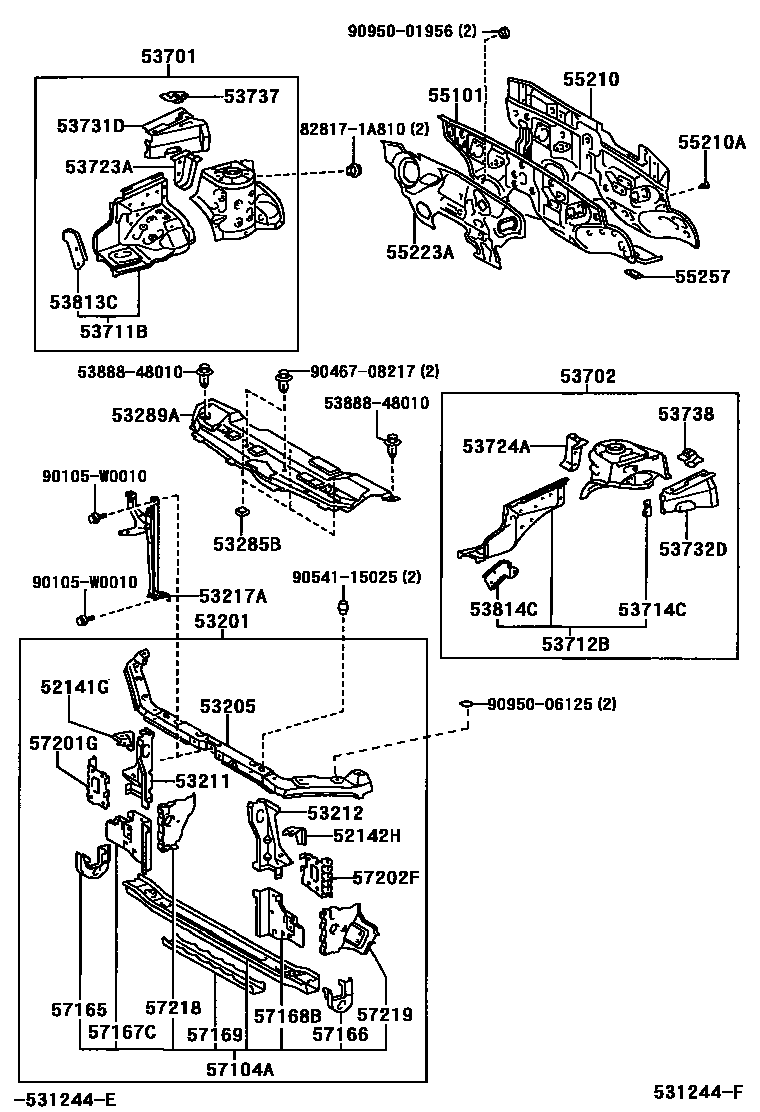

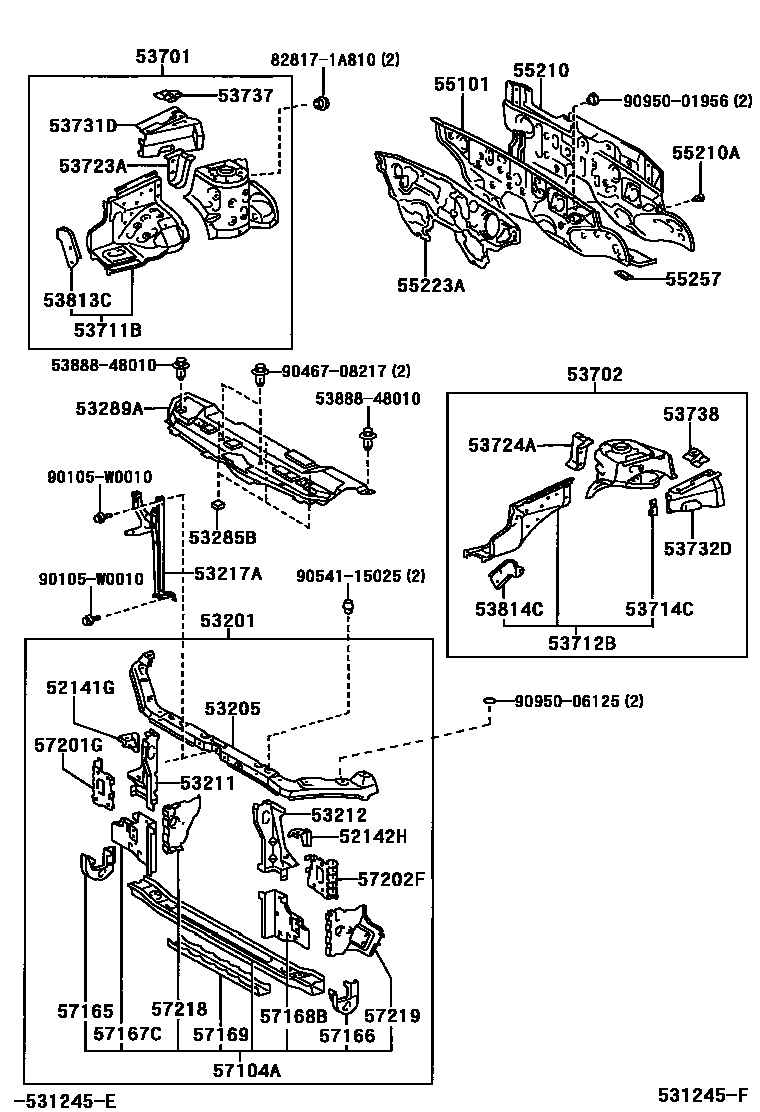

Toyota COROLLA 前翼子板挡泥板和前围板 — Figure 5304
Toyota COROLLA EPC diagram 5304, 前翼子板挡泥板和前围板, with 2 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52141G | Front bumper right side stay | 52141-02080 · 52141-12500 |
| 52142H | Front bumper left stay | 52142-02080 · 52142-12430 |
| 53201 | Radiator bracket sub-assembly | 53201-02070 · 53201-02120 |
| 53205 | Radiator upper bracket sub-assembly | 53205-02090 · 53205-12200 |
| 53211 | Radiator right side support | 53211-02090 · 53211-12410 |
| 53212 | Radiator left support | 53212-02090 · 53212-12350 |
| 53217A | engine cover lock bracket | 53208-02080 · 53208-12450 |
| 53285B | Radiator side 1 air seal | 53155-02020 |
| 53289A | Radiator bracket opening cover | 53289-02010 |
| 53701 | Right front fender fender sub-assembly | 53701-02100 |
| 53702 | Left front fender fender sub-assembly | 53702-02050 |
| 53711B | Right front fender front fender | 53711-02900 |
| 53712B | Left front fender front fender | 53712-02900 · 53712-02909 |
| 53714C | Left front fender fender front extension | 53714-02040 · 53714-13020 |
| 53723A | Front spring bracket right side reinforcement | 53723-02010 |
| 53724A | Front spring bracket left reinforcement | 53724-02010 |
| 53731D | Right front fender to cowl side upper beam | 53731-12160 |
| 53732D | Left front fender to cowl side upper beam | 53732-12140 |
| 53737 | Right front fender to front wall side sill | 53737-02040 · 53737-12060 |
| 53738 | Left front fender to front wall side sill | 53738-02030 · 53738-12030 |
| 53813C | Right front fender extension | 53813-02020 · 53813-12060 |
| 53814C | Left front fender extension | 53814-02010 · 53814-12020 |
| 55101 | Front apron sub-assembly | 55101-02310 · 55101-02320 · 55101-02330 · 55101-02340 · 55101-02350 · 55101-02360 · 55101-02370 · 55101-02410 · 55101-02420 · 55101-02430 · 55101-02440 · 55101-02450 · 55101-02460 · 55101-02560 · 55101-02570 · 55101-02580 · 55101-02590 · 55101-02600 · 55101-02610 · 55101-02620 |
| 55210 | Front wall insulation pad assembly | 55210-02090 · 55210-02091 · 55210-02100 · 55210-02101 |
| 55223A | Front wall outer heat insulation pad | 55223-02080 · 55223-02081 · 55223-02082 · 55223-02090 · 55223-02091 |
| 55257 | cowl opening cover | 55257-02030 |
| 57104A | Front cross member sub-assembly | 57104-02080 · 57104-02081 · 57104-12210 |
| 57165 | Front cross member lower right reinforcement | 57165-02050 · 57165-12070 |
| 57166 | Front cross member lower left reinforcement | 57166-02040 · 57166-12020 |
| 57167C | Front cross member right corner panel | 57167-02050 · 57167-12110 |
| 57168B | Front cross member left corner panel | 57168-02050 · 57168-12110 |
| 57169 | Front floor right front bracket | 57169-02040 · 57169-12020 |
| 57201G | Right front longitudinal beam extension sub-assembly | 57201-02010 · 57201-02011 |
| 57202F | Left front longitudinal beam extension sub-assembly | 57202-02010 · 57202-02011 |
| 57218 | No. 1 front longitudinal beam corner plate | 57218-02040 · 57218-02041 · 57218-13010 |
| 57219 | No. 2 front longitudinal beam corner plate | 57219-02040 · 57219-02041 · 57219-13010 |
