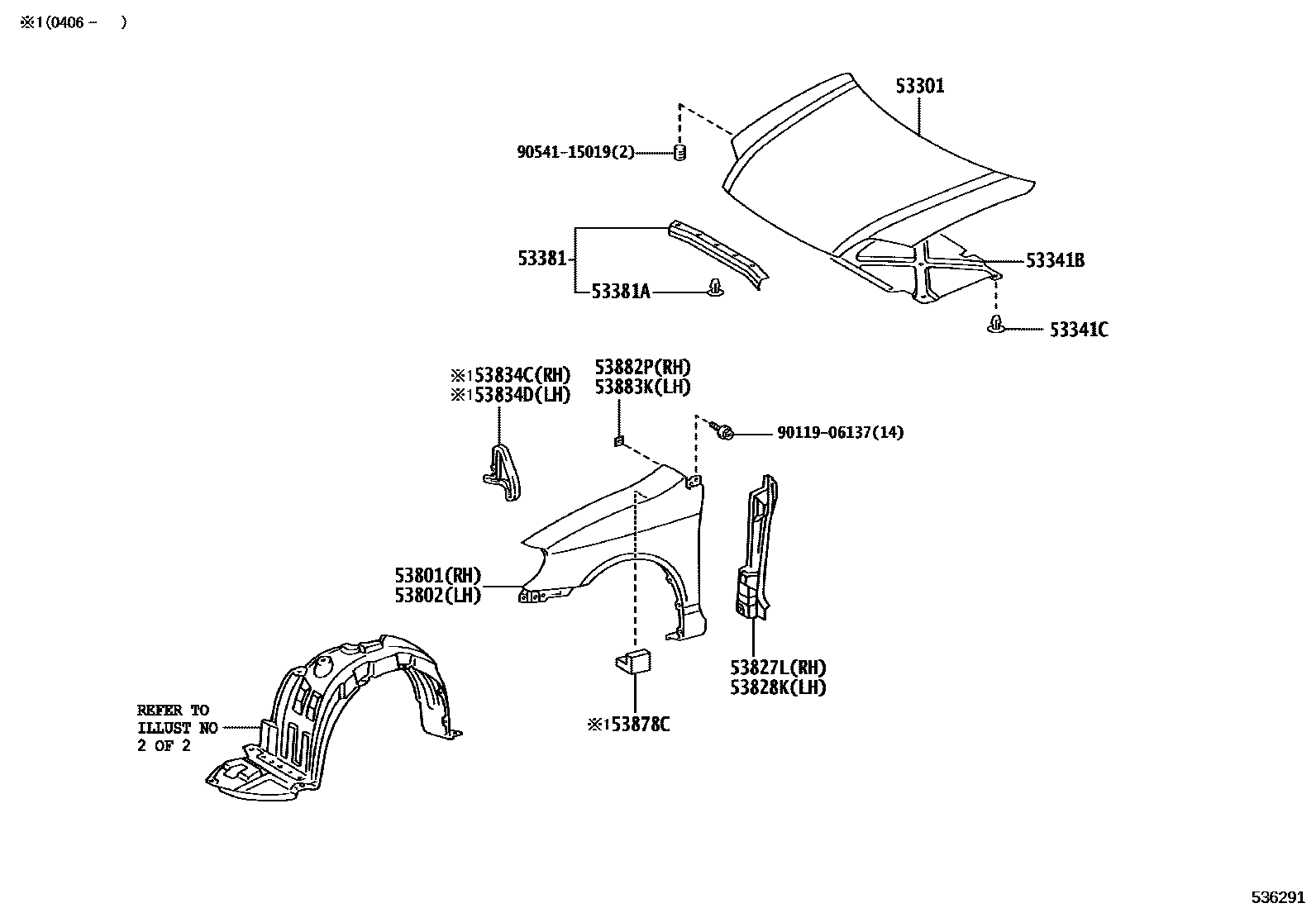

Toyota COROLLA 发动机盖和前翼子板 — Figure 5302
Toyota COROLLA EPC diagram 5302, 发动机盖和前翼子板, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53301 | Engine cover sub-assembly | 53301-02080 |
| 53341B | engine cover gasket | 53341-02060 · 53341-02080 |
| 53341C | Clip (for engine cover gasket) | 90467-09050 · 90467-W0003 |
| 53381 | Engine cover to radiator bracket seal | 53381-02060 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90467-08011 |
| 53801 | Right front fender sub-assembly | 53811-02080 |
| 53802 | Left front fender sub-assembly | 53812-02080 |
| 53827L | Right front fender side panel protector | 53827-02060 · 53827-12050 |
| 53828K | Left front fender side panel protector | 53828-02060 · 53828-12050 |
| 53834C | Right front fender support plate | 53834-02010 |
| 53834D | Left front fender support plate | 53834-02010 |

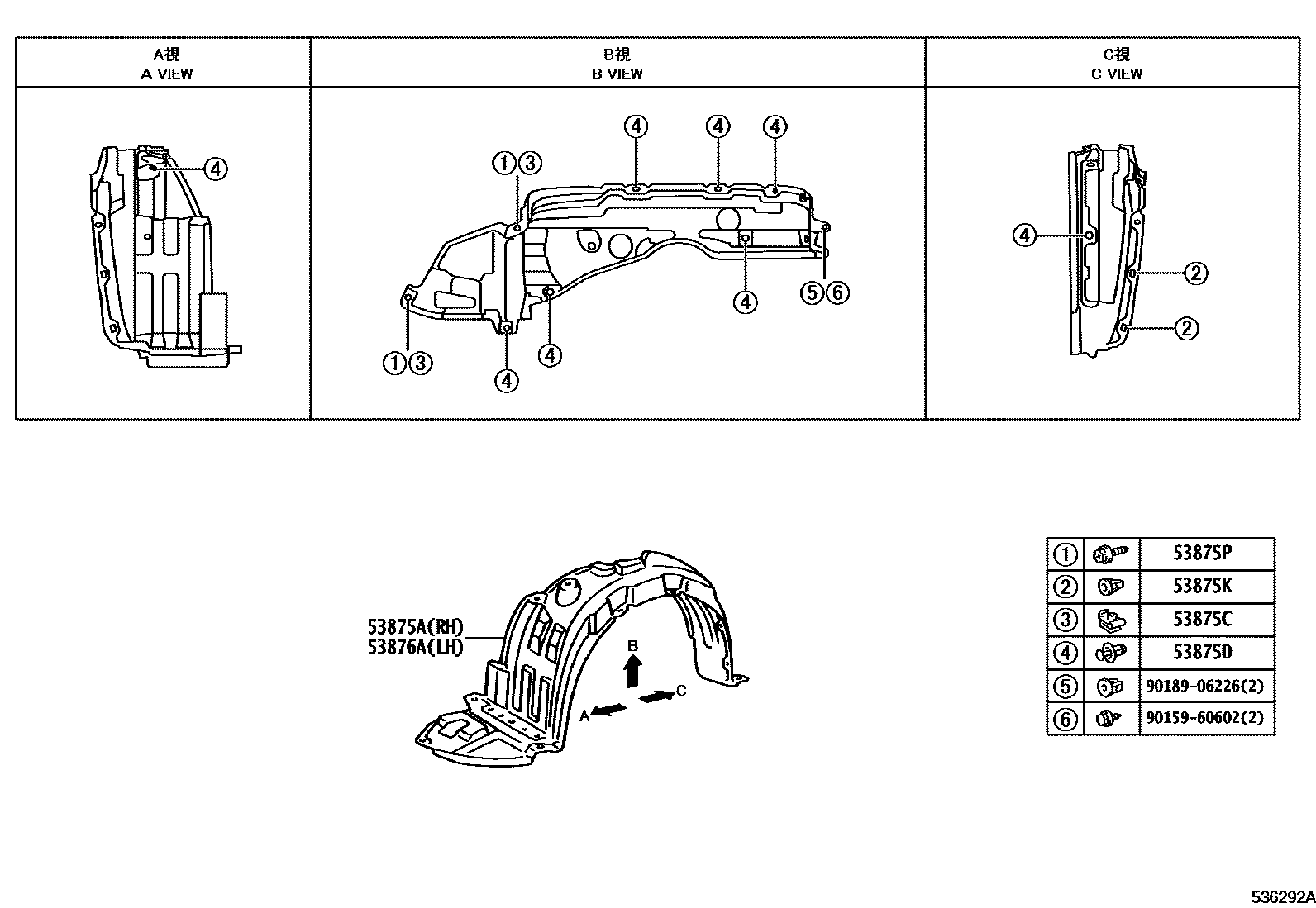

| 53875A | Right front fender lining | 53875-02070 · 53875-02160 |
| 53875C | Front fender lining clip | 90467-05138 |
| 53875D | AGRAFE DE FIXATION DOUBLURE AILE AVANT, NO.2 | 90467-10183 |
| 53875K | RONDELLE, VIS | 90189-06157 |
| 53875P | VIS, NO.1 | 90159-60488 |
| 53876A | Left front fender lining | 53876-02070 · 53876-02160 |
| 53878C | front fender spacer | 53878-02010 |
| 53882P | Right front fender seal | 53882-16030 |
| 53883K | Left front fender seal | 53882-16030 |
