Toyota COROLLA radiator grille — Figure 5301

Toyota COROLLA EPC diagram 5301, radiator grille, with 2 images and 3 PNC and OE references.

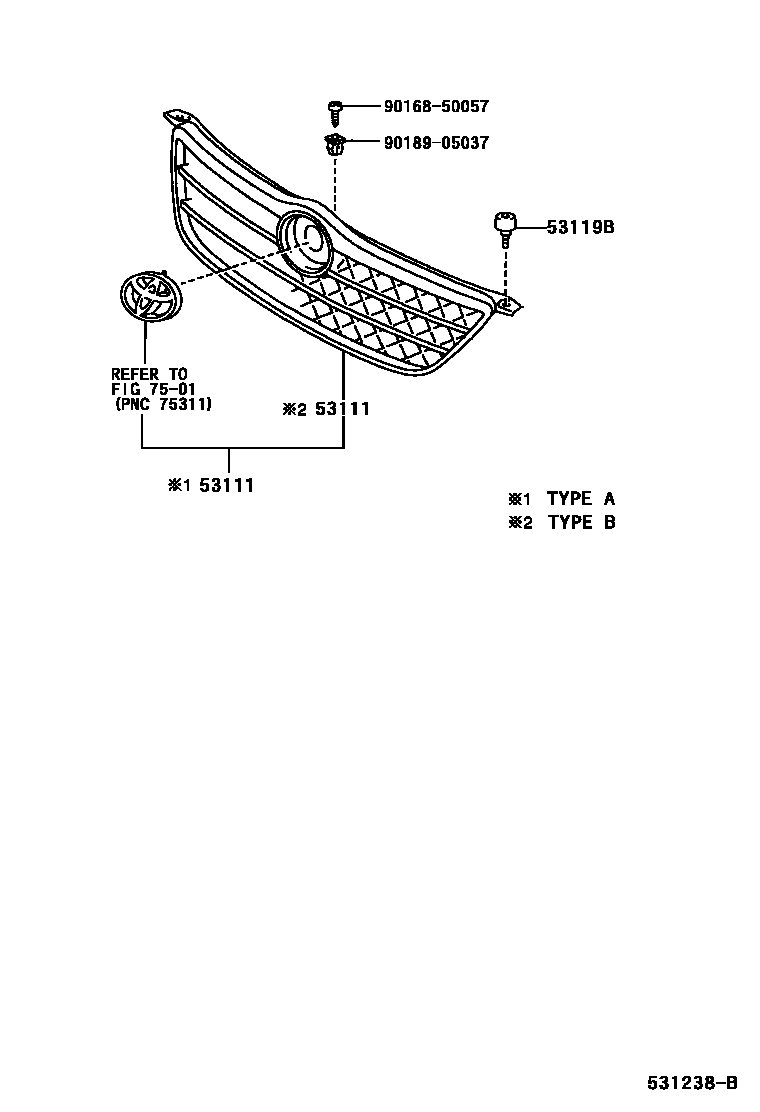

Toyota COROLLA radiator grille EPC diagram — 531238B
radiator grille — 531238B (200201 – 200406)

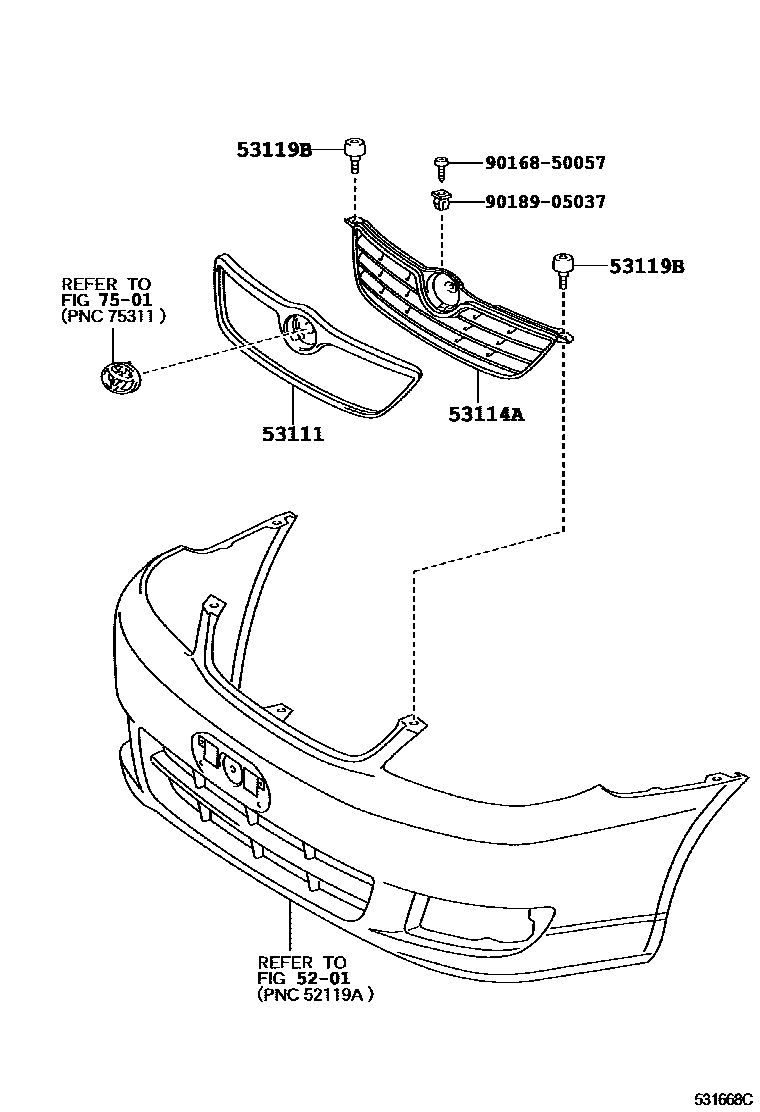

Toyota COROLLA radiator grille EPC diagram — 531668C
radiator grille — 531668C (200406 – 999999)

PNC and OE references

PNCPart nameOE numbers
53111radiator grille53111-02180 · 53111-12A70 · 53111-1A480 · 53111-1A490 · 53111-1A902 · 53111-1A903
53114Ainner radiator grille53114-02901
53119BRadiator grille protector53119-12150
