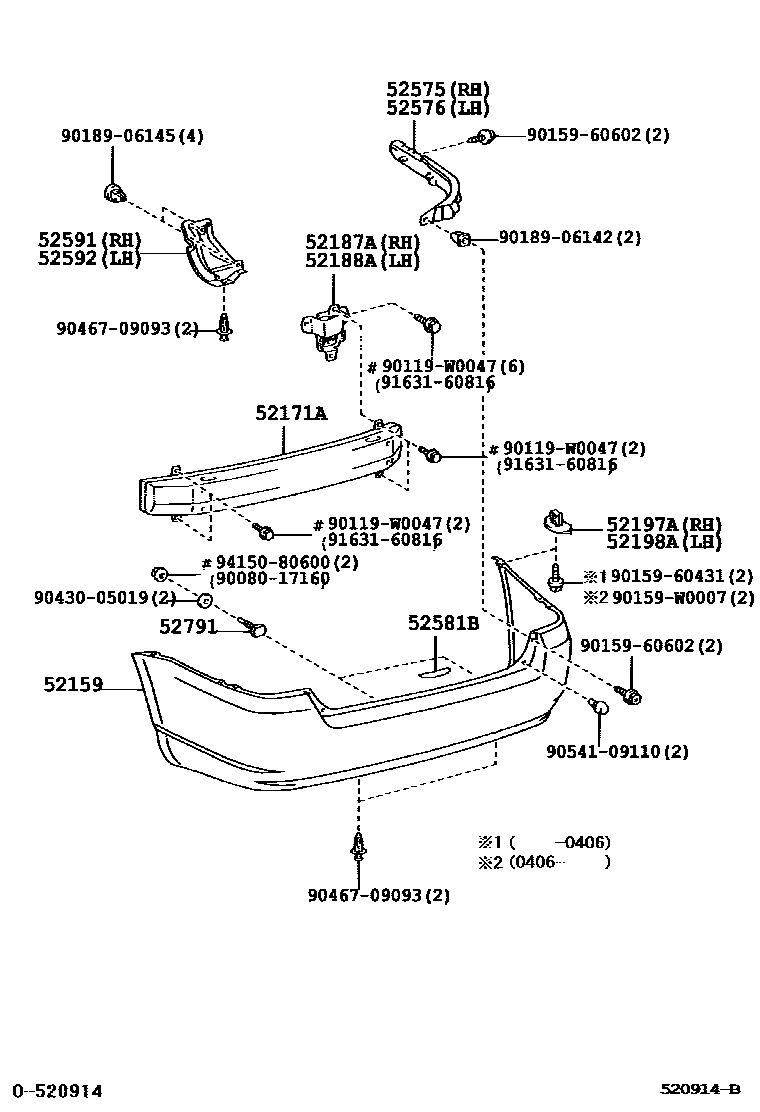

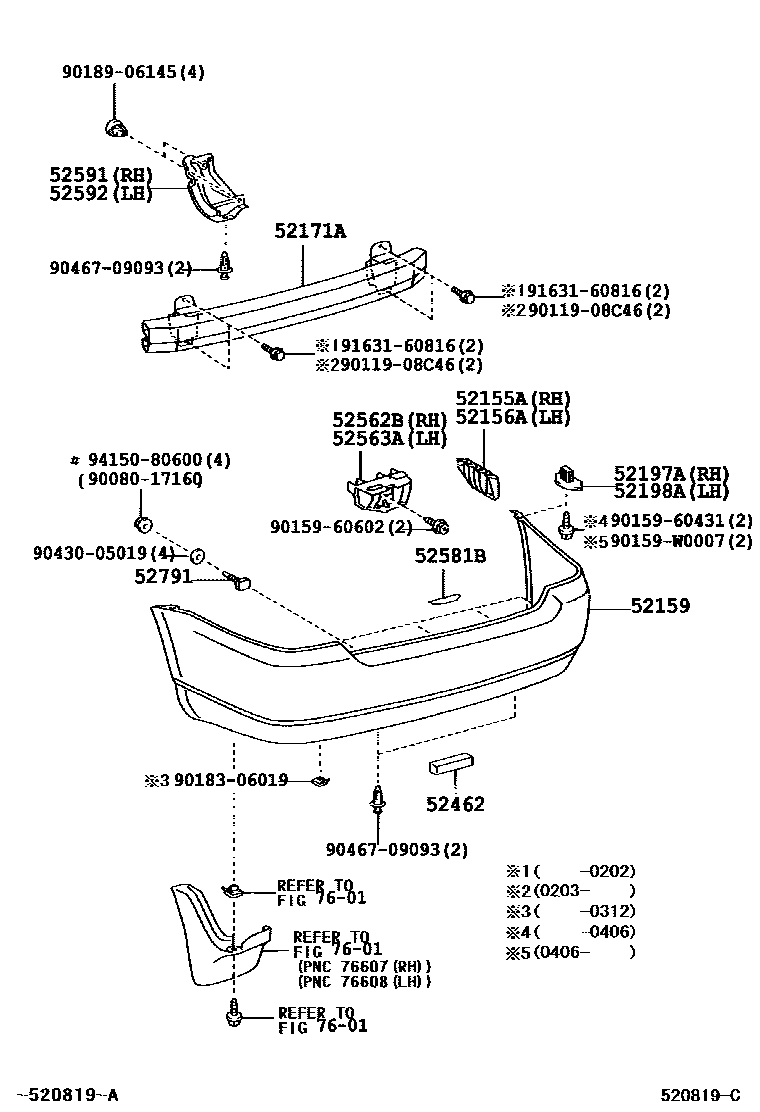

Toyota COROLLA 后保险杠及附件 — Figure 5202
Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52155A | Rear bumper right side bracket | 52155-02060 |
| 52156A | Rear bumper left bracket | 52156-02060 |
| 52159 | rear bumper cover | 52159-02909 · 52159-02917 |
| 52171A | Rear bumper reinforcement No. 1 | 52023-02070 · 52023-02100 |
| 52187A | Rear bumper right arm reinforcement | 52187-12170 |
| 52188A | Rear bumper left arm reinforcement | 52188-12160 |
| 52197A | Rear bumper right seal support | 52197-12080 |
| 52198A | Rear bumper left seal support | 52198-12080 |
| 52462 | Rear bumper right side lining | 52462-12070 |
| 52562B | Rear bumper upper right fixing bracket | 52562-02030 |
| 52563A | Rear bumper upper left fixing bracket | 52563-02020 |
| 52575 | Rear bumper right side fixing bracket | 52575-13020 |
| 52576 | Rear bumper left side fixing bracket | 52576-13020 |
| 52581B | rear bumper protector | 52581-12120 |
| 52591 | Rear bumper right seal | 52591-02030 |
| 52592 | Rear bumper left seal | 52592-02020 |
| 52791 | Bumper protection strip No. 1 fixing bolt | 52791-12040 |
