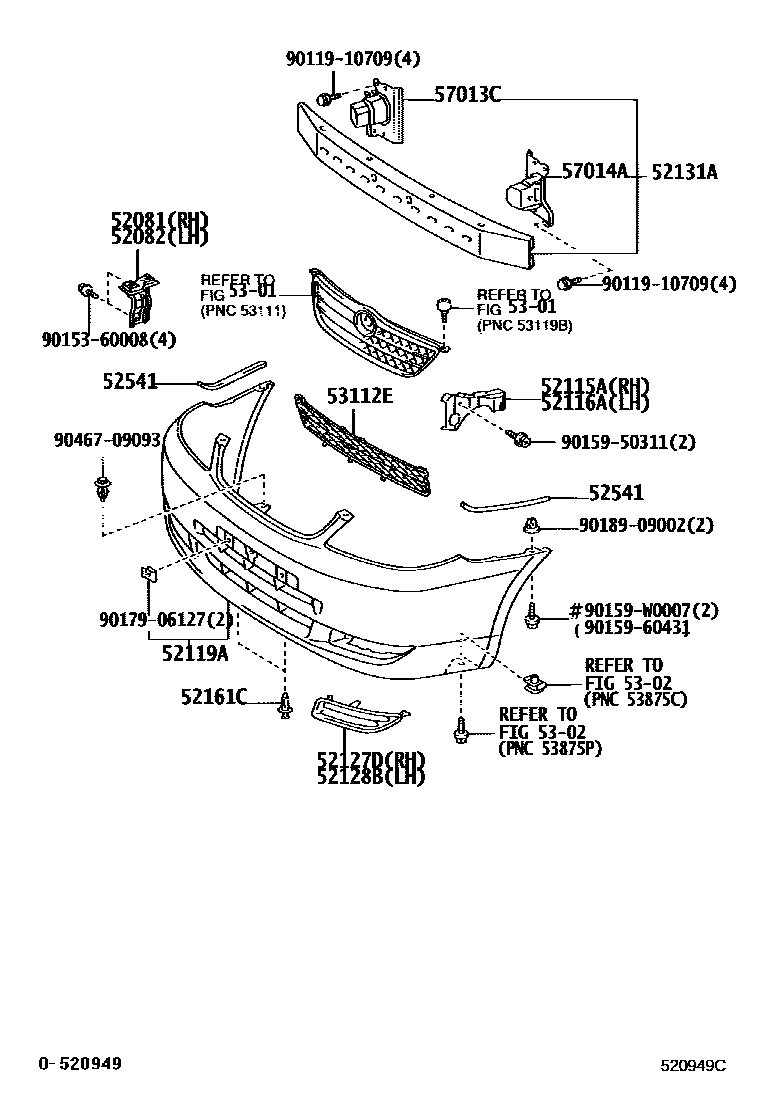

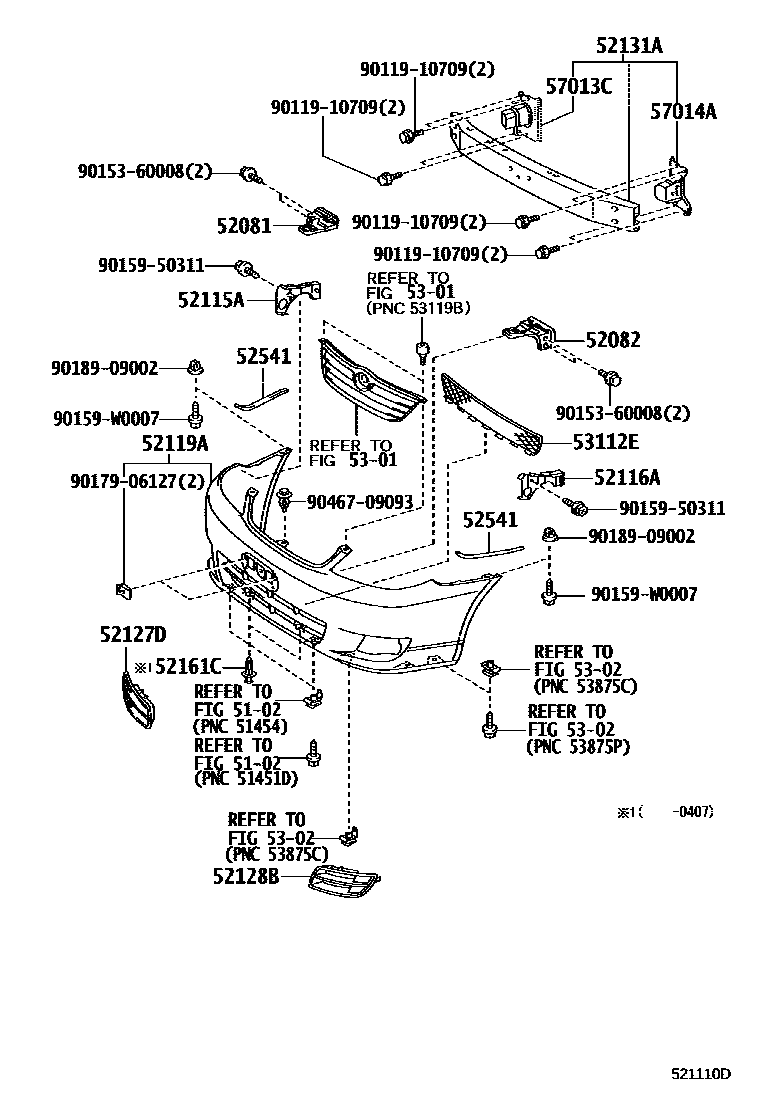

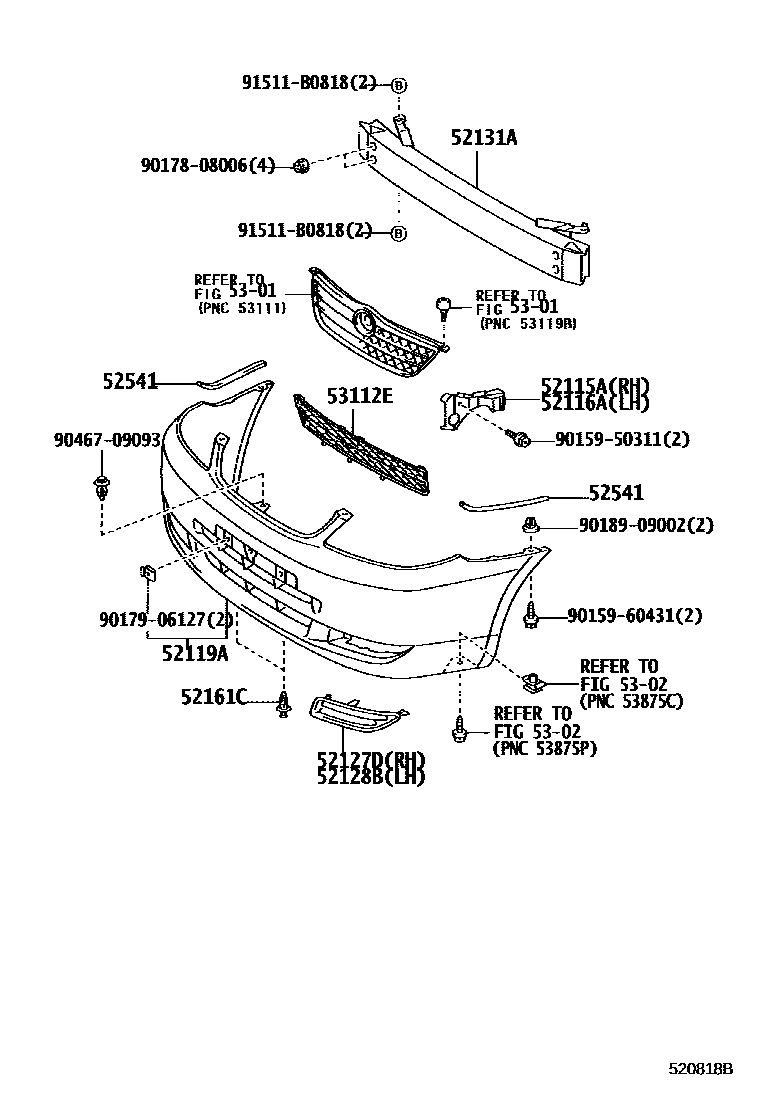

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52081 | Front bumper stay sub-assembly | 52081-02030 · 52081-02050 |
| 52082 | Front bumper left stay sub-assembly | 52082-02020 · 52082-02040 |
| 52115A | Front bumper right side bracket | 52115-02050 |
| 52116A | Front bumper left bracket | 52116-02050 |
| 52119A | front bumper cover | 52119-02912 · 52119-02942 |
| 52127D | Front bumper right hole cover | 52127-02030 · 52127-02150 · 52127-02160 |
| 52128B | Front bumper left hole cover | 52128-02020 · 52128-02160 · 52128-02170 · 52128-02180 · 52128-02190 |
| 52131A | Front bumper reinforcement | 52021-02050 · 52021-02080 |
| 52161C | front bumper insert | 52161-16010 |
| 52541 | front bumper protector | 52541-12020 |
| 53112E | No. 1 radiator lower grille | 53112-02020 · 53112-02050 |
| 57013C | Right front longitudinal beam bracket sub-assembly | 57013-02010 |
| 57014A | Left front longitudinal beam bracket sub-assembly | 57014-02010 |
