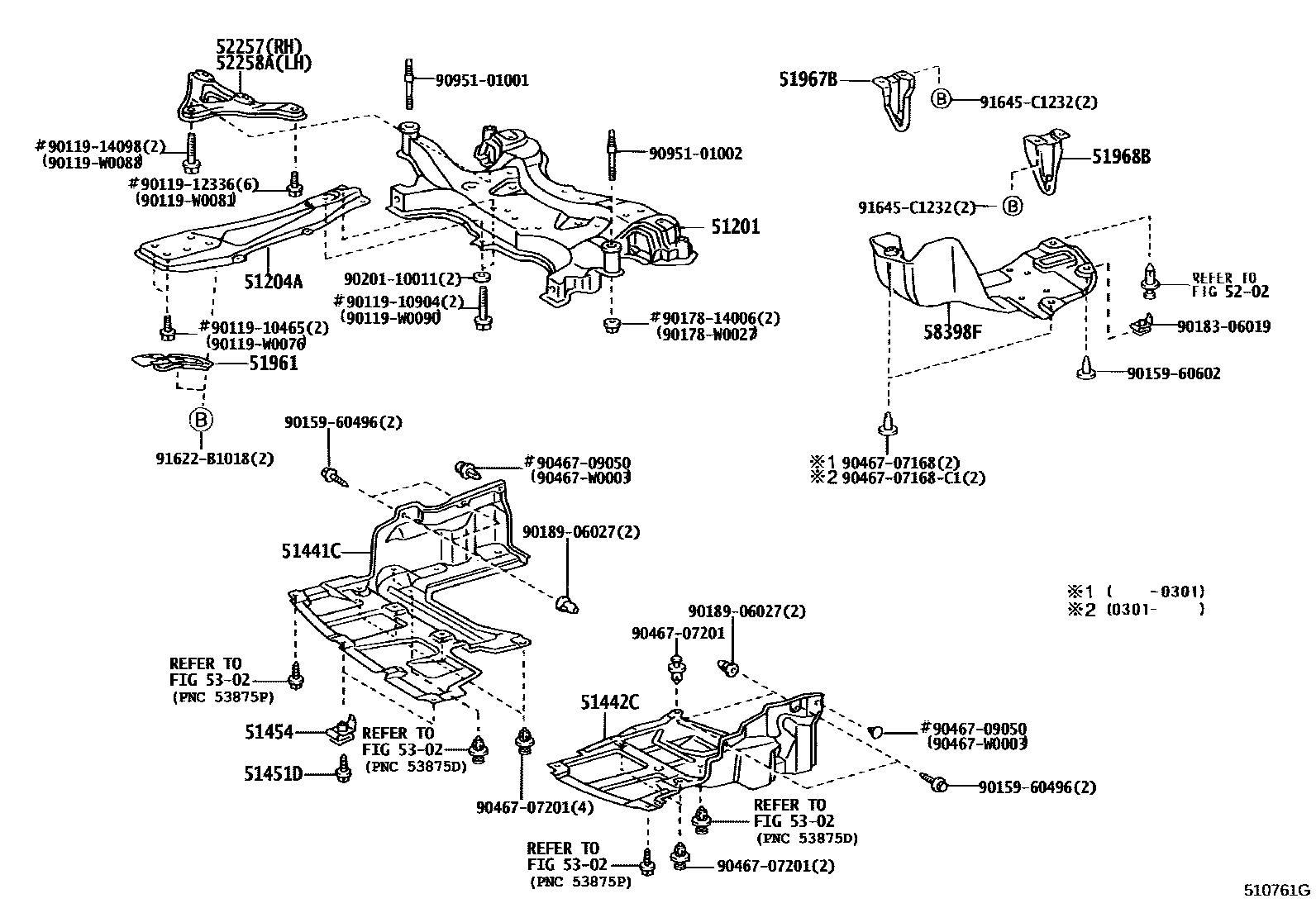

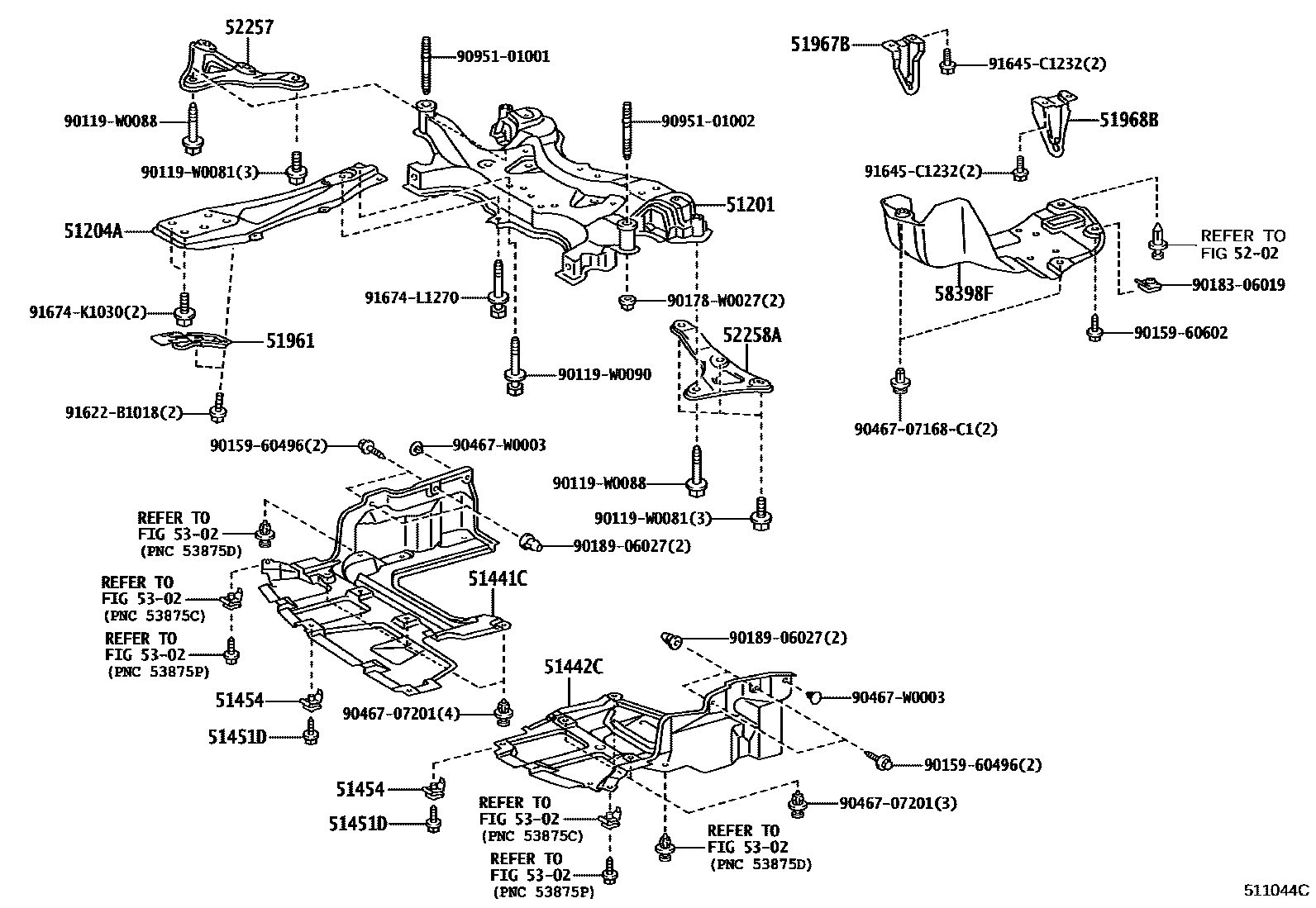

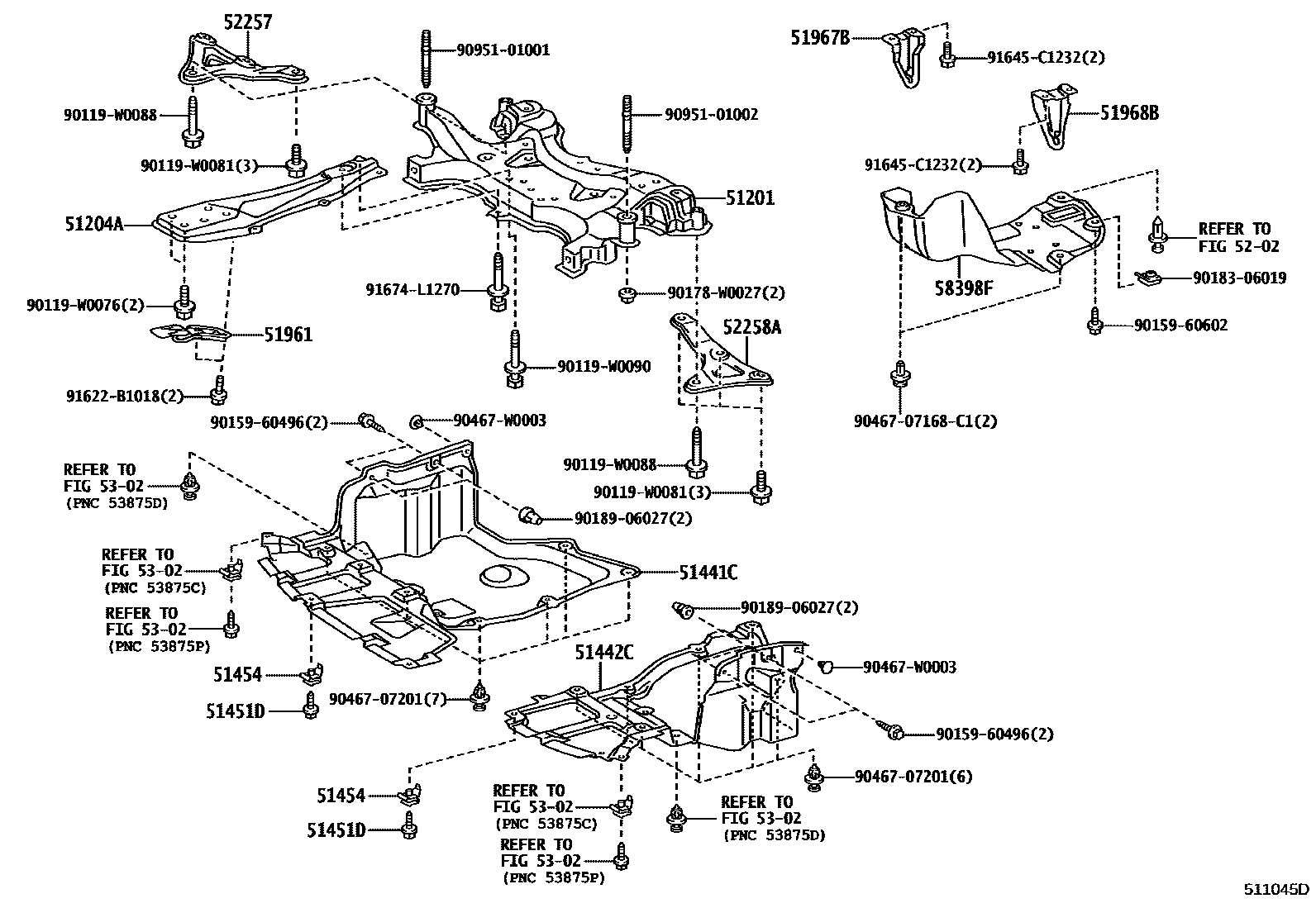

Toyota COROLLA 悬架横梁和发动机底罩 — Figure 5102
Toyota COROLLA EPC diagram 5102, 悬架横梁和发动机底罩, with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-02080 · 51201-02081 · 51201-02082 · 51201-0F010 · 51201-0F011 |
| 51204A | Engine center mount beam sub-assembly | 51204-02041 · 51204-02042 · 51204-02043 · 51204-05051 |
| 51441C | Engine right bottom cover | 51410-02040 · 51410-02080 · 51410-02090 · 51441-02090 |
| 51442C | Engine left bottom cover | 51420-02060 · 51442-02130 · 51442-02140 |
| 51451D | VIS, NO.1 | 90159-60488 |
| 51454 | engine rear cover | 90467-05138 |
| 51961 | No. 1 hook | 51960-02030 |
| 51967B | right rear transport hook | 51967-02020 |
| 51968B | Left rear transport hook | 51968-02030 |
| 52257 | Right front suspension cross member rear bracket | 52257-02020 |
| 52258A | Left front suspension cross member rear bracket | 52258-02020 |
| 58398F | No. 1 floor under cover | 58398-02020 |
