Toyota COROLLA 制动配管和卡箍 — Figure 4708

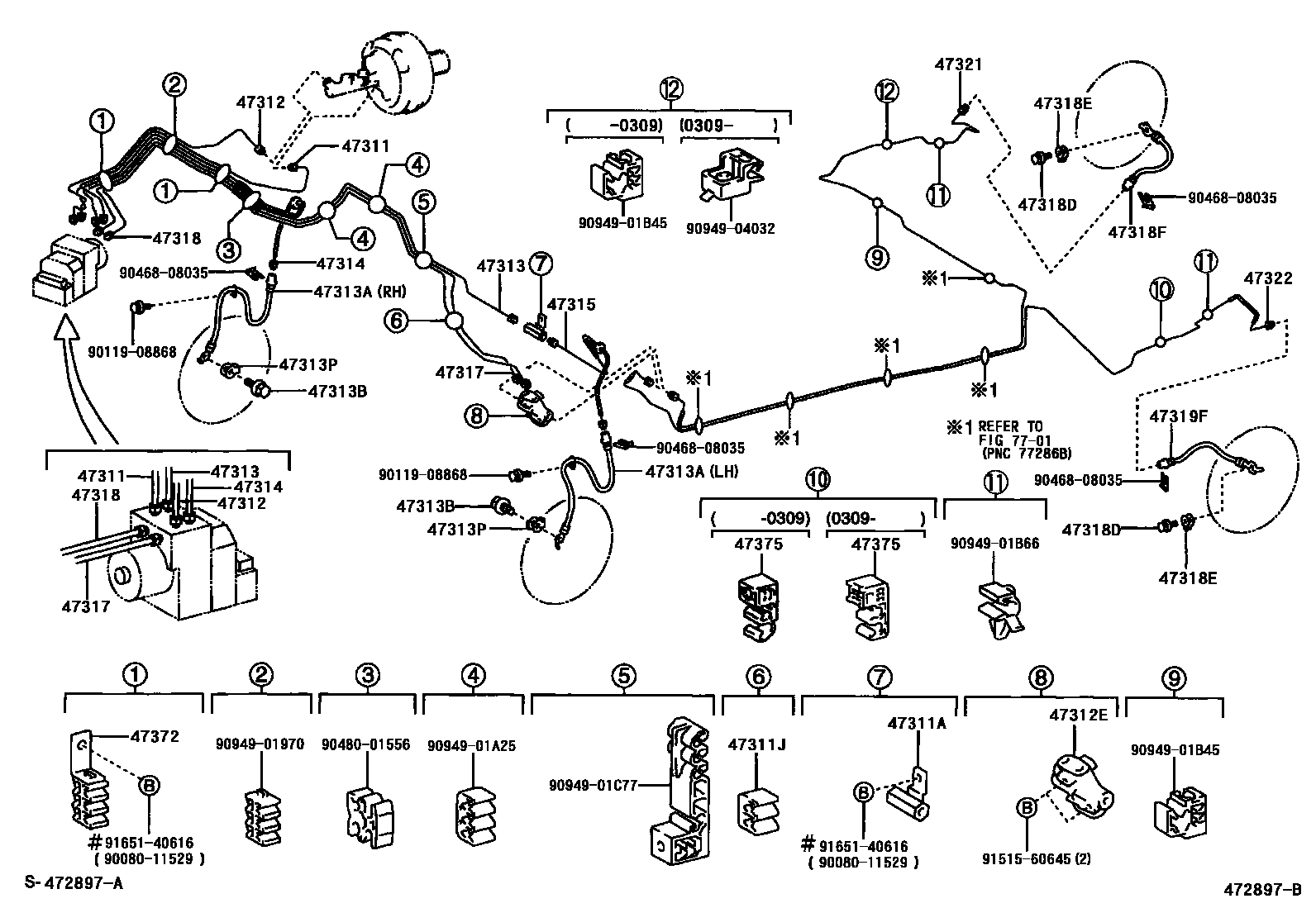

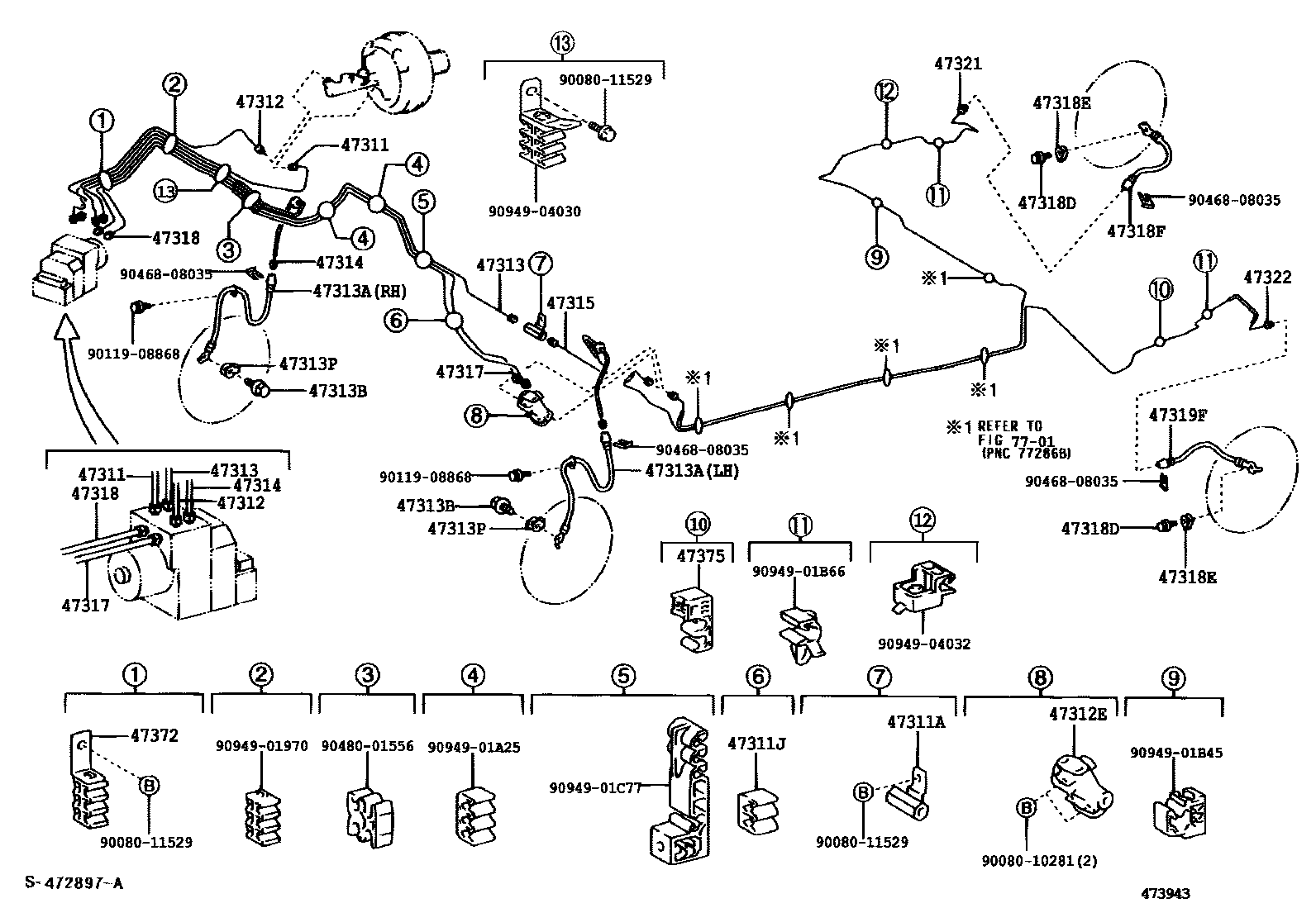

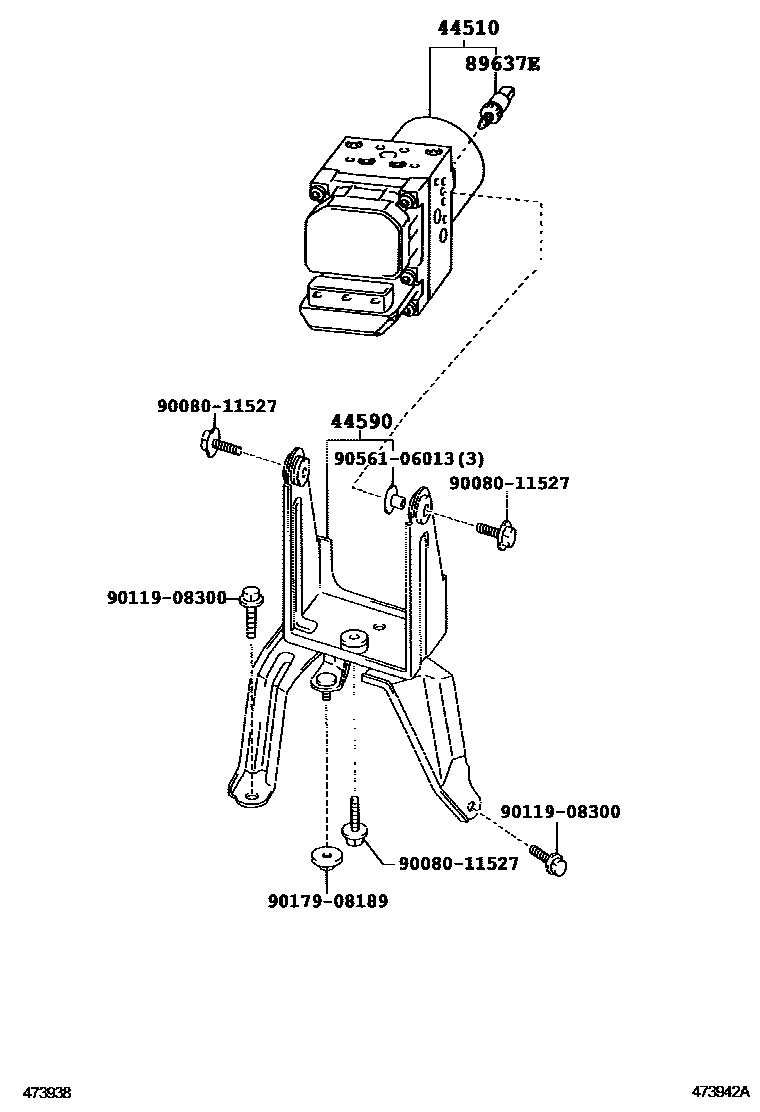

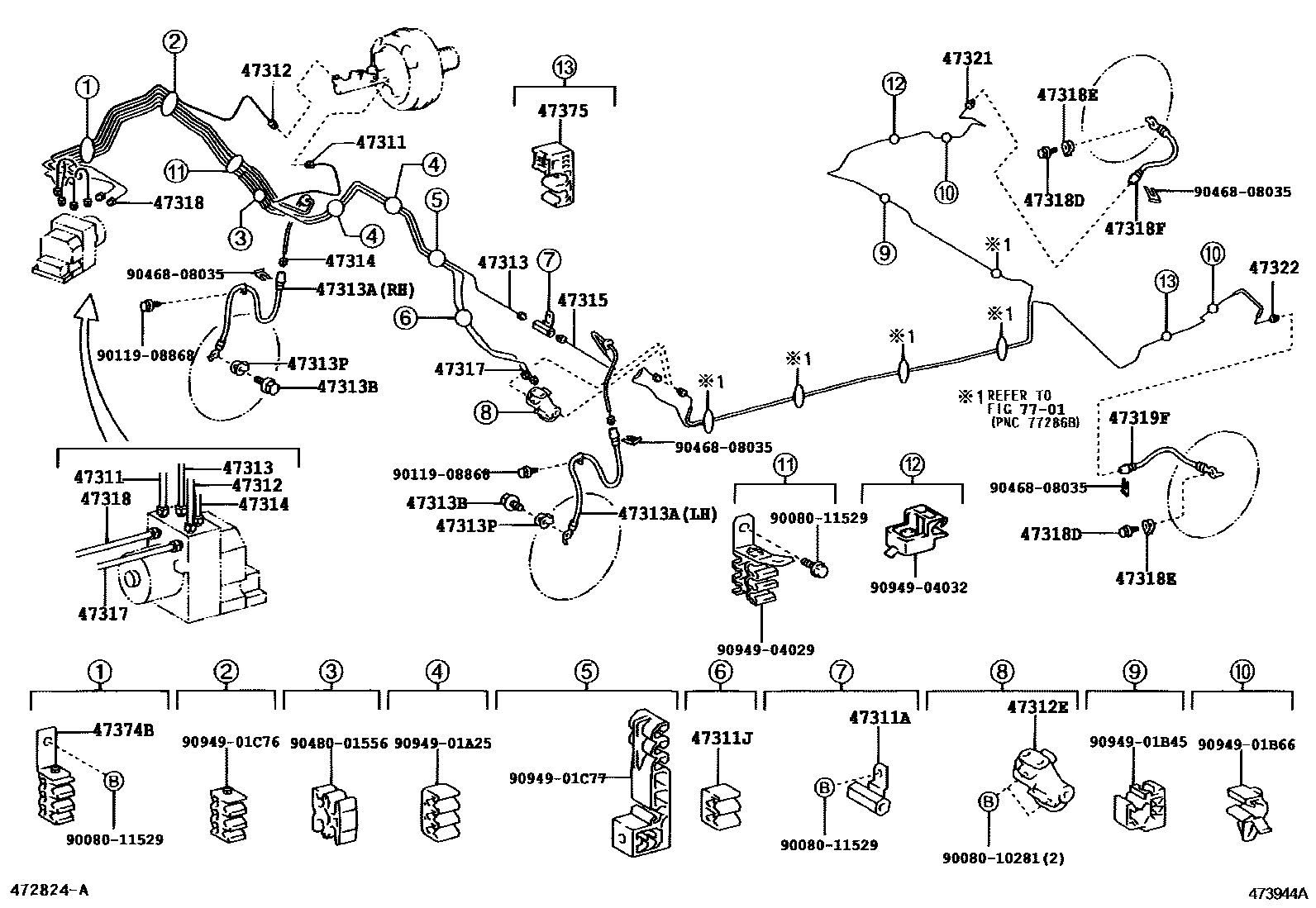

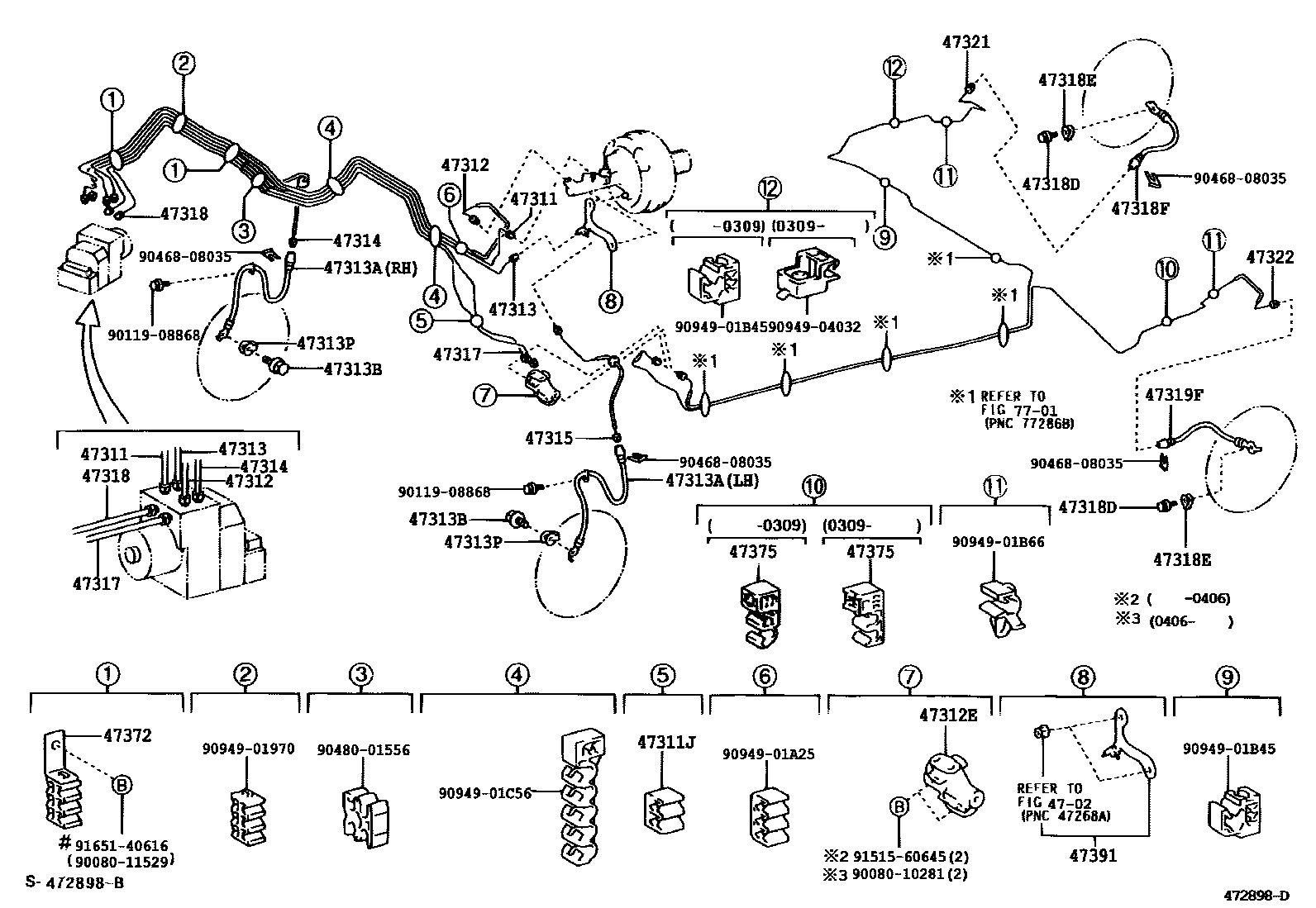

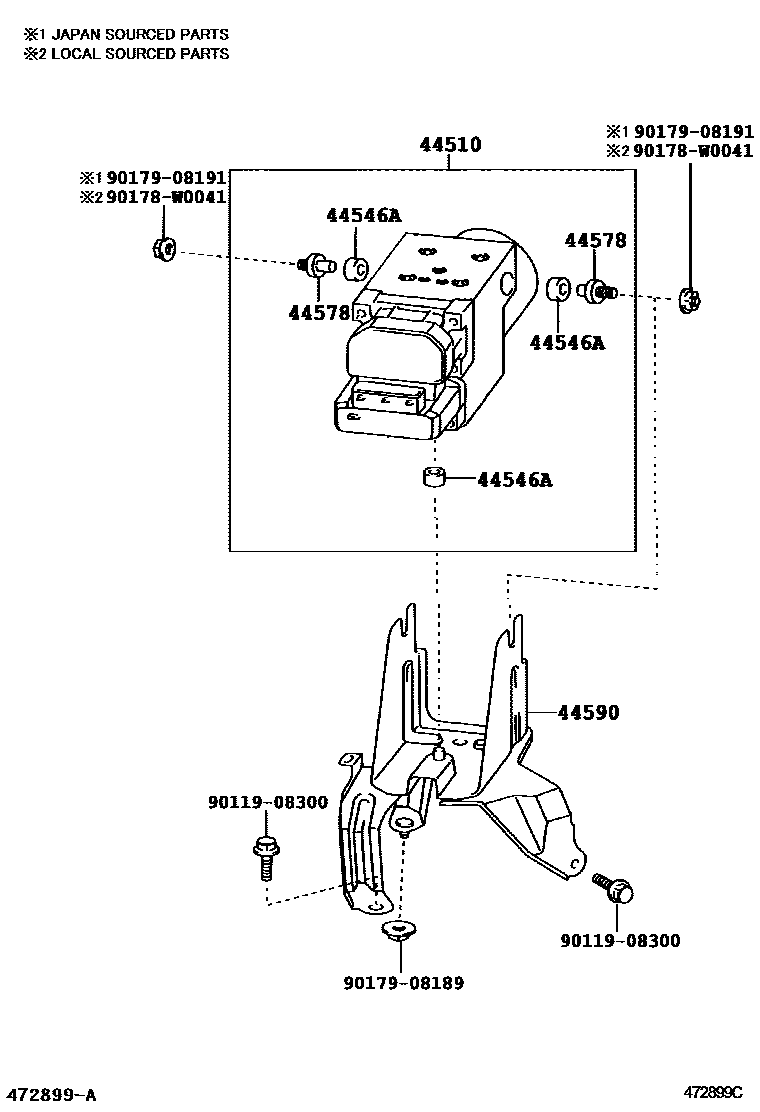

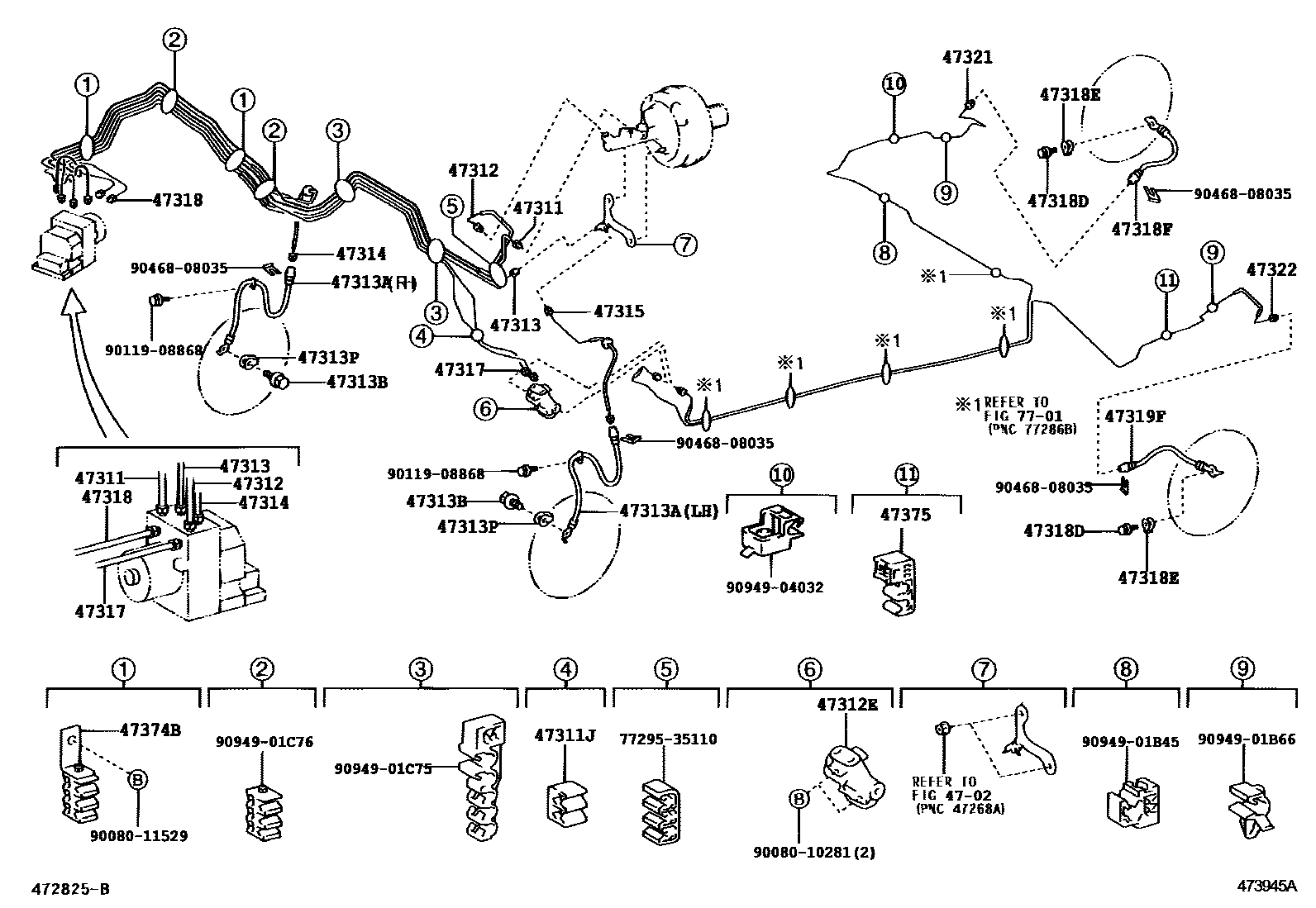

Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 7 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44050-02030 · 44050-02100 · 44050-02110 · 44050-02120 |
| 44546A | Brake actuator bolt cushion | 44546-05020 |
| 44578 | Brake actuator cushion bolt | 44578-05020 |
| 44590 | Brake actuator bracket assembly | 44590-02020 · 44590-02090 · 44590-05030 |
| 47311 | No. 1 front brake pipe | 47311-02200 · 47311-02220 · 47311-02380 · 47311-02430 · 47311-02440 |
| 47311A | Pipe fitting (for front brake pipe) | 90412-10227 · 90412-10667 |
| 47311J | Seal No. 1 (for front brake pipe) | 90480-01620 |
| 47312 | No. 2 front brake pipe | 47312-02080 · 47312-02100 · 47312-02250 · 47312-02300 · 47312-02310 · 47312-02320 |
| 47312E | No. 2 pipe joint (for front brake pipe) | 90904-12082 |
| 47313 | No. 3 front brake pipe | 47313-02170 · 47313-02190 · 47313-02330 · 47313-02340 · 47313-02380 · 47313-02390 |
| 47313A | No. 1 front flexible hose | 90080-94131 · 90080-94132 · 90080-94199 · 90080-94200 · 90947-02D22 · 90947-02D23 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313P | Gasket (for front flex hose) | 47389-50020 |
| 47314 | No. 4 front brake pipe | 47314-02190 · 47314-02210 · 47314-02230 |
| 47315 | No. 5 front brake pipe | 47315-02160 · 47315-02170 · 47315-02340 |
| 47317 | No. 7 front brake pipe | 47317-02120 · 47317-02140 · 47317-02250 · 47317-02260 · 47317-02290 · 47317-02300 |
| 47318 | No. 8 front brake pipe | 47318-02120 · 47318-02140 · 47318-02270 · 47318-02280 · 47318-02310 · 47318-02320 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10045 |
| 47318E | Gasket (for rear flex hose) | 47389-50020 |
| 47318F | Right rear flexible hose | 90947-02E88 |
| 47319F | Left rear flexible hose | 90947-02E88 |
| 47321 | No. 1 rear brake pipe | 47321-02110 |
| 47322 | No. 2 rear brake pipe | 47322-02110 |
| 47372 | No. 2 brake pipe clamp | 47374-12050 |
| 47374B | No. 4 brake pipe clamp | 47374-13020 |
| 47375 | No. 5 brake pipe clamp | 77299-20060 · 77299-32030 |
| 47391 | Brake pipe joint | 47391-09010 · 47391-09020 |
| 89637E | oil pressure sensor | 89637-07010 |
