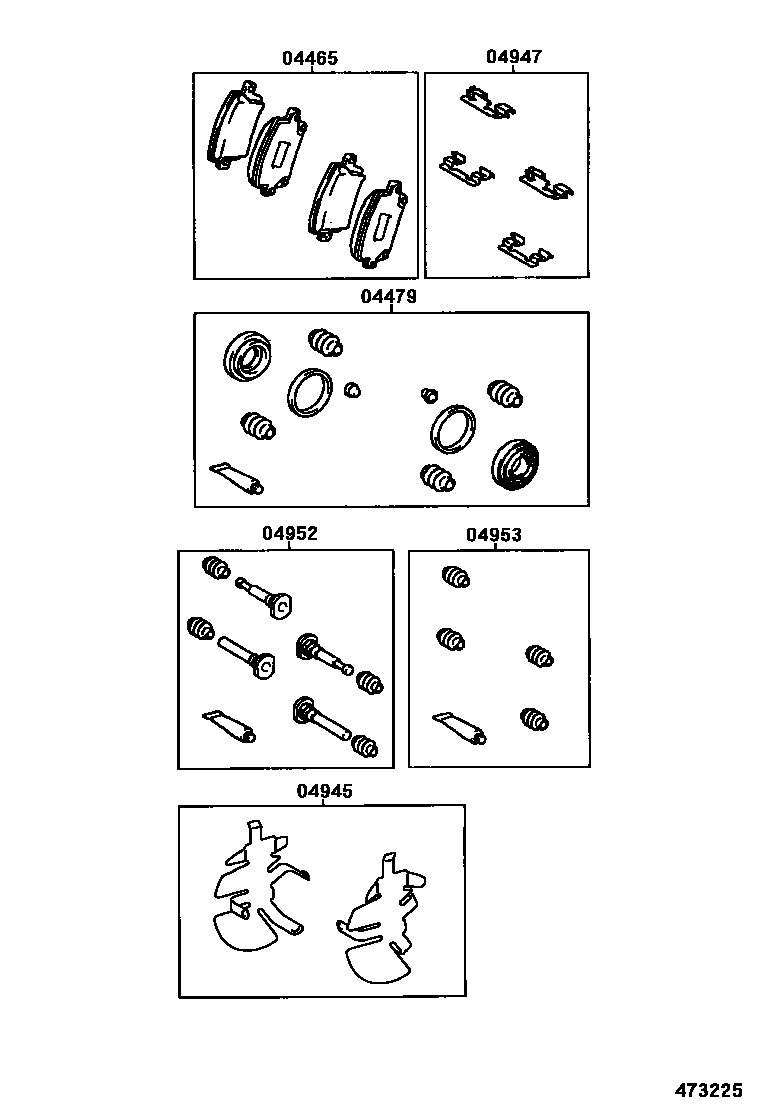

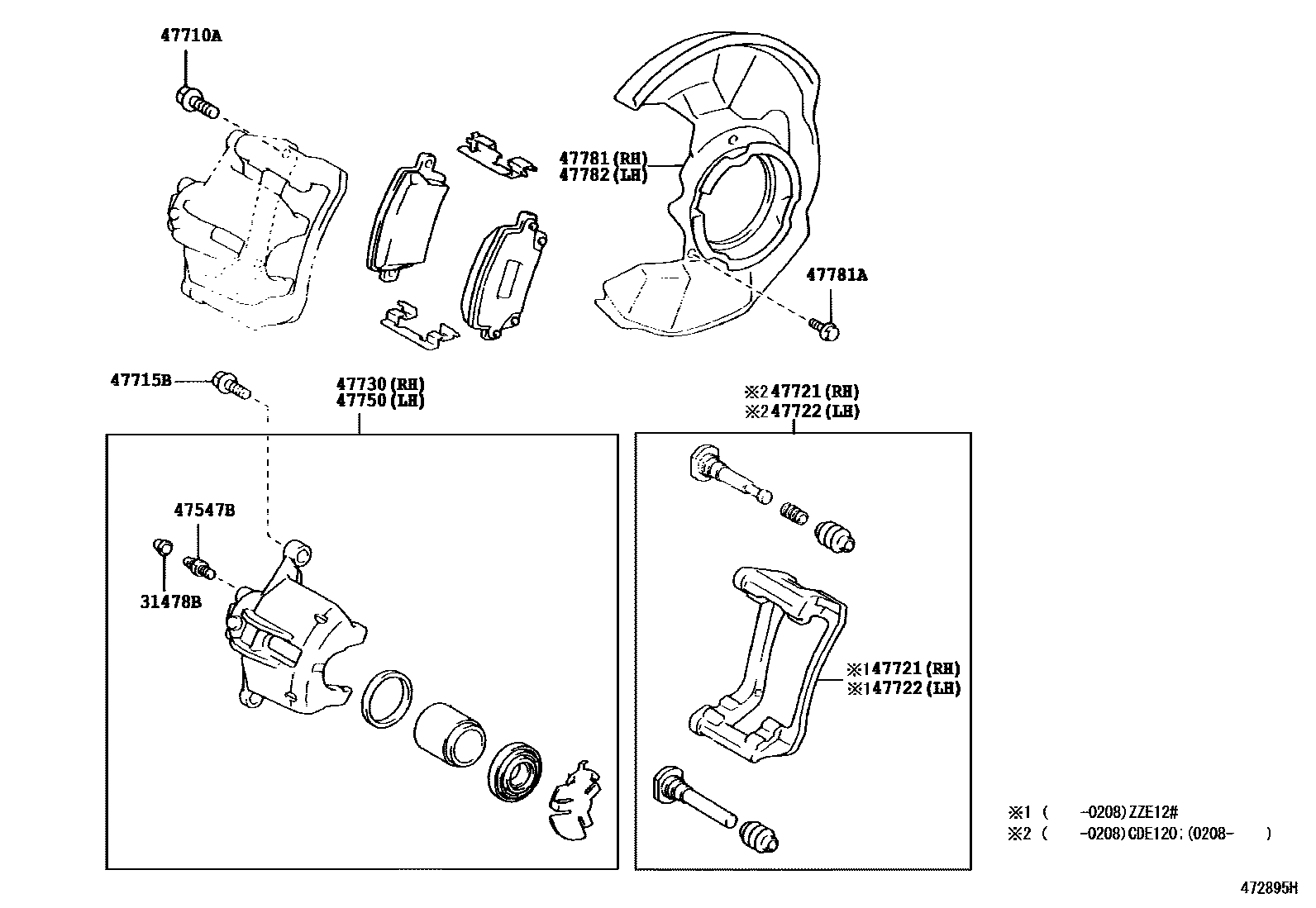

Toyota COROLLA 前盘式制动器卡钳和防尘罩 — Figure 4705
Toyota COROLLA EPC diagram 4705, 前盘式制动器卡钳和防尘罩, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04465 | Front disc brake pad assembly | 04465-02130 · 04466-02110 |
| 04479 | Front disc brake cylinder assembly | 04479-02080 |
| 04945 | Front silencer gasket assembly | 04945-02070 · 04945-02080 |
| 04947 | Front disc brake mounting kit | 04947-02050 |
| 04952 | Front disc brake cylinder sliding pin assembly | 04952-02030 · 04952-02230 |
| 04953 | Front disc brake cylinder sliding pin dust boot assembly | 04953-02030 |
| 31478B | Bleeder plug cap (for front disc brake) | 47548-02010 |
| 47547B | Bleed plug (for front disc brake) | 47547-05011 · 47547-05012 · 90080-93014 |
| 47710A | Hexagonal bolt (for front disc brake caliper) | 90105-12208 |
| 47715B | Slide bolt (for front disc brake cylinder) | 47715-02091 · 90080-10190 |
| 47721 | Right front disc brake cylinder retainer | 47721-02090 · 47721-09060 · 47721-09160 · 47721-09380 · 47721-09400 |
| 47722 | Left front disc brake cylinder retainer | 47721-02170 · 47721-09090 · 47721-09170 · 47721-09390 · 47721-09410 |
| 47730 | Right front disc brake cylinder assembly | 47730-02100 · 47730-02101 · 47730-02190 |
| 47750 | Left disc brake cylinder assembly | 47750-02100 · 47750-02101 · 47750-02190 |
| 47781 | Right front disc brake dust cover | 47781-02040 · 47781-02070 · 47781-12240 |
| 47781A | Bolt (used to secure dust cover to knuckle arm) | 90080-11525 · 90119-06227 |
| 47782 | Left front disc brake dust cover | 47782-02040 · 47782-02070 · 47782-12240 |
