Toyota COROLLA 离合器踏板和挠性软管 — Figure 3102

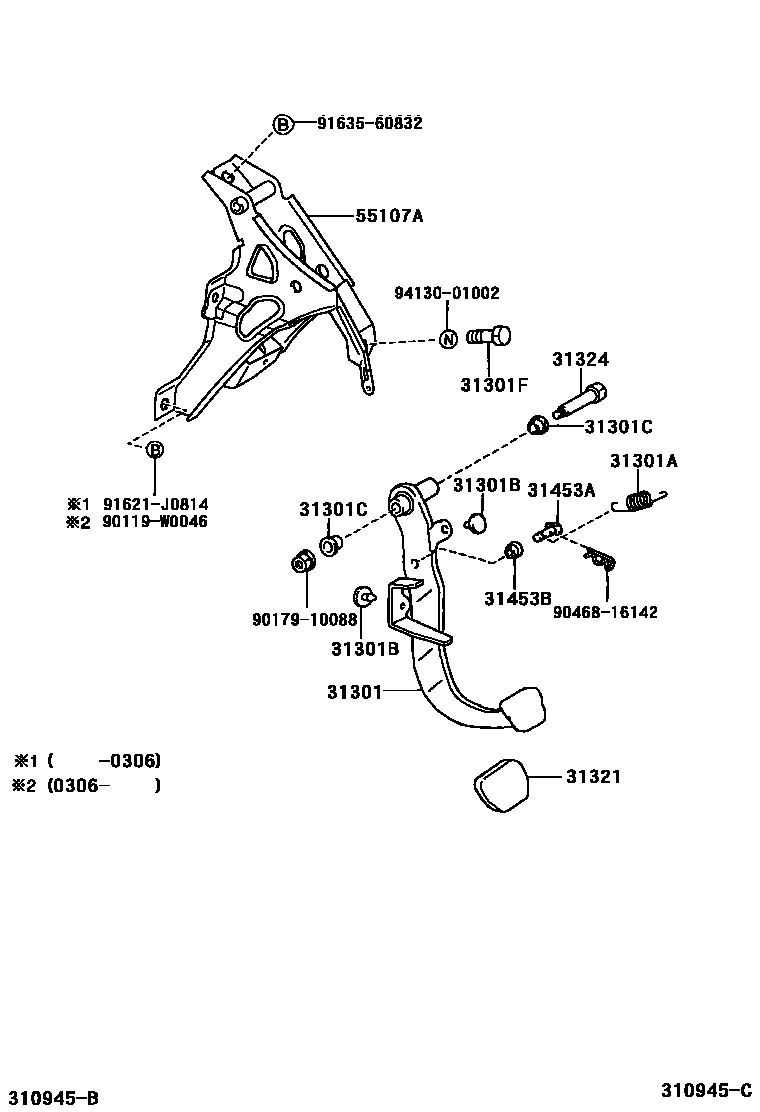

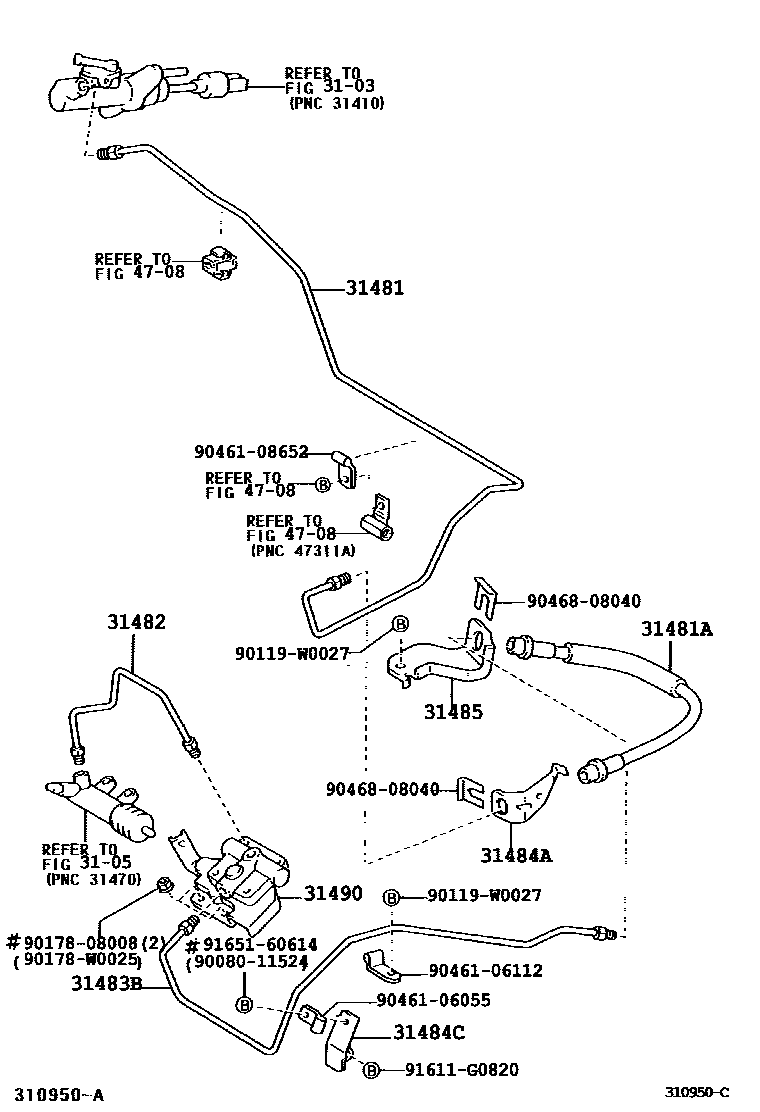

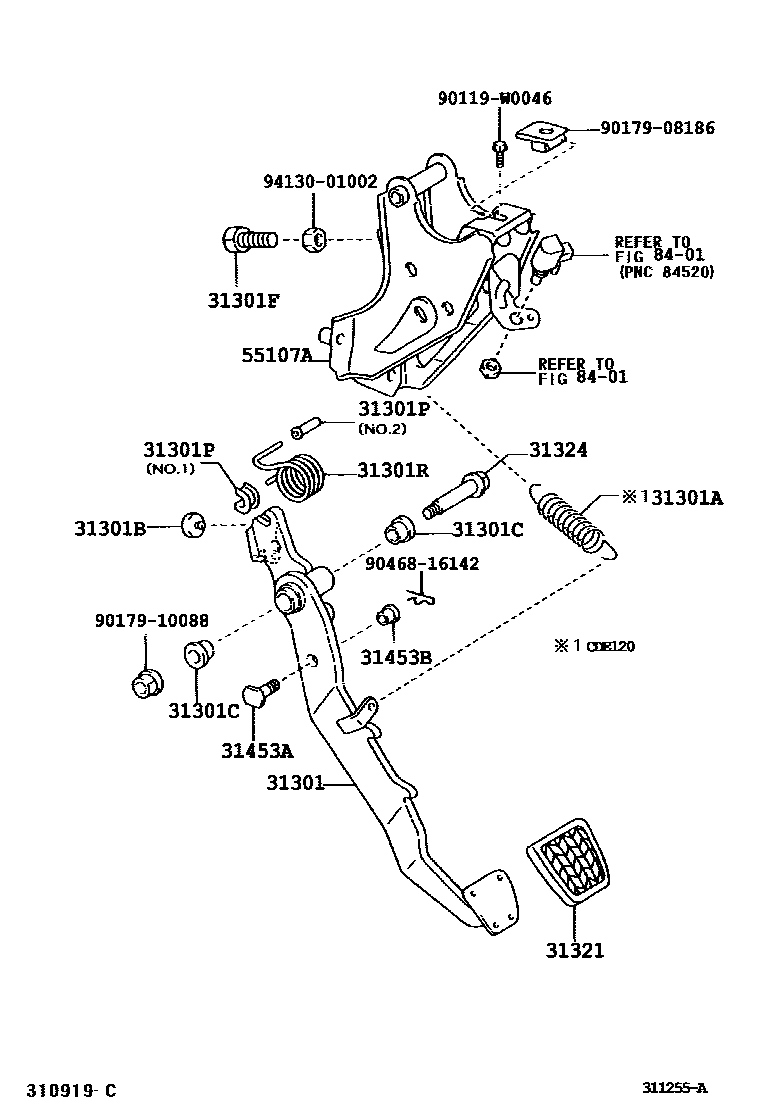

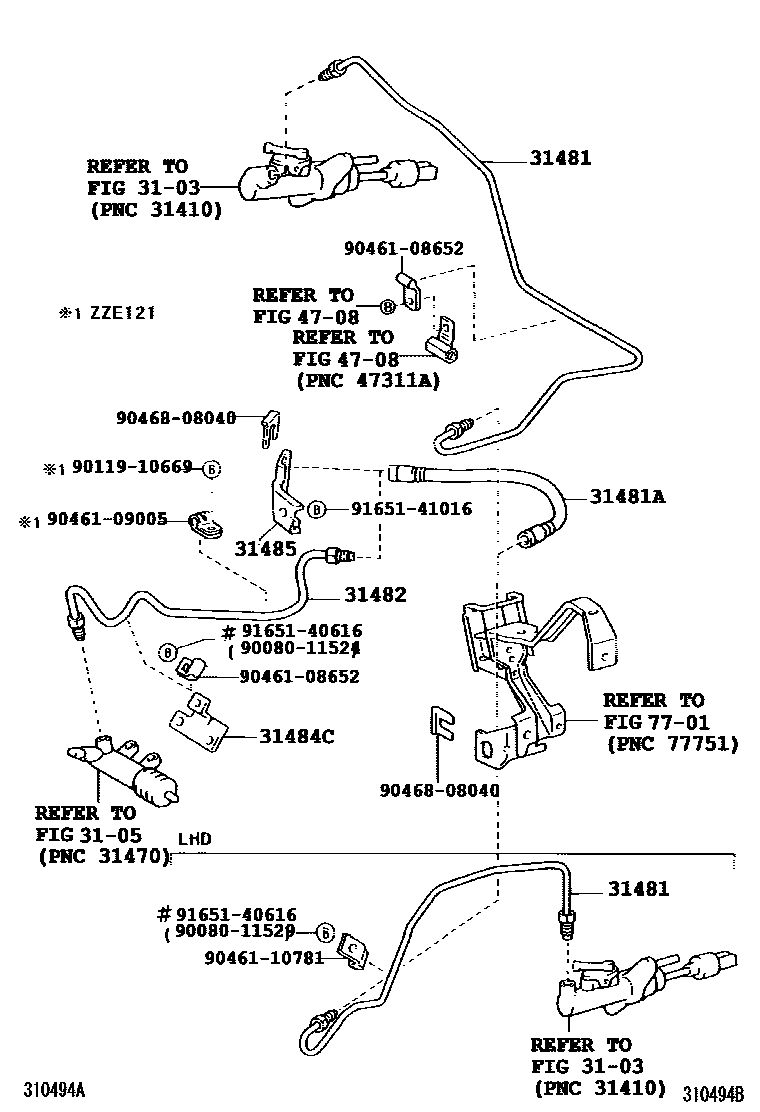

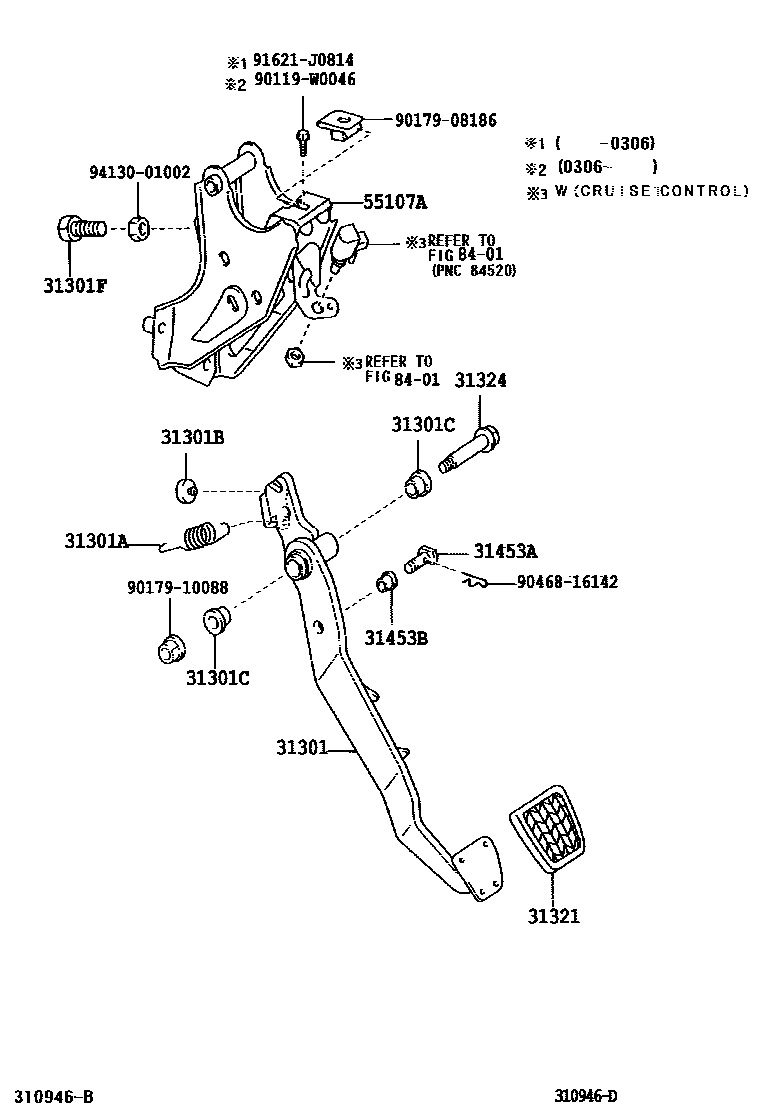

Toyota COROLLA EPC diagram 3102, 离合器踏板和挠性软管, with 13 images and 20 PNC and OE references.
PNC and OE references

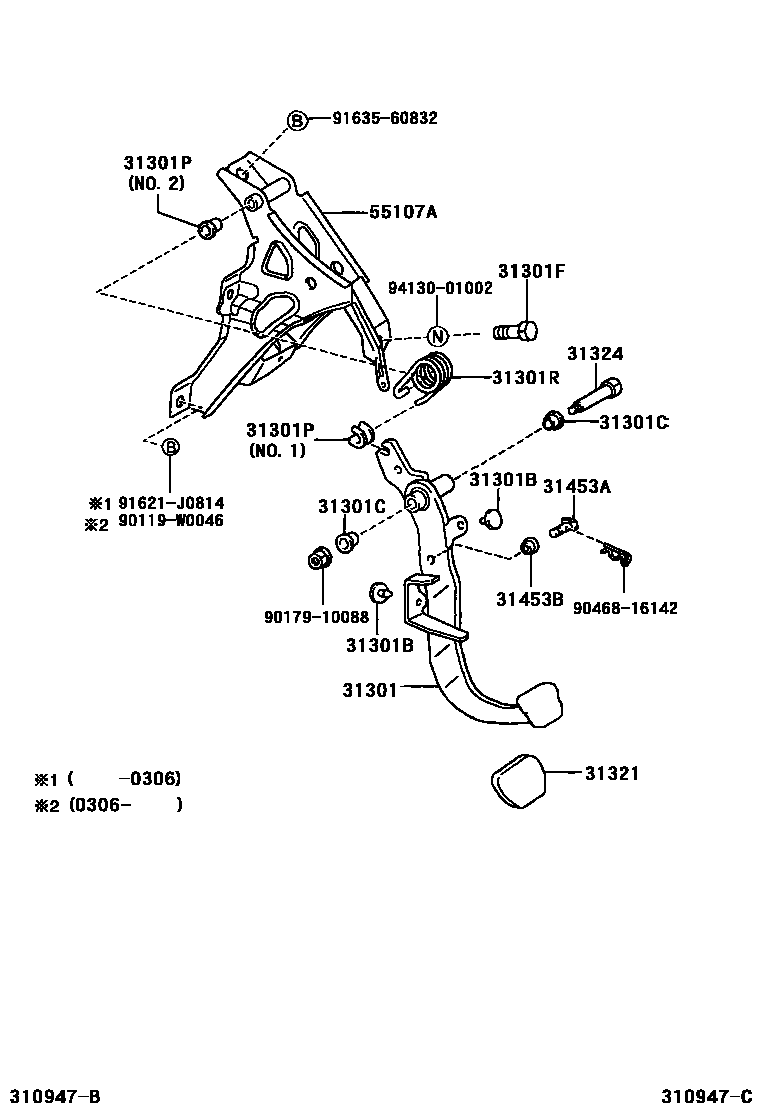

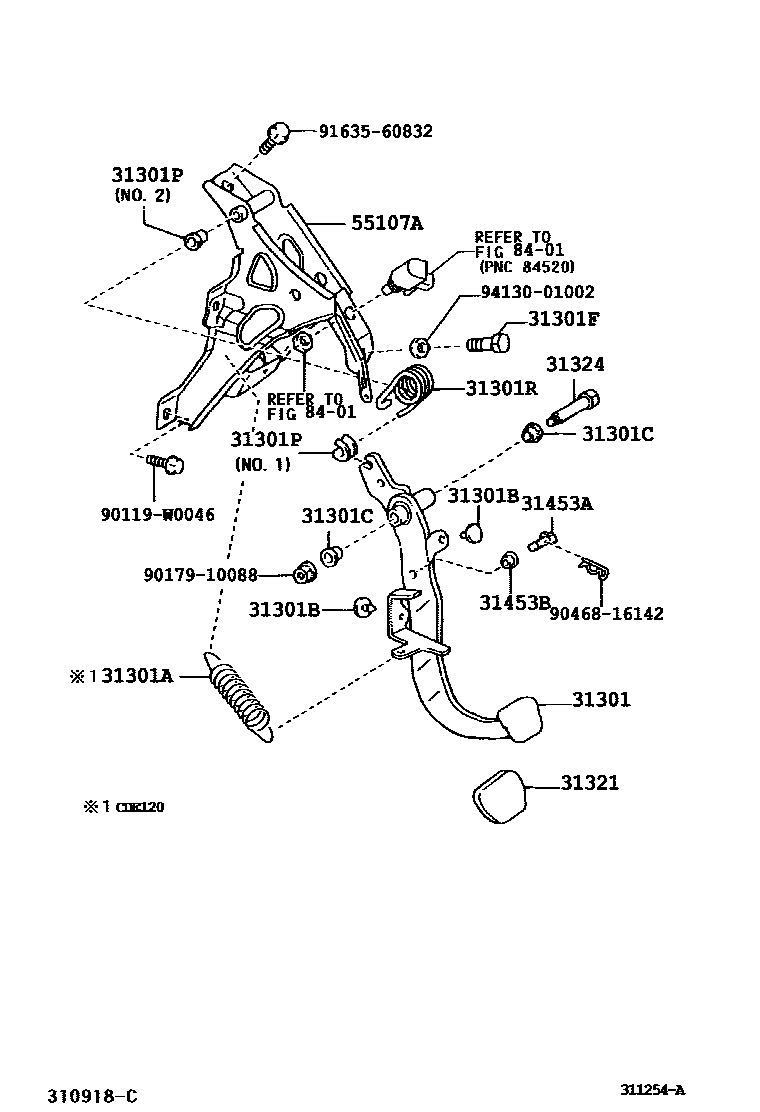

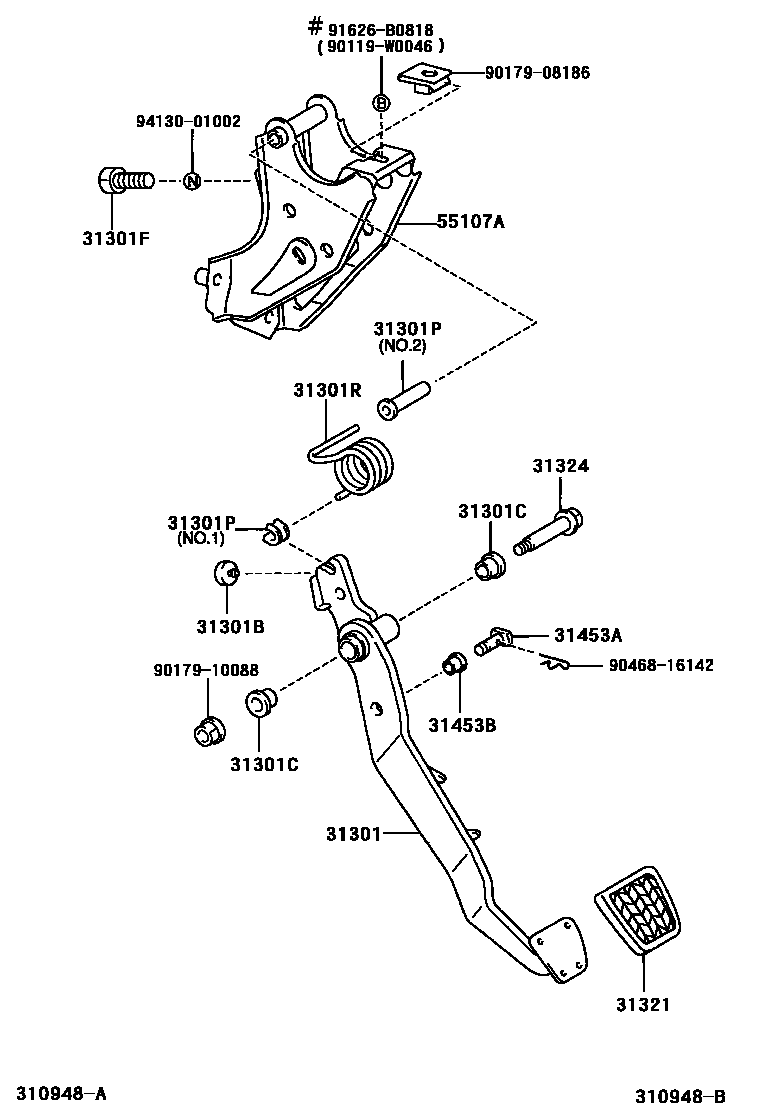

| PNC | Part name | OE numbers |
|---|---|---|
| 31301 | Clutch pedal sub-assembly | 31301-02040 · 31301-02080 · 31301-02110 · 31301-02120 · 31301-02180 · 31301-02190 · 31301-02200 · 31301-05050 · 31301-05060 |
| 31301A | Spring (for clutch pedal) | 90507-14047 · 90507-14050 · 90507-17004 · 90507-19005 |
| 31301B | Cushion pad No. 1 (for clutch pedal) | 90541-06036 |
| 31301C | Bushing (for clutch pedal) | 90386-13015 |
| 31301F | Bolt (for clutch pedal stop) | 90101-10369 |
| 31301P | Bushing (for clutch pedal flip-up device) | 90386-05017 · 90389-05019 |
| 31301R | Compression spring (for flip spring seat) | 90949-03100 · 90949-03122 · 90949-03143 |
| 31321 | clutch pedal pad | 31321-52010 |
| 31324 | clutch pedal shaft | 90109-10167 |
| 31453A | Pin with hole (for clutch master cylinder push rod U-shaped clamp) | 90249-08143 |
| 31453B | Bushing (for clutch master cylinder push rod U-shaped clamp) | 90386-08002 |

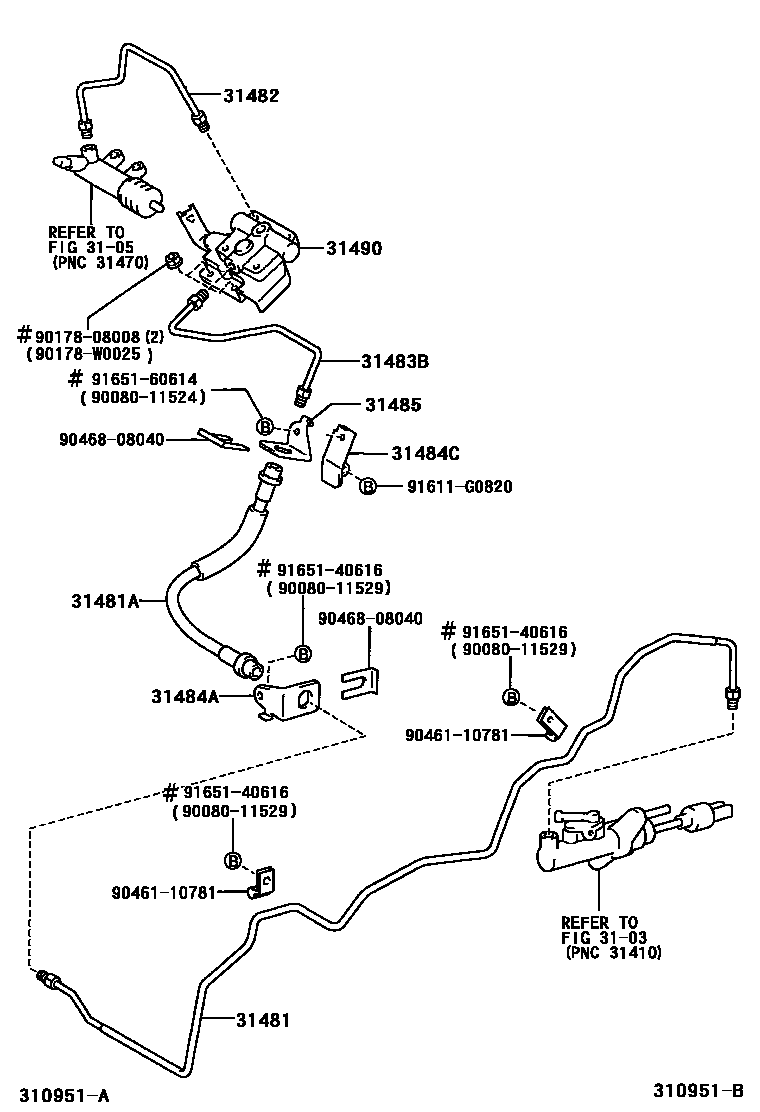

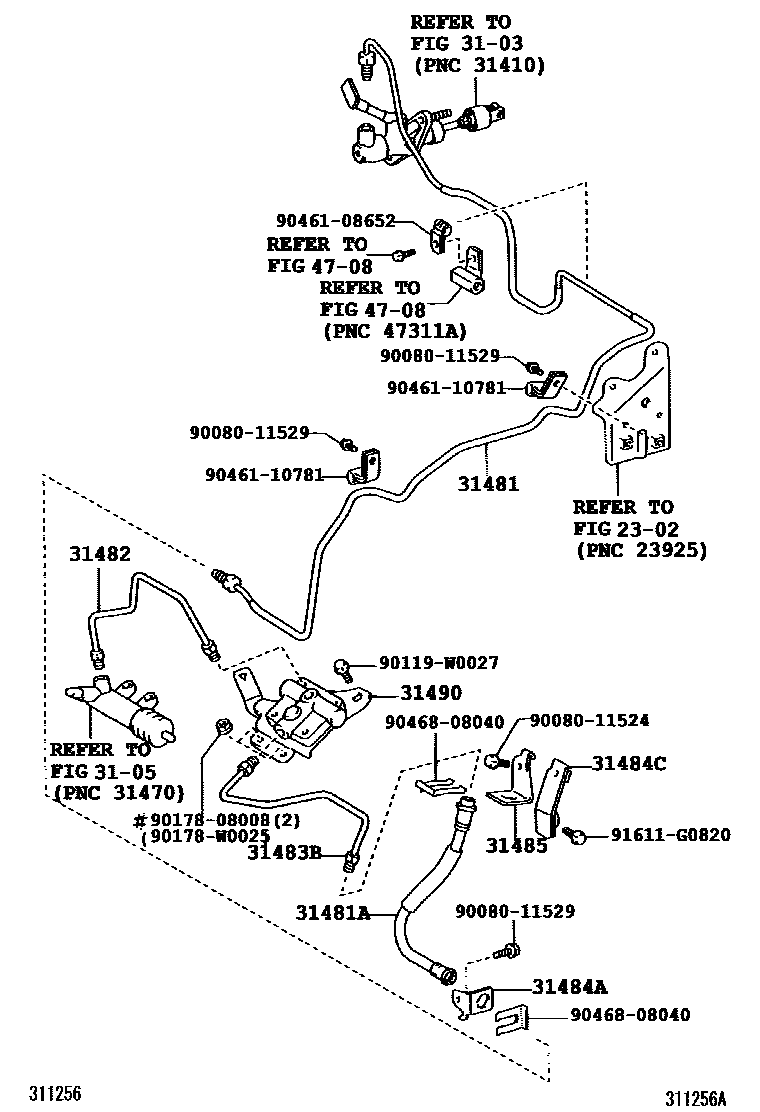

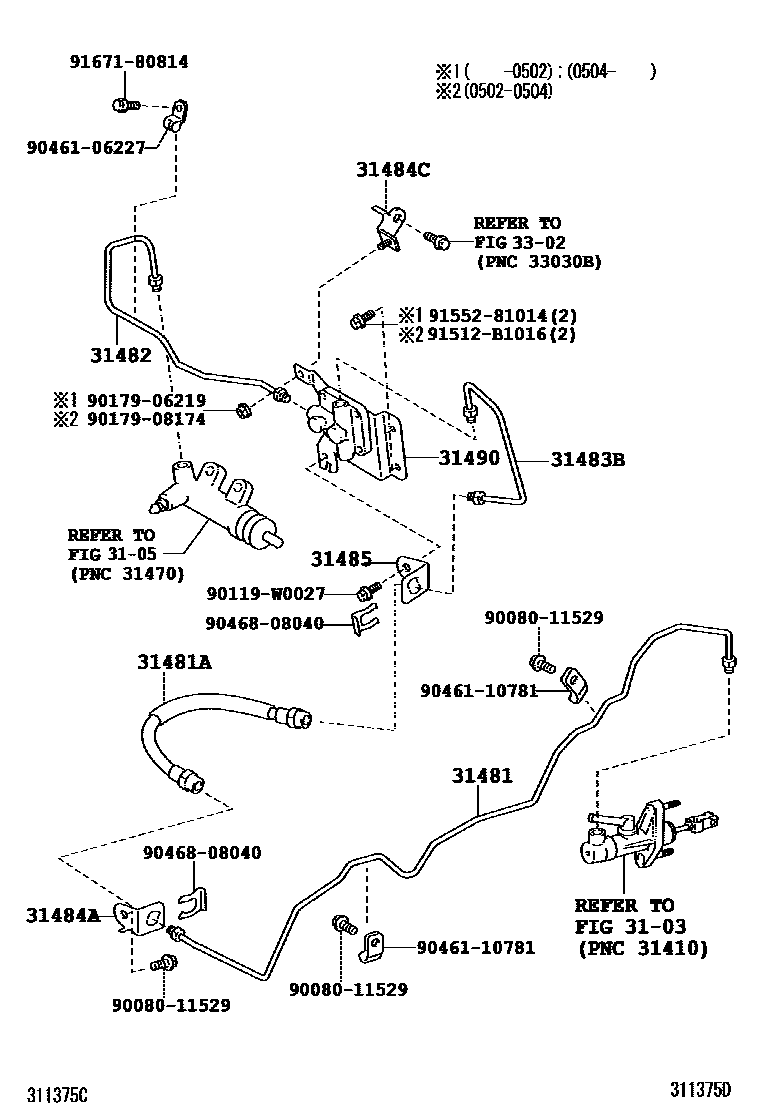

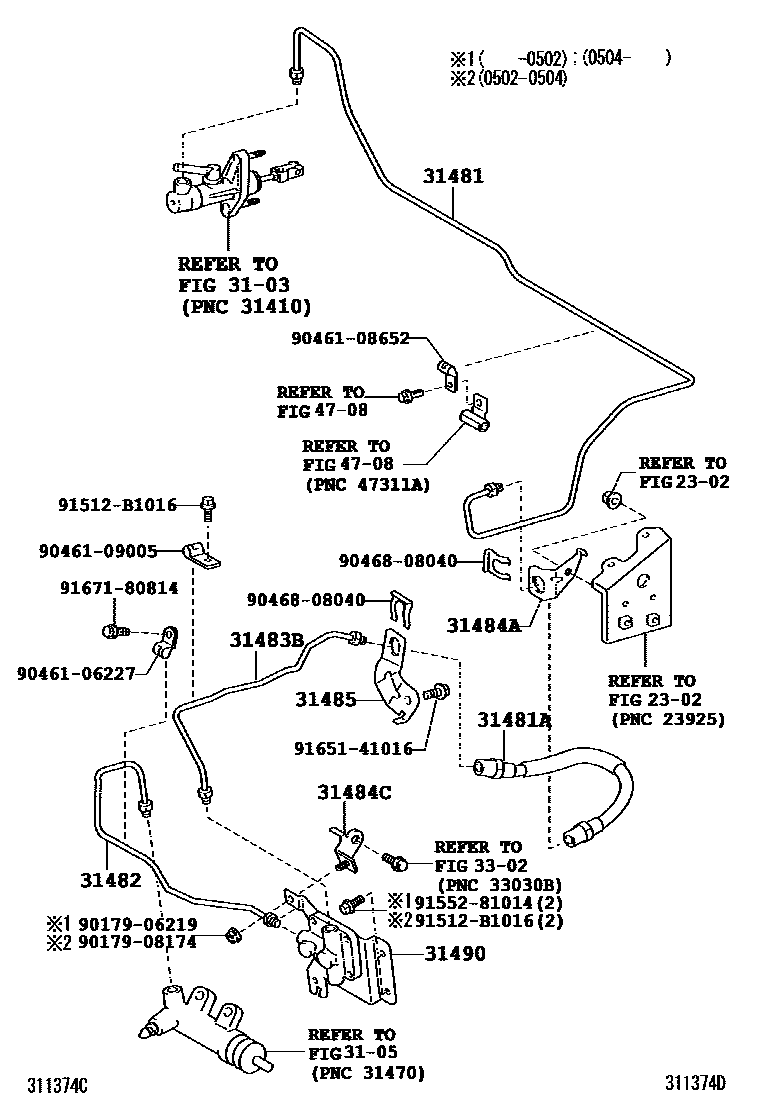

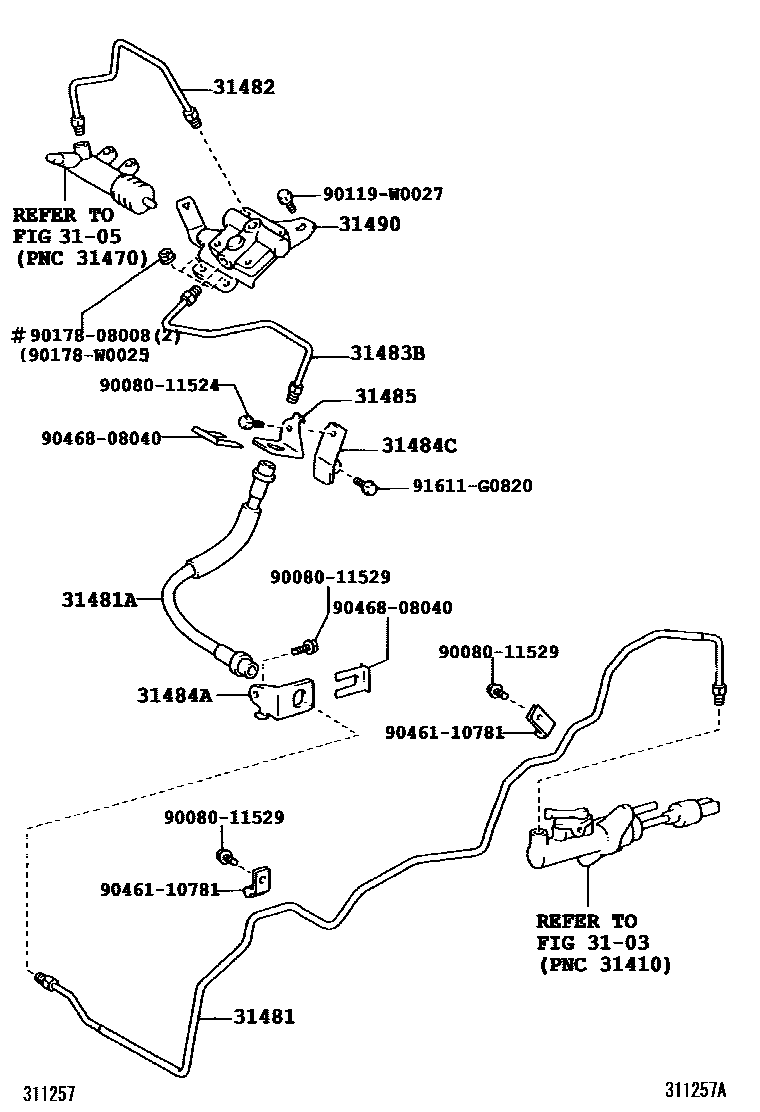

| 31481 | Clutch master cylinder to flexible hose pipe | 31481-02120 · 31481-02130 · 31481-02140 · 31481-02190 · 31481-05100 · 31481-05150 |
| 31481A | No. 1 clutch hose | 90080-94130 · 90947-02D12 · 90947-02D20 |
| 31482 | Pipe from clutch release cylinder to flexible hose | 31482-02160 · 31482-02200 · 31482-02230 · 31482-02311 |
| 31483B | Accumulator to flexible hose pipe | 31483-02020 · 31483-02030 · 31483-02090 · 31483-02100 |
| 31484A | No. 1 flexible hose bracket (for clutch) | 31484-12380 · 31484-12420 |
| 31484C | No. 1 clutch tube bracket | 31484-12480 · 31484-12490 · 31484-12531 · 31484-20320 · 31484-20460 |
| 31485 | No. 2 flexible hose bracket (for clutch) | 31484-02070 · 31484-02071 · 31484-02080 · 31484-02081 · 31484-12390 · 31484-12400 · 31484-12430 |
| 31490 | Clutch pressure accumulator assembly | 31490-12060 · 31490-12070 · 31490-12080 · 31490-12081 · 31490-12090 |
| 55107A | Clutch pedal bracket sub-assembly | 55107-02060 · 55107-02080 · 55107-02090 · 55107-02110 · 55107-02140 · 55107-05070 · 55107-05080 |
