Toyota COROLLA Ventilation Hose — Figure 1201

Toyota COROLLA EPC diagram 1201, Ventilation Hose, with 3 images and 6 PNC and OE references.

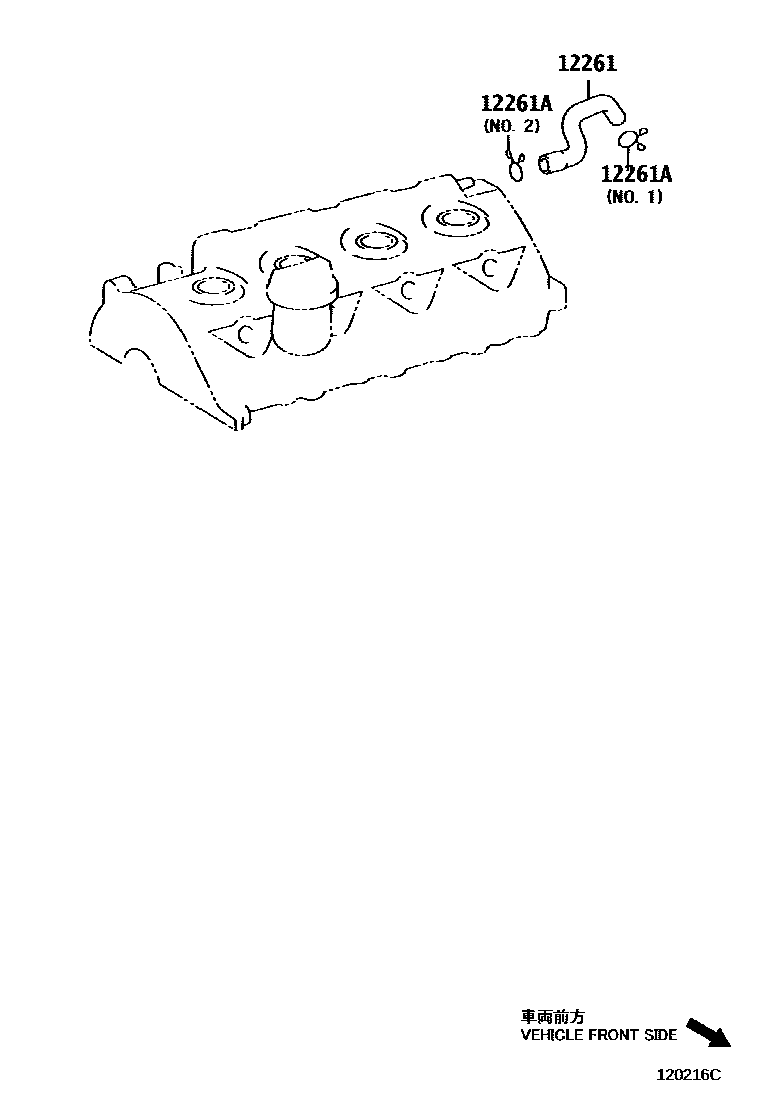

Toyota COROLLA Ventilation Hose EPC diagram — 120216C
Ventilation Hose — 120216C (200201 – 999999)

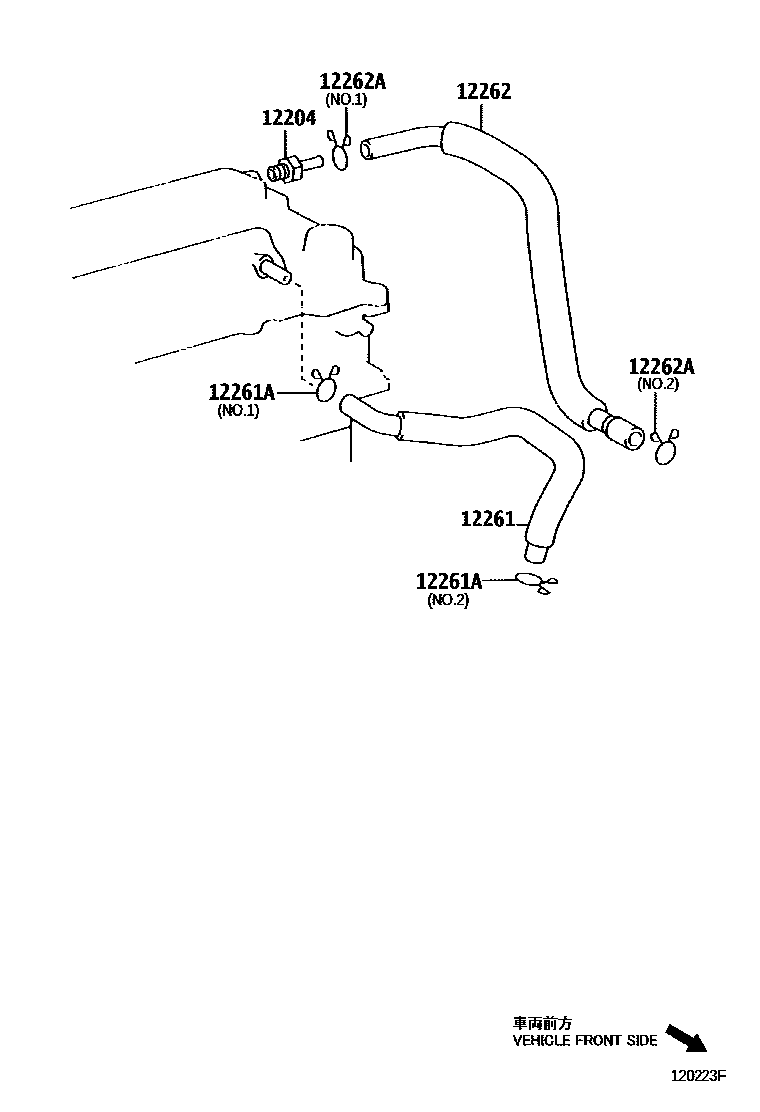

Toyota COROLLA Ventilation Hose EPC diagram — 120223F
Ventilation Hose — 120223F (200201 – 999999)

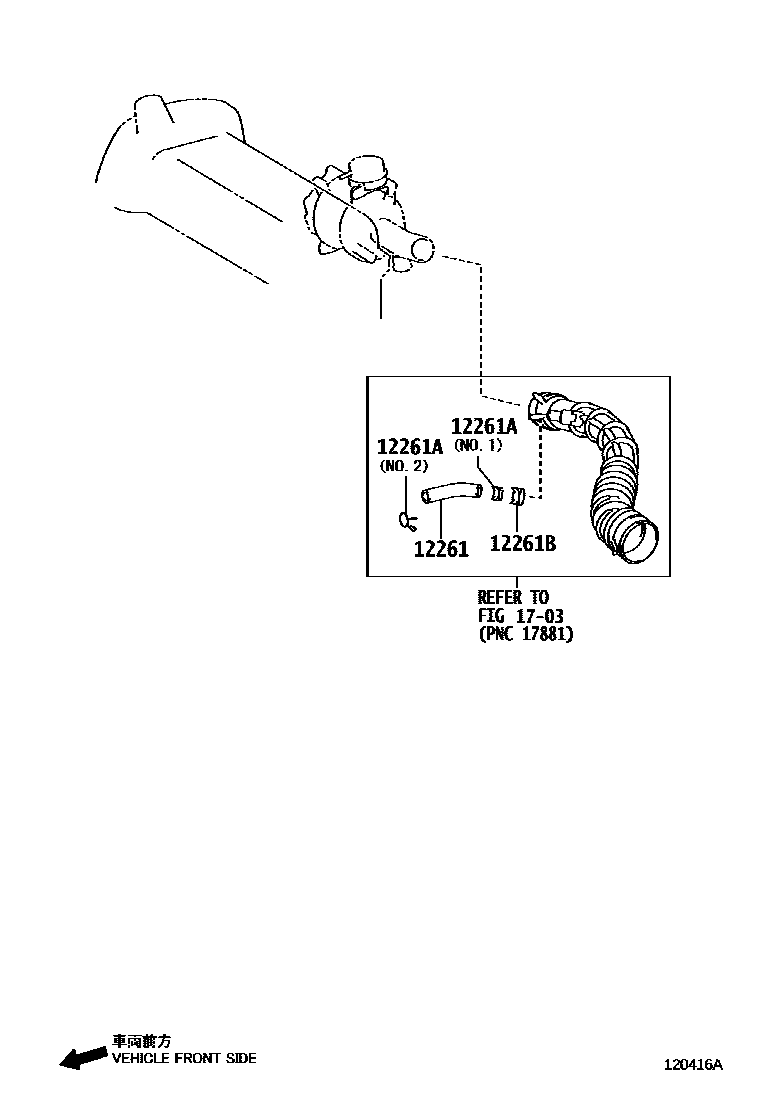

Toyota COROLLA Ventilation Hose EPC diagram — 120416A
Ventilation Hose — 120416A (200408 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-22050 · 12204-22051
12261Ventilation Hose12261-0D070 · 12261-22050 · 12261-22070 · 12261-27030 · 12261-27060 · 12261-33060
12261AClip or clip (for vent hose)90466-23004 · 90467-20009 · 90467-21004 · 90467-21152 · 90467-23002 · 96134-52600
12261BClip or clip (for vent hose)96134-52600
12262Ventilation hose No. 212262-0D080 · 12262-0D100 · 12262-22060 · 12262-22080
12262AClamp (for vent hose No. 2)90467-13103 · 90467-19003
