Toyota COROLLA Timing Gear Cover & Rear End Plate — Figure 1106

Toyota COROLLA EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 2 images and 20 PNC and OE references.

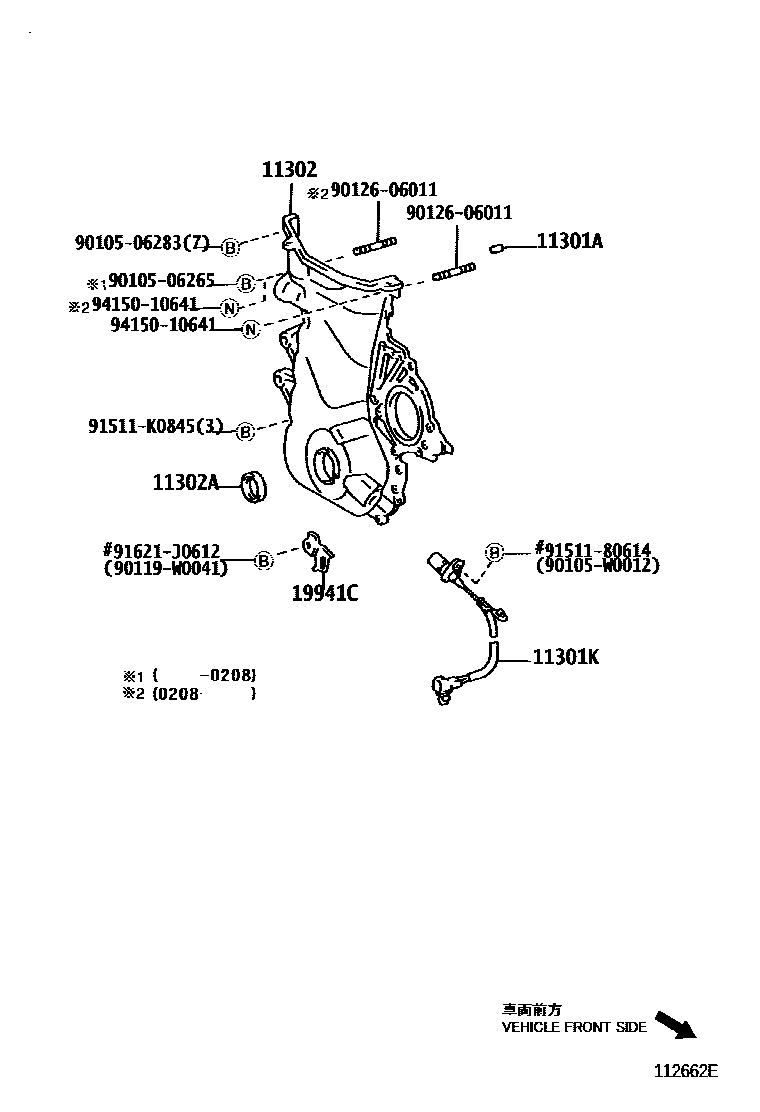

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 112662E
Timing Gear Cover & Rear End Plate — 112662E (200201 – 999999)

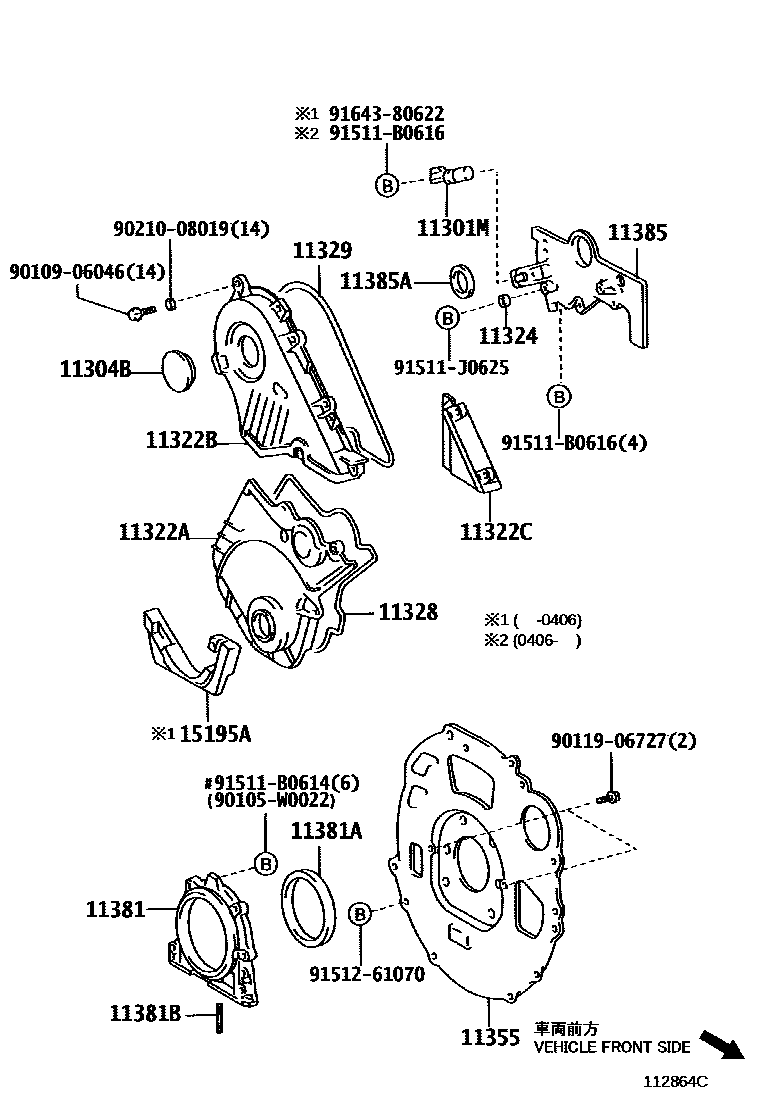

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 112864C
Timing Gear Cover & Rear End Plate — 112864C (200201 – 999999)

PNC and OE references

PNCPart nameOE numbers
11301ADirect sales (for timing gearbox)90250-08074
11301Kcrankshaft position sensor90919-05030
11301MCam position sensor90919-05012
11302TIMING CHAIN OR BELT COVER SUB-ASSY11321-0D020 · 11321-22021
11302AOil seal (for timing chain or timing belt cover)90080-31060 · 90311-38059
11304BHalf-round plug (for No. 2 timing chain cover)90950-01357
11322ANo. 1 timing belt cover11321-27010 · 11321-27011
11322BNo. 2 timing belt cover11322-27011
11322CNo. 3 timing belt cover11323-27010
11324Timing chain cover11324-27010
11328GASKET, TIMING GEAR OR CHAIN COVER11328-27010
11329Timing gear rear cover gasket11329-27010
11355rear end plate11355-27011
11381RETAINER, ENGINE REAR OIL SEAL11381-64020
11381ASEAL, ENGINE REAR OIL90311-90008
11381BStud bolts (for engine rear oil seal race)90116-06134 · 90126-06018
11385Camshaft oil seal race11382-27010
11385AOil seal (for camshaft)90311-38081
15195AOil pump vibration isolation pad15195-27011
19941CWire clamp (for crankshaft position sensor)19941-22010
