Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103

Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 8 images and 2 PNC and OE references.

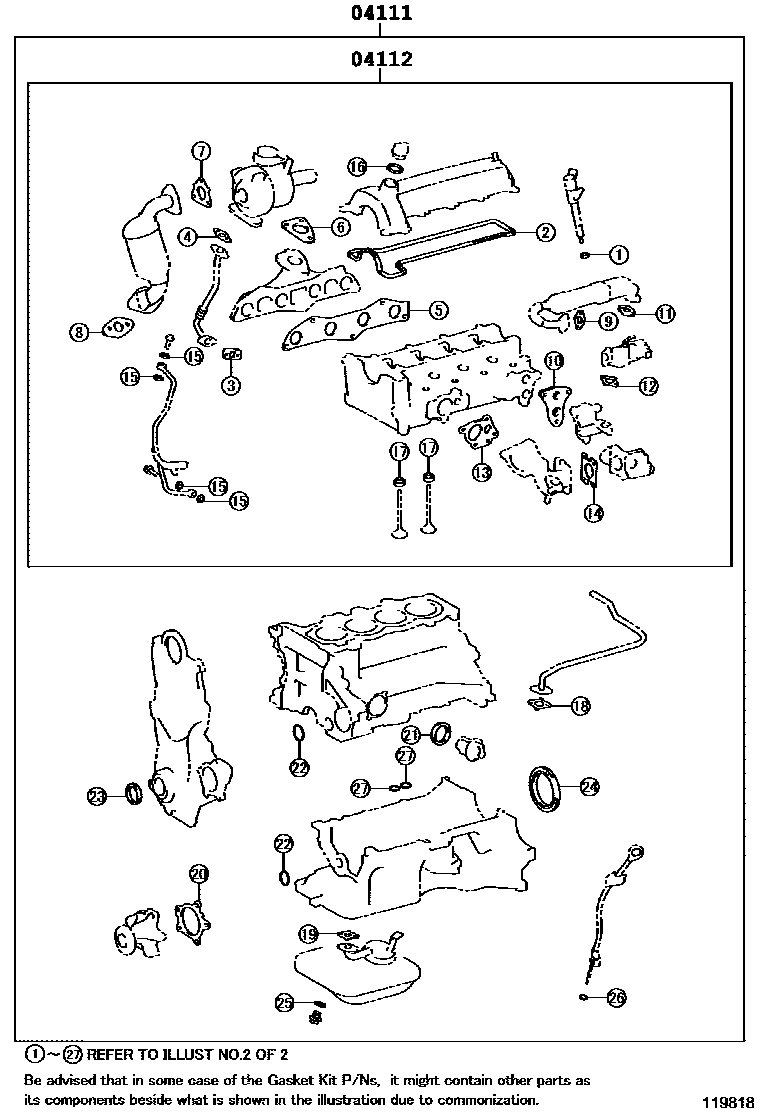

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 119818
Engine Overhaul Gasket Kit — 119818 (200408 – 999999)

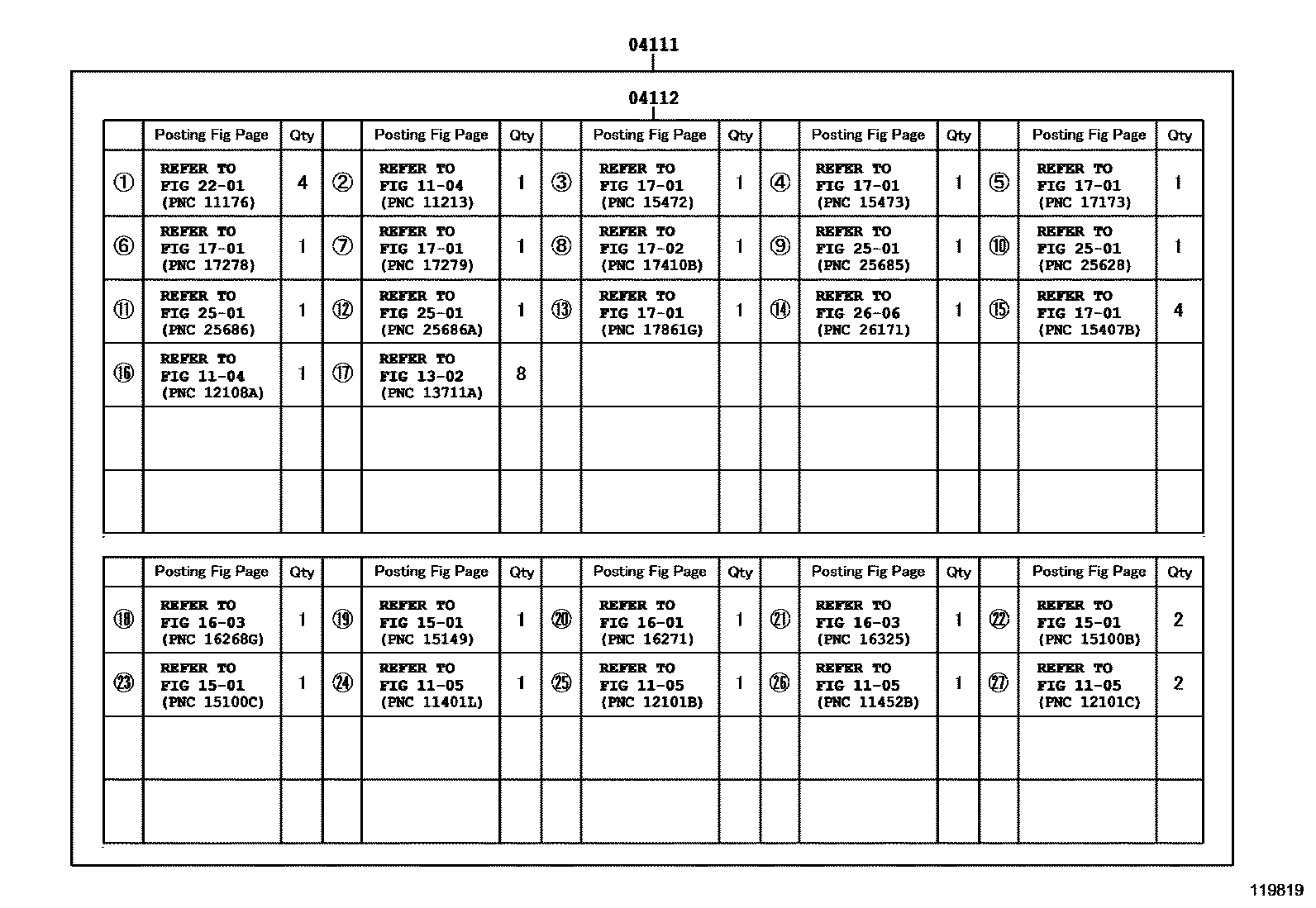

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 119819
Engine Overhaul Gasket Kit — 119819 (200408 – 999999)

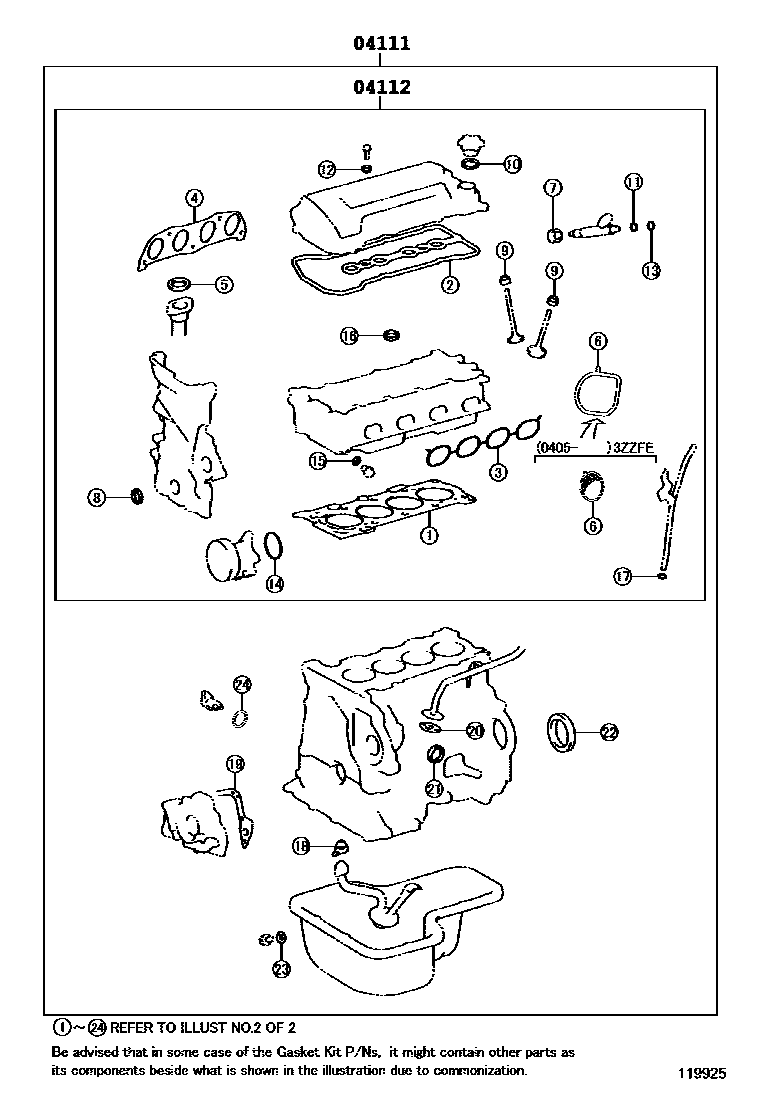

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 119925
Engine Overhaul Gasket Kit — 119925 (200201 – 999999)

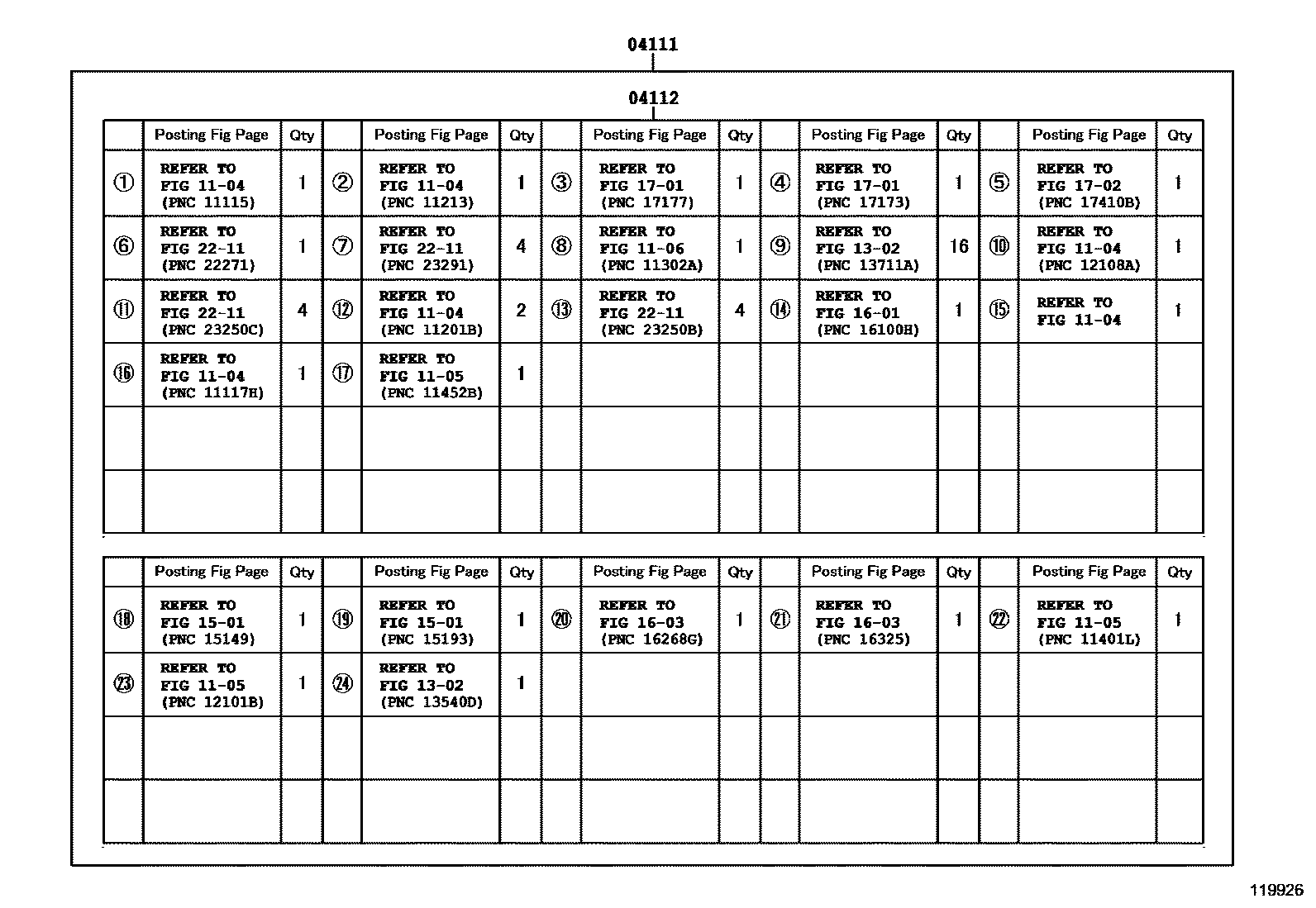

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 119926
Engine Overhaul Gasket Kit — 119926 (200201 – 999999)

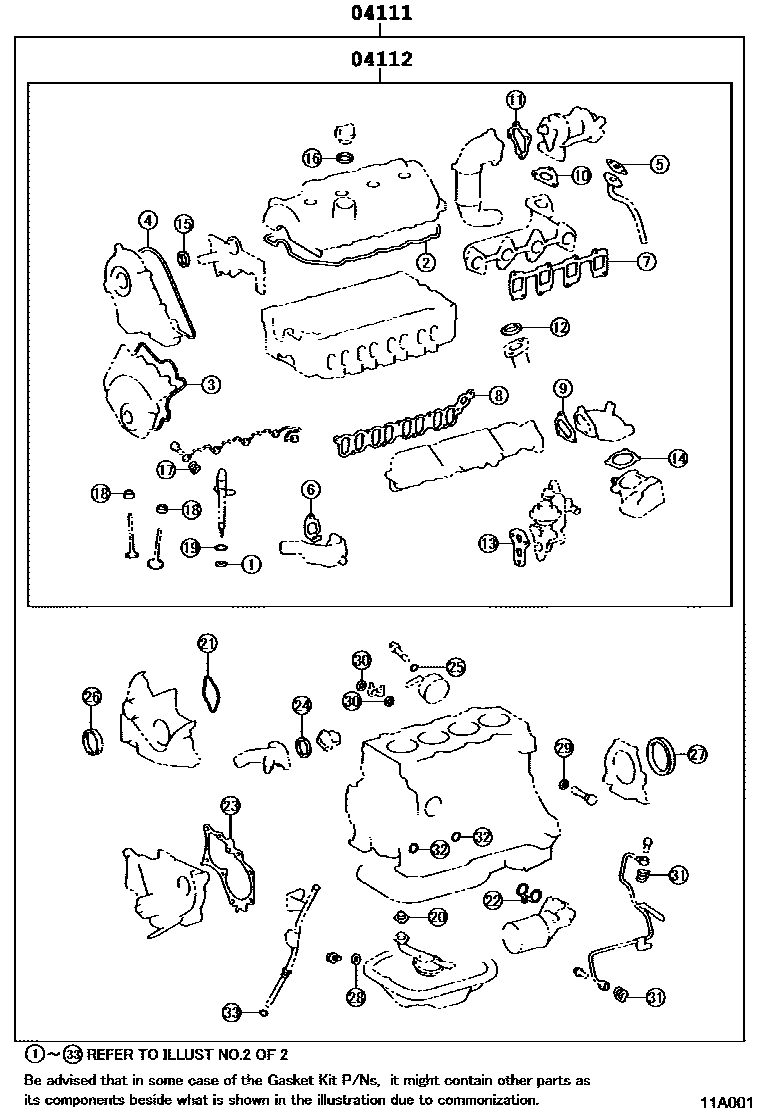

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11A001
Engine Overhaul Gasket Kit — 11A001 (200201 – 200406)
Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11A002
Engine Overhaul Gasket Kit — 11A002 (200201 – 200406)

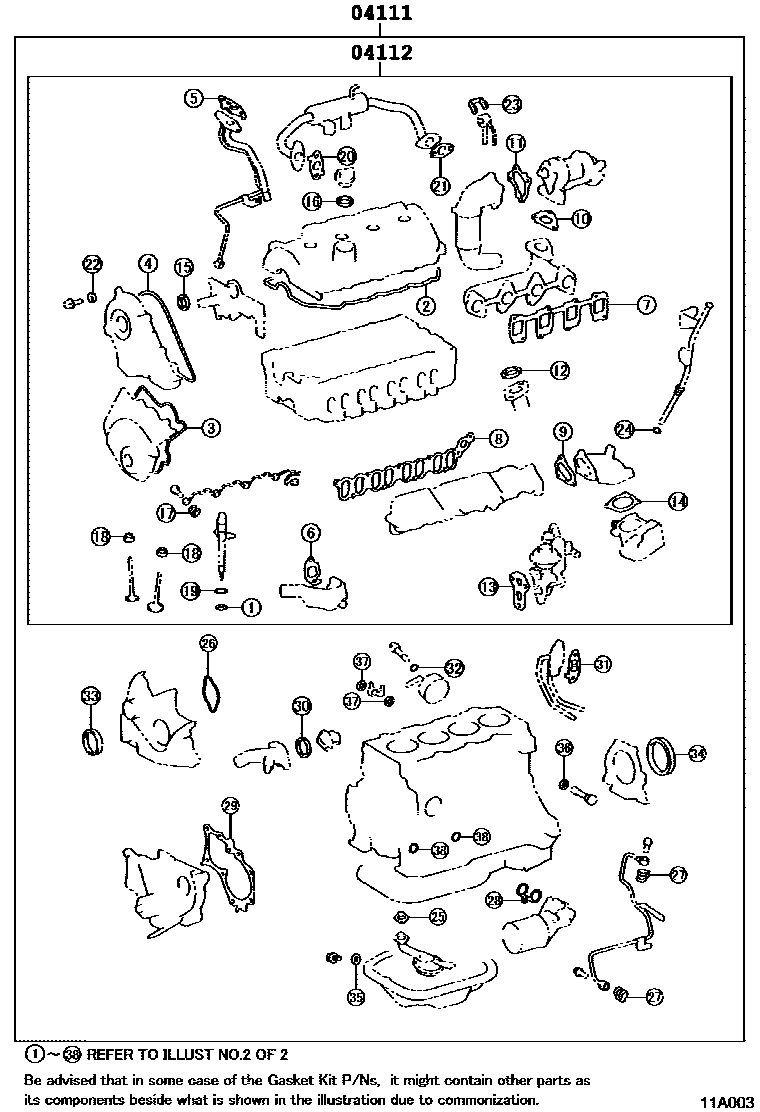

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11A003
Engine Overhaul Gasket Kit — 11A003 (200406 – 999999)

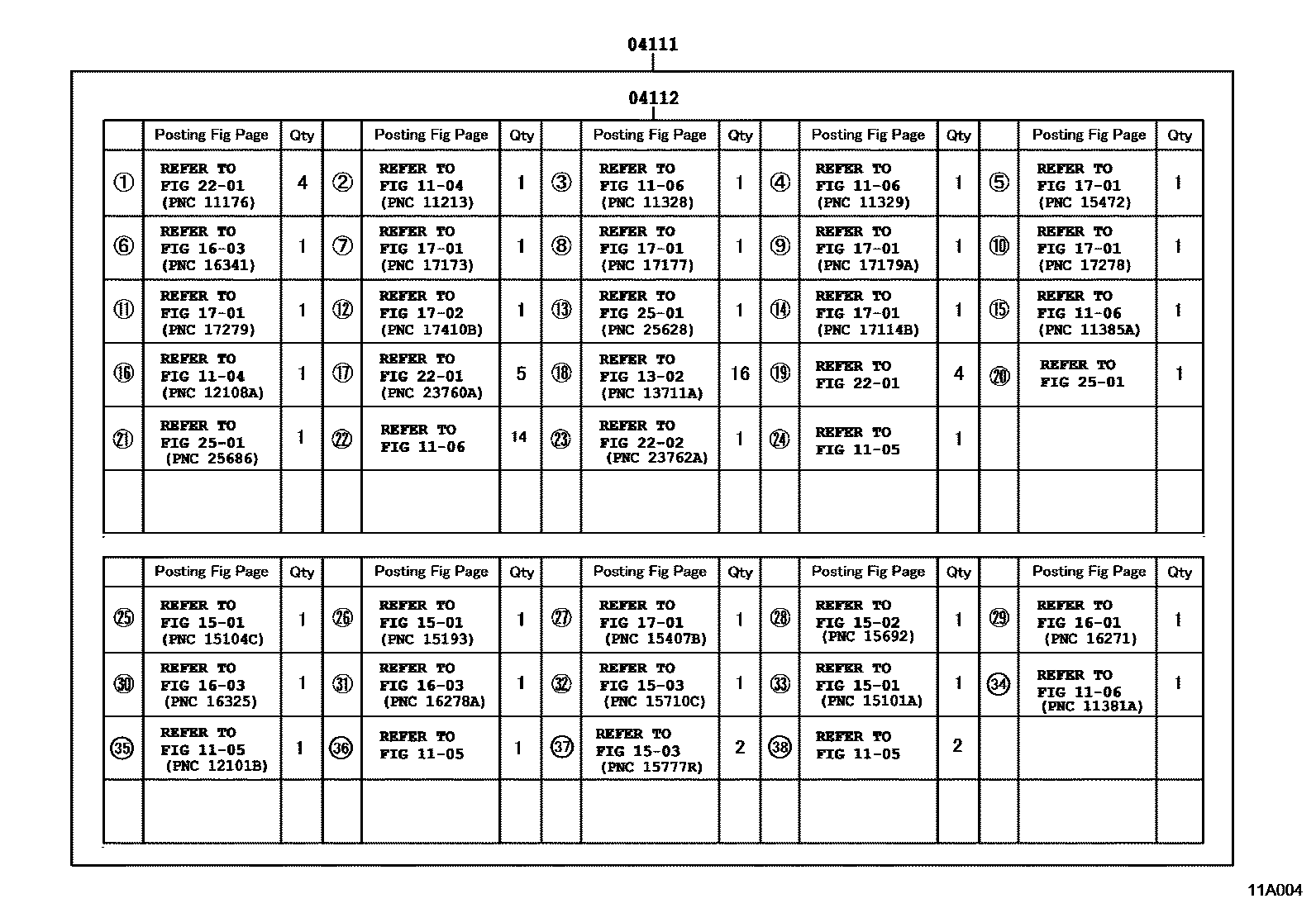

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11A004
Engine Overhaul Gasket Kit — 11A004 (200406 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-0D100 · 04111-0D101 · 04111-0D102 · 04111-0D390 · 04111-0D400 · 04111-0G100 · 04111-0N030 · 04111-27100 · 04111-27190
04112Engine valve grinding pad assembly04112-0D100 · 04112-0D101 · 04112-0D102 · 04112-0D380 · 04112-0D390 · 04112-0G100 · 04112-0N030 · 04112-27090 · 04112-27180
