Toyota COROLLA Short Block Assembly — Figure 1102

Toyota COROLLA EPC diagram 1102, Short Block Assembly, with 1 images and 1 PNC and OE references.

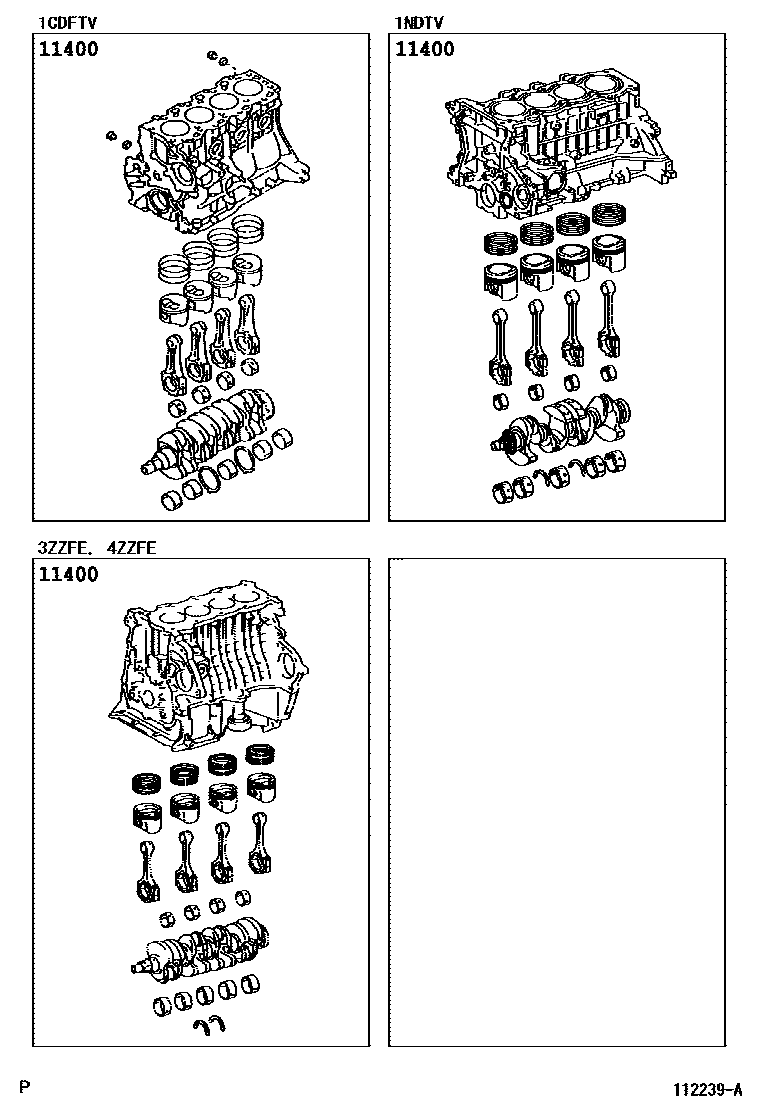

Toyota COROLLA Short Block Assembly EPC diagram — 112239A
Short Block Assembly — 112239A (200201 – 999999)

PNC and OE references

PNCPart nameOE numbers
11400Short Block Assembly11400-0D020 · 11400-0D021 · 11400-0D022 · 11400-0D030 · 11400-0D031 · 11400-0D032 · 11400-0G010 · 11400-27130 · 11400-27200 · 11400-33090
