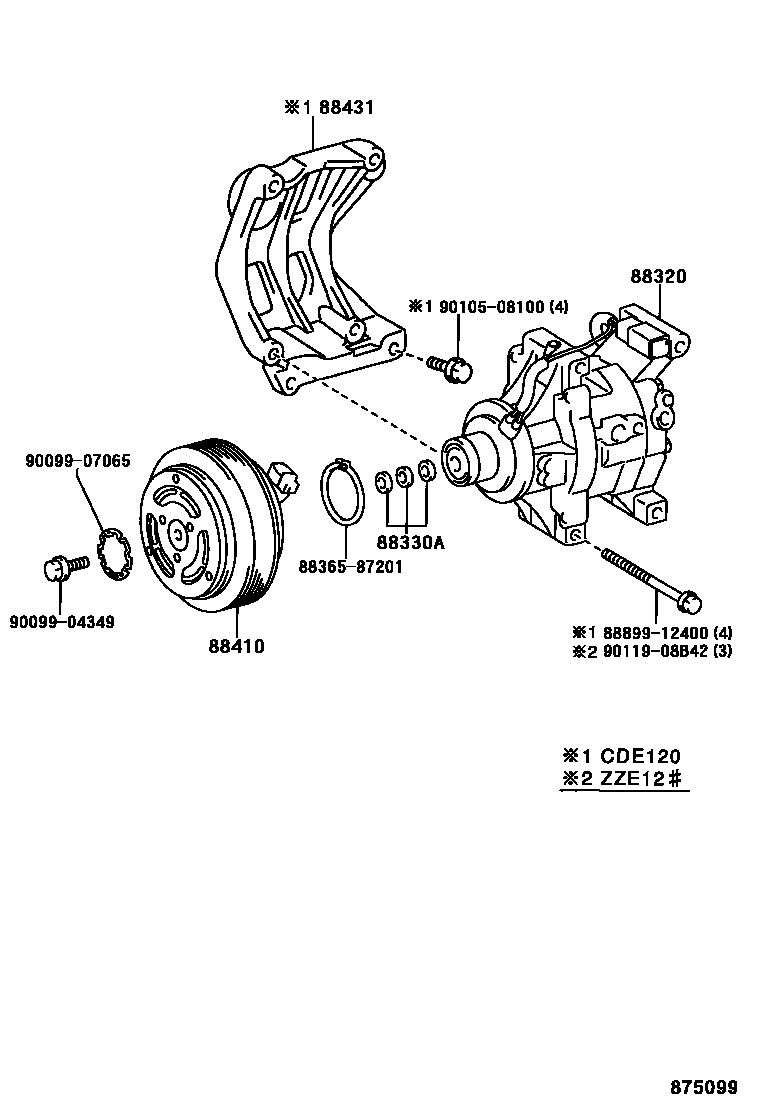

Toyota COROLLA Heating & Air Conditioning - Compressor — Figure 8719
Toyota COROLLA EPC diagram 8719, Heating & Air Conditioning - Compressor, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88320 | Cooler Compressor Assembly | 88320-1A481 · 88320-1A491 · 88320-1A550 · 88320-1A570 |
| 88330A | Washer (for electromagnetic clutch) | 88335-14020 |
| 88410 | Magnetic Clutch Assembly | 88410-13010 · 88410-13020 · 88410-1A220 · 88410-1A260 · 88410-1A290 |
| 88431 | Compressor No. 1 mounting bracket | 88431-13010 |
