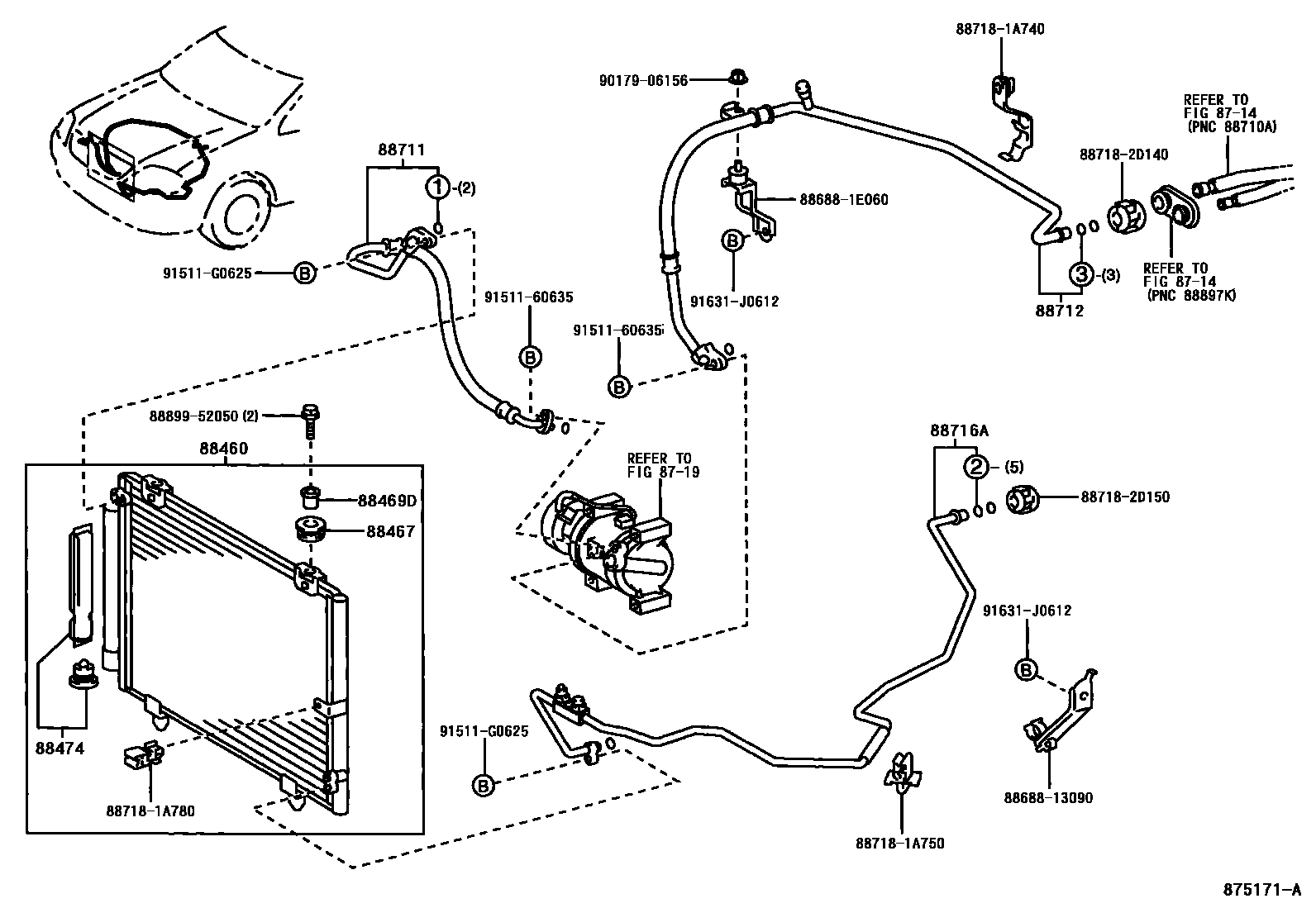

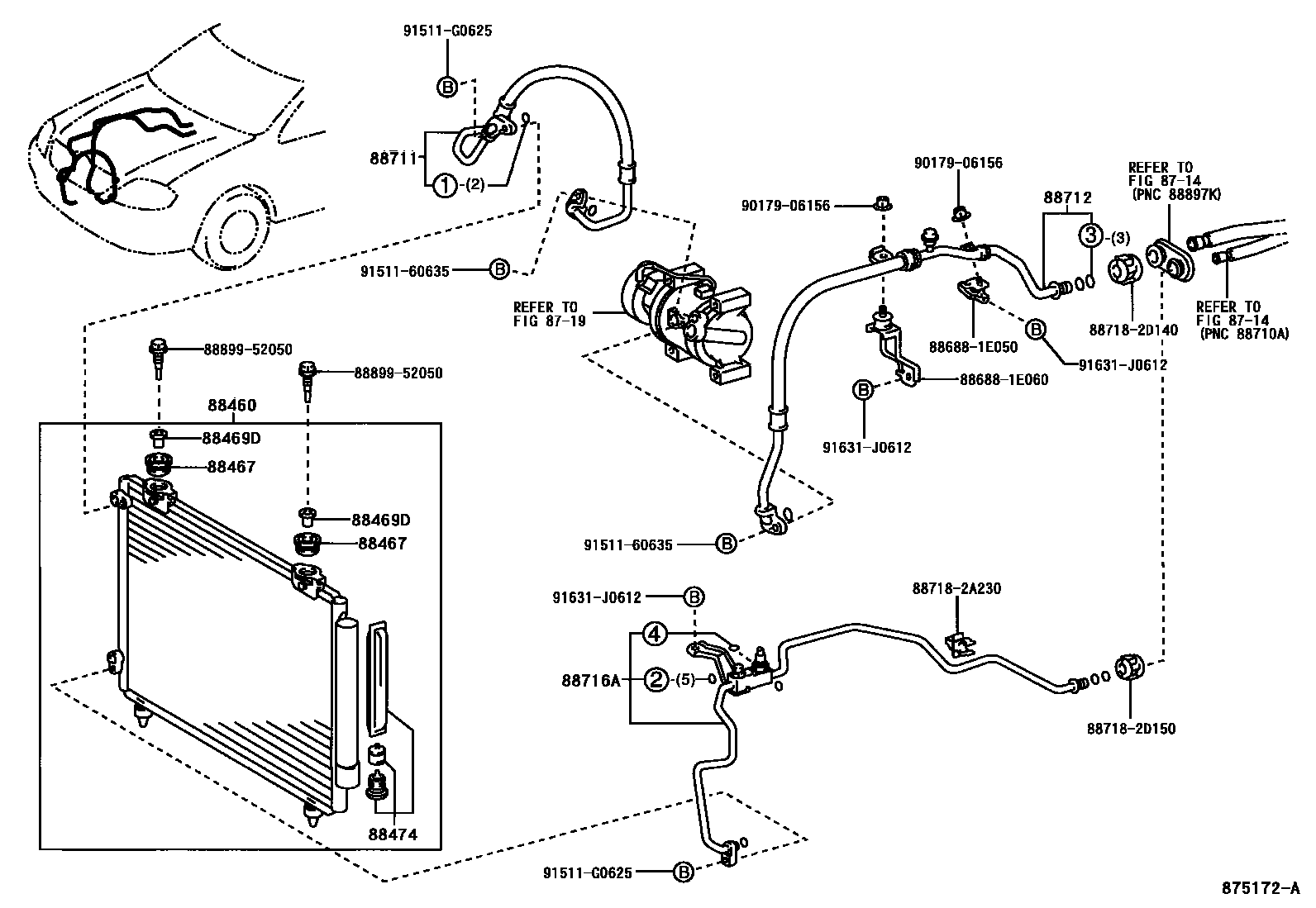

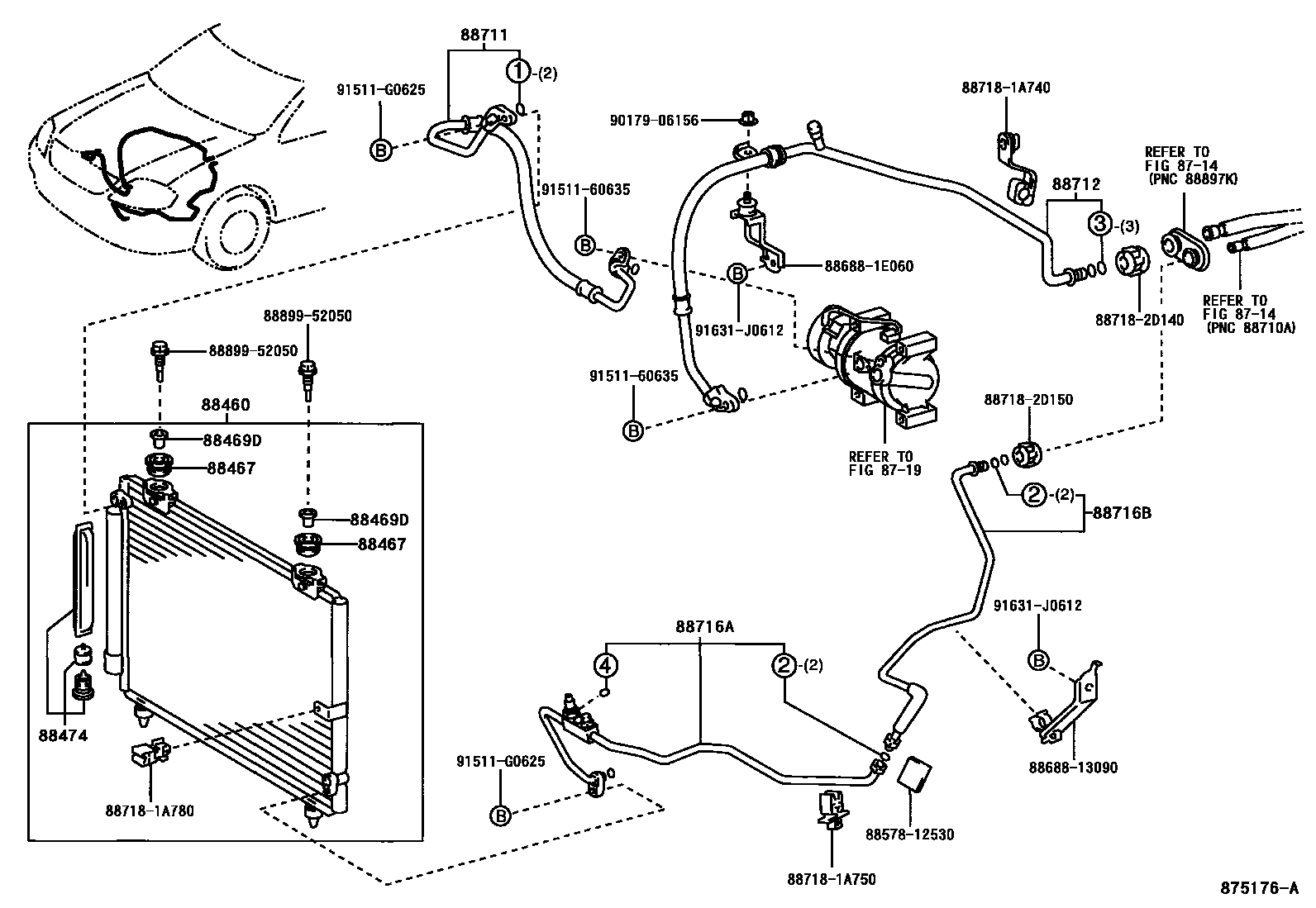

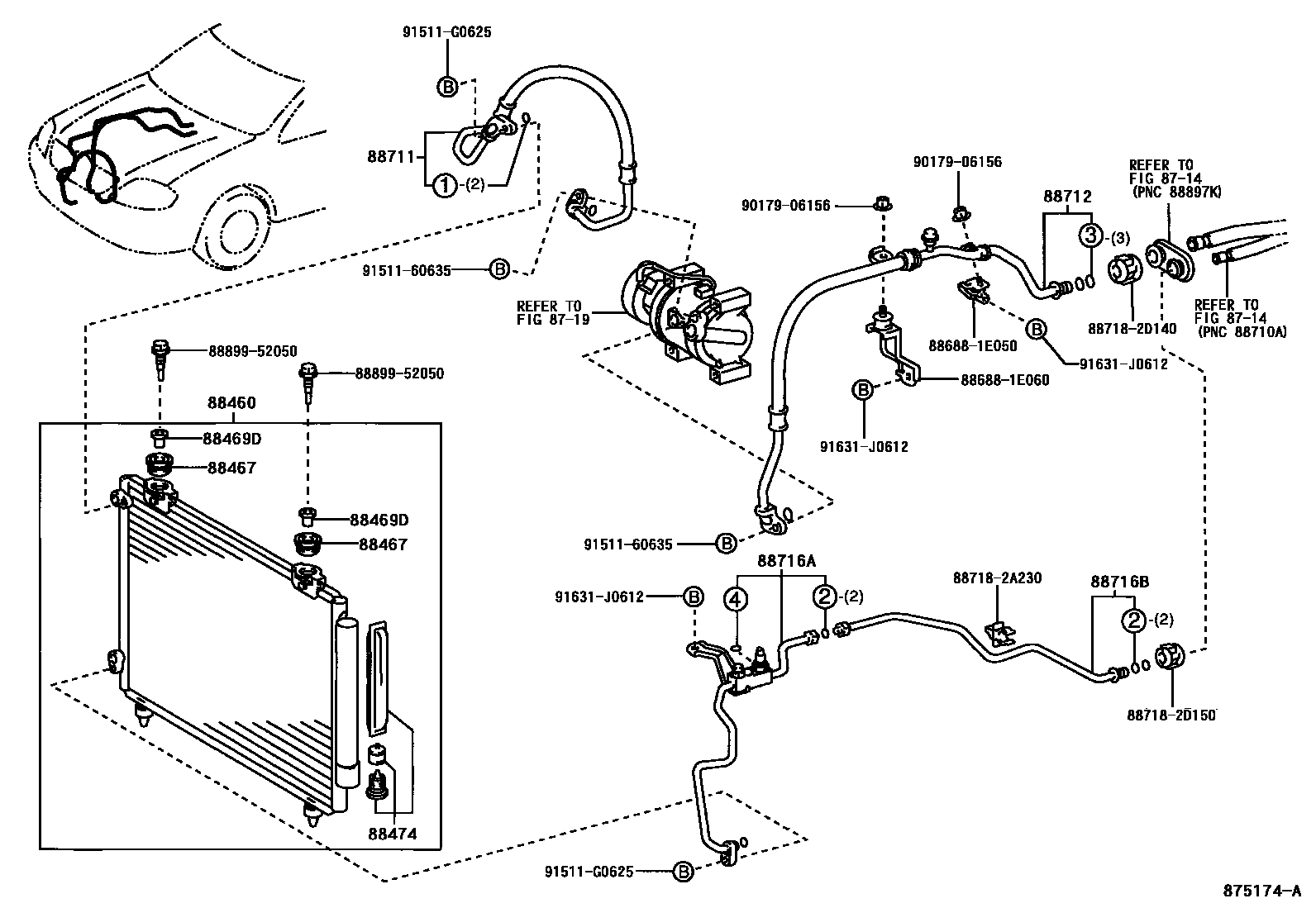

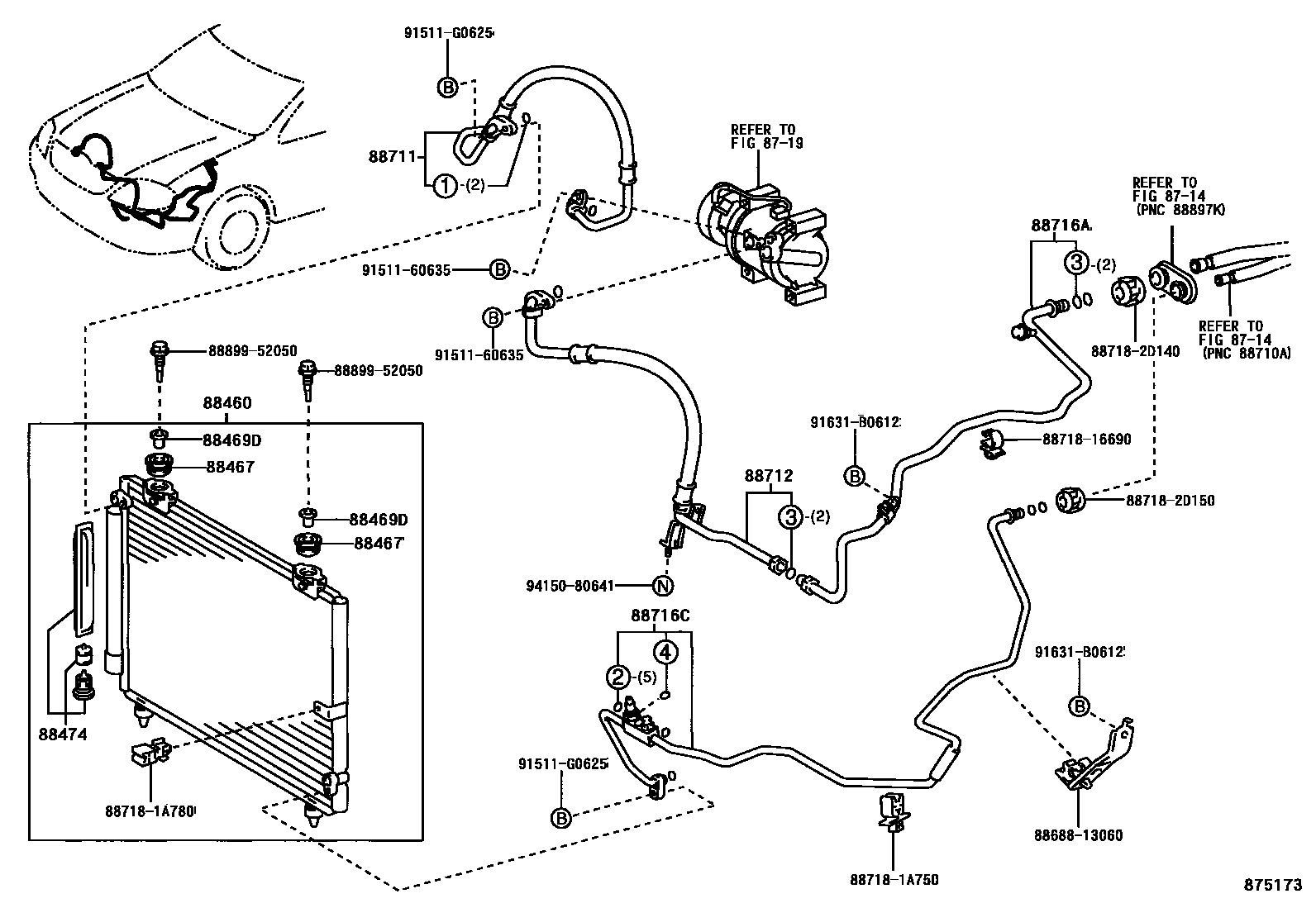

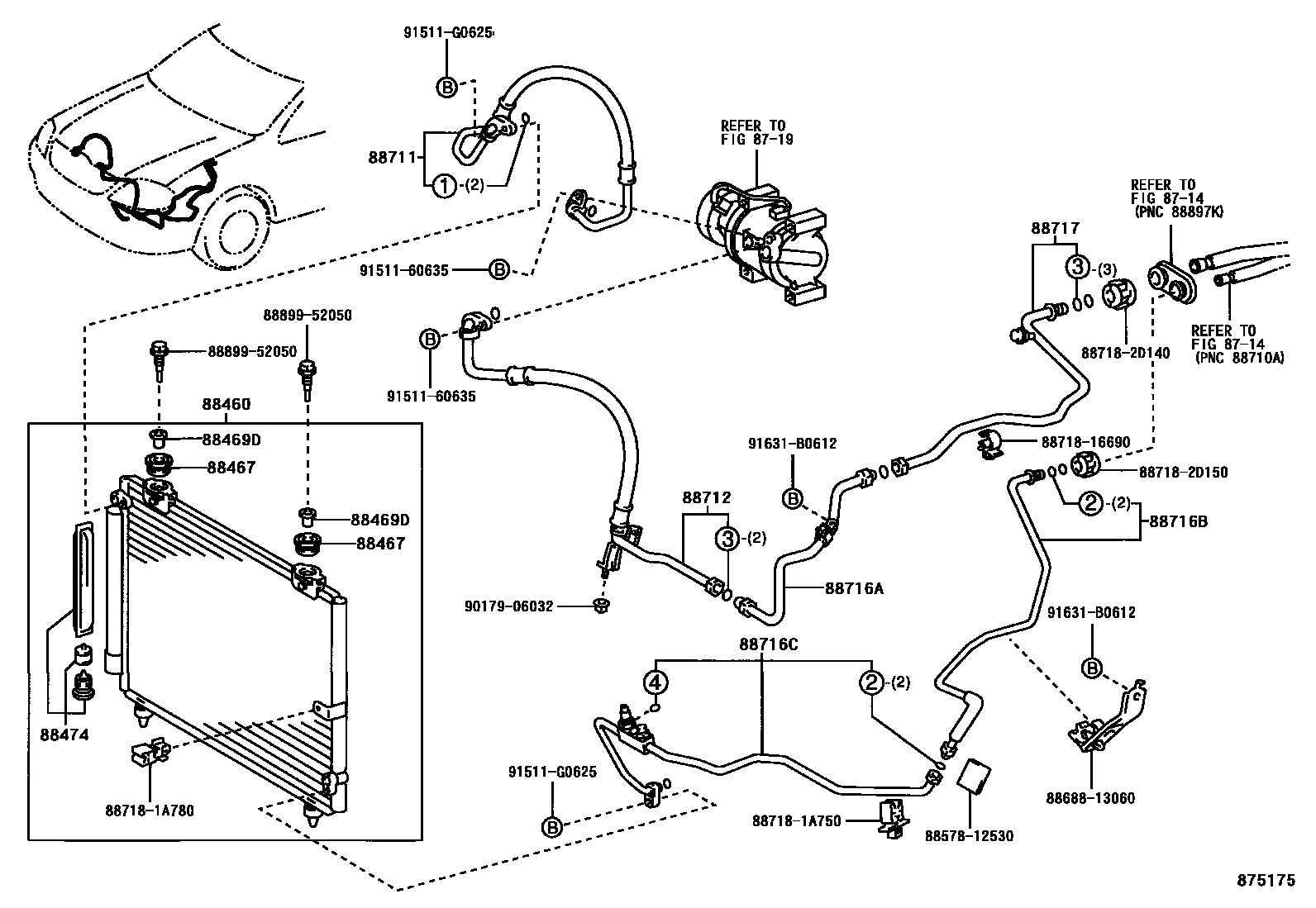

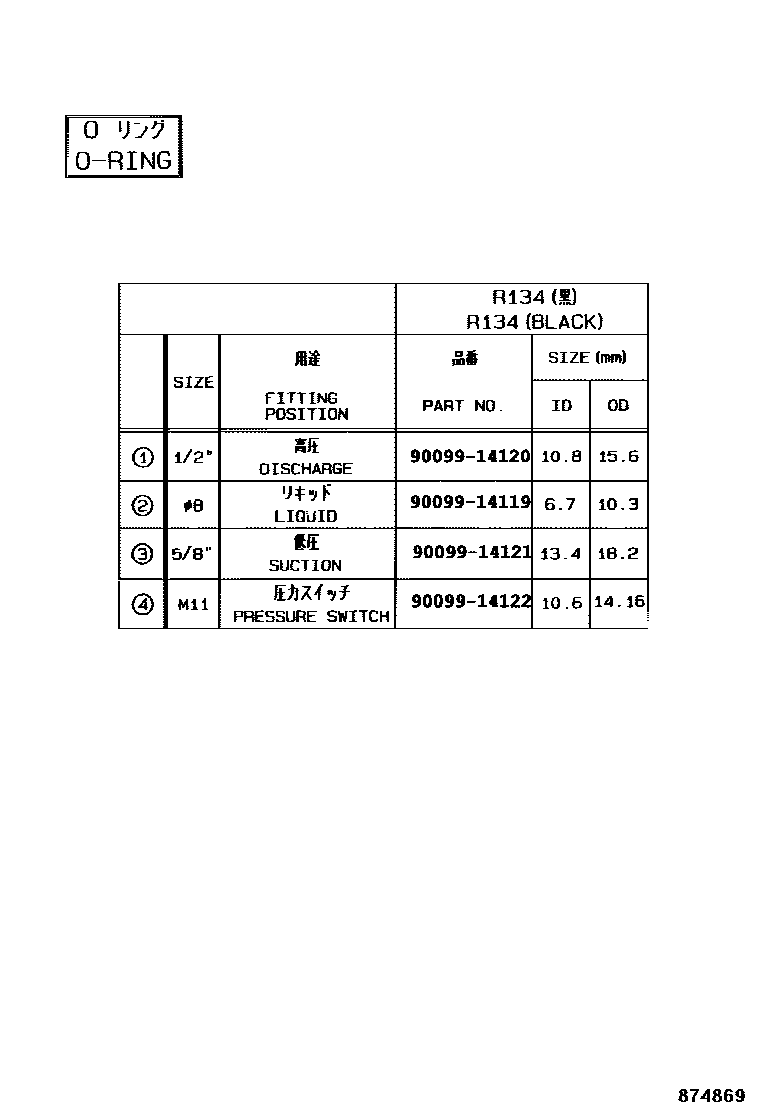

Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 7 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88460 | Air conditioning condenser assembly | 88450-13030 · 88450-13031 · 88450-13050 · 88450-13051 · 88460-13020 · 88460-13021 · 88460-13030 · 88460-13031 |
| 88467 | No. 1 air conditioning condenser buffer pad | 88467-12180 |
| 88469D | No. 1 condenser bracket collar | 88469-52010 |
| 88474 | cooler dryer | 88474-17010 · 88474-47010 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88703-12540 · 88703-12630 · 88703-13040 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88704-12850 · 88704-13050 · 88704-13060 · 88704-13070 |
| 88716A | Cooler refrigerant liquid pipe A | 88710-13010 · 88710-13020 · 88710-13030 · 88710-13040 · 88710-13041 · 88710-13050 · 88710-13051 · 88710-13060 |
| 88716B | Cooler refrigerant liquid pipe B | 88716-13040 · 88716-1A660 |
| 88716C | Cooler refrigerant liquid pipe C | 88710-13020 · 88710-13060 |
| 88717 | Cooler No. 1 refrigerant suction pipe | 88717-13040 |
