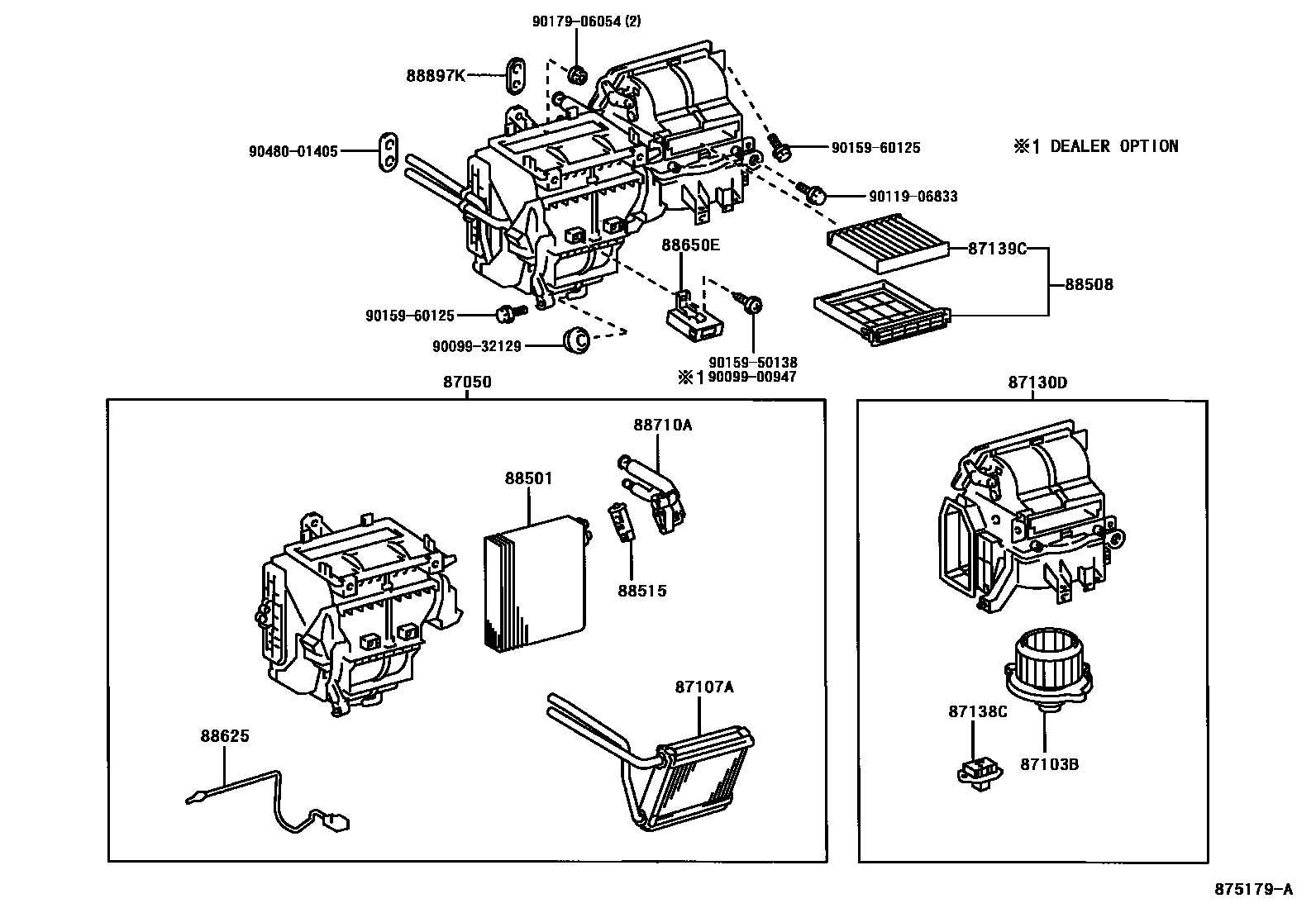

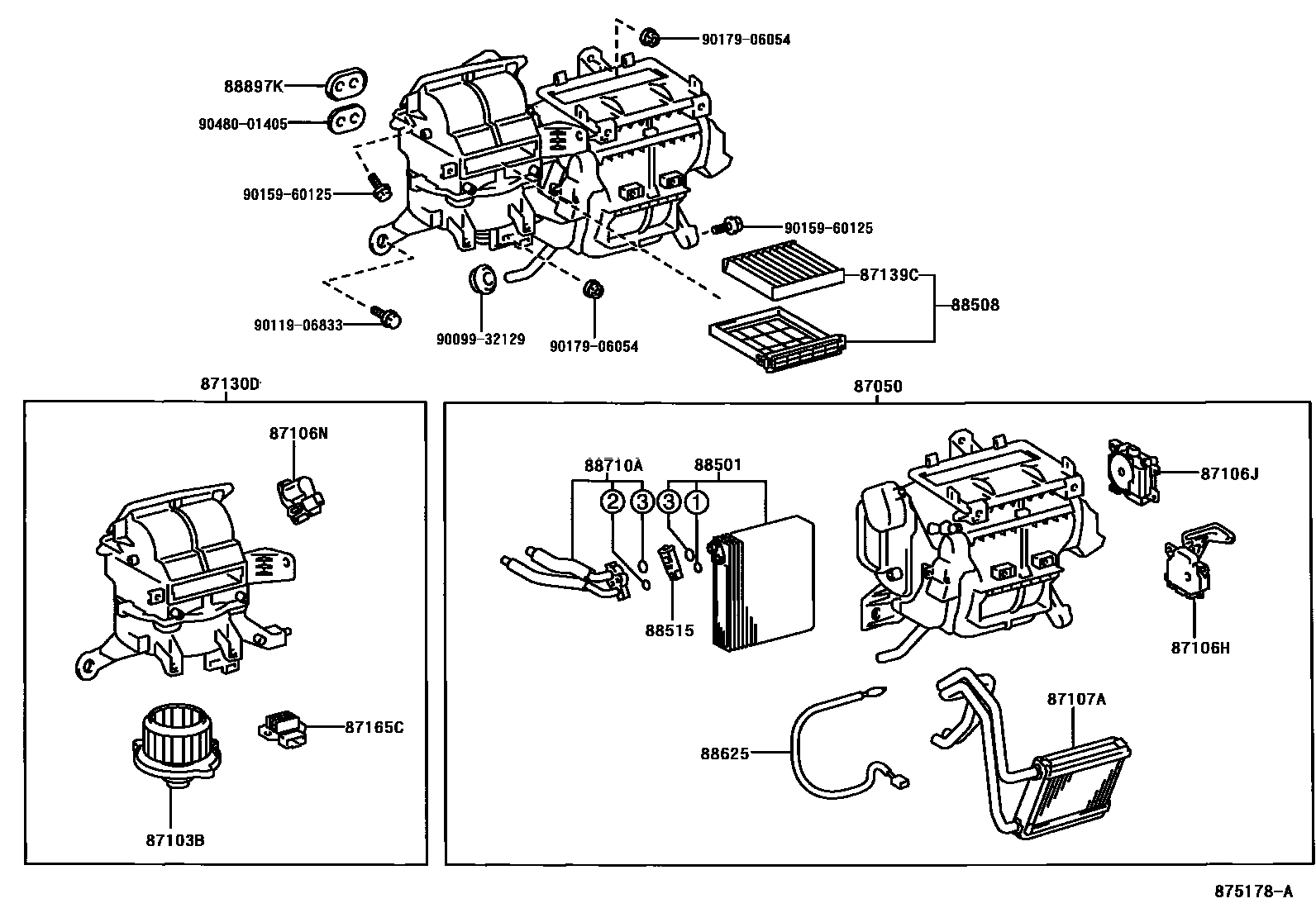

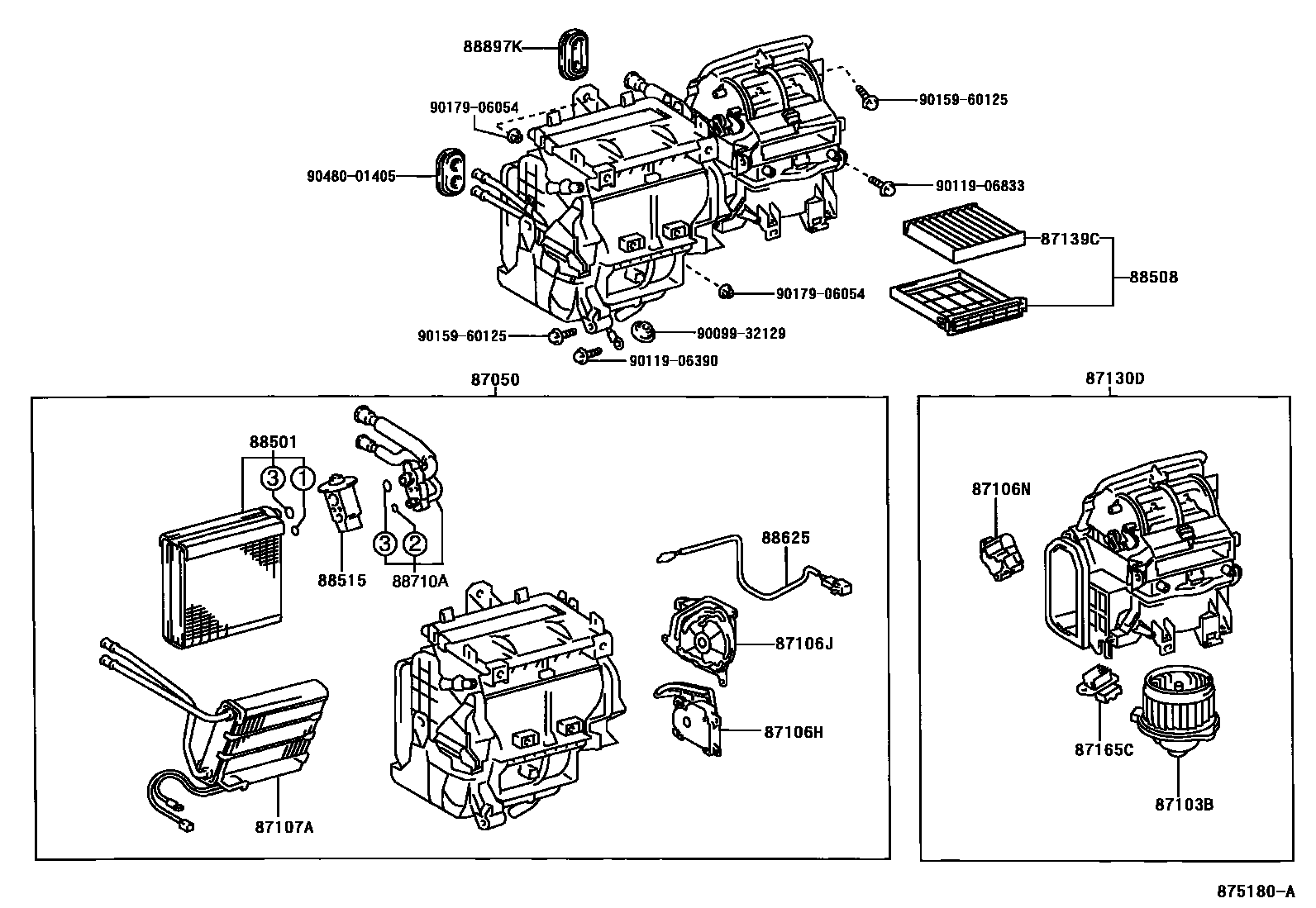

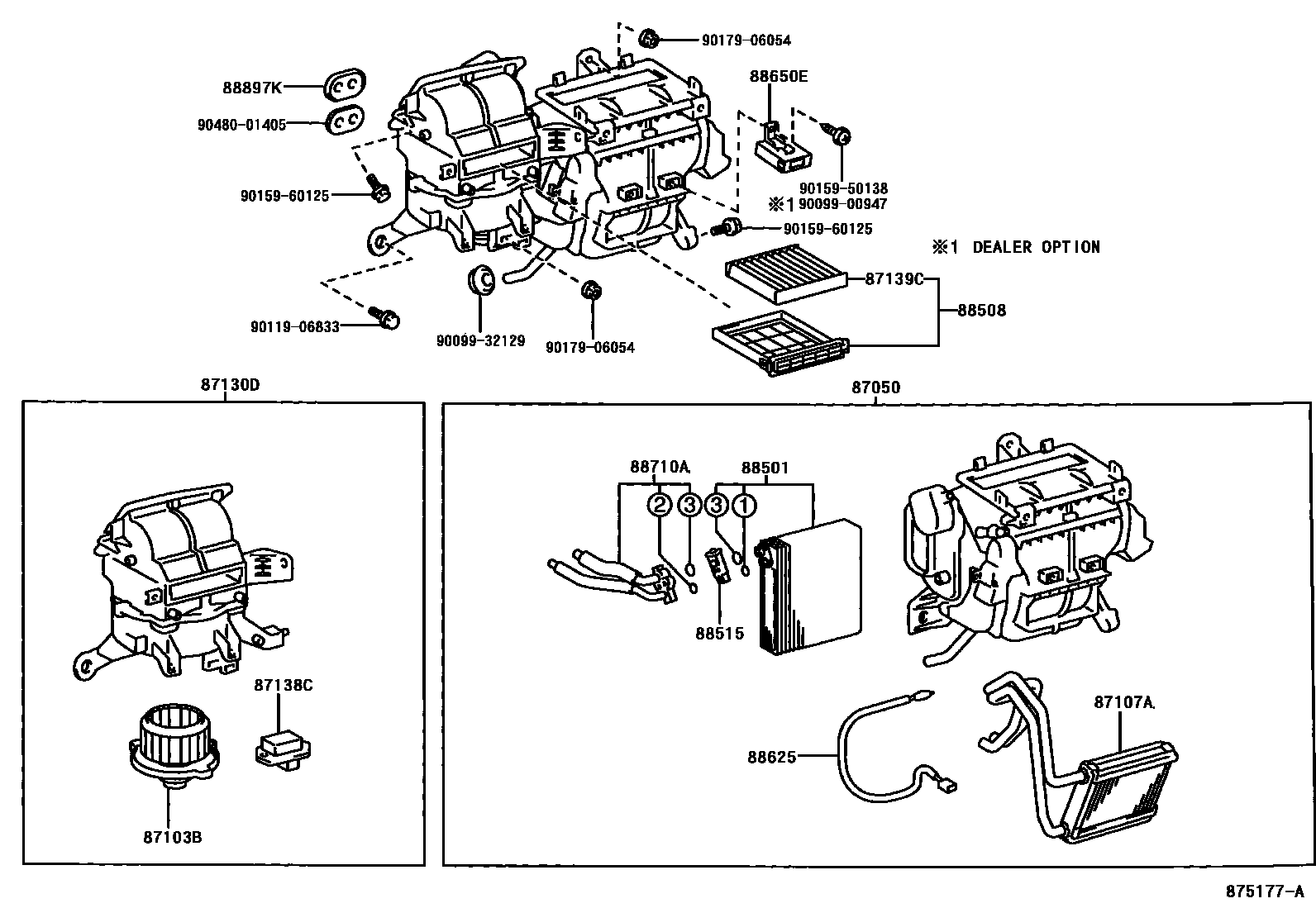

Toyota COROLLA 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota COROLLA EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 5 images and 17 PNC and OE references.
PNC and OE references

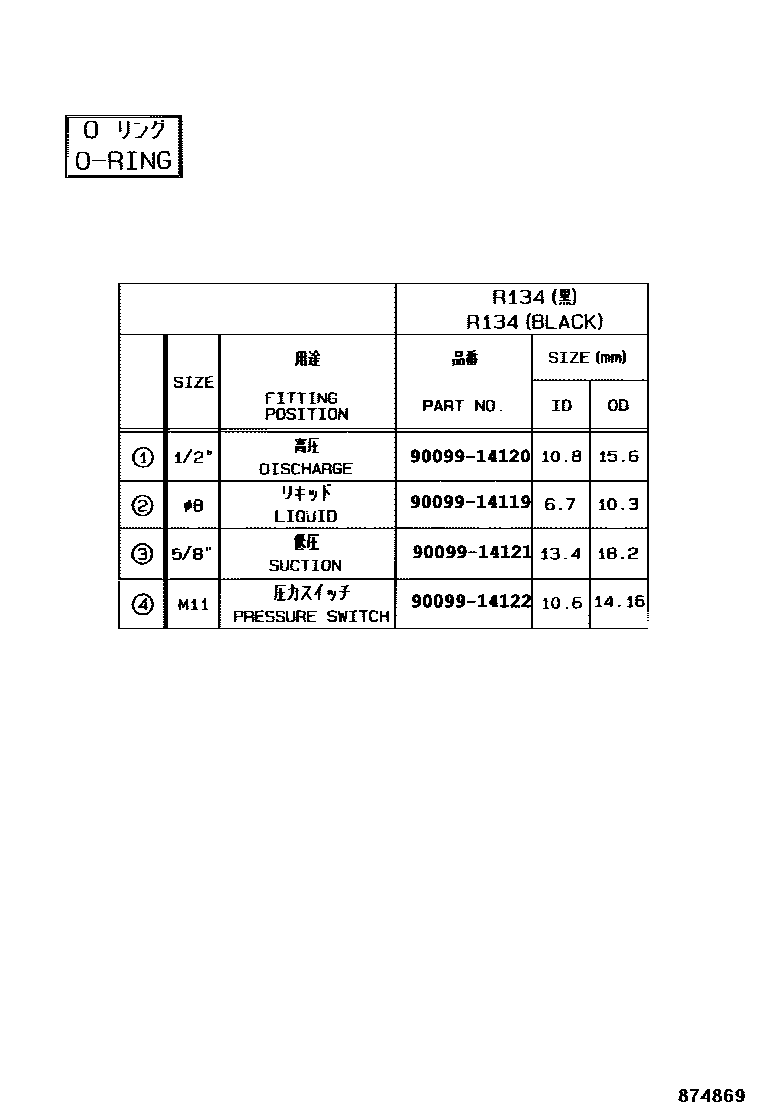

| PNC | Part name | OE numbers |
|---|---|---|
| 87050 | Air conditioning radiator assembly | 87050-12200 · 87050-12220 · 87050-13010 · 87050-13020 · 87050-13040 · 87050-13060 · 87050-13070 · 87050-13080 · 87050-13090 · 87050-13100 · 87050-13110 · 87050-13120 · 87050-13130 · 87050-13140 · 87050-13160 |
| 87103B | Blower motor sub-assembly with fan | 87103-12050 · 87103-12070 |
| 87106H | Damper servo mechanism sub-assembly (for air mixing) | 87106-12130 · 87106-12131 |
| 87106J | Damper servo mechanism sub-assembly (for mode) | 87106-12140 · 87106-13030 |
| 87106N | Damper servo mechanism sub-assembly (for recirculation) | 87106-12150 · 87106-13010 |
| 87107A | Heater radiator device sub-assembly | 87107-12550 · 87107-12560 · 87107-13010 · 87107-13020 |
| 87130D | Blower assembly | 87130-12440 · 87130-12450 · 87130-12460 · 87130-13020 |
| 87138C | Blower resistor | 87138-20350 · 87138-20360 |
| 87139C | air purification filter | 88568-13010 |
| 87165C | Blower motor control device | 87165-13010 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-12440 · 88501-12450 |
| 88508 | Air purification filter sub-assembly | 88508-13010 |
| 88515 | Cooler expansion valve | 88515-27020 · 88515-28160 · 88515-48040 |
| 88625 | Cooler No. 1 Thermistor | 88625-60140 |
| 88650E | No. 1 air conditioning amplifier assembly | 88650-1E410 · 88650-1E420 |
| 88710A | Air conditioning pipe assembly | 88710-12540 · 88710-12550 |
| 88897K | Seals (for cooler tubes) | 90480-01434 |
