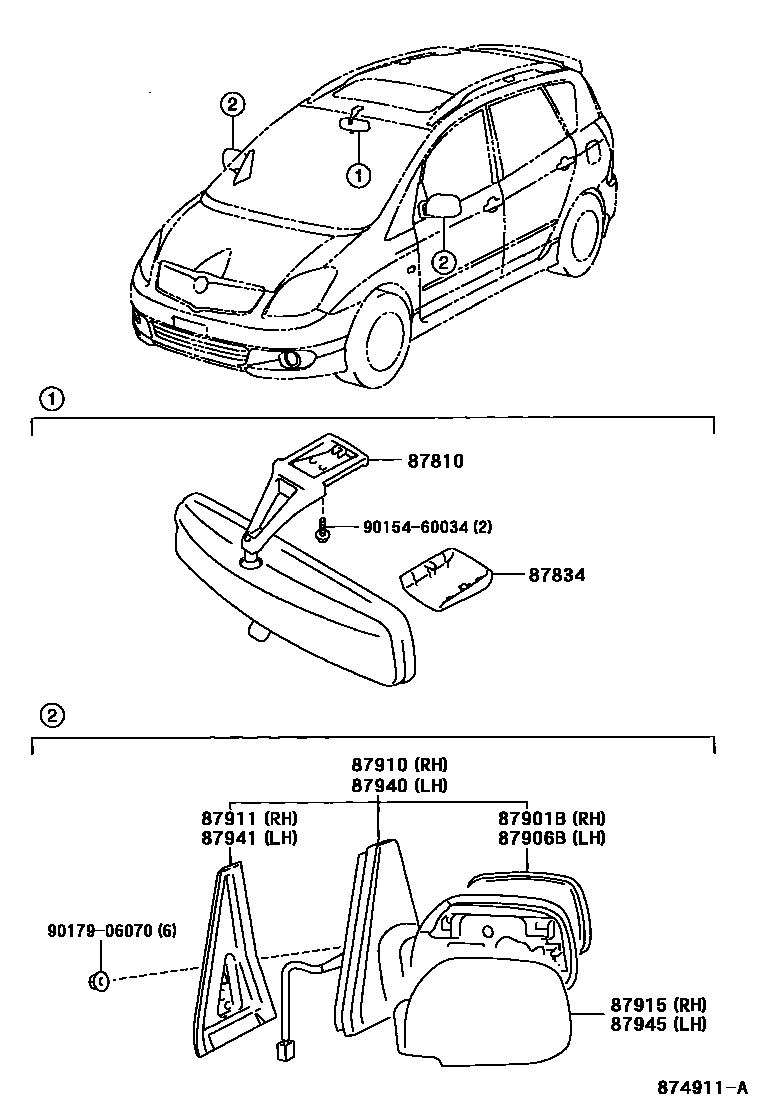

Toyota COROLLA 后视镜 — Figure 8701
Toyota COROLLA EPC diagram 8701, 后视镜, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87901B | Right exterior rearview mirror sub-assembly | 87931-42580 · 87931-42610 |
| 87906B | Left exterior rearview mirror sub-assembly | 87961-42550 · 87961-42580 |
| 87910 | Right exterior rearview mirror assembly | 87910-13160 · 87910-13170 · 87910-13190 · 87910-13200 |
| 87911 | Right exterior mirror pad | 87911-13020 |
| 87915 | Right exterior rearview mirror cover | 87915-42010 |
| 87940 | Left exterior rearview mirror assembly | 87940-13160 · 87940-13170 · 87940-13190 · 87940-13200 |
| 87941 | Left exterior mirror pad | 87941-13020 |
| 87945 | Left exterior rearview mirror cap | 87945-42010 |
