Toyota COROLLA 倒车影像和摄像头 — Figure 8606

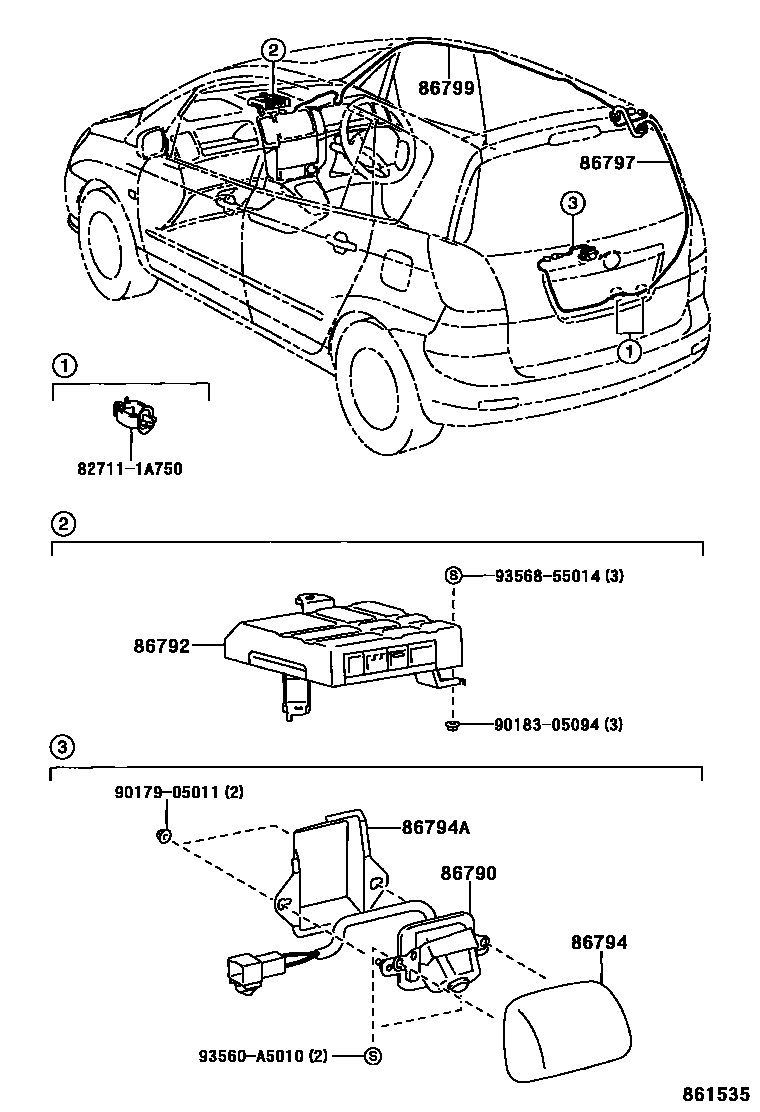

Toyota COROLLA EPC diagram 8606, 倒车影像和摄像头, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86790 | Reversing image camera assembly | 86790-13020 |
| 86792 | Reversing camera controller | 86792-13040 |
| 86794A | No. 2 reversing image camera wiring harness cover | 86795-13010 |
| 86797 | No. 2 reversing image camera wiring harness | 86797-13010 |
| 86799 | Reversing image camera wiring harness | 86799-13010 |
