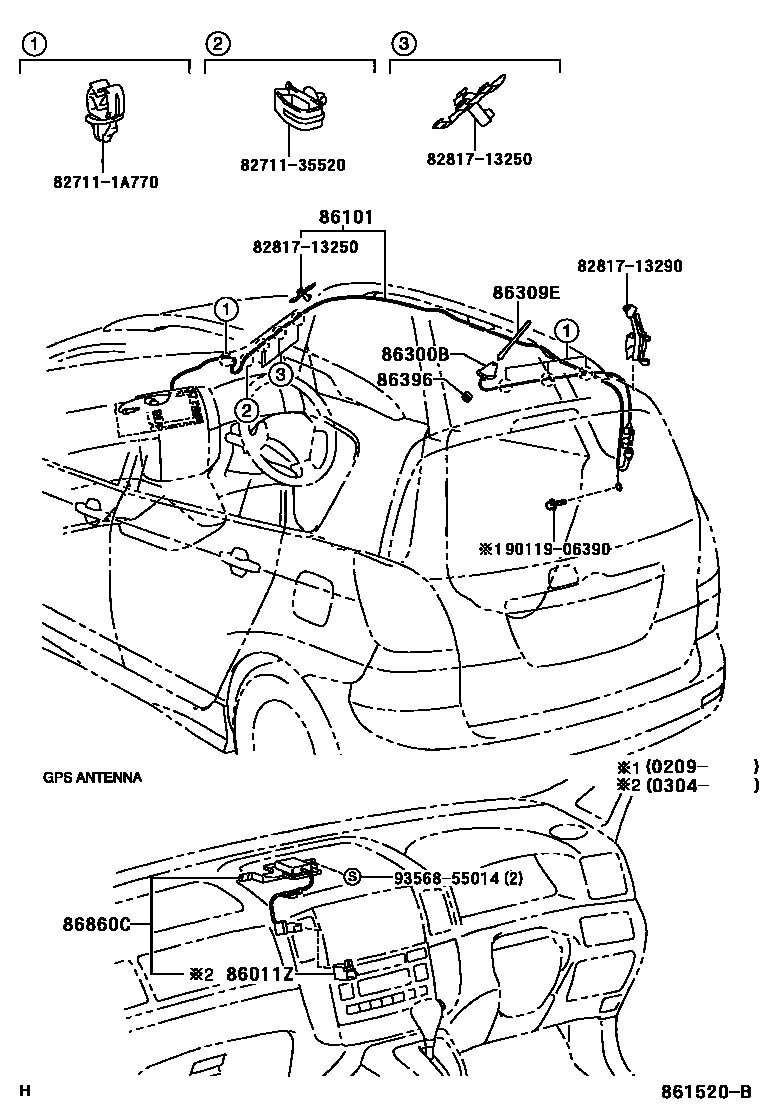

Toyota COROLLA antenna — Figure 8604
Toyota COROLLA EPC diagram 8604, antenna, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86011Z | Male connector housing | 90980-12040 |
| 86101 | Antenna wire sub-assembly | 86101-13050 · 86101-13051 |
| 86300B | Amplifier antenna assembly | 86300-13030 |
| 86309E | Roof antenna sub-assembly | 86309-13010 |
| 86396 | Antenna nut | 86396-12030 · 86396-20040 |
| 86860C | Navigation antenna assembly | 86860-13020 · 86860-13050 |
