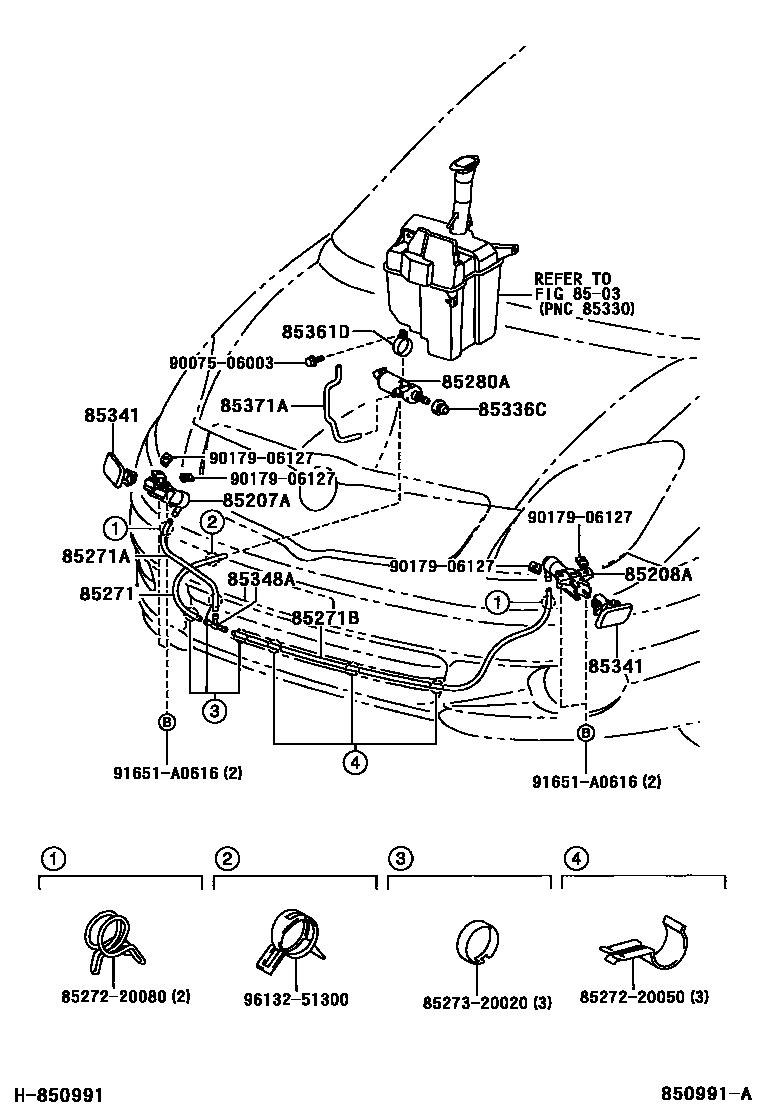

Toyota COROLLA 前大灯清洗器 — Figure 8505
Toyota COROLLA EPC diagram 8505, 前大灯清洗器, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85207A | Right headlight washer actuator sub-assembly | 85207-13010 |
| 85208A | Left headlight washer actuator sub-assembly | 85208-13010 |
| 85271 | No. 1 headlight washer hose | 90445-14056 |
| 85271A | No. 2 headlight washer hose | 90075-15021 |
| 85271B | No. 3 headlight washer hose | 90075-15020 |
| 85280A | Headlight washer motor and pump assembly | 85280-20020 |
| 85336C | Headlight washer motor seal | 85336-10010 |
| 85348A | Headlight washer hose connector No. 1 | 85352-12010 |
| 85361D | No. 2 headlight washer bracket | 85361-33020 |
| 85371A | Headlight washer hose (from motor to connector) | 90075-15016 |
