Toyota COROLLA 后清洗器 — Figure 8504

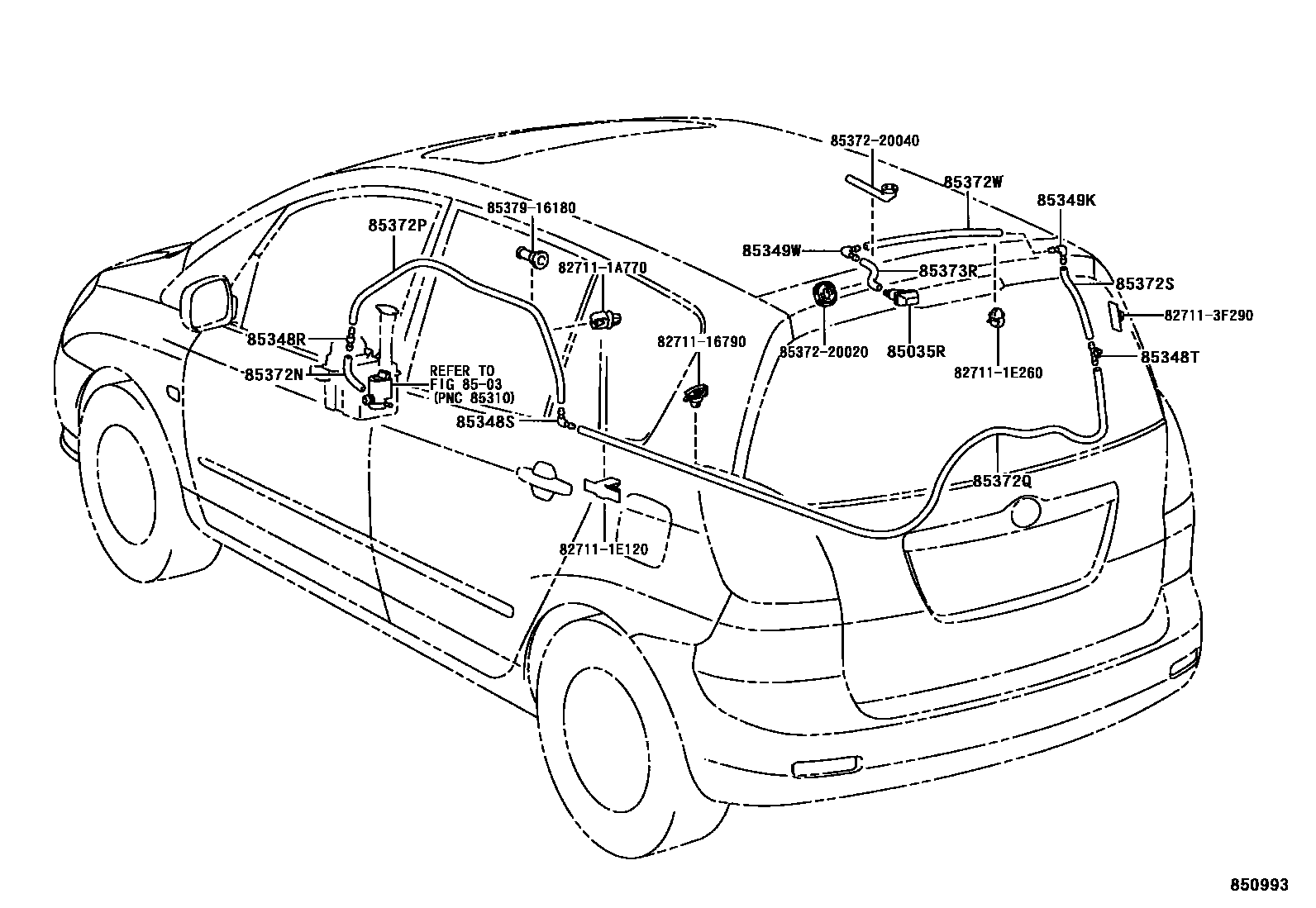

Toyota COROLLA EPC diagram 8504, 后清洗器, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035R | Rear washer nozzle sub-assembly | 85391-13030 |
| 85348R | No. 1 rear washer hose connector | 85375-10260 |
| 85348S | No. 1 rear cleaner elbow joint | 85355-20200 |
| 85348T | No. 2 rear washer hose connector | 85375-20800 |
| 85349K | No. 2 rear cleaner elbow joint | 85355-20200 |
| 85349W | No. 4 rear cleaner elbow joint | 85355-20200 |
| 85372W | No. 5 rear washer hose (from connector to connector) | 90099-59057 |
