Toyota COROLLA 挡风玻璃刮水器 — Figure 8501

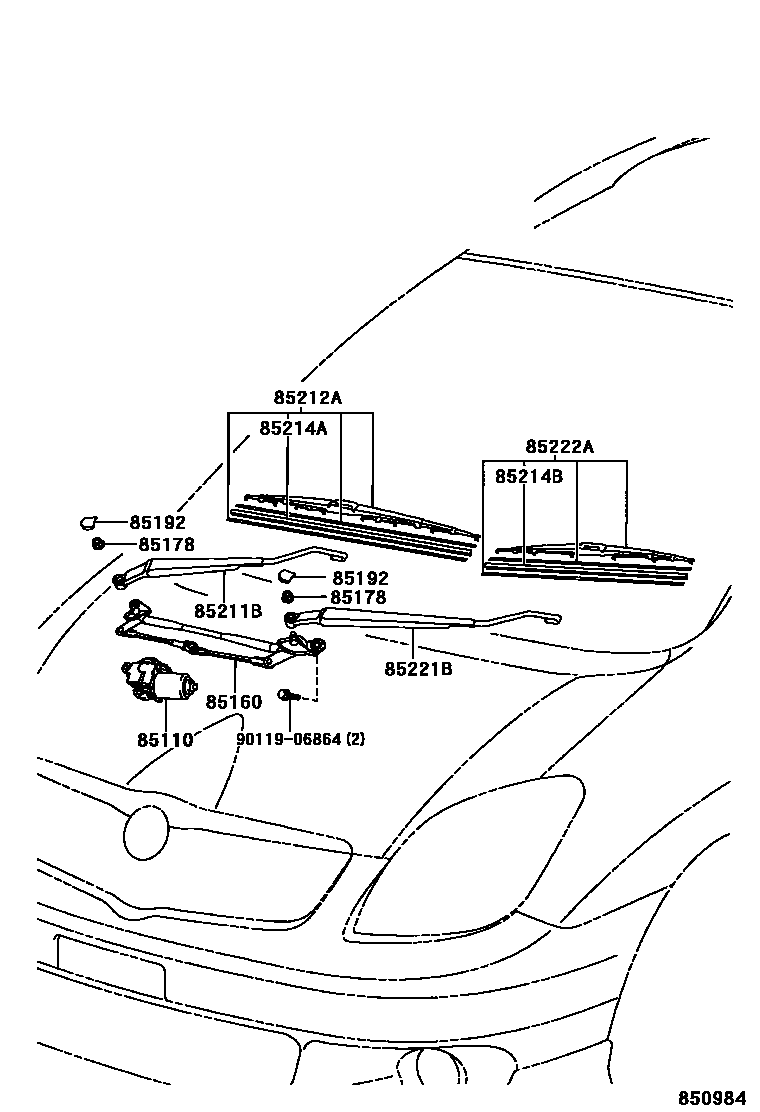

Toyota COROLLA EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-13090 · 85110-13100 |
| 85160 | Windshield wiper connecting rod assembly | 85150-13070 · 85150-13080 |
| 85178 | Nut (for securing front wiper arm) | 90179-10223 |
| 85192 | windshield wiper arm cover | 85292-13010 |
| 85211B | Right front wiper arm | 85211-13040 · 85211-13050 |
| 85212A | Right front wiper blade | 85212-13030 · 85212-44070 |
| 85214A | Right wiper rubber strip | 85214-44140 · 85214-50060 |
| 85214B | Left wiper rubber strip | 85214-44140 · 85214-50060 |
| 85221B | Left front wiper arm | 85221-13050 · 85221-13060 |
| 85222A | Left front wiper blade | 85222-13030 · 85222-44070 |
