Toyota COROLLA ABS 和 VSC — Figure 8414

Toyota COROLLA EPC diagram 8414, ABS 和 VSC, with 1 images and 13 PNC and OE references.

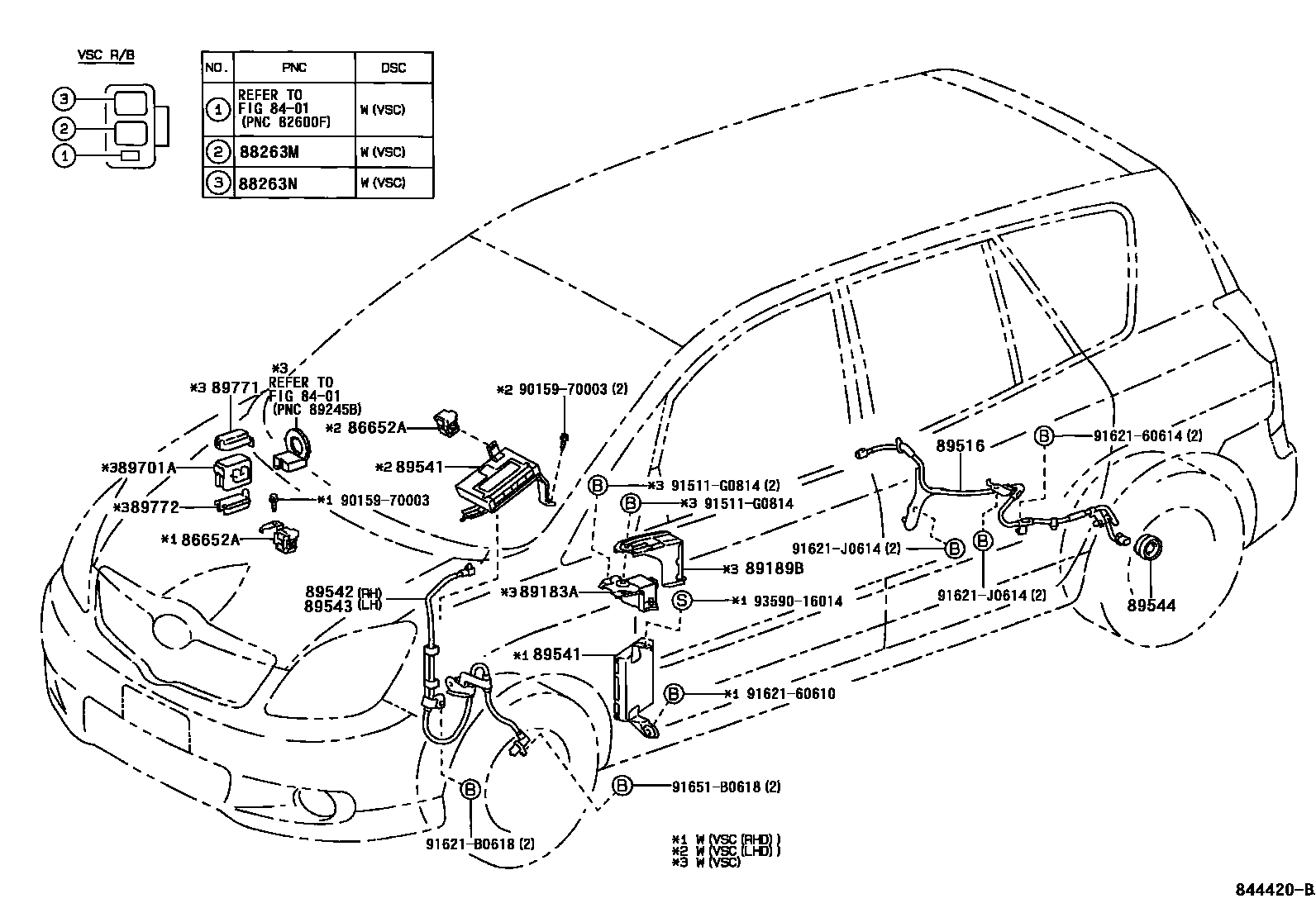

Toyota COROLLA ABS 和 VSC EPC diagram — 844420C
ABS 和 VSC — 844420C (200109 – 999999)

PNC and OE references

PNCPart nameOE numbers
86652AAnti-skid control buzzer assembly86650-12070 · 86652-51010
88263MABS solenoid valve relay88263-32070
88263NABS motor relay88263-32070
89183AYaw rate sensor89180-12010
89189BYaw rate sensor bracket89189-12020
89516Anti-skid control sensor wiring harness89516-12010 · 89516-12020
89541Anti-skid control ECU89540-13060 · 89540-13061 · 89540-13070 · 89540-13071
89542Right front wheel speed sensor89542-12070
89543Left front wheel speed sensor89543-12070
89544Anti-skid control sensor89544-32030
89701AABS relay box sub-assembly89701-12020
89771ABS relay box upper cover89771-12020
89772ABS relay box lower cover89772-12020
