Toyota COROLLA 电子控制柴油机(ECD) — Figure 8405

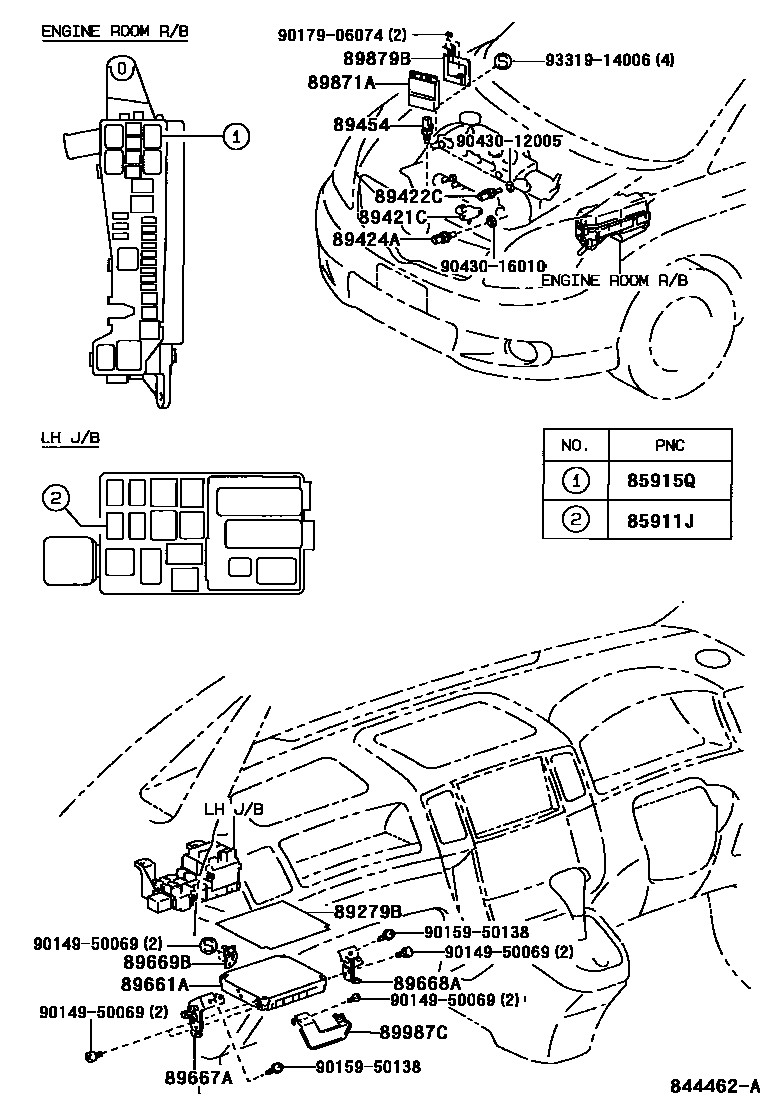

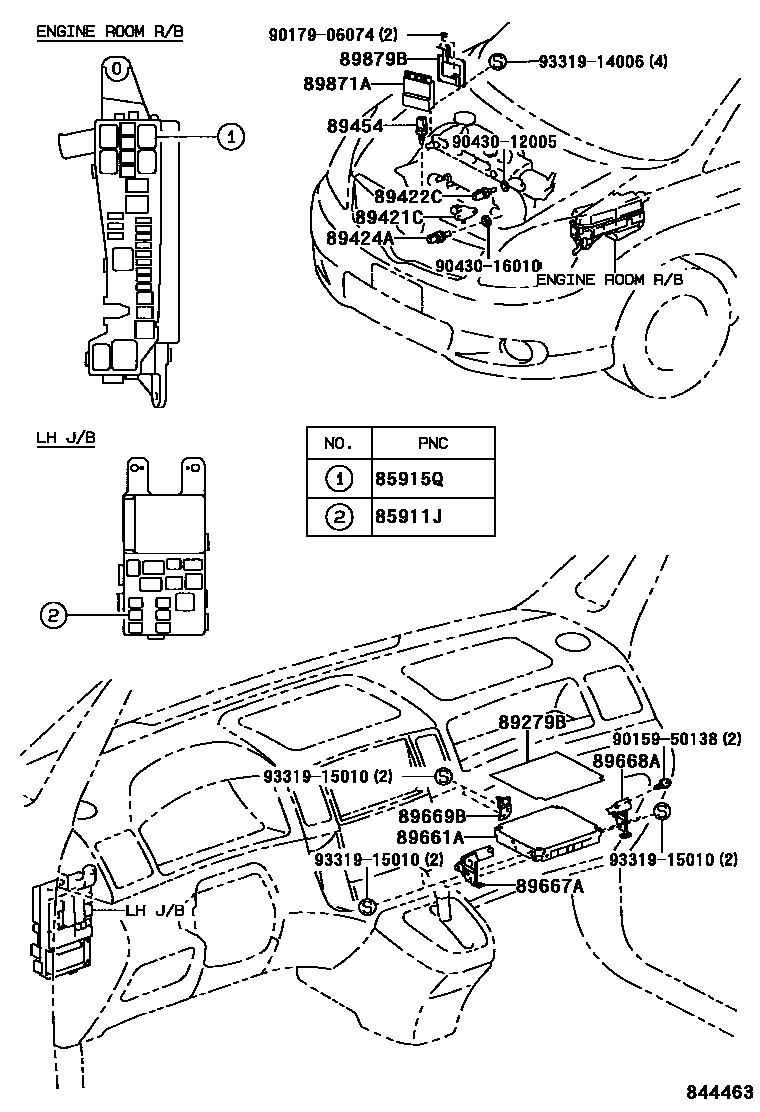

Toyota COROLLA EPC diagram 8405, 电子控制柴油机(ECD), with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85911J | Circuit breaking relay assembly (for ECD) | 90987-02020 |
| 85915Q | ECU relay (for diesel engine) | 90987-02020 |
| 89279B | Diesel engine control ECU cover | 89279-12150 |
| 89421C | Turbo pressure sensor (for diesel turbines) | 89421-20210 |
| 89422C | Diesel engine water temperature sensor | 89422-35010 |
| 89424A | Intake air temperature sensor (for diesel turbine) | 89424-60010 |
| 89454 | fuel temperature sensor | 89454-60010 |
| 89661A | Engine control ECU | 89661-13060 · 89661-13120 · 89661-13130 |
| 89667A | No. 1 engine control ECU bracket | 89667-12190 · 89667-13060 |
| 89668A | No. 2 engine control ECU bracket | 89668-12100 · 89668-13060 |
| 89669B | No. 3 engine control ECU bracket | 89669-12030 |
| 89871A | Injector driver | 89871-20030 |
| 89879B | Injector driver bracket | 89879-13010 |
| 89987C | No.1 ECU bracket | 89987-13010 |
