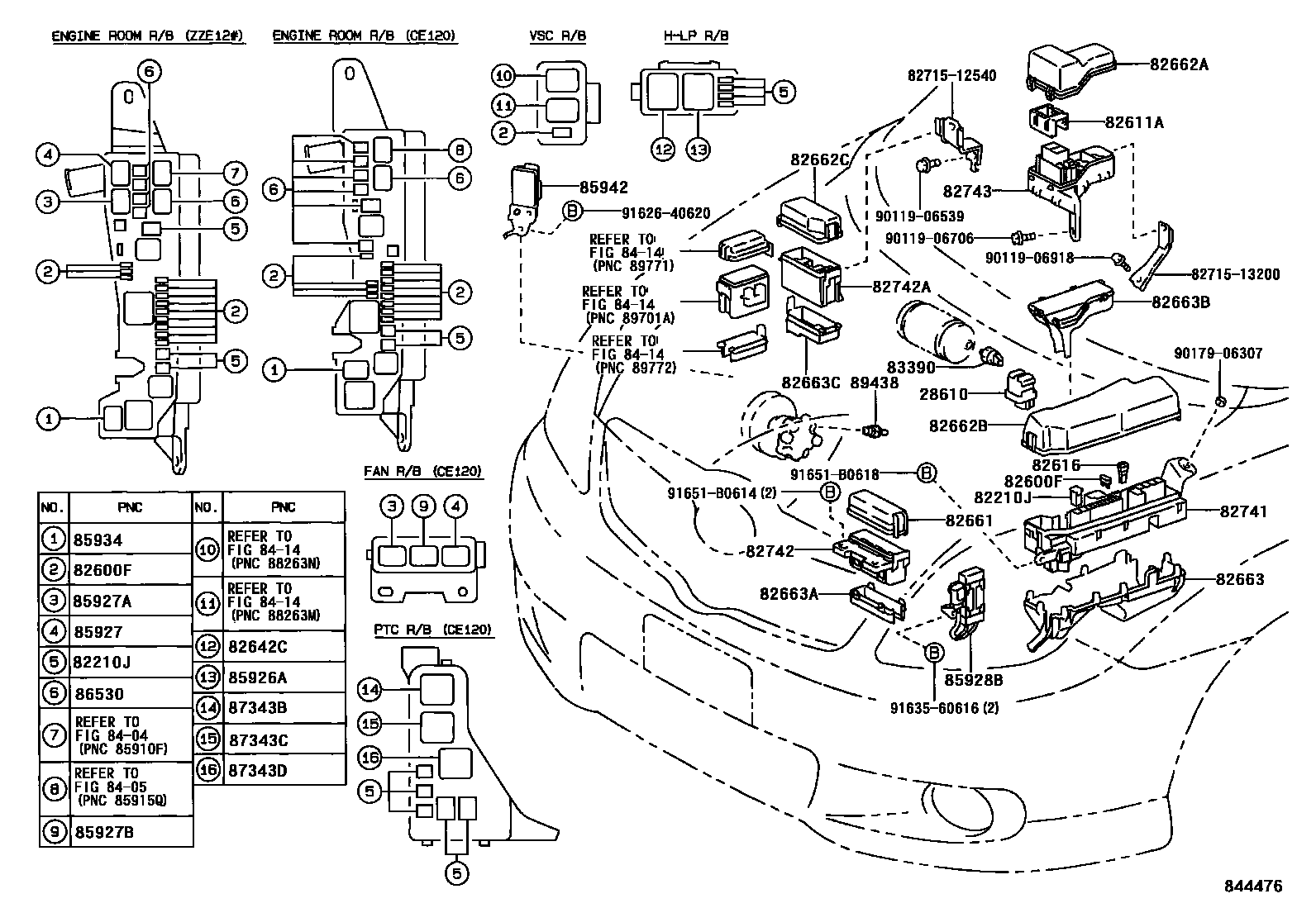

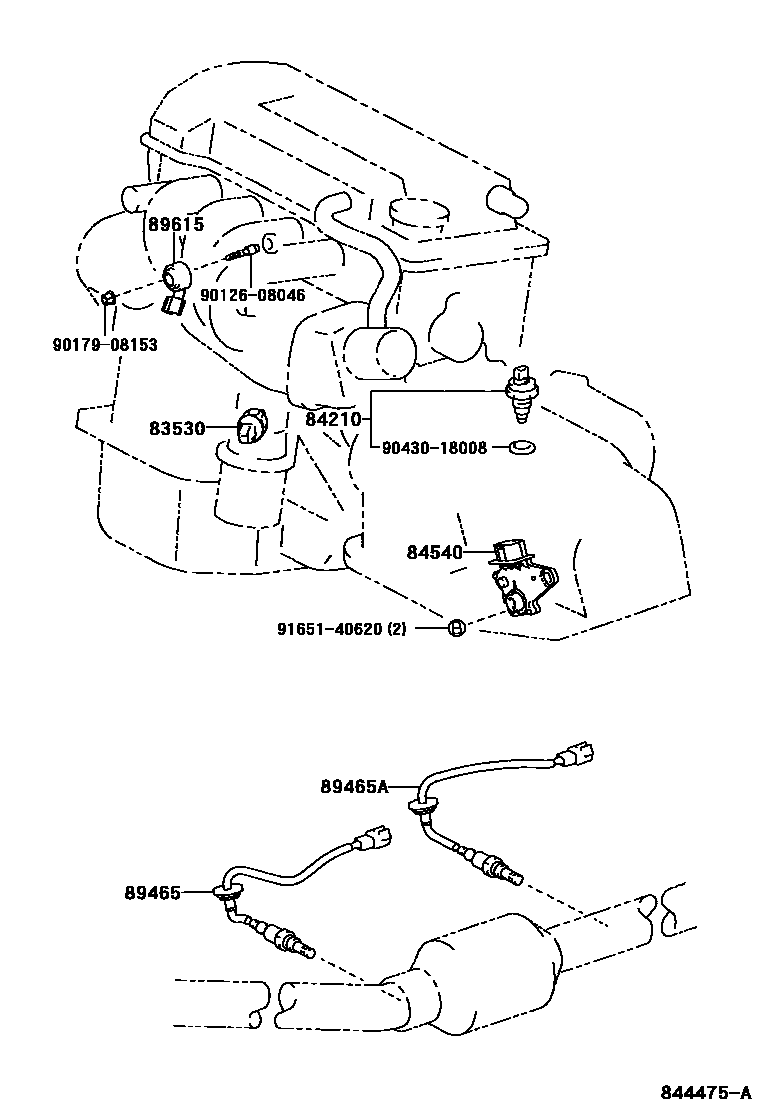

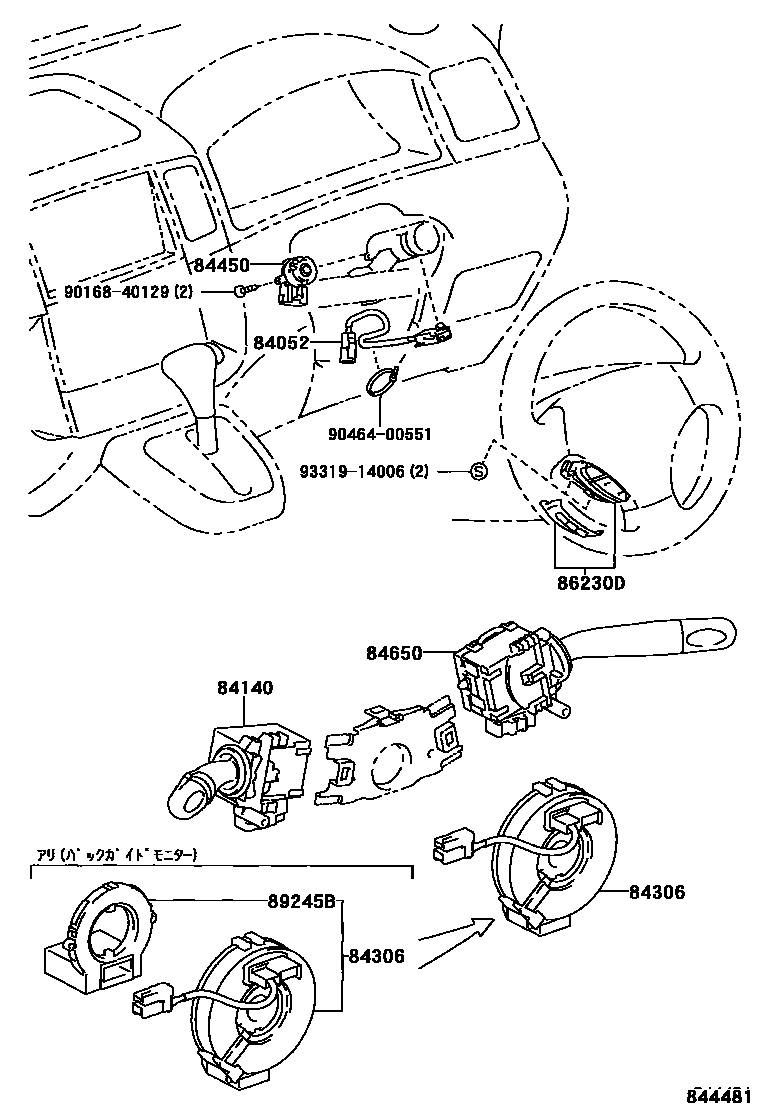

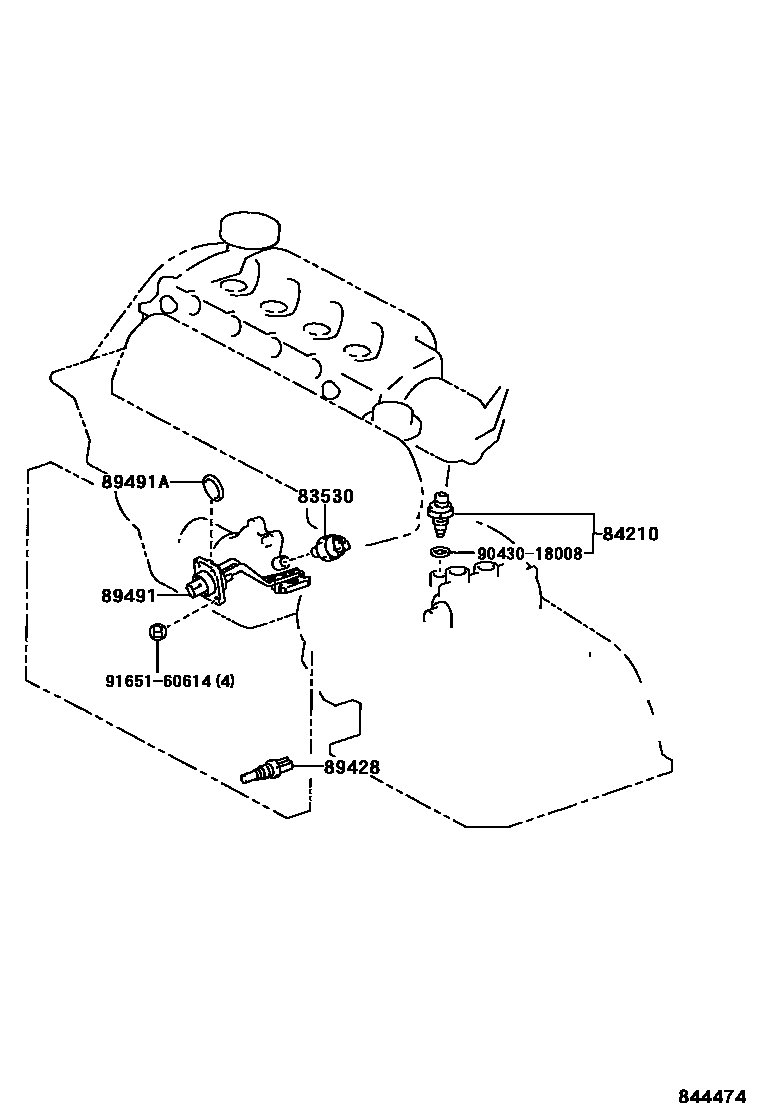

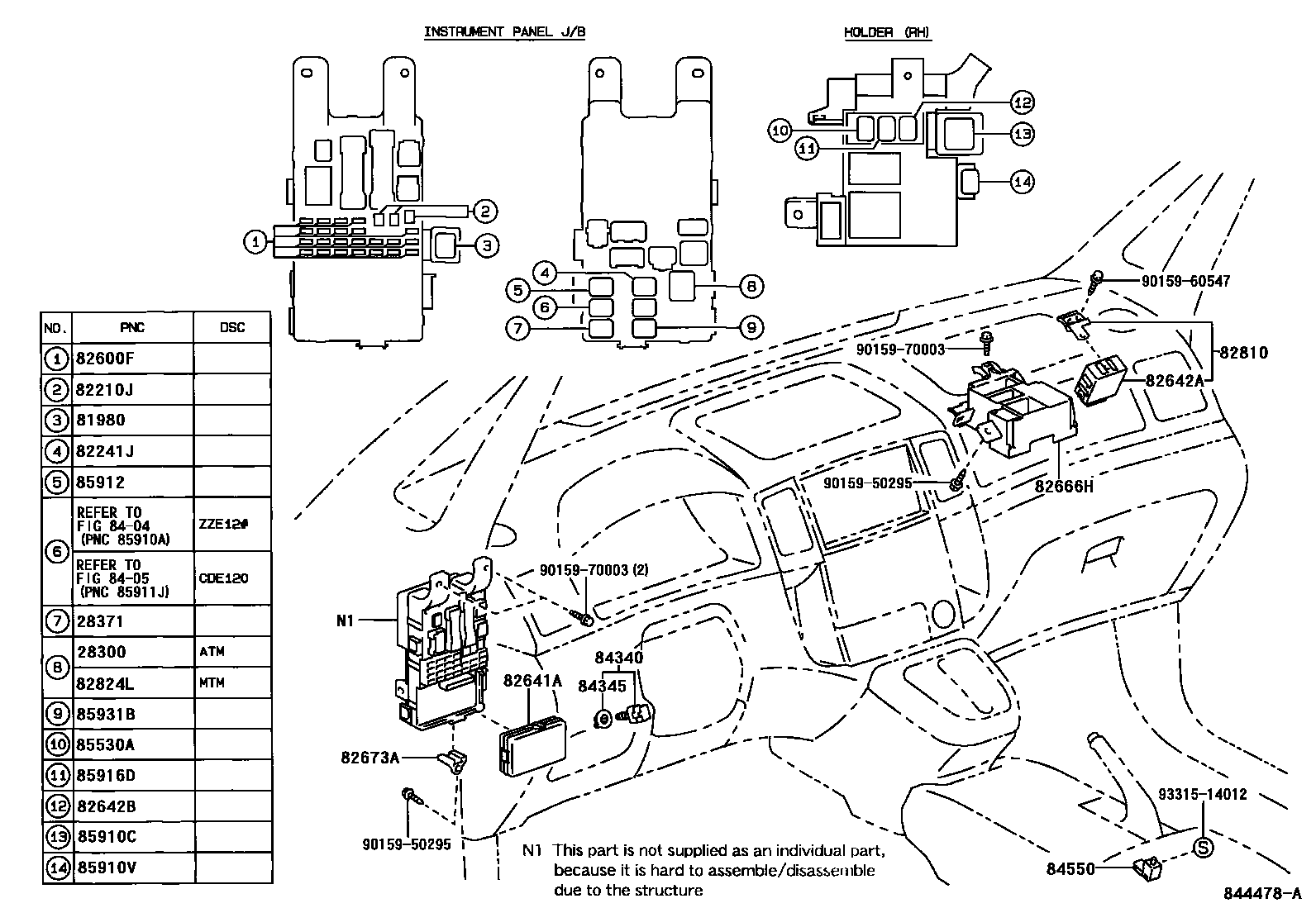

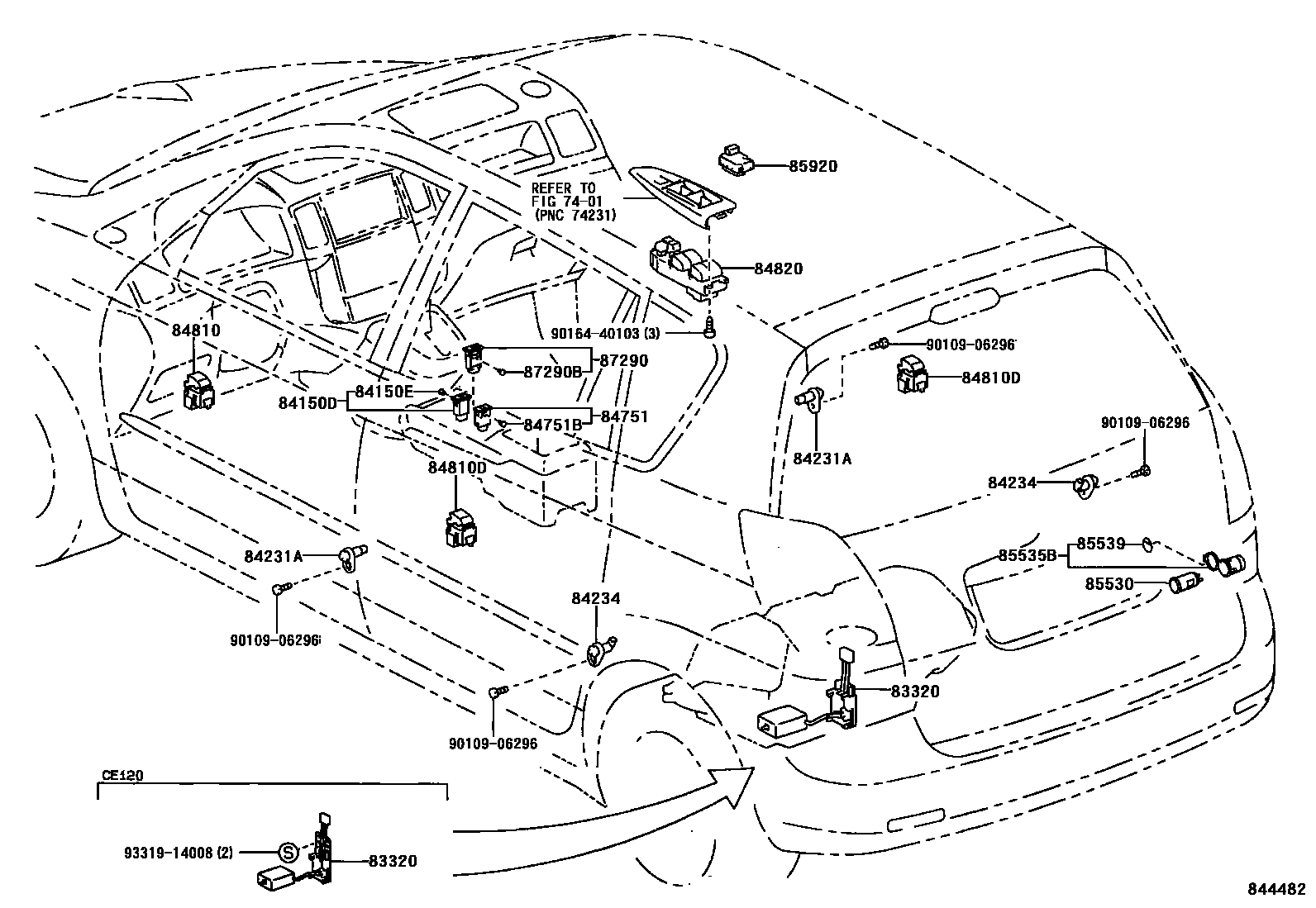

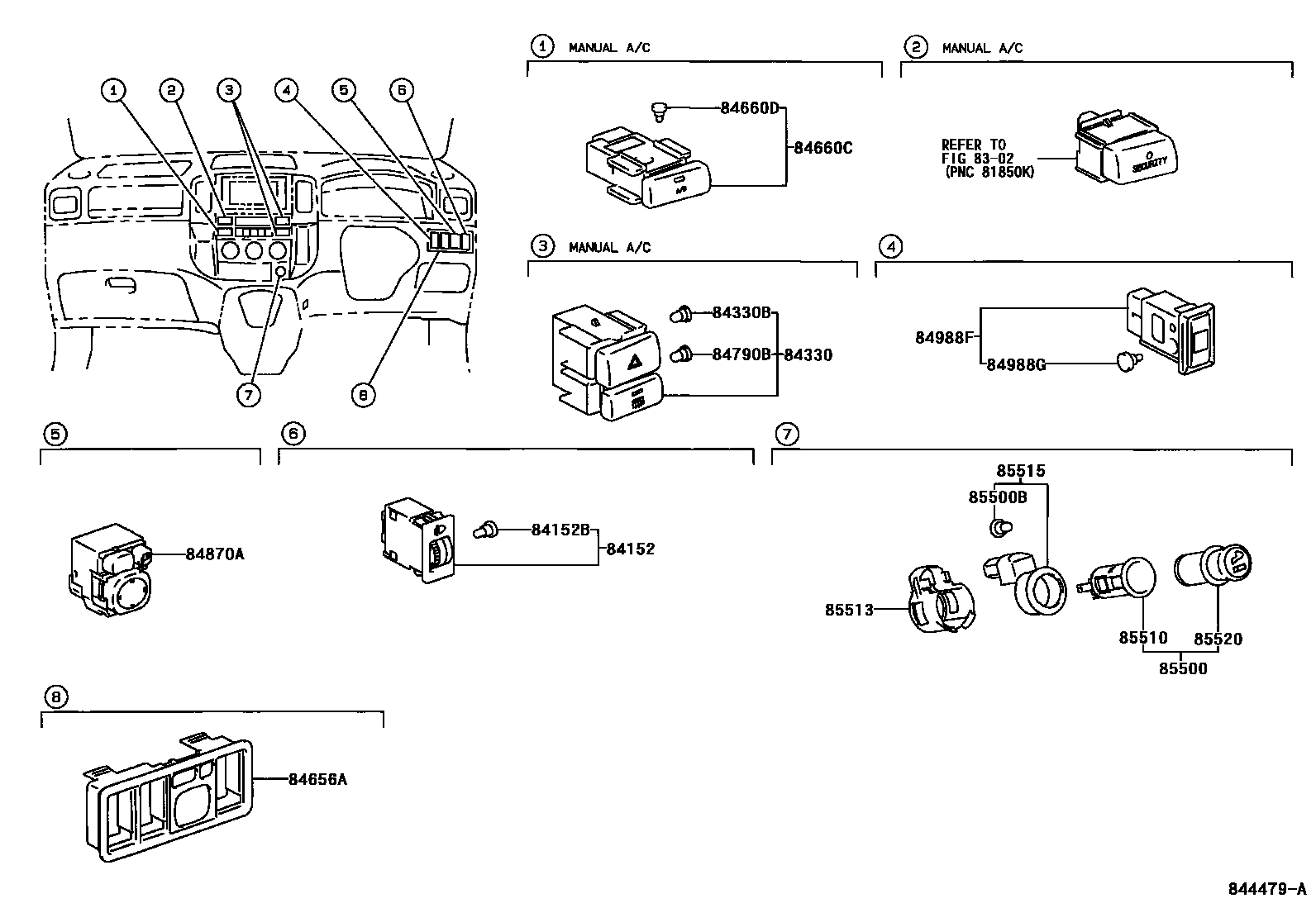

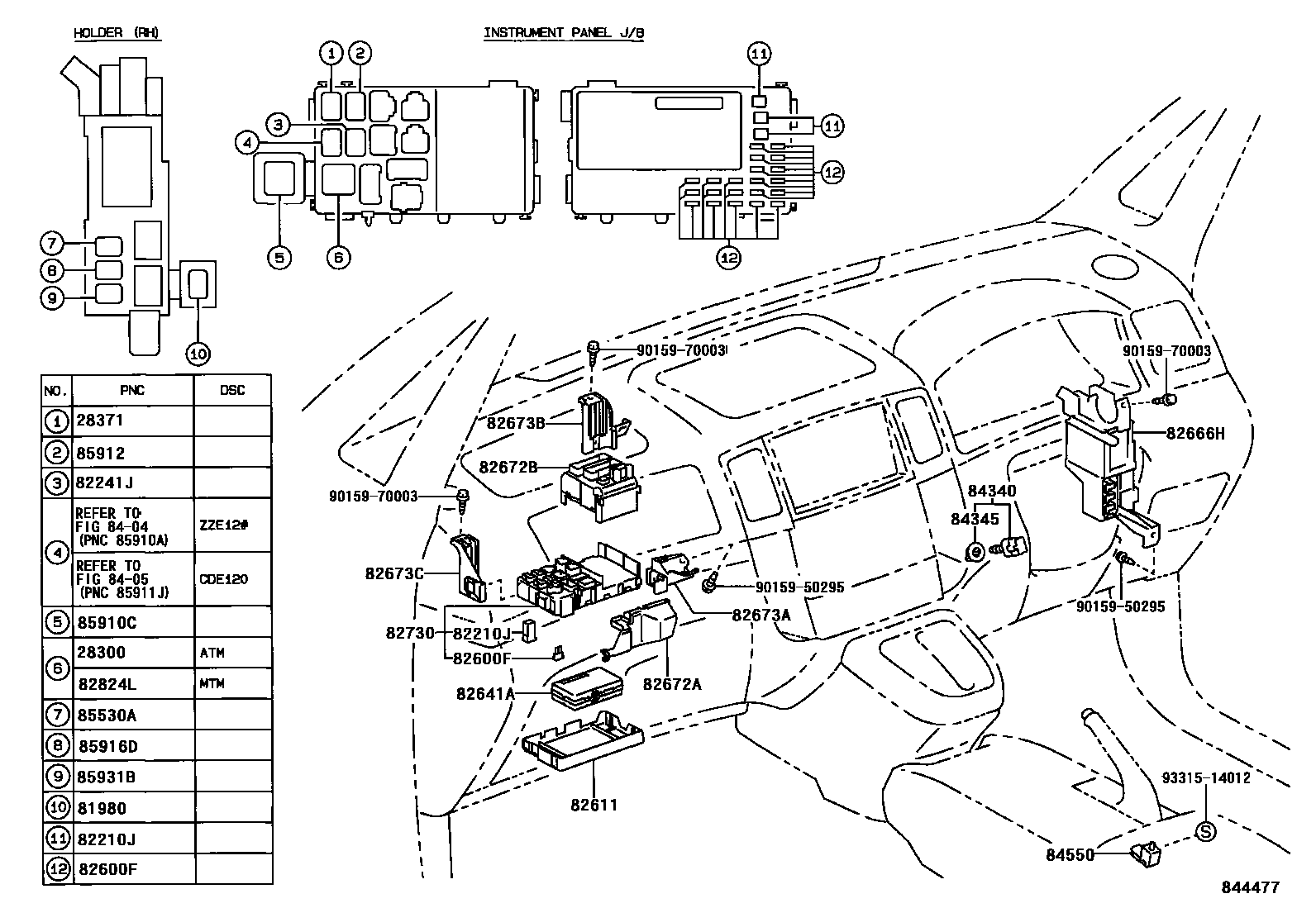

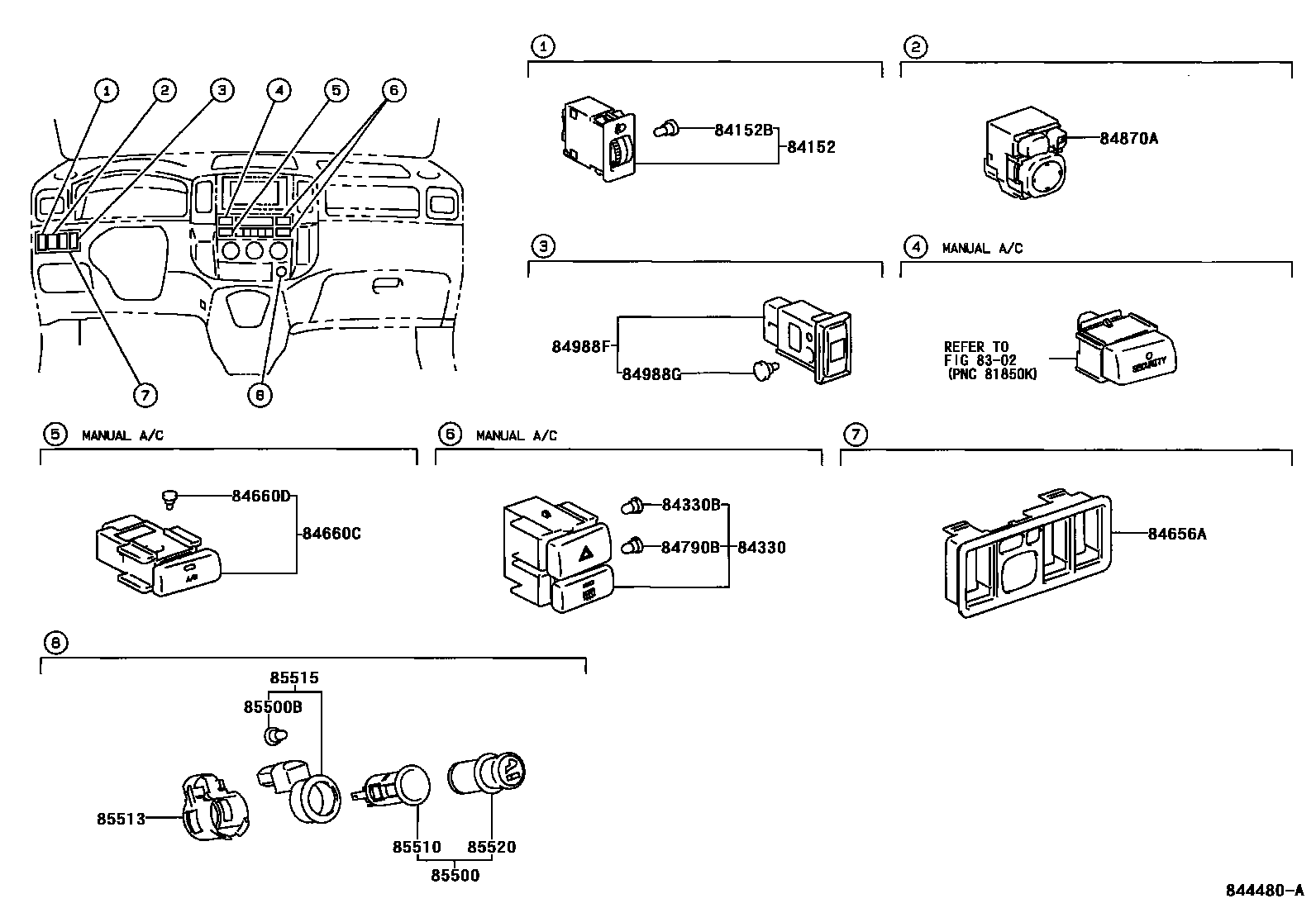

Toyota COROLLA 开关和继电器和ECU — Figure 8401
Toyota COROLLA EPC diagram 8401, 开关和继电器和ECU, with 9 images and 103 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-10020 |
| 28371 | No. 1 ignition relay | 90987-02020 |
| 28610 | Glow plug relay assembly | 28610-67010 |
| 81980 | Turn signal flasher relay assembly | 81980-50030 |
| 82210J | fuse | 90982-08203 · 90982-08246 · 90982-08274 · 90982-08280 · 90982-08281 · 90982-08283 · 90982-08284 · 90982-08285 · 90982-08286 · 90982-09007 |
| 82241J | Shorting pin | 82241-02010 |
| 82600F | Spare fuse | 90982-09007 · 90982-09008 · 90982-09009 · 90982-09010 · 90982-09012 · 90982-09013 |
| 82611 | fuse box cover | 82611-12120 |
| 82611A | No. 2 fuse box cover | 82611-13010 |
| 82616 | fuse puller | 82616-20010 |
| 82641A | Integrated relay with door control | 82641-12200 · 82641-13040 · 82641-13050 |
| 82642A | driving light relay | 82642-12050 |
| 82642B | No. 1 daytime running light relay | 90987-02012 |
| 82642C | No. 2 daytime running light relay | 90987-02016 |
| 82661 | No. 1 relay box cover | 82662-12040 |
| 82662A | No. 1 relay box upper cover | 82662-13080 |
| 82662B | No. 2 relay box upper cover | 82662-13020 · 82662-13050 · 82662-13060 · 82662-13070 |
| 82662C | No. 3 relay box upper cover | 82662-12020 |
| 82663 | Relay box lower cover | 82663-12010 · 82663-12020 |
| 82663A | No. 2 relay box lower cover | 82663-12030 |
| 82663B | No. 3 relay box lower cover | 82663-13020 |
| 82663C | No. 4 relay box lower cover | 82663-12040 |
| 82666H | Connector holder No. 2 | 82666-02100 · 82666-13060 |
| 82672A | Junction box cover | 82672-13050 |
| 82672B | Junction box cover | 82672-12410 |
| 82673A | Junction box bracket | 82673-13030 · 82673-13040 |
| 82673B | Junction box bracket | 82673-13020 |
| 82673C | Junction box bracket | 82673-12070 |
| 82730 | Instrument panel junction box assembly | 82730-12150 |
| 82741 | Engine room relay box | 82741-12020 · 82741-12030 |
| 82742 | Engine room No. 2 relay box | 82741-12040 |
| 82742A | Engine room No. 5 relay box | 82741-12050 |
| 82743 | Engine room No. 3 relay box | 82741-13020 |
| 82810 | Driving light relay assembly | 82810-13060 |
| 82824L | Shorting pin | 82824-30140 |
| 83320 | Fuel gauge sensor assembly | 83320-13170 · 83320-13180 |
| 83390 | Vacuum warning switch assembly | 83390-20180 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-28010 · 83530-28020 · 83530-60010 · 83530-60020 |
| 84052 | Unlock warning switch assembly | 84052-32030 |
| 84140 | Headlight dimmer switch assembly | 84140-13010 · 84140-13020 |
| 84150D | Headlight washer switch assembly | 84150-13020 |
| 84150E | Headlight washer switch bulb | 84999-10320 |
| 84152 | Headlight beam height adjustment switch | 84152-12050 · 84152-12051 |
| 84152B | Bulb (for headlight beam height adjustment switch) | 90010-08103 |
| 84210 | Reversing light switch assembly | 84210-12040 |
| 84231A | door control light switch | 84231-60070 |
| 84234 | Door control light switch assembly (for rear door) | 84231-53010 |
| 84306 | Spiral cable sub-assembly | 84306-44010 · 84306-52020 · 84307-12010 |
| 84330 | Hazard warning signal switch assembly | 84332-12480 · 84332-12490 |
| 84330B | Hazard warning signal switch light bulb | 84999-10310 |
| 84340 | brake light switch assembly | 84340-19015 · 84340-19025 |
| 84345 | Brake light switch base adjuster | 84345-51010 |
| 84450 | Ignition or starter switch assembly | 84450-52010 |
| 84540 | Neutral start switch assembly | 84540-52050 |
| 84550 | Parking brake switch assembly | 84550-33010 |
| 84650 | Windshield wiper switch assembly | 84652-1A830 |
| 84660C | Cooler switch | 84660-12210 |
| 84660D | Light bulb (for cooler switch) | 90010-03059 |
| 84751 | Seat heater switch | 84751-13010 |
| 84751B | Seat heater switch light bulb | 84999-10330 |
| 84790B | Bulb (for rear window defogger switch) | 90010-01079 |
| 84810 | Electric window lift switch assembly | 84030-13030 · 84030-13031 |
| 84810D | Rear electric window lift switch assembly | 84030-13030 · 84030-13031 |
| 84820 | Electric window lift main switch assembly | 84040-13050 · 84040-13051 · 84040-13060 · 84040-13061 · 84040-13070 · 84040-13071 · 84040-13080 · 84040-13081 |
| 84870A | Exterior rearview mirror switch assembly | 84872-52030 |
| 84988F | traction control switch | 84988-13010 |
| 84988G | Traction control switch light bulb | 84999-10320 |
| 85500 | Cigarette lighter assembly | 85500-12240 |
| 85500B | Cigarette lighter bulb | 90010-01015 |
| 85510 | Cigarette lighter socket and fixing bracket assembly | 85510-16040 |
| 85513 | Cigarette lighter cover | 85513-12020 |
| 85515 | Cigarette lighter frame bracket | 85515-47010 |
| 85520 | Cigarette lighter button and cigarette lighter core assembly | 85520-28010 |
| 85530 | No. 1 power socket assembly | 85530-33020 |
| 85530A | power outlet relay | 90987-02012 |
| 85539 | Power socket attention labels | 85539-60020 |
| 85910C | Relay assembly (for heater blower motor) | 90987-04010 |
| 85910V | seat heater relay | 90987-02012 · 90987-02020 |
| 85912 | defogger relay | 90080-87008 · 90987-02012 |
| 85916D | fog light relay | 90987-02020 |
| 85926A | Headlight daytime light dimming relay | 90987-04006 |
| 85927 | cooling fan relay | 90987-02012 |
| 85927A | Cooling fan relay No. 2 | 90987-04004 |
| 85927B | Cooling fan relay No. 3 | 90987-02012 |
| 85928B | Cooling fan resistor | 85928-12010 |
| 85931B | Fuel heater relay | 90987-02020 |
| 85934 | Electromagnetic clutch relay | 90987-02022 |
| 85942 | Headlight washer control relay | 85942-13010 |
| 86230D | Stereo component controller assembly | 86230-13010 |
| 86530 | Speaker relay assembly | 90987-02020 |
| 87290 | Heater switch assembly | 87290-13010 |
| 87290B | Light bulb (for heater switch) | 84999-10310 |
| 87343B | No. 1 heater auxiliary relay (for heater glow plug) | 90987-02016 |
| 87343C | No. 2 heater auxiliary relay (for heater glow plug) | 90987-02016 |
| 87343D | No. 3 heater auxiliary relay (for heater glow plug) | 90987-02016 |
| 89245B | steering sensor | 89245-12010 |
| 89428 | No. 2 temperature detection switch | 89428-20110 |
| 89438 | Power steering oil pressure switch | 89438-33010 |
| 89465 | oxygen sensor | 89465-12620 · 89465-13030 |
| 89465A | Oxygen sensor No. 2 | 89465-12700 · 89465-13040 |
| 89491 | Engine oil level sensor | 89491-44020 |
| 89491A | Engine oil level sensor gasket | 89493-60010 |
| 89615 | knock control sensor | 89615-20090 |
