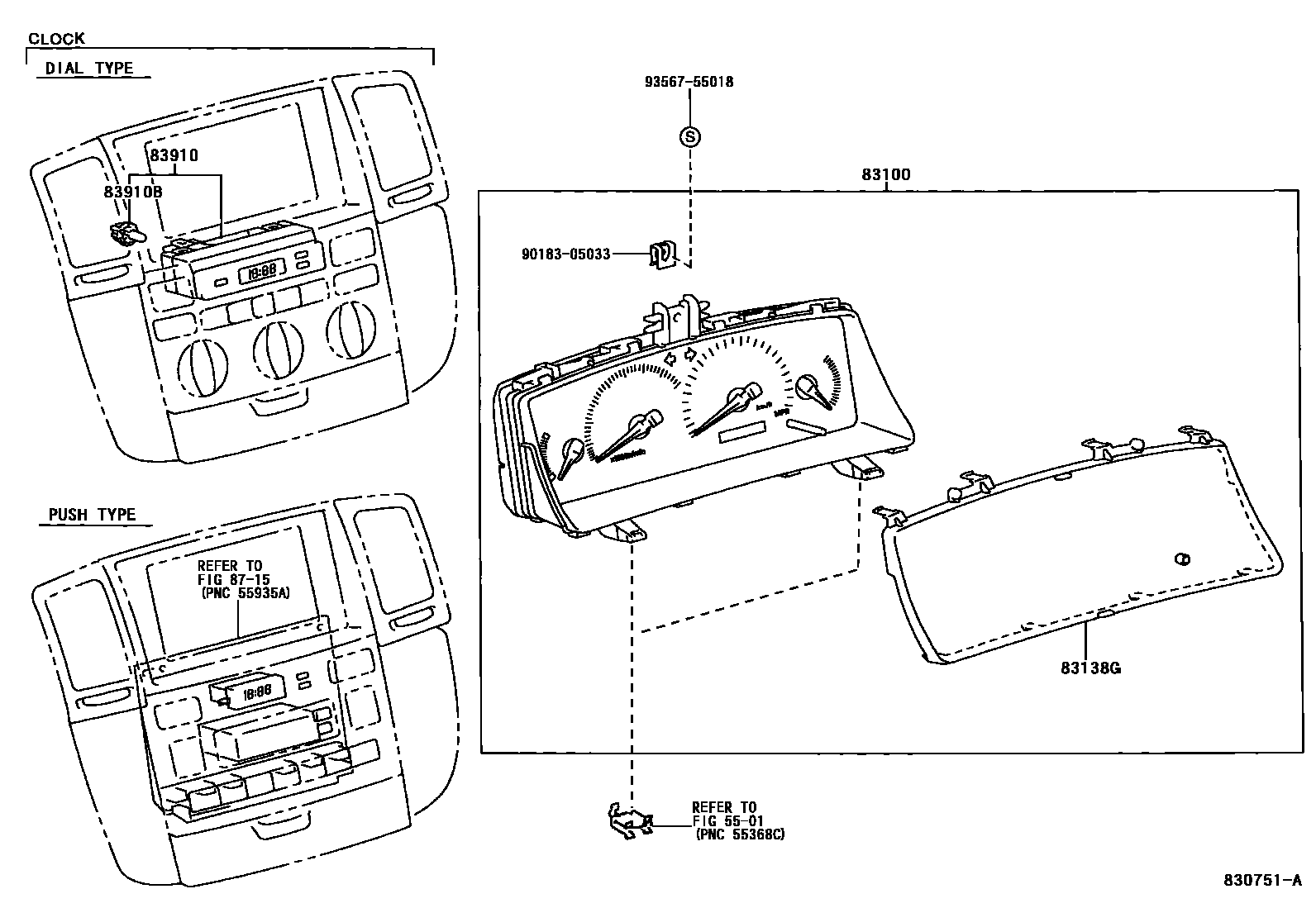

Toyota COROLLA 仪表 — Figure 8301
Toyota COROLLA EPC diagram 8301, 仪表, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83100 | Combined instrument assembly | 83800-13100 · 83800-13110 · 83800-13120 · 83800-13130 · 83800-13140 · 83800-13150 |
| 83138G | Instrument cluster glass | 83852-13100 |
| 83910 | clock assembly | 83910-12580 |
| 83910B | clock indicator light bulb | 90010-07018 |
