Toyota COROLLA 后组合灯 — Figure 8111

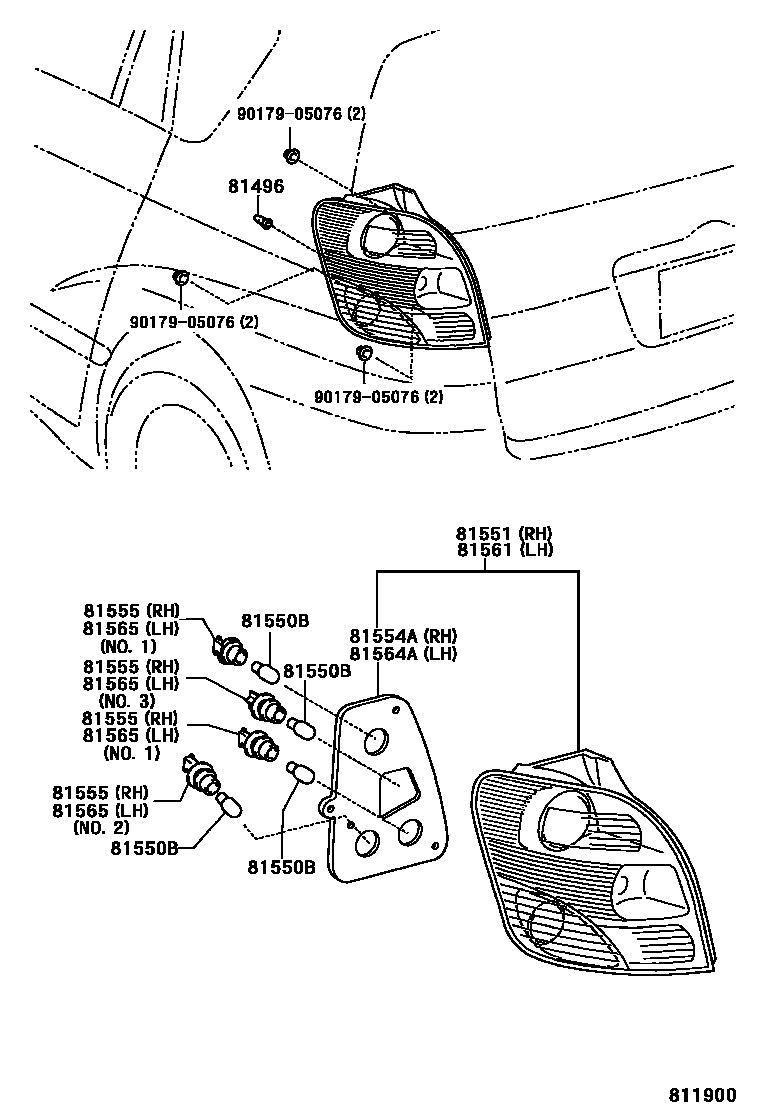

Toyota COROLLA EPC diagram 8111, 后组合灯, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81496-12020 |
| 81550B | Bulb (for rear combination lights) | 90981-11048 · 90981-13043 |
| 81551 | Right rear combination lamp shade | 81551-13530 · 81551-13540 |
| 81554A | No. 1 right rear combination lamp body gasket | 81554-13510 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-13510 · 81555-13520 · 81555-13530 |
| 81561 | Left rear combination lamp shade | 81561-13530 · 81561-13540 |
| 81564A | No. 1 left rear combination light lamp body gasket | 81554-13510 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-13510 · 81555-13520 · 81555-13530 |
