Toyota COROLLA Side Turn Signal & Outer Mirror Lamp — Figure 8106

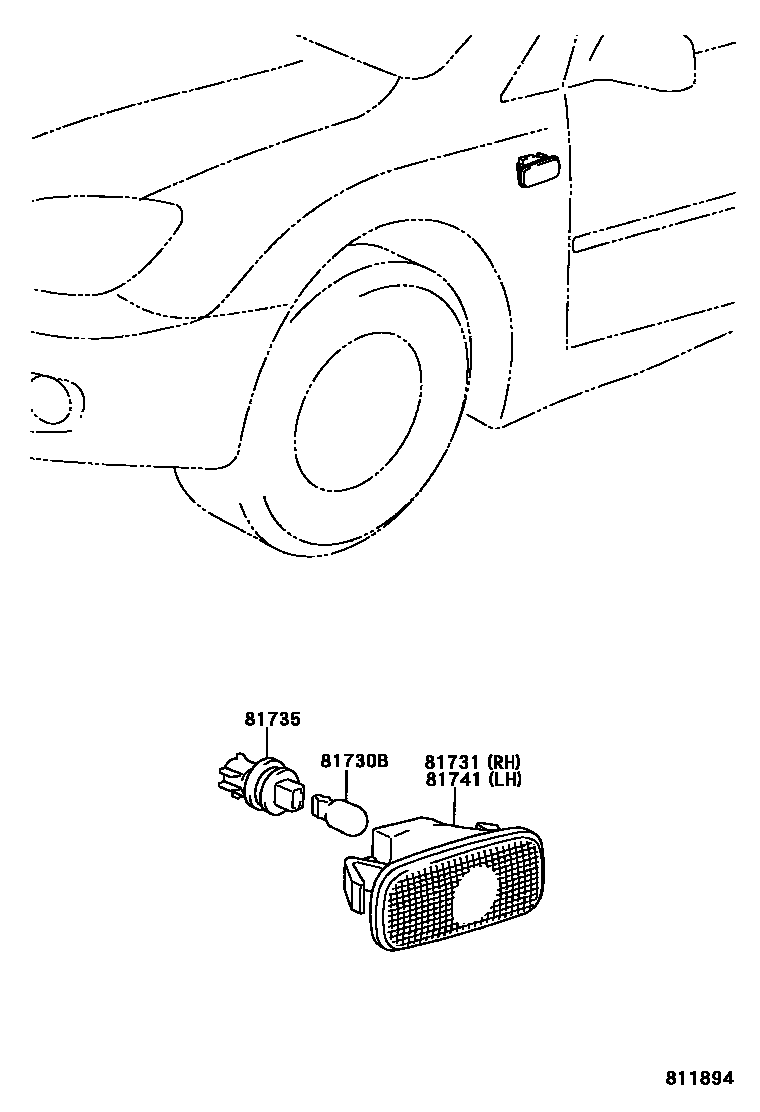

Toyota COROLLA EPC diagram 8106, Side Turn Signal & Outer Mirror Lamp, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81730B | Bulb (for side turn signal lights) | 99132-12050 |
| 81731 | Right side turn signal lamp cover | 81731-53010 |
| 81735 | Side turn signal lamp holder and wiring harness | 90075-60001 |
| 81741 | Left side turn signal lamp cover | 81731-53010 |
