Toyota COROLLA Headlamp — Figure 8101

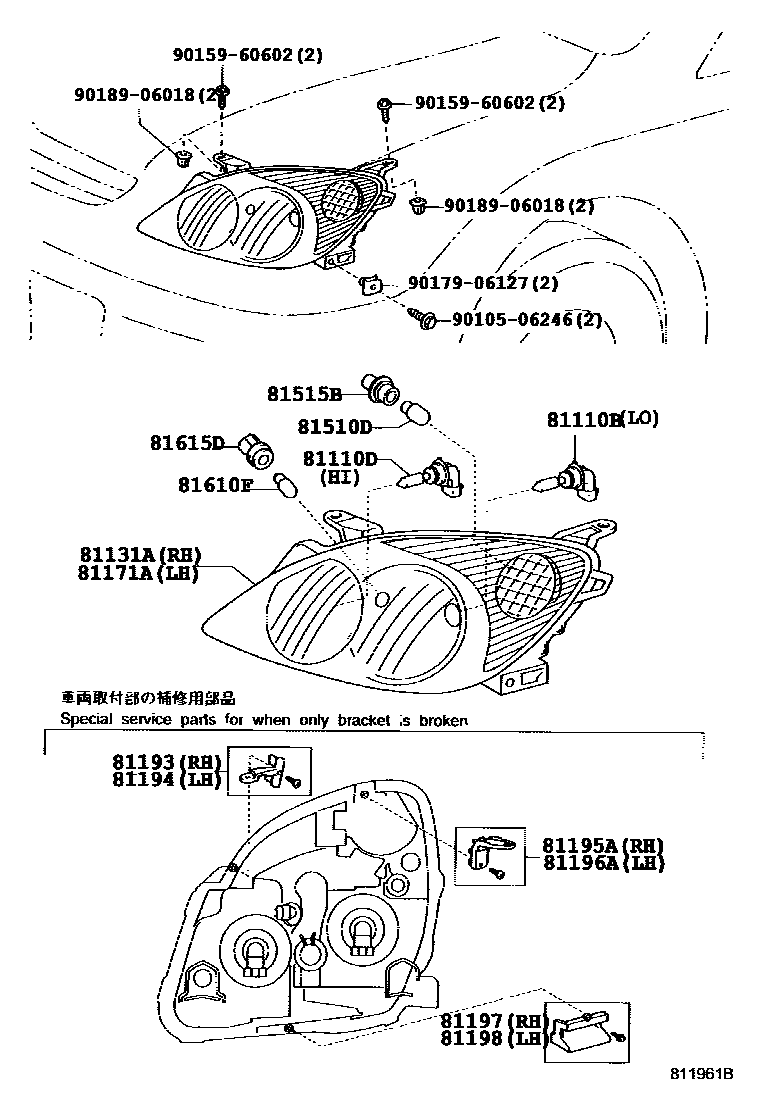

Toyota COROLLA EPC diagram 8101, Headlamp, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110B | Bulb (for headlight No. 1) | 90981-13047 |
| 81110D | Bulb (for headlight No. 2) | 90080-81041 |
| 81131A | Right headlight assembly assembly | 81130-13250 · 81130-13260 |
| 81171A | Left headlight assembly assembly | 81170-13250 · 81170-13260 |
| 81193 | Right headlight upper protective ring | 81193-13010 |
| 81194 | Left headlight upper protective ring | 81194-13010 |
| 81195A | Right headlight lower protection ring | 81196-13010 |
| 81196A | Left headlight lower protection ring | 81196-13010 |
| 81197 | Right headlight lower bracket | 81195-13010 |
| 81198 | Left headlight lower bracket | 81195-13010 |
| 81510D | front turn signal light bulb | 90981-15011 |
| 81515B | Front turn signal lamp holder | 90075-60028 |
| 81610F | Light bulb (for width indicator light) | 99132-12050 |
| 81615D | Width light lamp holder | 90075-60001 |
